Functional Design and User Orientation
The H3-1s is a next-generation wifi6 ont designed to provide high-efficiency connectivity for residential and enterprise broadband users. It supports XPON technology, offering compatibility with both GPON and EPON standards. With 4GE ports, 1TEL, and 2USB interfaces, it enables integrated voice, data, and multimedia services. The dual-band 2.4/5GHz wifi 6 switch functionality ensures extended coverage, stable transmission, and improved interference resistance for dense network environments.
Technical Features and Core Performance
This advanced ont wifi6 device supports AX1800 throughput, delivering up to 1.8Gbps wireless speeds. Equipped with OFDMA and MU-MIMO, it allows simultaneous connections for multiple devices without degradation. The unit features SC/UPC connectors (customizable to SC/APC), low power consumption, and efficient heat management. With configurable firmware, TR069 support, and multiple power adapter standards (US/EU/AR/AU/UK), the wifi 6 ONT ensures adaptability across diverse regional deployments.
Applications and Use Cases
The H3-1s dual-band ONT is suited for FTTH, enterprise offices, and smart home environments. It supports flexible operator branding, quick installation, and global distribution via DHL, UPS, and FedEx. The integration of ont wifi 6 enhances user experience in video conferencing, streaming, and high-bandwidth IoT applications, supporting next-generation broadband access in both residential and business networks.
Product Advantages
Compact Structural Design and User Adaptability
The sleek, minimal design of the H3-1s ensures easy placement within indoor setups. Its dual external antenna design improves coverage stability, while the modular hardware structure allows operators to customize firmware and interface configurations efficiently.
Enhanced Connectivity and Wireless Efficiency
The H3-1s leverages wifi6 ont performance with OFDMA and Beamforming technologies, providing faster, interference-free transmission. Dual-band support ensures optimized performance for both 2.4GHz and 5GHz devices, ideal for multi-user broadband environments.
Flexible Management and Customization Capability
With remote management via TR069 and firmware customization options, the wifi 6 switch simplifies large-scale ISP deployment. Customizable branding, packaging, and interface standards ensure operational efficiency and user satisfaction across global markets.
H3-1s Overview

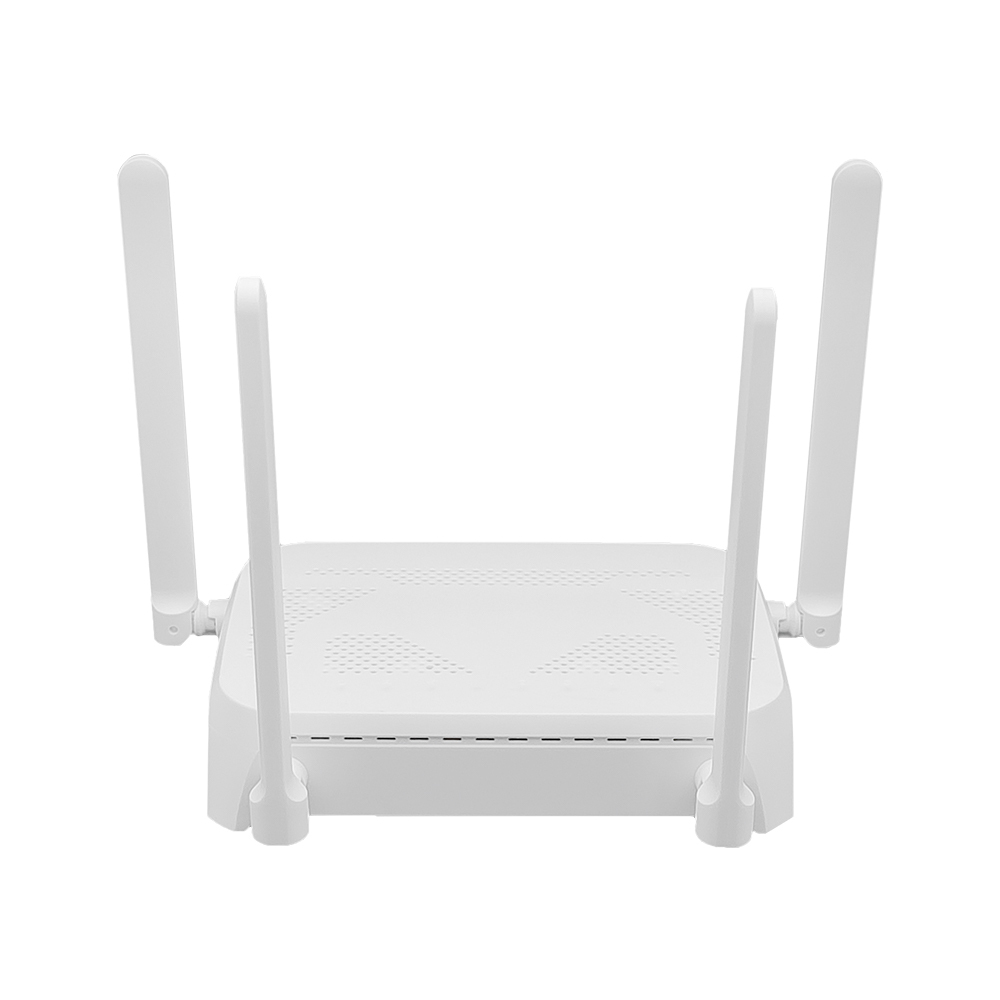

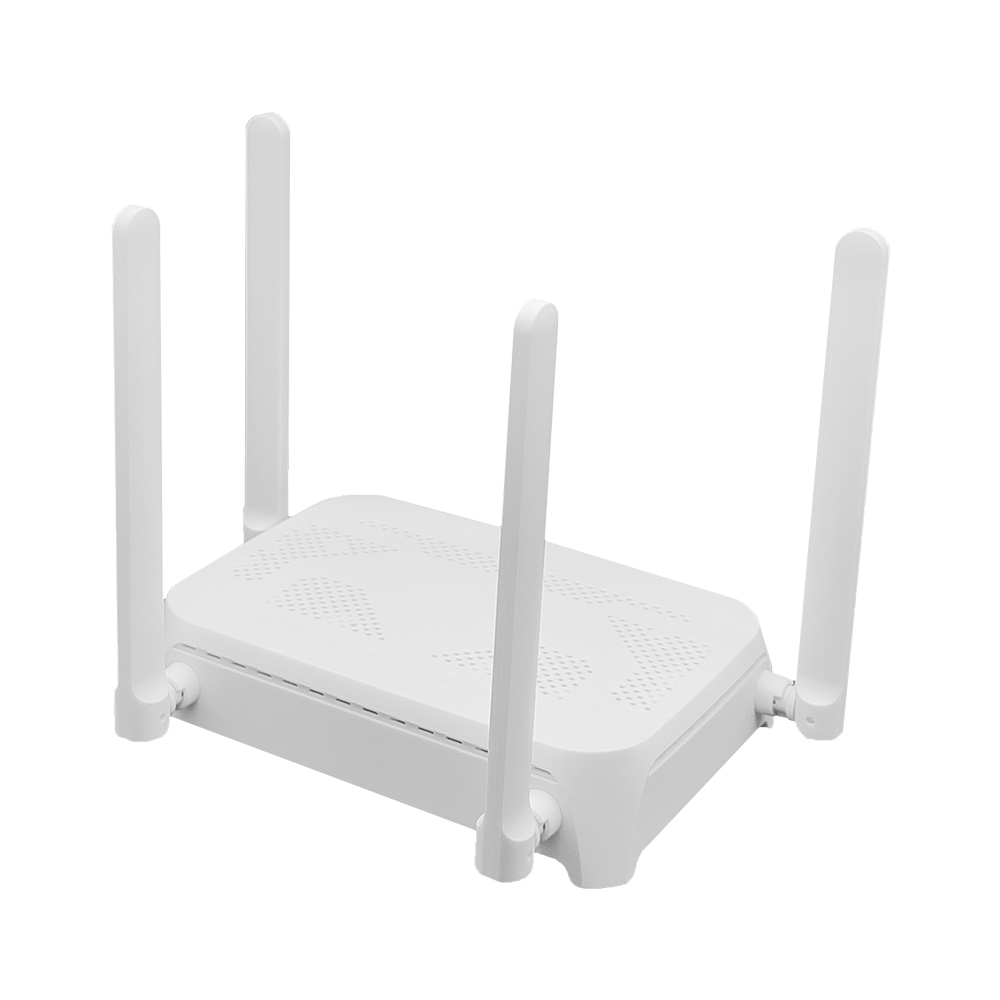

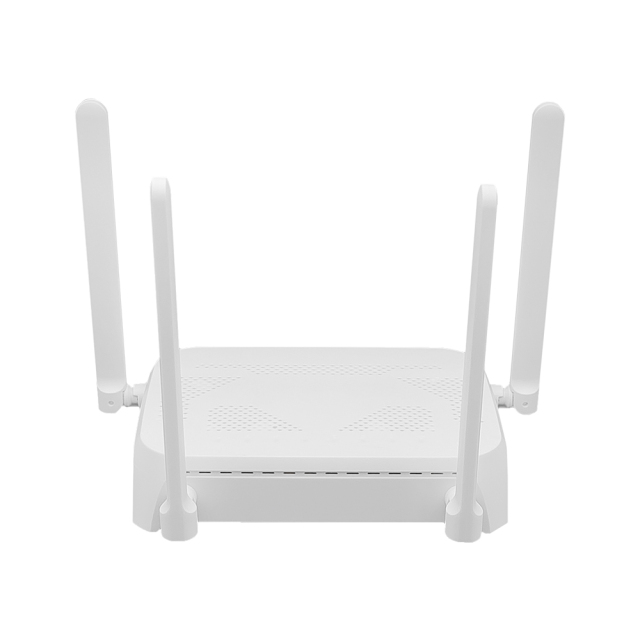

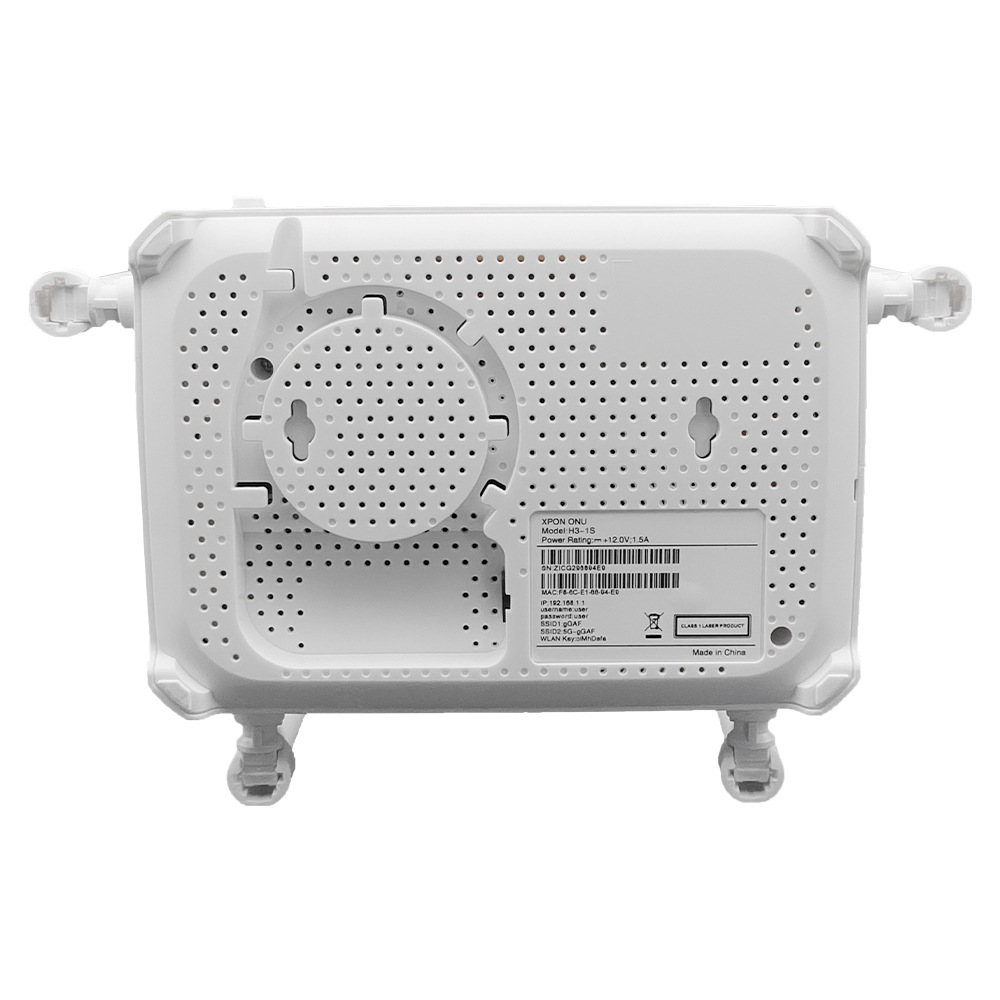

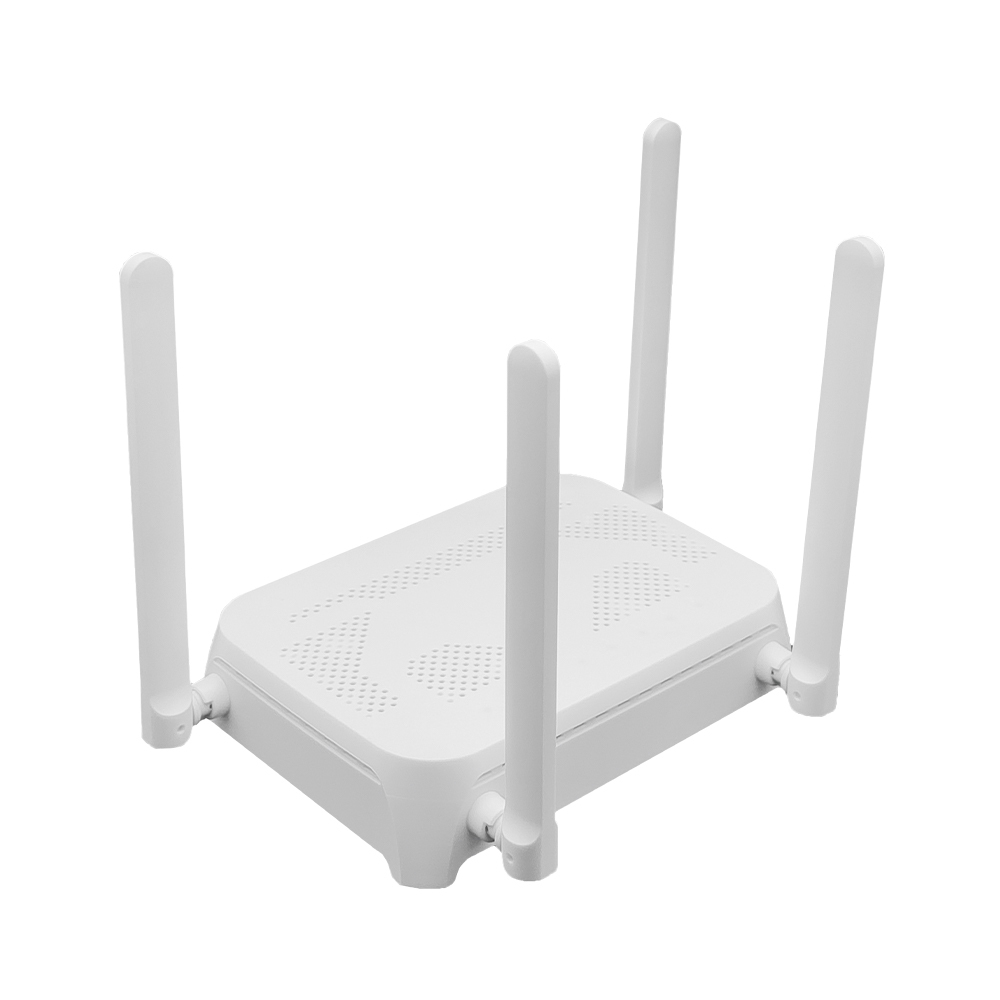

The H3-1s AX1800 WiFi6 XPON ONT is an advanced network device that combines the power of XPON technology with the cutting-edge features of WiFi6. With ultra-fast speeds and enhanced network efficiency, it provides a seamless and reliable Internet experience. Equipped with 4 GE LAN ports, 1 TEL port, and 2 USB ports, it provides high-speed connectivity for a wide range of devices. The H3-1s offers advanced security features, easy installation, and powerful network management options. Experience lightning-fast Internet speeds and superior performance with this feature-rich device.
|

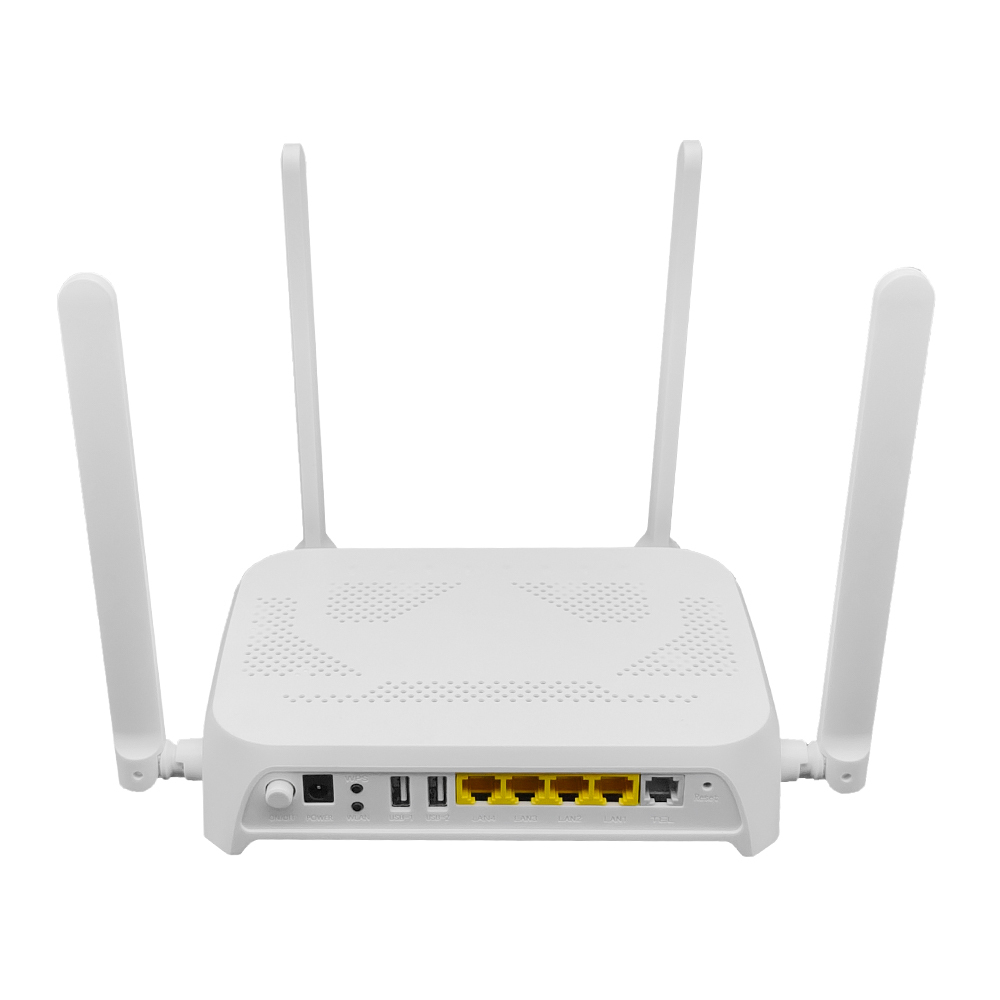

Port
|
GE
|
WAN-SC/UPC
|
TEL
|
USB
|
|
Number
|
4
|
1
|
1
|
2
|
H3-1s Features
1. XPON Technology: EPON, GPON Adaptive WAN Side Networking
2. WiFi 6: Experience the next generation of wireless standards with faster speeds, larger capacity, and better performance.
3. Dual-band WiFi: Supports 2.4GHz and 5GHz bands for optimal wireless performance and connectivity.
4. Multiple Ethernet Ports: Connect multiple devices via wired connections for reliable and high-speed data transmission.
H3-1s Datasheet
|
Basic Parameters
|
|
Ports
|
2 x POTS + 4 x GE + 2.4G/5G 11ax Wi-Fi + 2 x USB
|
|
SC/UPC XPON
|
|
Working environment
|
Operating temperature: 0ºC to 40ºC
|
|
Environment humidity: 5% to 95% (noncondensing)
|
|
Static power consumption
|
5.3 W
|
|
Max. power consumption
|
18 W
|
|
Power specifications
|
Power adapter input: 100 to 240 V AC, 50–60 Hz
|
|
System power supply: 11–14 V DC, 1.5 A
|
|
WLAN
|
2.4GHZ: 802.11n
5GHZ: 802.11ax
|
|
Network-side Port
|
GPON/EPON
|
|
Indicators
|
POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB
|
|
GPON Port
|
• Class B+
• Receiver sensitivity: –27 dBm to –29 dB
• Overload optical power: –8 dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength Blocking Filter (WBF) of G.984.5
• Flexible mapping between the GEM port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
• Type B (single-homing and dual-homing)
|
|
WLAN
|
• IEEE 802.11 b/g/n/ax (2.4G)
• IEEE 802.11 a/n/ac/ax (5G)
• 2 x 2 MIMO (2.4G)
• 2 x 2 MIMO (5G)
• Antenna gain: 5 dBi
• WMM/Multiple SSIDs/WPS
• 2.4G and 5G concurrency
• Air interface rate: 574 Mbit/s (2.4G), 2.402 Gbit/s (5G)
• Beamforming
• Band steering
• DL OFDMA
• DL MU-MIMO
• 1024 QAM
• 160 MHz frequency bandwidth
• WPA3
|
|
Dimensions
(length x width x height)
|
195 mm x 125 mm x 35 mm
|
|
Weight
|
About 400g
|
|
Common O&M
|
• Web UI/TR069
• Variable-length OMCI messages
• Dual-system software backup and rollback
|
About Us
MF Telecom (Guangzhou Mifan Electronic Technology Co., Ltd.) is a trusted global telecom equipment provider offering OLTs, ONTs, switches, and optical modules. Based in Guangzhou, the company integrates R&D, production, and trade to deliver high-quality fiber network solutions. Its collaboration with top brands like Huawei and ZTE enables MF Telecom to support ISPs and enterprises with scalable connectivity solutions, from wifi 6 access terminals to optical backbone systems. With a commitment to quality assurance and global logistics, MF Telecom delivers customized broadband infrastructure and professional service to over 70 countries.
Request your ZTE H3-1s Dual-Band WiFi 6 ONT quote and customization options today!
FAQ – Frequently Asked Questions
What ports does the H3-1s include?
It features 4GE, 1TEL, and 2USB interfaces with dual-band wifi 6 connectivity.
Is the device compatible with GPON and EPON?
Yes, the wifi6 ont supports XPON dual-mode operation.
Can the firmware and logo be customized?
Yes, MF Telecom provides logo, box, and firmware customization.
What is the standard delivery time?
Lead time is approximately 2 working days per 500 units.
Does it support remote management?
Yes, the ont wifi6 supports TR069 for centralized management
