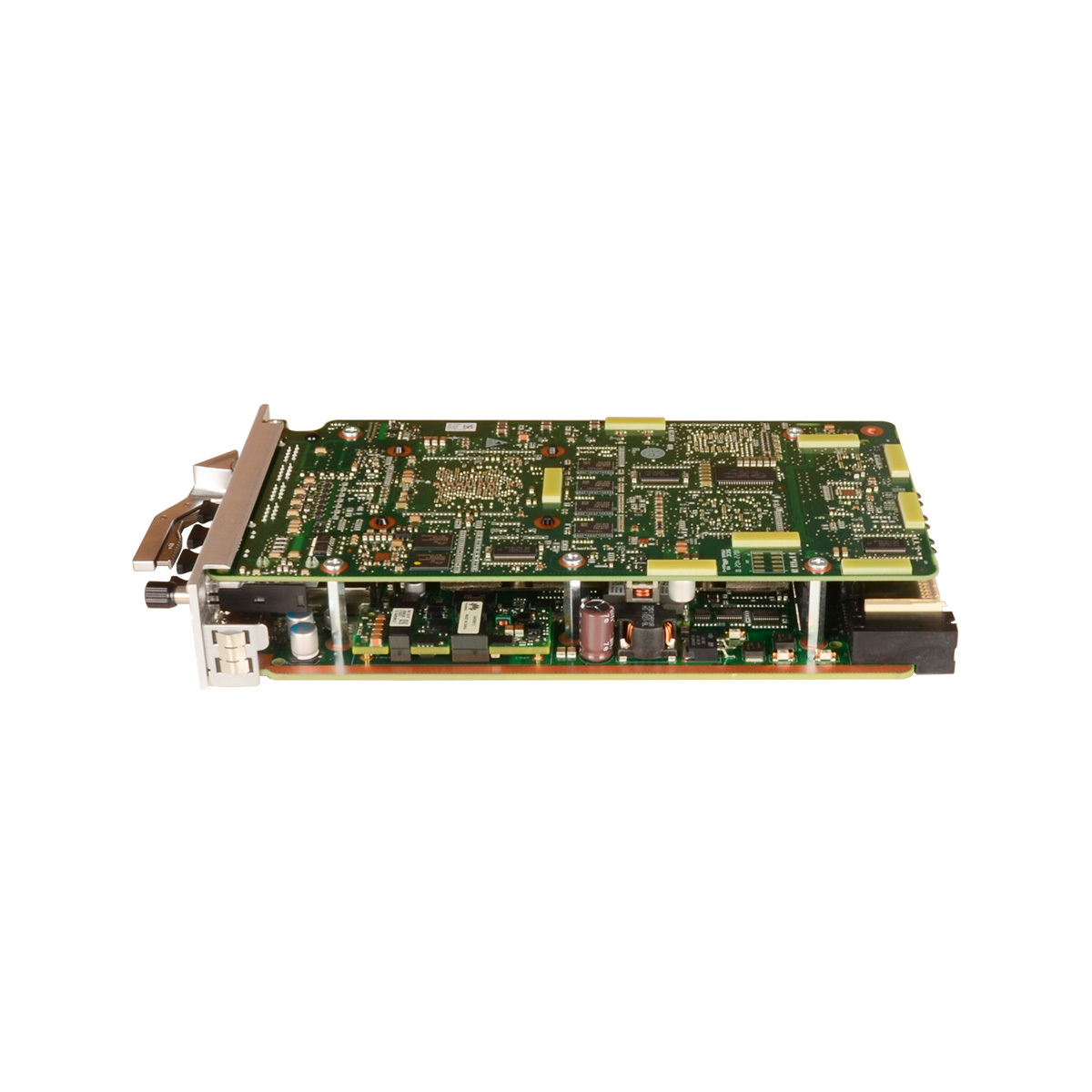

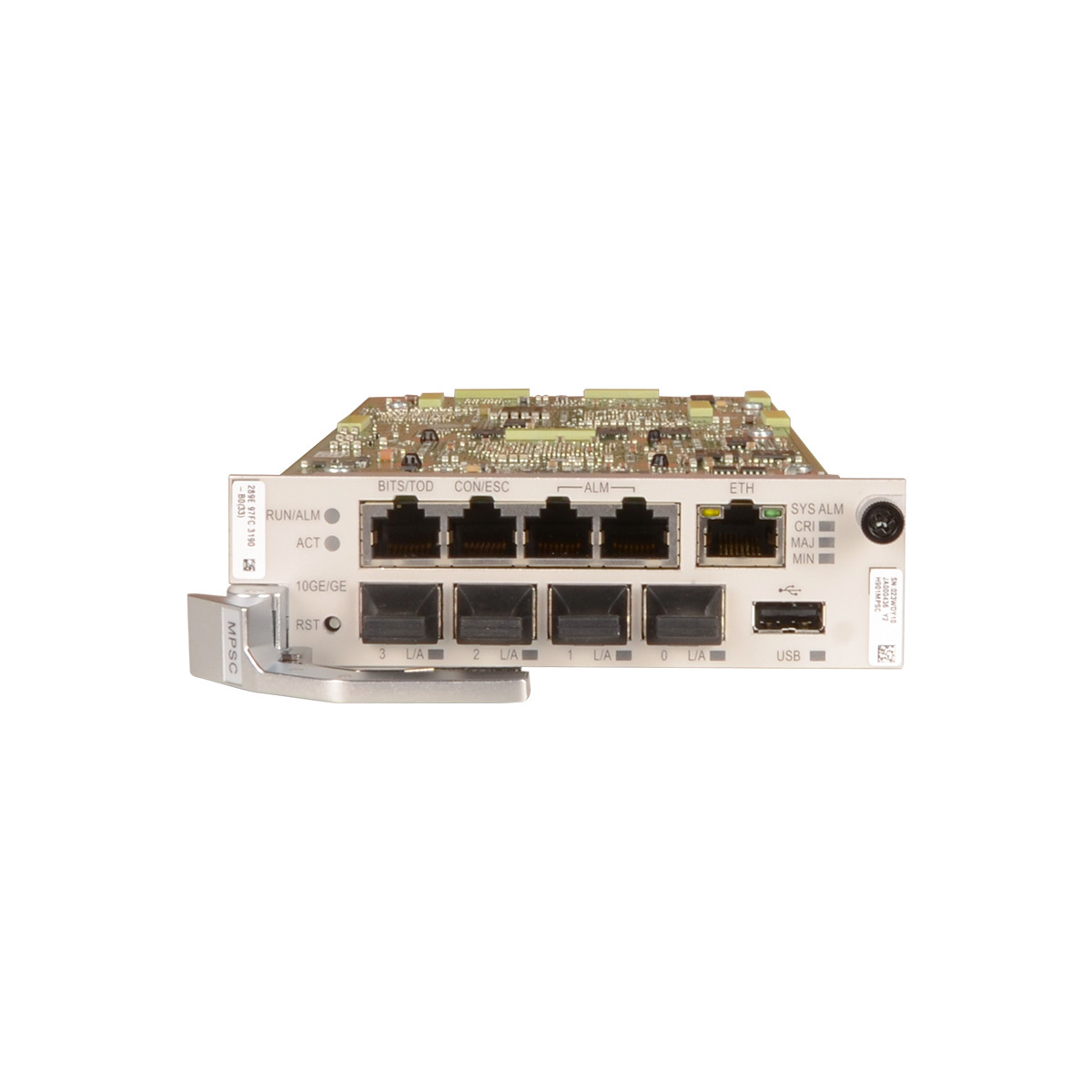

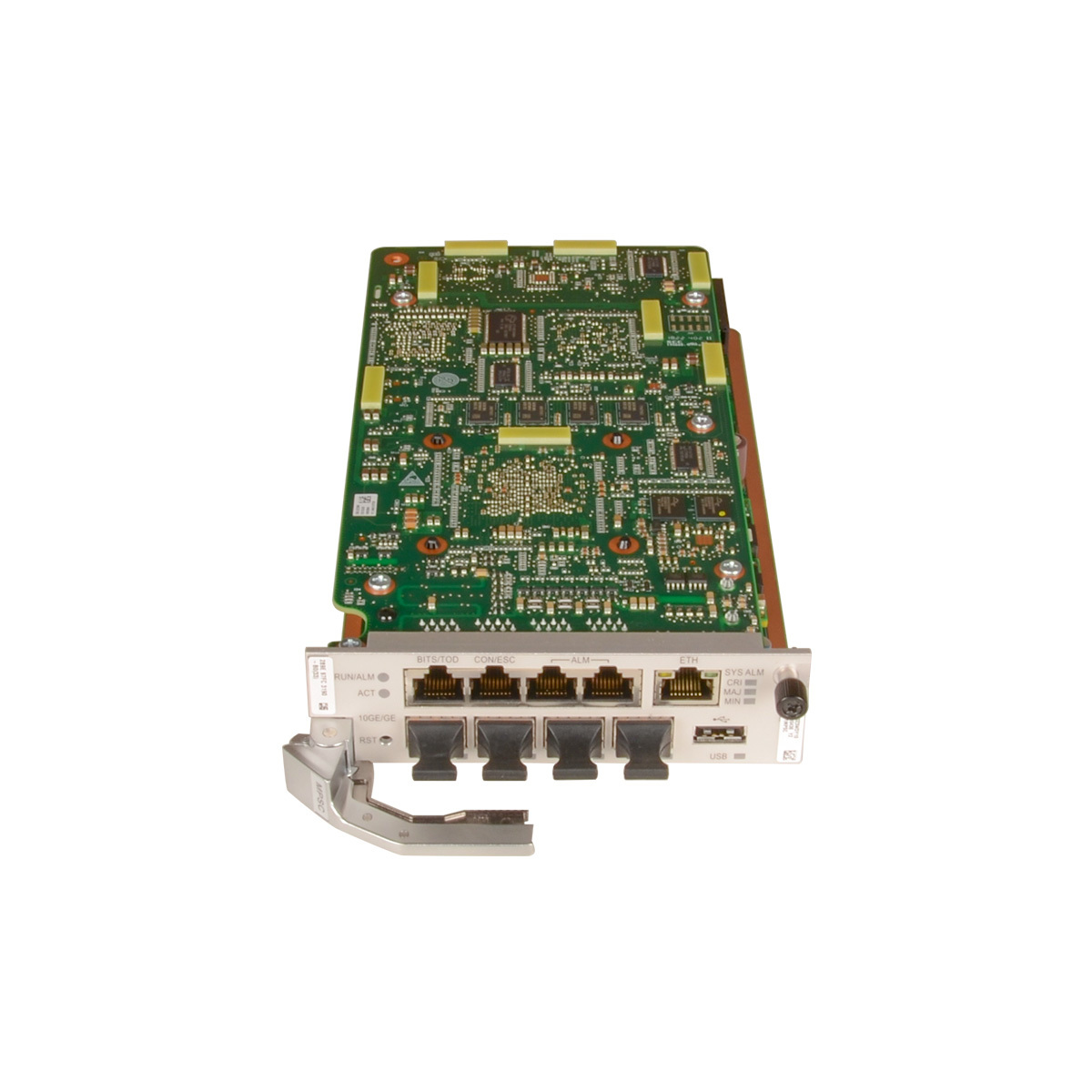

| Huawei MPSC Board Datasheet | |
| Functions and Features | Description |
| Bandwidth per slot (load balancing mode) | 80 Gbit/s |
| Upstream or cascading port | 4 x 10GE/GE ports |
| Maximum number of MAC addresses | 262143 |
| Multicast users | 4096 |
| Static programs | 8192 (V100R017C10 and later versions) |
| Online programs |
V100R017C10 and later versions: IPv4: 8000 IPv6: 2000 |
| Service ports | 32768 |
| IPv4 routing table size | 65536 |
| IPv6 routing table size | 16384 |
| ARP table size |
98816 (V100R017C10) 131072 (V100R018C00 and V100R018C10 versions) 32768 (V100R019C00 and later version) |
| ND table size | 16384 |
| Sync ETH clock | Y |
| 1588ACR | N |
| 1588v2 Synchronization | Y |
| ALM port (Alarm digital parameters) | Y (7 Boolean value inputs and 1 Boolean value output) |
| BITS/TOD port | Y (1 external clock/time input and output) |
| Access ONTs | 4096 |
| Item | Specification |
| Dimensions without packaging (H x W x D) [mm] |
130.36 mm x 35.28 mm x 258.15 mm |
| Weight without packaging [kg] | 0.99 kg |
| Static power consumption [W] | 53 W |
| Maximum power consumption [W] | 67 W |
| Operating temperature [°C] | -40°C to +65°C |
| Maximum Frame Size of Boards (Default) [bytes] | 2052 bytes |
| Maximum Frame Size of Boards (jumbo frame enabled) [bytes] | 9216 bytes |
| Maximum split ratio | N/A |
