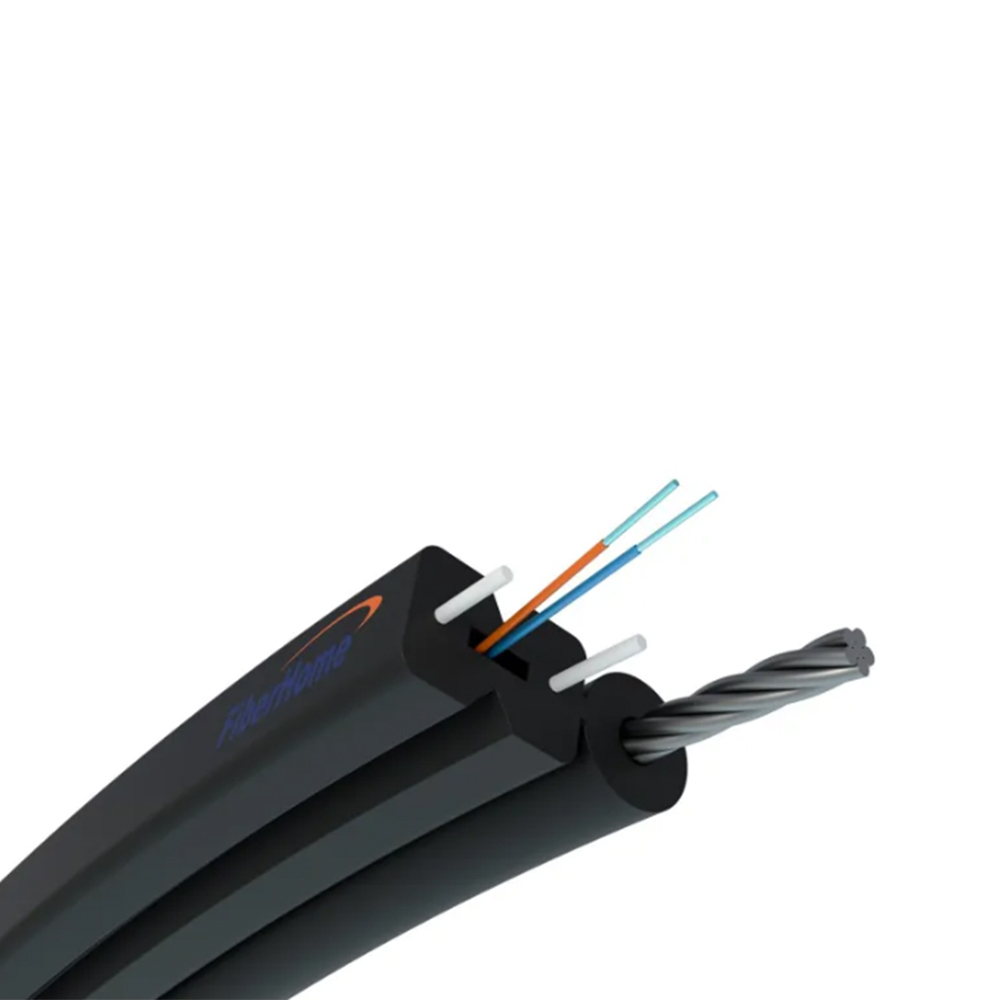

The 2F S-NOTKSP overhead fiber optic cable is a fiber optic cable designed primarily for overhead installations for use in short runs. It is constructed using 2 G.657A1 fibers, directly in the sheath. Two FRP rods made of aramid yarn are a reinforcing element built into the outer jacket to provide the required tensile strength of the cable.
The supporting element is a steel rod. The external LSZH sheath which protects the cable against external aggressions is UV resistant and halogen free.
Key features
G.657A1 fibre
Tensile strength 600 N
Outer sheath LSZH
Two FRP reinforcing bars
Diameter ~ 5.2 mm (± 5%) * (2.0 mm * 3.0 mm (± 5%))
Flat cable
