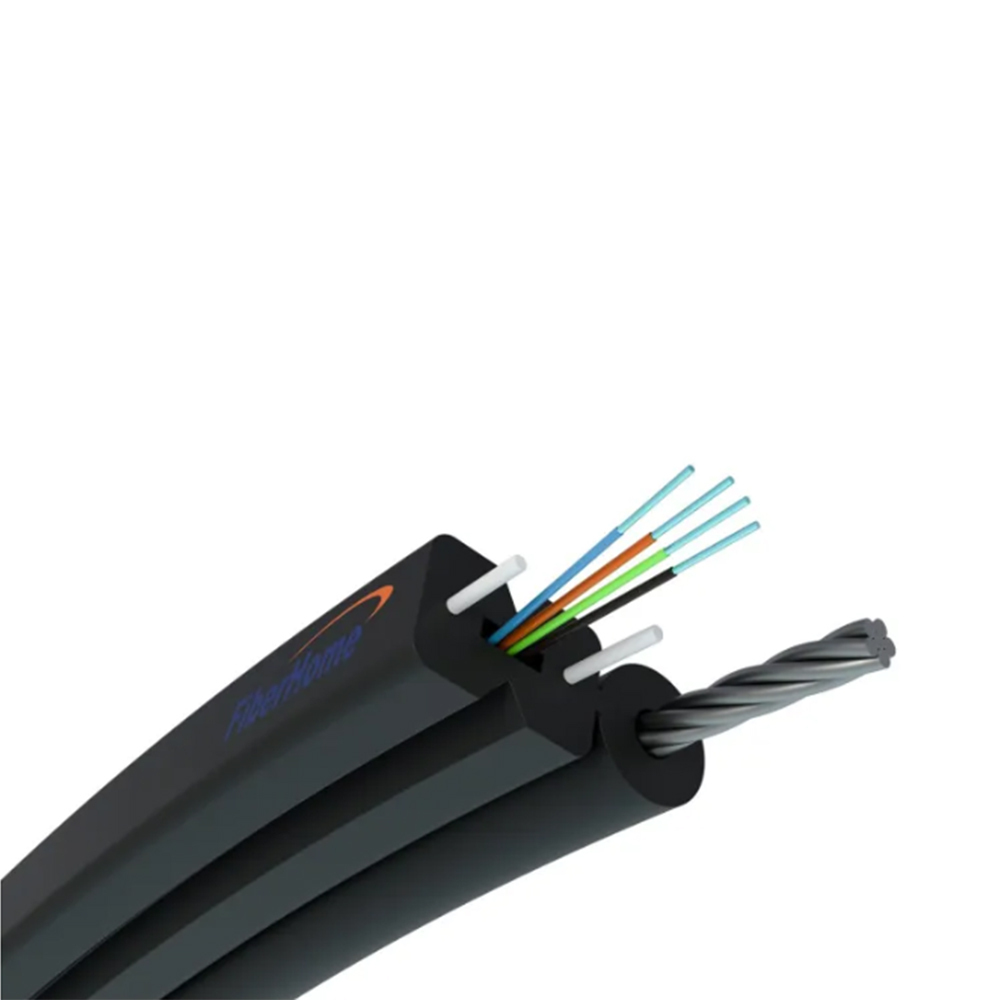

The 4F S-NOTKSP overhead fiber optic cable is a fiber optic cable designed primarily for overhead installations for use over short distances. It is constructed using 4 G.657A1 fibers, directly in the sheath. Two aramid yarn FRP rods embedded in outer jacket are reinforcing element which provides required cable tensile strength.
The supporting element is a steel rod. The external LSZH sheath which protects the cable against external aggressions is UV resistant and halogen free.
Key features
G.657A1 fibre
Tensile strength 600 N
Outer sheath LSZH
Two FRP reinforcing bars
Diameter ~ 5.2 mm (± 5%) * (2.0 mm * 3.0 mm (± 5%))
Flat cable
