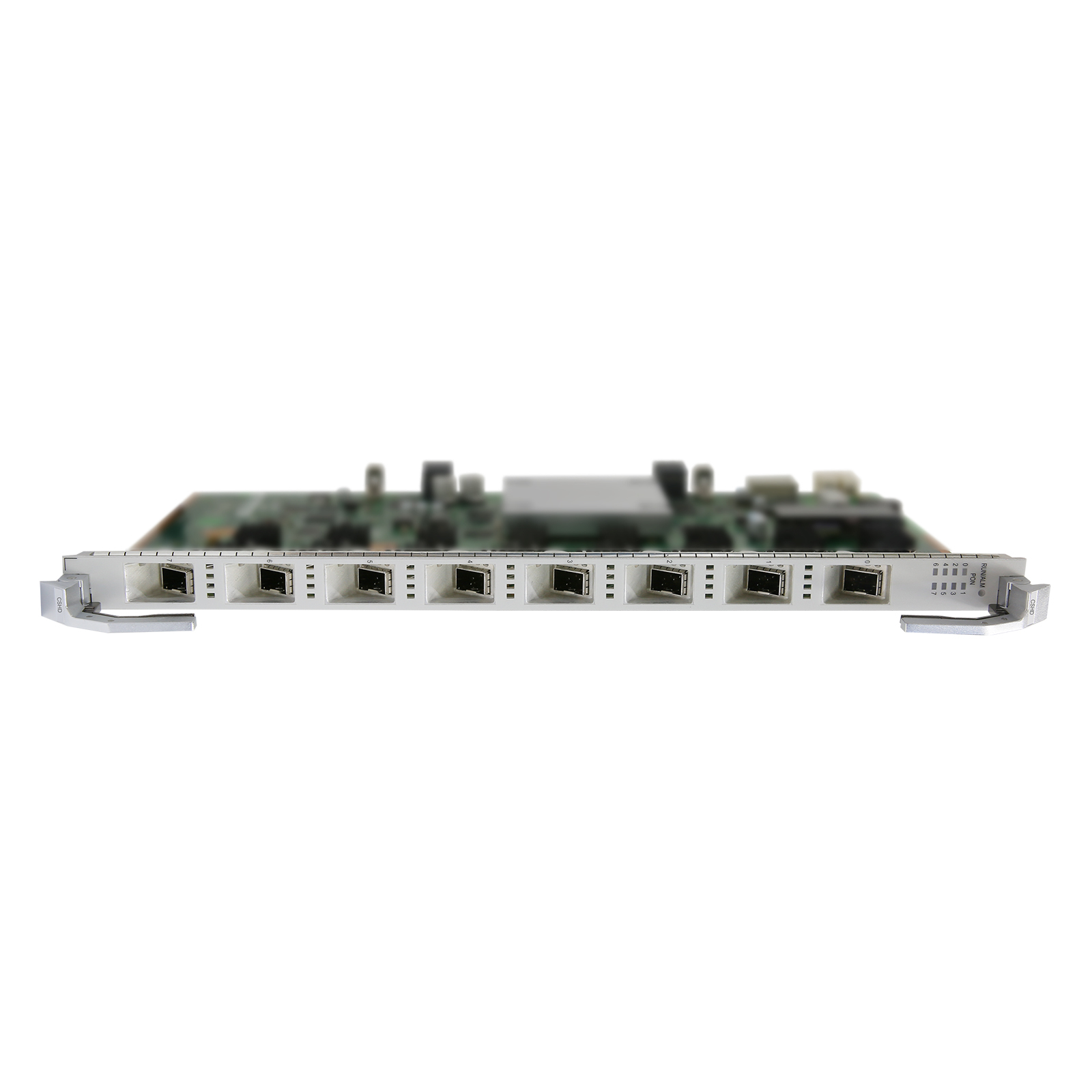

Huawei CSHD boards (like the H902CSHD) are high-density OLT (Optical Line Terminal) interface boards for SmartAX MA5800/EA5800 platforms, featuring combo ports supporting both GPON & XGS-PON, advanced QoS, high reliability (Type B/C protection), security features (MAC/IP filtering, AES encryption), and simplified upgrades for FTTH/FTTB networks, enabling multi-service access for ultra-broadband.
Product Features
Unified Access: Combines GPON (1G) and XGS-PON (10G) on the same board for flexible deployment and smooth evolution.
High Density: Typically 8-port combo interfaces, allowing high-density connectivity in OLT chassis. Advanced QoS: Delivers superior Quality of Service for Voice, Data, and Video (4K/8K/VR) services.
High Reliability: Supports GPON Type B/C protection and Smart Link/Monitor Link for dual uplinks.
Enhanced Security: Includes MAC/IP filtering, source routing filtering, blacklist, and AES 128-bit encryption for GPON downstream.
Seamless Integration: Designed to fit into Huawei's MA5800/EA5800 OLT series for easy network expansion.
Functional Positioning and Target Users in Next-Generation OLT Networks The Huawei CSHD XGS-PON Board serves as an essential interface card designed for telecom operators and service providers requiring flexible, high-capacity optical access terminals. Compatible with Huawei’s MA5800 and EA5800 platforms, this board supports simultaneous GPON and XGS-PON operations, enabling smooth network evolution and service migration. Its dual-mode combo ports allow mixed deployment of 1G and 10G PON interfaces, providing a scalable, unified solution to accommodate FTTH and FTTB expansions. The card targets infrastructure environments demanding stable multi-service access with stringent security and reliability parameters, fulfilling the connectivity needs for diverse residential and enterprise segments.
Technical Specifications and Measurable Performance Parameters Equipped with eight high-density ports, the Huawei CSHD XGS-PON Board delivers symmetric and asymmetric data rates up to 10 Gbit/s on XGS-PON interfaces and up to 2.488 Gbit/s on GPON downstream channels. It supports robust QoS for voice, video, and data streams with advanced scheduling capabilities. Security features include MAC/IP filtering and AES-128 encryption ensuring secure multi-tenant access. The board offers a forwarding capability of 100 Gbit/s and supports jumbo frames up to 9,216 bytes, enhancing throughput performance. Its energy-efficient design operates reliably between -40°C and +65°C, delivering consistent connectivity with built-in redundant protection mechanisms (Type B and C) that guarantee network resilience in demanding conditions.
Industry Applications and Operational Value in Fiber Access Networks In dense urban and suburban environments, the Huawei CSHD XGS-PON Board facilitates cost-effective network upgrades by consolidating multiple PON standards on a single platform. Telecom operators leverage this flexibility to deploy mixed GPON/XGS-PON services, expanding broadband capacities for 4K/8K video streaming and enterprise connectivity. The board’s scalability and high split ratios enable efficient utilization of optical resources while supporting hundreds of thousands of endpoints. Its seamless integration within Huawei’s MA5800/EA5800 chassis streamlines migrations and reduces equipment footprint, providing operational economies and future-proofing network infrastructures for evolving bandwidth demands and service diversification.
Product Advantages
Structural and System-Level Integration Benefits The Huawei CSHD XGS-PON Board is engineered for modular compatibility within Huawei’s MA5800 and EA5800 OLT series, optimizing system density through an 8-port high-density design. Its combo ports accommodate both GPON and XGS-PON standards on the same board, simplifying inventory and deployment strategies. The embedded redundant protection protocols (Type B and C) enhance system reliability, minimizing service interruptions. Physical dimensions and power consumption have been optimized for chassis compatibility, allowing efficient cooling and streamlined rack integration. This structural design ensures the product adapts to various deployment scenarios while supporting scalable network architectures.
Enhanced Performance Features and Operational Usability Performance-wise, the Huawei CSHD XGS-PON Board delivers high-throughput forwarding capability up to 100 Gbit/s, efficiently managing large-scale multi-service traffics including voice, video, and data. Advanced QoS and security mechanisms provide differentiated services and safeguard network integrity. The board supports both symmetric and asymmetric port rates, facilitating flexible bandwidth allocation tailored to user demands. Operators benefit from easy integration into existing Huawei OLT infrastructures and reduced operational complexity due to unified management across PON types. Energy-efficient components reduce operational costs, while robust firmware and hardware guarantee consistent performance under varying environmental conditions.
Application Scenarios
Large-Scale Mixed PON Access for Urban & Suburban Networks (Asia)
A leading telecom operator in India deployed CSHD interface boards with MA5800-X15 OLTs to upgrade its mixed GPON/EPON network across Mumbai and Delhi, covering 400,000 households and 30,000 SMEs. Each CSHD’s 16 dual-mode ports connected to both GPON and EPON ONTs, delivering stable 2.5Gbps downlink for 4K streaming and 1Gbps uplink for remote work. The dynamic routing function optimized traffic to core networks, while VLAN isolated residential and enterprise traffic. With 120 CSHD boards deployed, the operator achieved 480Gbps total access capacity, reducing OLT slot usage by 50% vs. single-protocol boards—seamlessly integrating existing EPON infrastructure with new GPON expansions.
Maximum distance difference between 2 ONUs under the same PON port (board capability) [km]
40km
T-CONTs per port
GPON/auto type ONU: 1024
XG(S)-PON: 2048
Service flows per board
16368
1588v2 Synchronization
Y
9216-byte jumbo frames
Y
CAR group
Y
Bidirectional FEC
Y
Type B protection (single-homing)
Y
Type B protection (dual-homing)
Y
Type C protection (single-homing)
Y
Type C protection (dual-homing)
Y
HQoS
Y
PON ISSU
Y
ONU-based or queue-based shaping
Y
Variable-length OMCI
Y
Rogue ONU detection and isolation
Y
Automatic shutdown at high temperature
Y
Energy conservation for service boards
Y
Dimensions without packaging (H x W x D) [mm]
399.20 mm x 23.30 mm x 257.90 mm
Weight without packaging [kg]
0.95 kg
Static power consumption [W]
26 W
Maximum power consumption [W]
50 W
Operating temperature [°C]
-40°C to +65°C
Maximum Frame Size of Boards (Default) [bytes]
2052 bytes
Maximum Frame Size of Boards (jumbo frame enabled) [bytes]
9216 bytes
Maximum split ratio
GPON: 1:128
XG(S)-PON: 1:256
Use Scenarios
Enabling Metropolitan Telecom Network Upgrades In metropolitan telecommunication environments, operators face increasing demand for high-capacity broadband to support residential and enterprise customers simultaneously. The Huawei CSHD XGS-PON Board plays a pivotal role by enabling mixed GPON and XGS-PON deployments on existing MA5800 and EA5800 platforms. This solution allows gradual network upgrades without full system replacements, maintaining service continuity while expanding bandwidth capabilities. Its compliance with IEEE and ITU standards ensures interoperability and efficient VLAN-based traffic segmentation, important for strict service-level agreements. Integrated into operator workflows, the board supports dynamic traffic routing and proactive fault management, enhancing overall network efficiency and customer satisfaction.
Optimizing Broadband Access in Dense Urban and Suburban Fiber Deployments In dense urban and suburban fiber access networks, the Huawei CSHD XGS-PON Board facilitates scalable bandwidth delivery to a broad range of endpoints, including FTTH and FTTB applications. Its high split ratio capabilities enable cost-effective resource allocation, maximizing fiber utilization amidst growing user density. The board’s security features provide secure multi-tenant access for residential and business customers, while the advanced QoS ensures stable performance for latency-sensitive services such as 4K/8K streaming and enterprise cloud applications. Integrated seamlessly into Huawei’s OLT chassis, it allows simplified network management and supports rapid service provisioning in geographically diverse environments.
FAQ
Q: Which OLT systems is the Huawei CSHD board compatible with?
A: It works with Huawei MA5800 (X2/X7/X15/X17) and EA5800 series OLTs.
