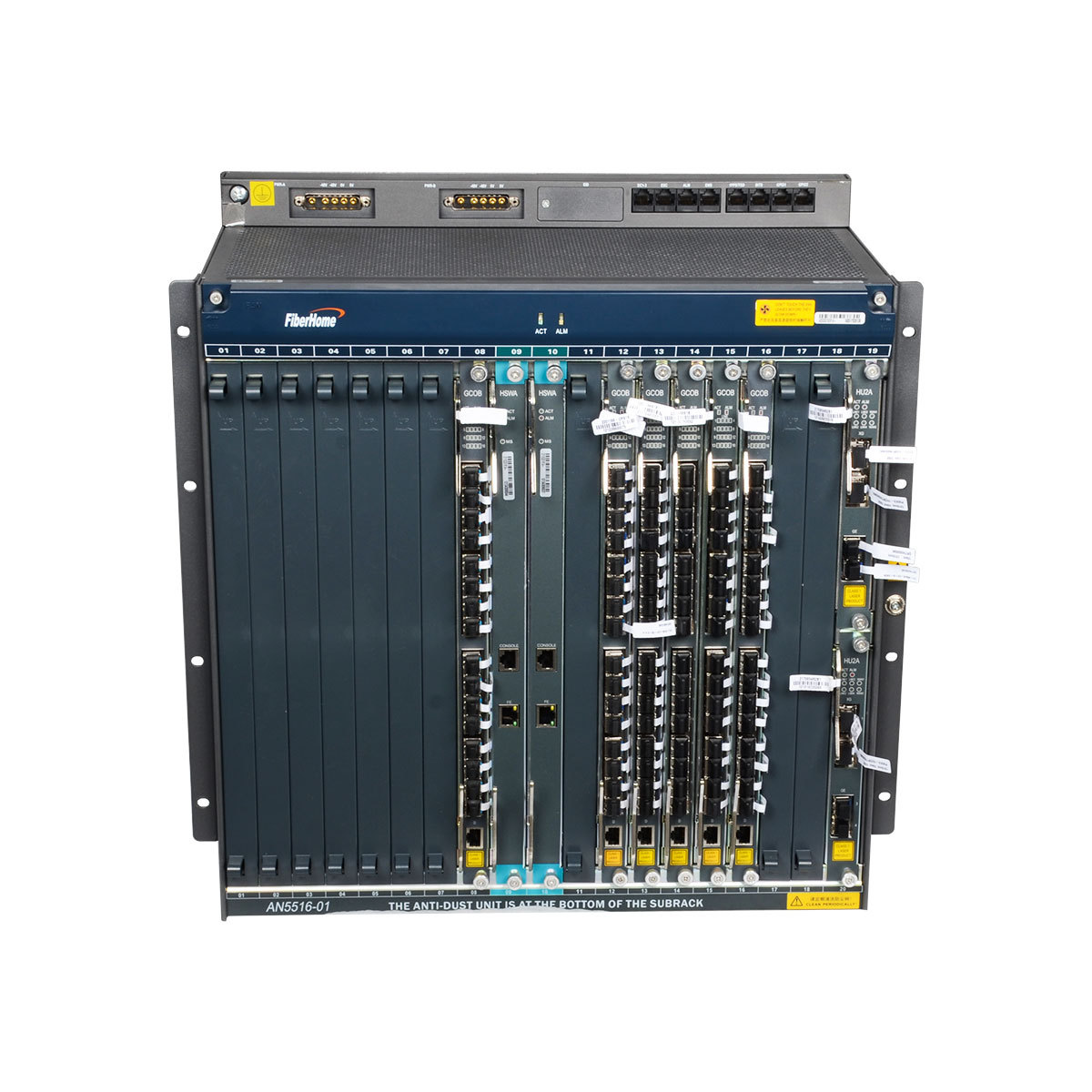

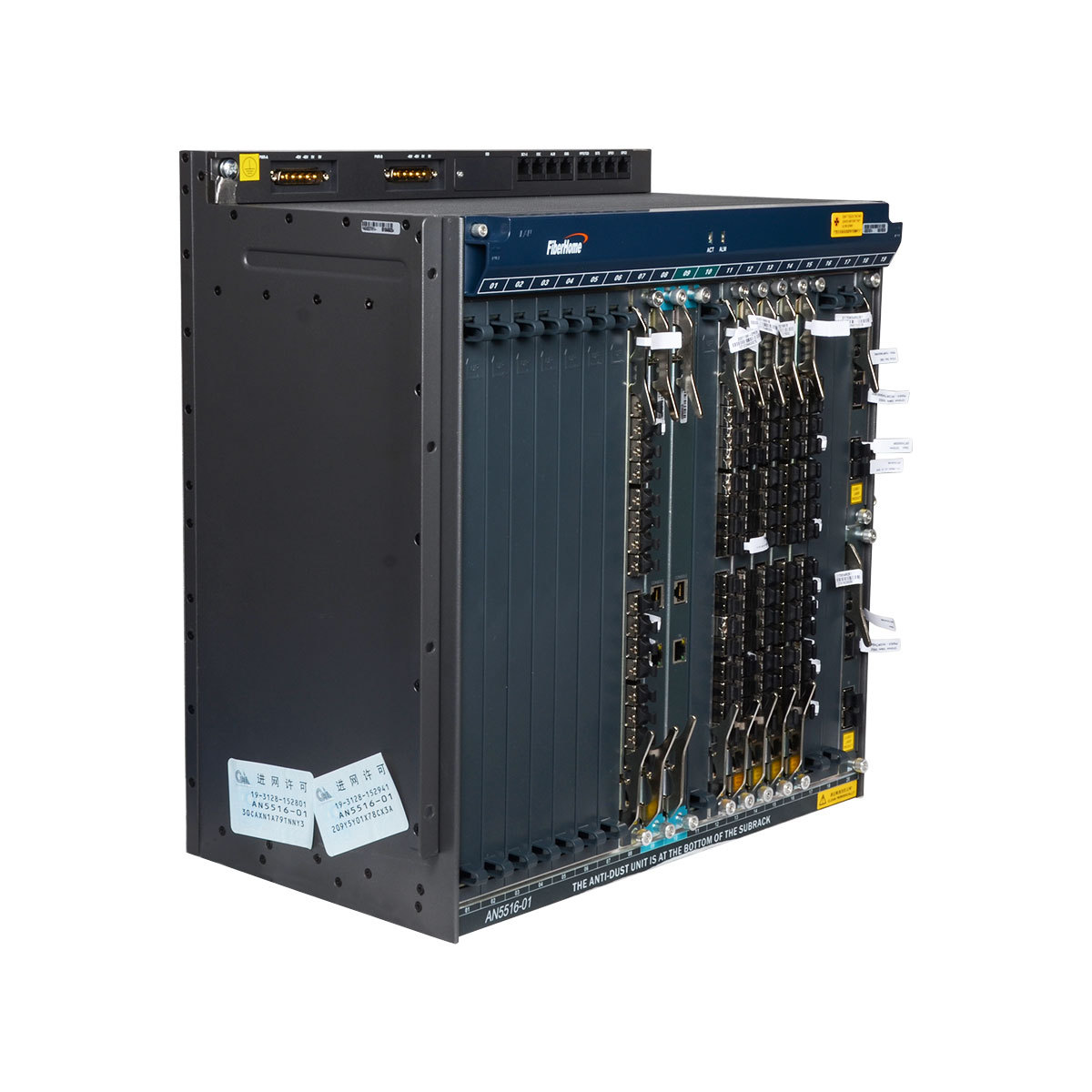

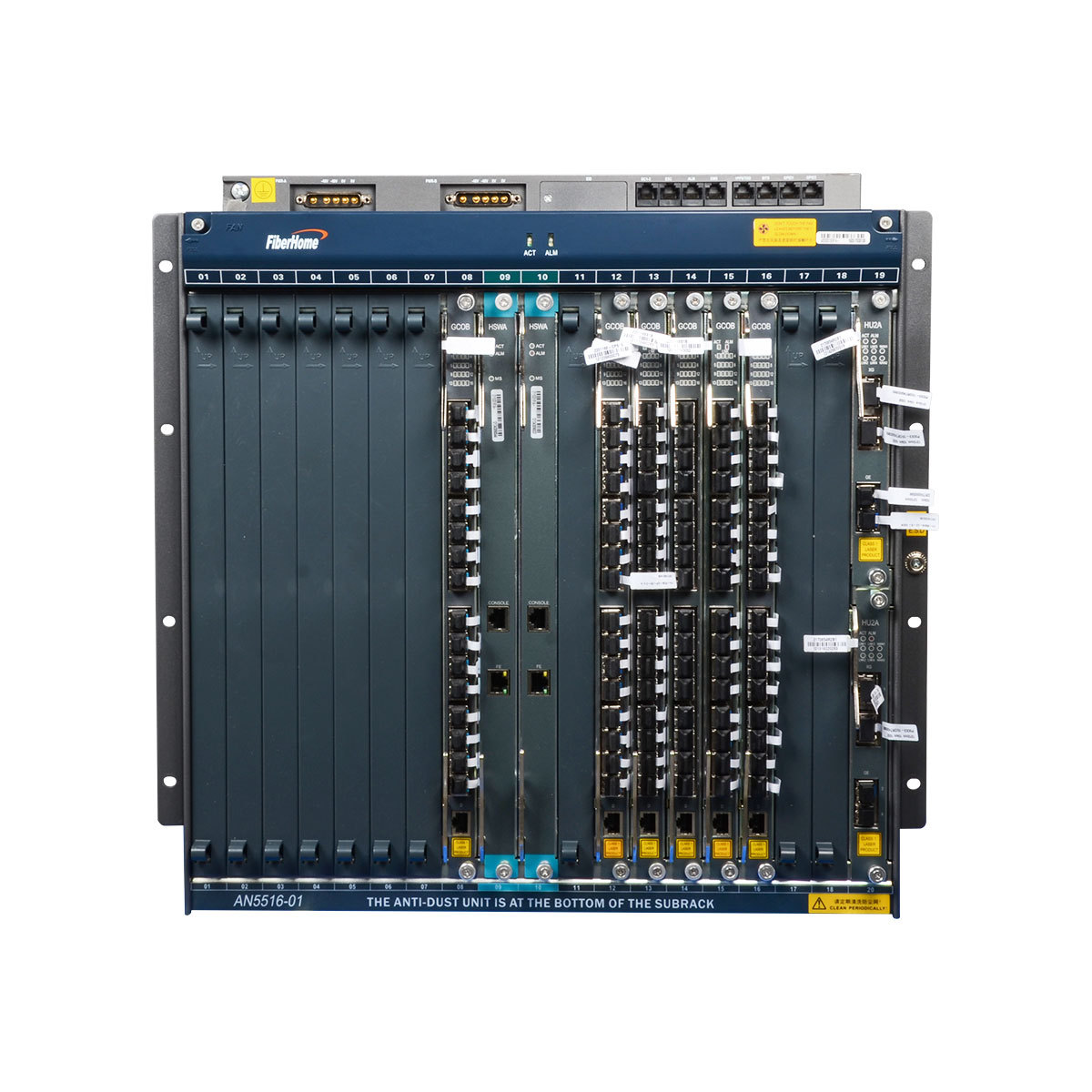

The FiberHome AN5516-01 is a large-capacity, carrier-grade Optical Line Terminal (OLT) providing high-speed broadband access (FTTx) with support for GPON, EPON, and 10G PON (XG-PON/XGS-PON) for smooth network evolution and investment protection. Key features include high-performance chips for energy efficiency, extensive service support (VoIP, IPTV, CATV, data), Layer 2/3 functionality, robust redundancy (PON port Type B/C, dual power), and suitability for diverse scenarios like home, enterprise, and mobile backhaul.
|
GCOB Gpon Card |
16 ports Gpon service card with SFP C+ |
|
GC8B R1C Gpon Card |
8 ports Gpon service card R1C version with SFP C+ |
|
EC8B R1B Epon Card |
EC8B R1B 8 ports Epon service card with SFP PX20+ |
|
HU2A Uplink Card |
Uplink Card supports 2×10GE Optical Ports+2×GE Optical/Electrical Ports |
|
HSUC Uplink Card |
4-Port GE Optical/Electrical Uplink and Switching Uplink Card |
| AN5506-01-A | 1GE |
| 4*GE+1*TEL+2USB+2.4G/5G WIFI(5dBi) | |
| 4*GE+1*TEL+2USB+2.4G/5G WIFI(5dBi) |
1. Urban Mega-City Triple-Play in India
A leading Indian telecom deployed FiberHome AN5516-01 OLTs in Mumbai’s dense urban areas to serve 50,000+ households. The large-capacity device’s 16 service slots and 3.2 Tbit/s backplane capacity supported concurrent VoIP, 4K IPTV, and gigabit data services. Its compatibility with GPON/10G EPON modules enabled seamless bandwidth scaling, while the 1:256 splitting ratio optimized coverage for high-rise residential complexes. Paired with remote ONUs, it formed a robust convergence layer, ensuring stable connectivity for streaming and remote work. Dual power protection and hot-swappable components minimized downtime, aligning with the operator’s 99.99% service reliability goal.
2. Enterprise & Campus Convergence in Turkey
A Turkish ISP adopted AN5516-01 OLTs for a tech campus in Istanbul, integrating business and residential services. The carrier-class platform’s 256 GPON port capacity and 768 GE access supported cloud applications for offices and high-speed broadband for on-campus housing. It offered rich interface options (10GE, STM-1, E1) for seamless upstream connectivity, while Layer 2/3 wire-speed forwarding handled heavy data traffic. With a 60km transmission range and -25℃ to +55℃ operating temperature tolerance, it ensured reliable performance across the campus. The platform’s multi-PON integration (EPON/GPON/10G PON) allowed future-proof upgrades without chassis replacement.
|
FiberHome AN5516-01 OLT Datasheet |
|

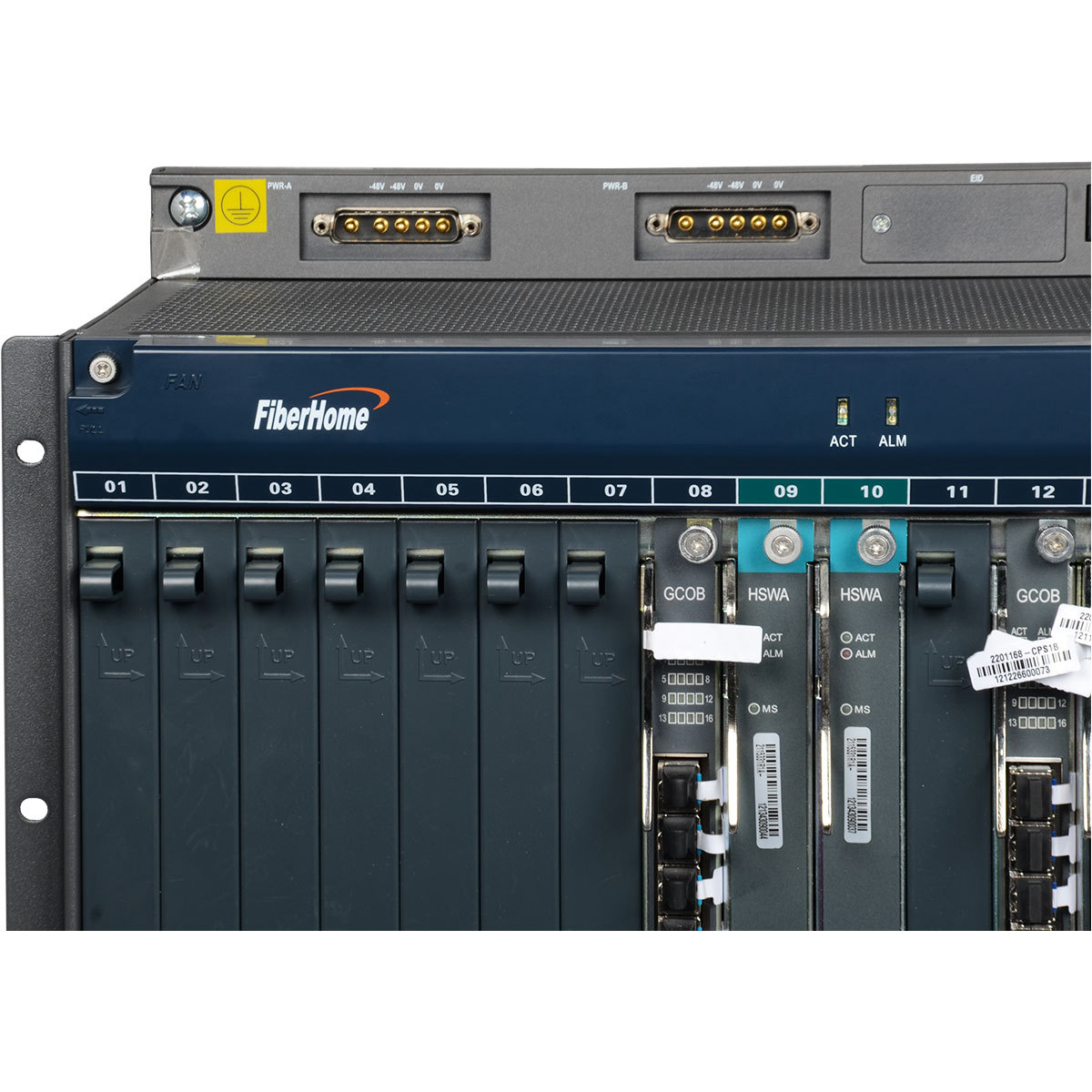

| Slot configuration | Two slots for core switch cards (slots 9 and 10) 16 slots for service cards (slots 1 to 8 and 11 to 18) Two slots for uplink cards (slots 19 and 20) Two slots for vectoring cards (slots 8 and 11) |
| Slot bandwidth | HSWA / HSWB: 10G HSWD: 40G |
| Switch capacity of the backplane bus | 3.76 Tbit/s |
| Switch capacity of core switch cards (in the load sharing mode) | 488 Gbit/s (when the HSWA / HSWB card is configured) 1.92 Tbit/s (when the HSWD card is configured) |
| Maximum number of MAC addresses in the system | HSWA / HSWB: 32K HSWD (2202258): 128K HSWD (2201069): 288K |
| Maximum number of IPv4 routing tables in the system | HSWA: 8K HSWD (2201069): 128K HSWD (2202258): 64K |
| Maximum number of IPv6 routing tables in the system | HSWA: 4K HSWD (2201069): 64K HSWD (2202258): 32K |
| Maximum number of ARP tables in the system | 8K |
| Maximum number of multicast groups in the system | HSWA / HSWB: 8K HSWD: 16K |
| Maximum number of 10G G/EPON ports in the system | 128 |
| Maximum number of XG-PON ports in the system | 128 |
| Maximum number of GPON & XG-PON Combo ports in the system | 128 |
| Maximum number of GPON & XGS-PON Combo ports in the system | 128 |
| Maximum number of Ethernet ports in the system | 256 GE optical / electrical ports |
| Operating temperature | Long term: 0℃ to 45℃ Short term: -5℃ to 55℃ |
| Rated voltage | -48 V |
| Working voltage range | -40 V to -56 V |
| Power supply mode | DC |
| Maximum input current | 63 A |
| Dimensions of a subrack with mounting ears for 19-inch cabinets (H × W × D) | 471.7 mm × 480.8 mm × 262.7 mm |
| Weight of an empty subrack | 13.9 kg |
