GCOB Gpon Card |
16 ports Gpon service card with SFP C+ |
|
GC8B R1C Gpon Card |
8 ports Gpon service card R1C version with SFP C+ |
|
EC8B R1B Epon Card |
EC8B R1B 8 ports Epon service card with SFP PX20+ |
|
HU2A Uplink Card |
Uplink Card supports 2×10GE Optical Ports+2×GE Optical/Electrical Ports |
|
HSUC Uplink Card |
4-Port GE Optical/Electrical Uplink and Switching Uplink Card |
| AN5506-01-A | 1GE |
| 4*GE+1*TEL+2USB+2.4G/5G WIFI(5dBi) | |
| 4*GE+1*TEL+2USB+2.4G/5G WIFI(5dBi) |
Application Scenarios & Real-World Cases
1. Rural Digital Inclusion in Australia
A regional Australian telecom deployed FiberHome AN5516-04 OLTs to connect sparsely populated rural towns in Queensland. The compact 2U design fit small outdoor cabinets, while its -40℃ to +65℃ operating range withstood harsh outback conditions. Supporting GPON/10G PON and 1:128 splitting ratio, it delivered triple-play services (VoIP, data, IPTV) to 500+ households and local businesses. Dual power protection ensured reliability during grid fluctuations, and the 60km maximum transmission distance covered wide rural areas. This deployment bridged the digital divide, enabling remote work and online education access for underserved communities.
2. Small-City FTTH in Poland
A Polish ISP adopted AN5516-04 OLTs for medium-density residential areas in Wrocław. The 2 service slots and 96 GPON port capacity efficiently served 10,000+ users, with GE/10GE uplinks handling gigabit broadband demands. Its Layer 2/3 wire-speed forwarding supported smooth 4K streaming and cloud services, while STP/RSTP ring protection minimized downtime. The device’s interoperability with diverse ONUs and 1:64/128 flexible splitting ratios optimized coverage for mixed low-rise neighborhoods. Compact dimensions and low power consumption reduced deployment costs, aligning with the ISP’s cost-effective urban expansion strategy.
|

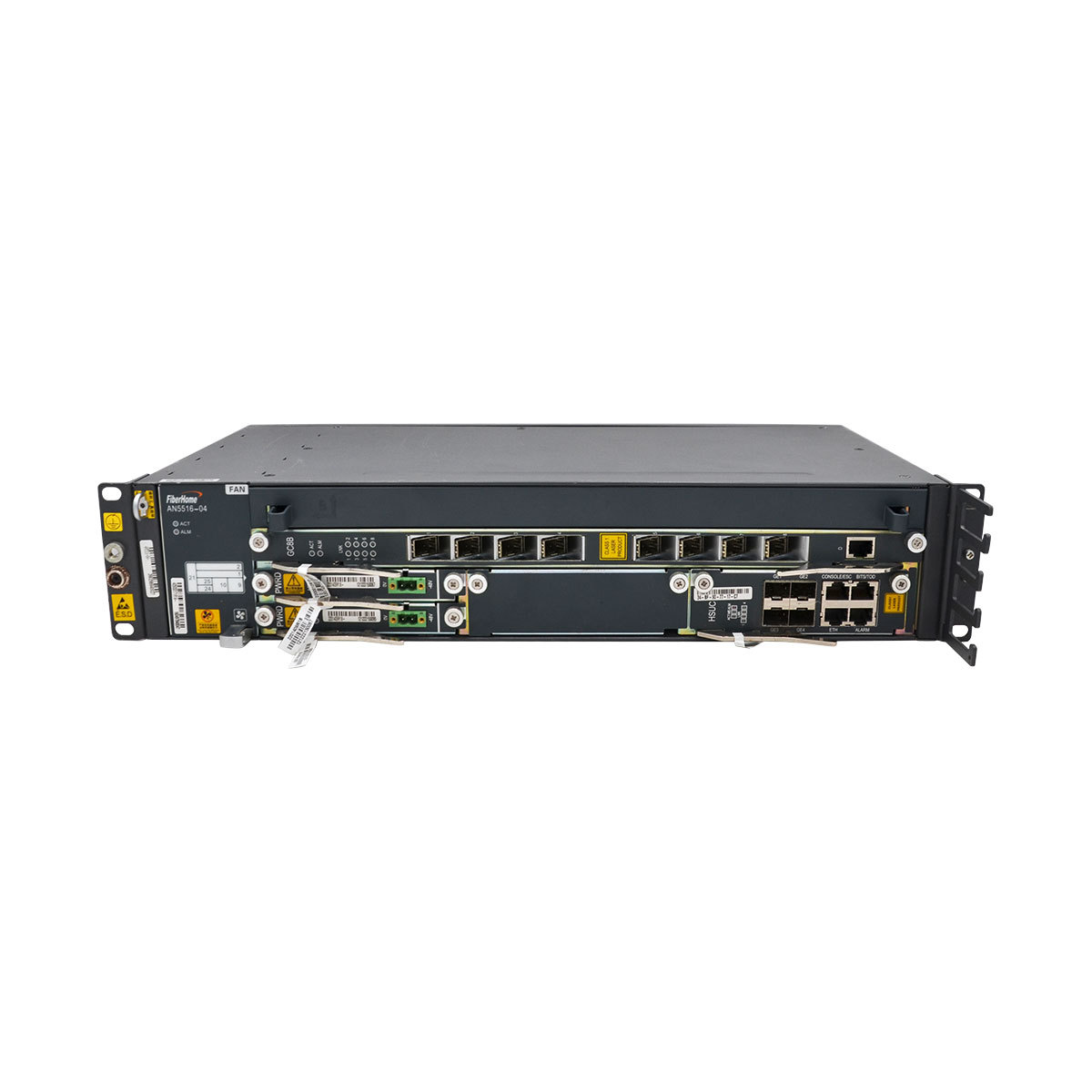

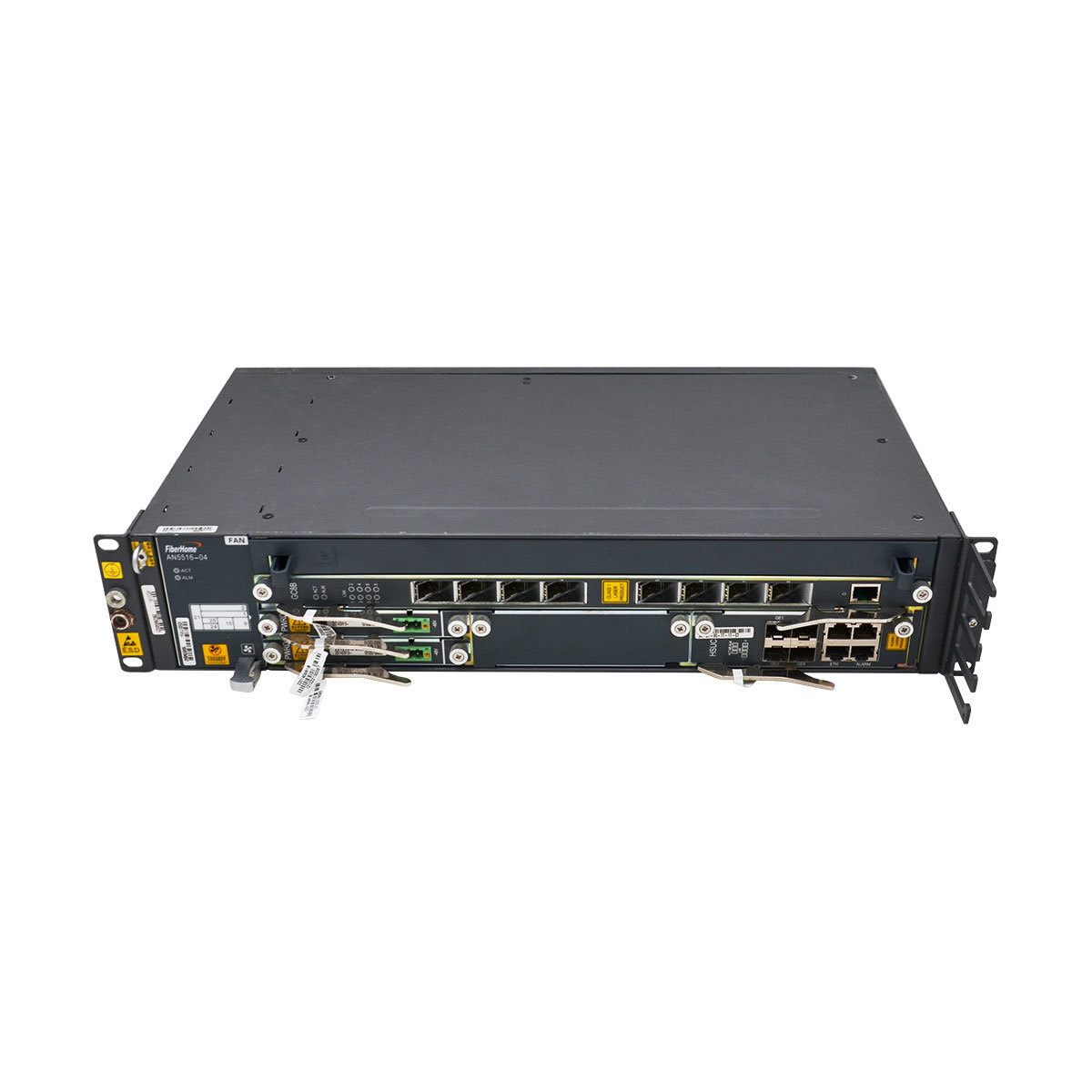

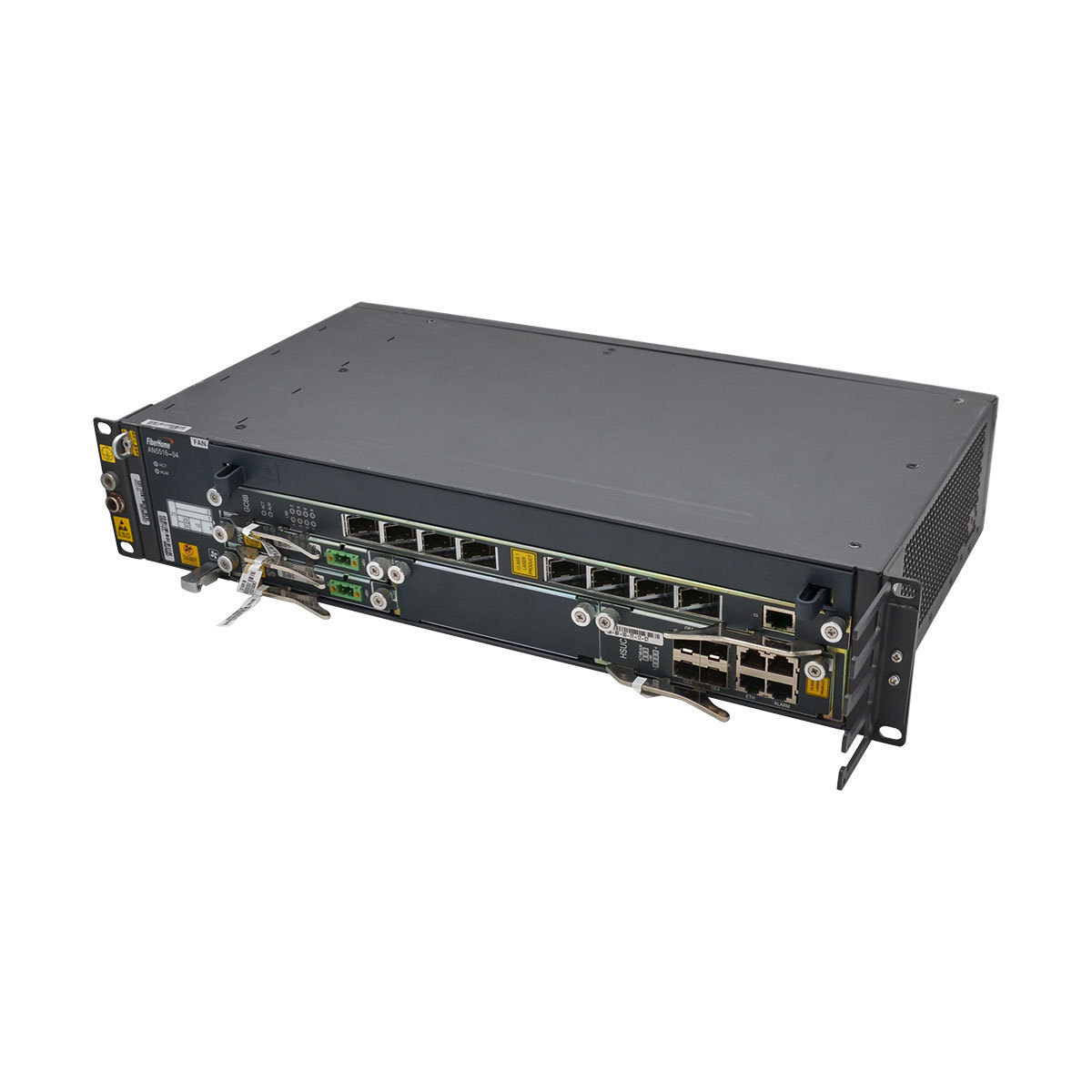

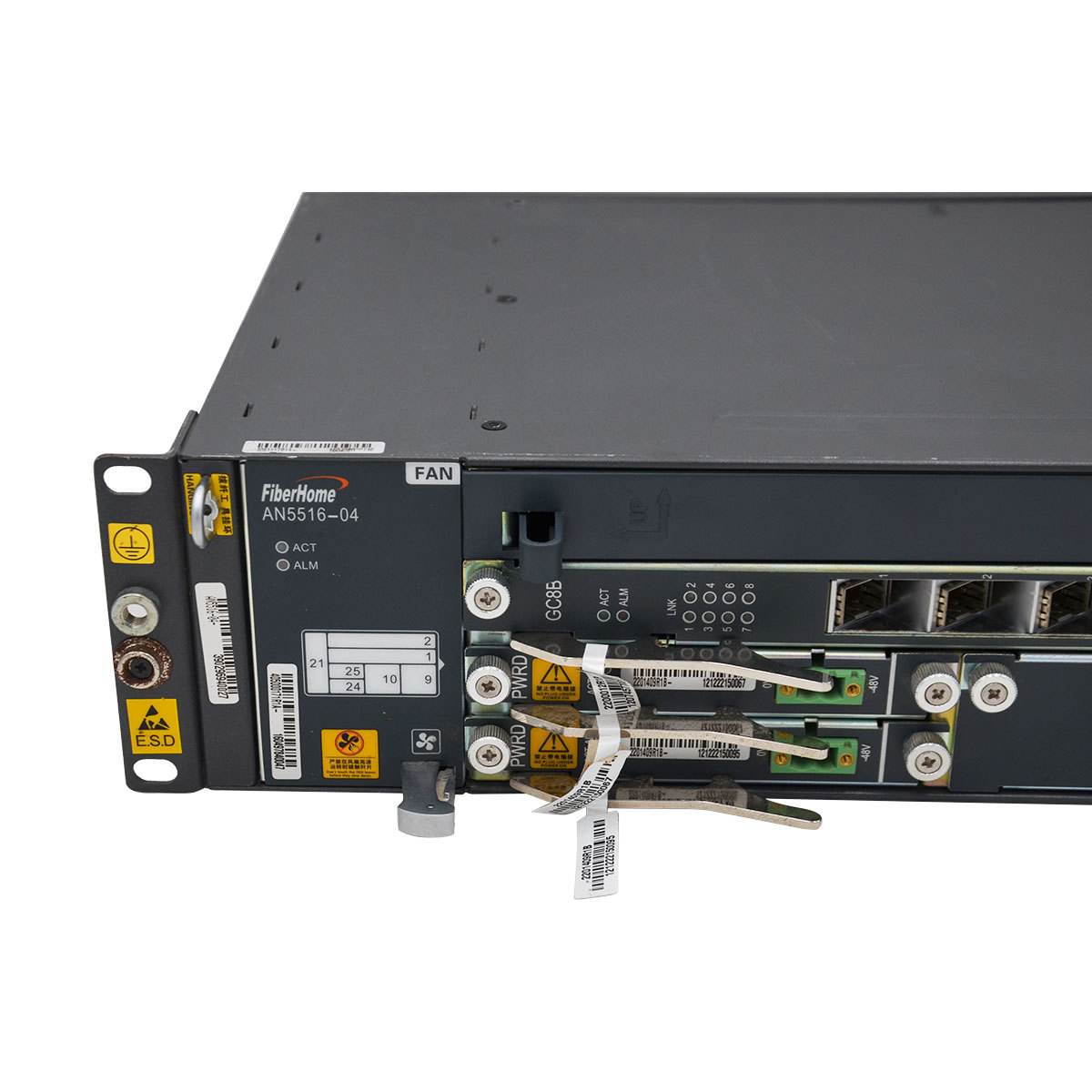

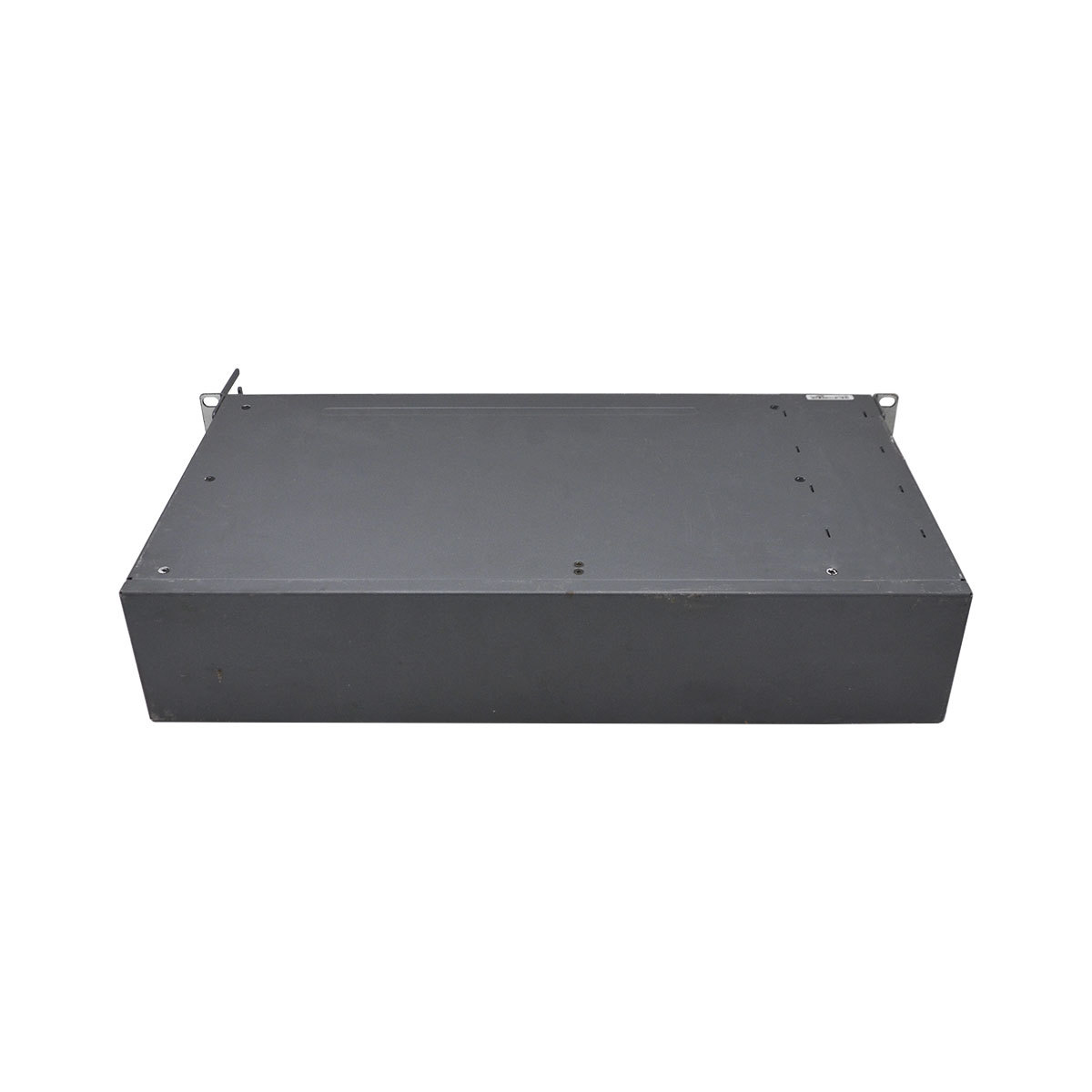

FiberHome AN5516-04 OLT Datasheet |
|
| Backplane Exchange capacity | 1.5Tbit/s |
| Control Board Exchange Capacity | 960Gbit/s |
| Access Capacity | 48*10G EPON |
| 24*10G GPON | |
| 48*EPON | |
| 96*GPON | |
| 288*GE | |
| Access Type | Upstream interface: 10GE optical, GE optical/electricity |
| Business interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface | |
| Board Supported | GCOB - S1B |
| GCOB - T1A | |
| GC8B - R1B | |
| GC8B - R1C | |
| EC8B - R1B | |
| System Performance | Layer 2 / Layer 3 wire-speed forwarding |
| Support static router /RIP/OSPE.MPLS | |
| BITS/E1/STM-1/Ethernet/1588v2/1PPS+ToD clock | |
| Maximum support 1:256 splitting ratio | |
| Maximum support 60KM logical distance | |
| Operating Environment | Temperature: -40℃～+65℃ |
| Humidity:5%~95% (non-condensing | |
| Power Supply Parameters | -48V DC input Supports dual power protection |
| Working Voltage range -38.4V～-72V | |
