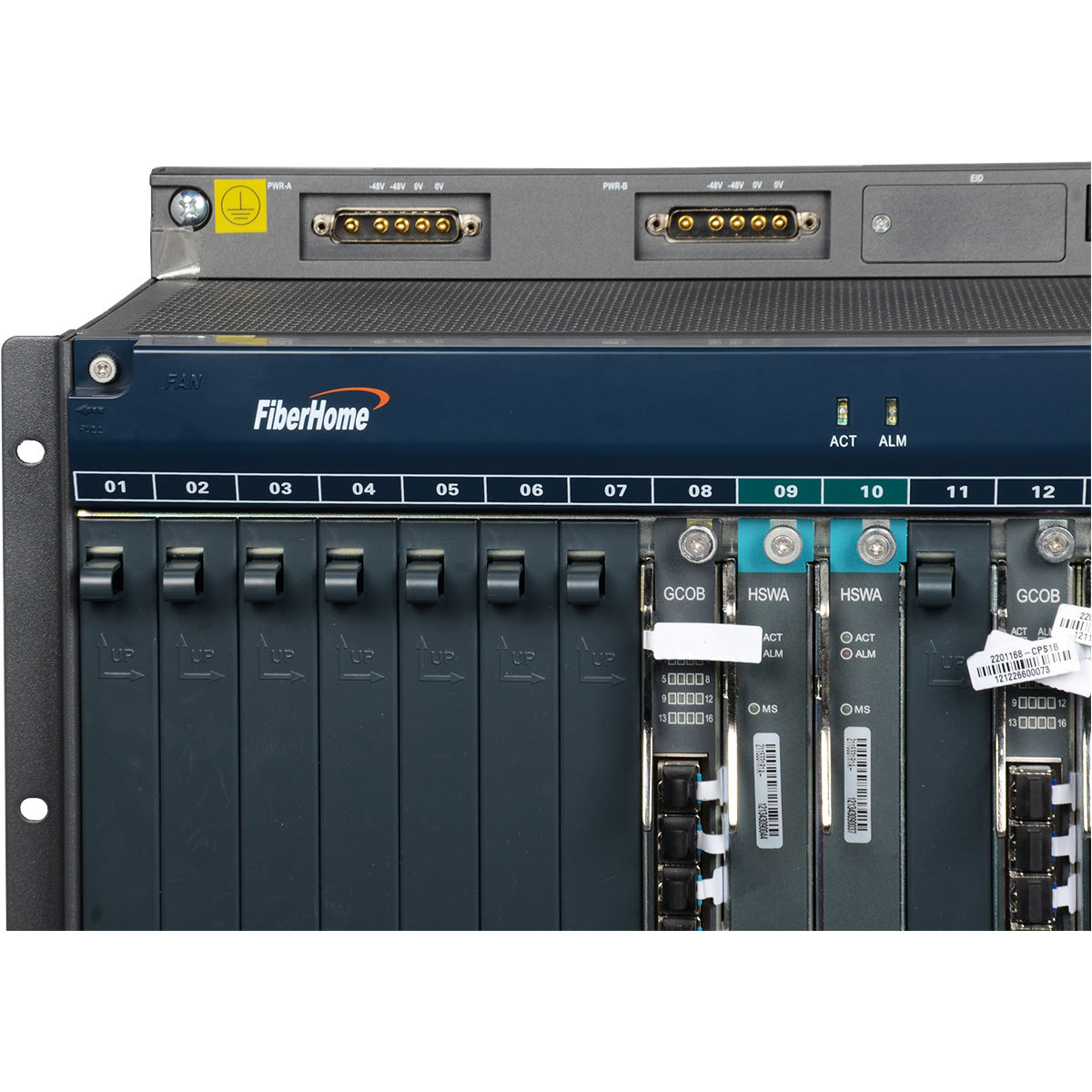

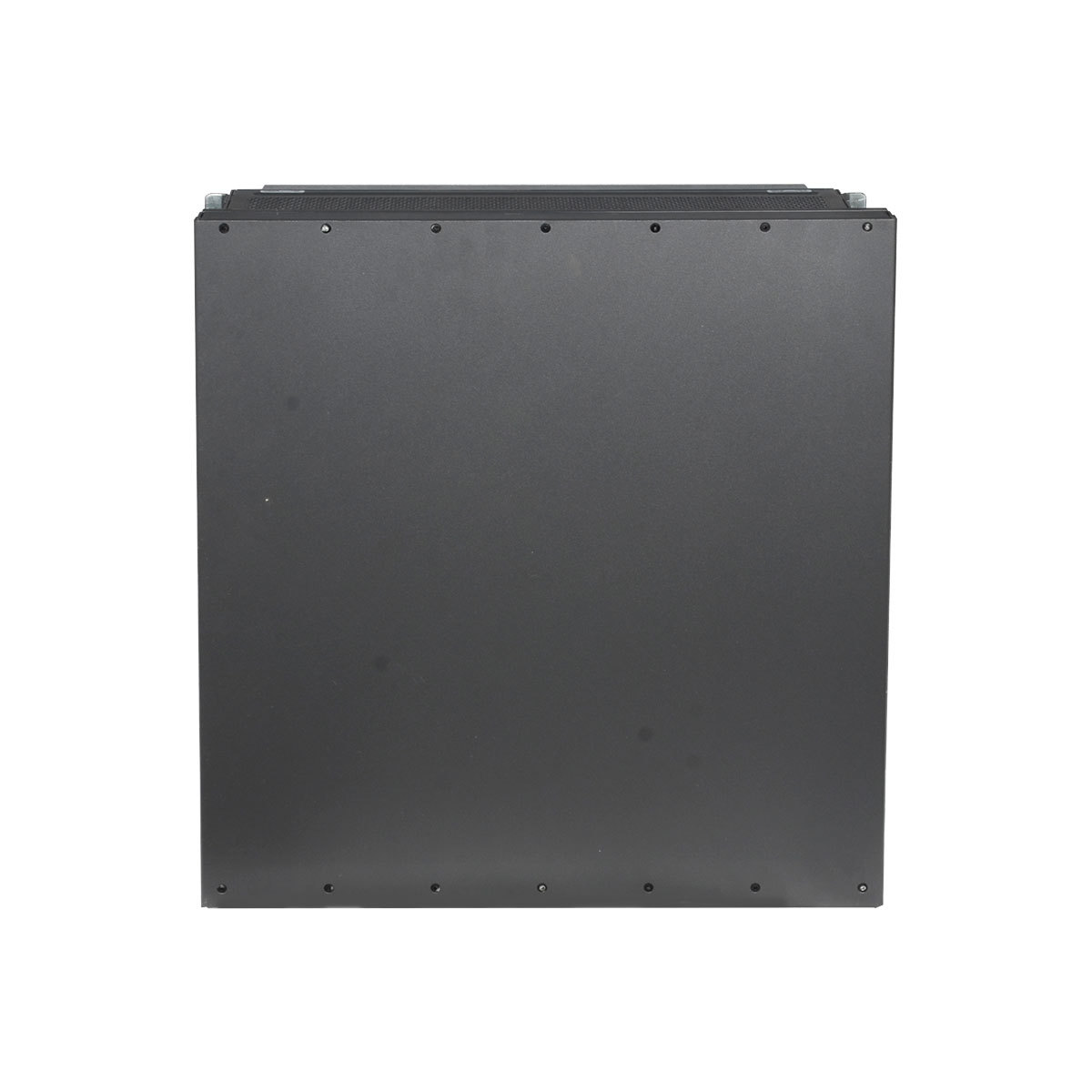

FiberHome AN5516-06 Overview
The FiberHome AN5516-06 is a compact carrier-class MSAN/GPON integrated access product with intermediate capacity, deployed in central offices and equipped with 6 service slots to suit moderate-density access scenarios where large-capacity access equipment would be underutilized; as part of the AN5516 product series that offers three different sizes for diverse application scenarios—large-capacity (AN5516-01/AN5516-06B), medium-capacity (AN5516-06), and small-capacity (AN5516-04)—it supports multiple services including VoIP, TDM, data, IPTV, and CATV to meet triple-play requirements, and when used in conjunction with remote-end ONUs, it forms a complete convergence layer function.
Product Features
- Platform & Capacity: Hybrid MSAN/OLT platform supporting EPON, GPON, 10G PON, and P2P. Supports high-density access, with some configurations reaching 256 PON ports. Large backplane capacity (e.g., 3.52T or 1.92T) and switch capacity (e.g., 976G). Standard 19-inch rack design with 6-10 service slots.
- Access & Services: Provides broadband (FTTH, FTTB, FTTC), voice (VoIP, TDM), IPTV, and CATV. Supports various uplink options (GE, 10GE) and downstream interfaces (up to 16x16GE). Long-haul transmission with split ratios of 1:32/64/128 and Class C+ modules.
- Reliability & Management: Carrier-grade reliability with redundant power supplies, control/uplink cards, and hot-swappable components. End-to-end protection (RSTP/LACP on uplink, Type B/C on PON). Supports IEEE 1588v2, OSPF, RIP, VRRP (Layer 3 protocols). QoS guarantee with SLA/priority-based management for low latency.
- Design: Full front-board, front-line design for easy maintenance. Environmentally friendly with low power consumption and intelligent fan control.
|
GCOB Gpon Card
|
16 ports Gpon service card with SFP C+ |
|
GC8B R1C Gpon Card
|
8 ports Gpon service card R1C version with SFP C+ |
|
EC8B R1B Epon Card
|
EC8B R1B 8 ports Epon service card with SFP PX20+ |
|
HU2A Uplink Card
|
Uplink Card supports 2×10GE Optical Ports+2×GE Optical/Electrical Ports |
|
HSUC Uplink Card
|
4-Port GE Optical/Electrical Uplink and Switching Uplink Card |
Compatible ONT
Application Scenarios & Real-World Cases
Scenario 1. Suburban Triple-Play Deployment in Brazil
A major Brazilian telecom deployed FiberHome AN5516-06 OLTs in suburban São Paulo to deliver triple-play services. The medium-capacity device’s 6 service slots and support for VoIP, IPTV, and data services catered to 5,000+ households. Its compact design (550×460×380mm) fit small local exchange rooms, while compatibility with GPON/10G PON modules enabled flexible bandwidth scaling. Paired with remote ONUs, it formed a complete convergence layer, ensuring stable 4K streaming and video calls. The 1:256 splitting ratio and 60km transmission capability optimized coverage for spread-out suburban communities, aligning with the operator’s digital inclusion goals.
2. Enterprise & Residential Convergence in Southeast Asia
An Indonesian ISP adopted AN5516-06 OLTs for mixed-use developments in Jakarta. The carrier-class platform supported FTTH for residences and dedicated data/PBX services for small businesses via its MSAN/GPON integration. With 96 GE access capacity and Layer 2/3 wire-speed forwarding, it handled high-bandwidth demands from office cloud applications and home streaming. Dual power protection and hot-swappable components minimized downtime, critical for business continuity. Its ability to intermix GPON/EPON/10G PON modules allowed future-proof upgrades without replacing the chassis, reducing long-term investment costs.
Downloadable resources
Technical Specifications
|
FiberHome AN5516-06 OLT Datasheet
|
| Slot configuration |
Two slots for core switch cards (slots 9 and 10) |
| Six slots for service cards (slots 11 to 6) |
| One slot for the vectoring card (slot 11) |
| Two slots for uplink cards (slots 19 and 20) |
| One slot for the fan unit (slot 21) |
| Two slots for power cards (slots 24 and 25) |
| One slot for the common interface card (slot 26) |
| Slot bandwidth |
HSWA / HSWB: 10G |
| HSWD: 40G |
| Switch capacity of the backplane bus |
3.76 Tbit/s |
| Switch capacity of core switch cards (in the load |
488 Gbit/s (when the HSWA / HSWB card is configured) |
| sharing mode) |
1.92 Tbit/s (when the HSWD card is configured) |
| Maximum number of MAC addresses in the system |
HSWA / HSWB: 32K |
| HSWD (2202258): 128K |
| HSWD (2201069): 288K |
| Maximum number of IPv4 routing tables in the |
HSWA: 8K |
| system |
HSWD (2201069): 128K |
|
HSWD (2202258): 64K |
| Maximum number of IPv6 routing tables in the |
HSWA: 4K |
| system |
HSWD (2201069): 64K |
|
HSWD (2202258): 32K |
| Maximum number of ARP tables in the system |
8K |
| Maximum number of multicast groups in the |
HSWA / HSWB: 8K |
| system |
HSWD: 16K |
| Maximum number of 10G G/EPON ports in the system |
96 |
| Maximum number of XG-PON ports in the system |
48 |
| Maximum number of GPON & XG-PON Combo ports in the system |
48 |
| Maximum number of GPON & XGS-PON Combo ports in the system |
48 |
| Maximum number of Ethernet ports in the system |
96 GE optical / electrical ports |
| Operating temperature |
Long term: 0℃ to 45℃ |
| Short term: -5℃ to 55℃ |
| Rated voltage |
-48 V |
| Working voltage range |
-40 V to -56 V |
| Power supply mode |
DC |
| Maximum input current |
63 A |
| Dimensions of a subrack with mounting ears for |
265.9 mm × 480 mm × 242 mm |
| 19-inch cabinets (H × W × D) |
| Weight of an empty subrack |
10.8 kg |
FAQ
Q: What PON technologies does the AN5516-06 support?
A: It supports GPON, EPON, 10G PON, and P2P intermixing via compatible modules.
Q: Which power inputs does the AN5516-06 accept?
A: It supports -48V DC input (with dual power protection.
Q: What application scenarios is it suitable for?
A: It fits medium-density access scenarios like suburban FTTH, FTTB residential buildings, small-to-medium enterprise connectivity, and mobile base station backhaul.
Q: How does it differ from other AN5516 series models?
A: AN5516-06 is medium-capacity (6 service slots), AN5516-01 is large-capacity (16 slots), and AN5516-04 is small-capacity (2 service slots) for low-density use.
