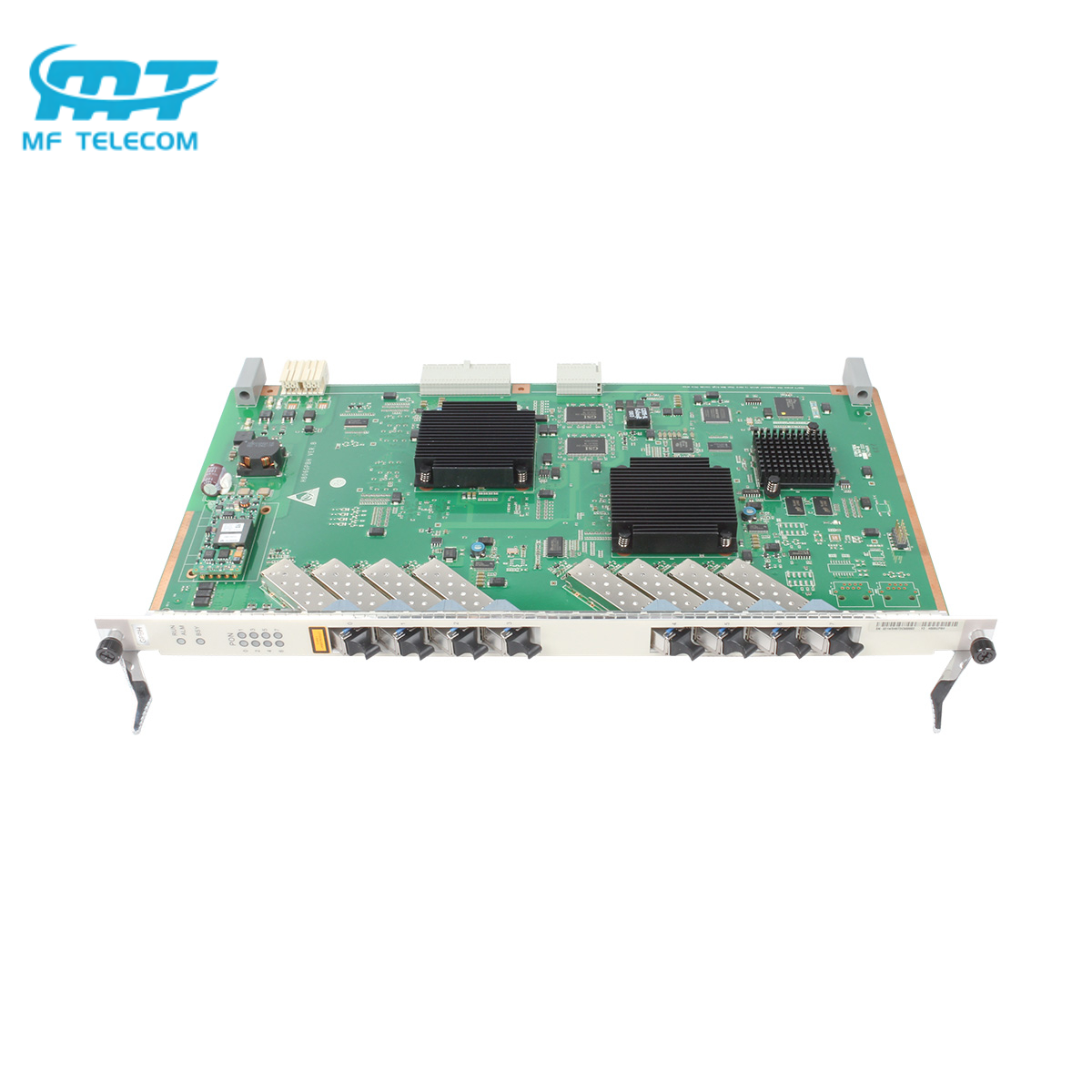

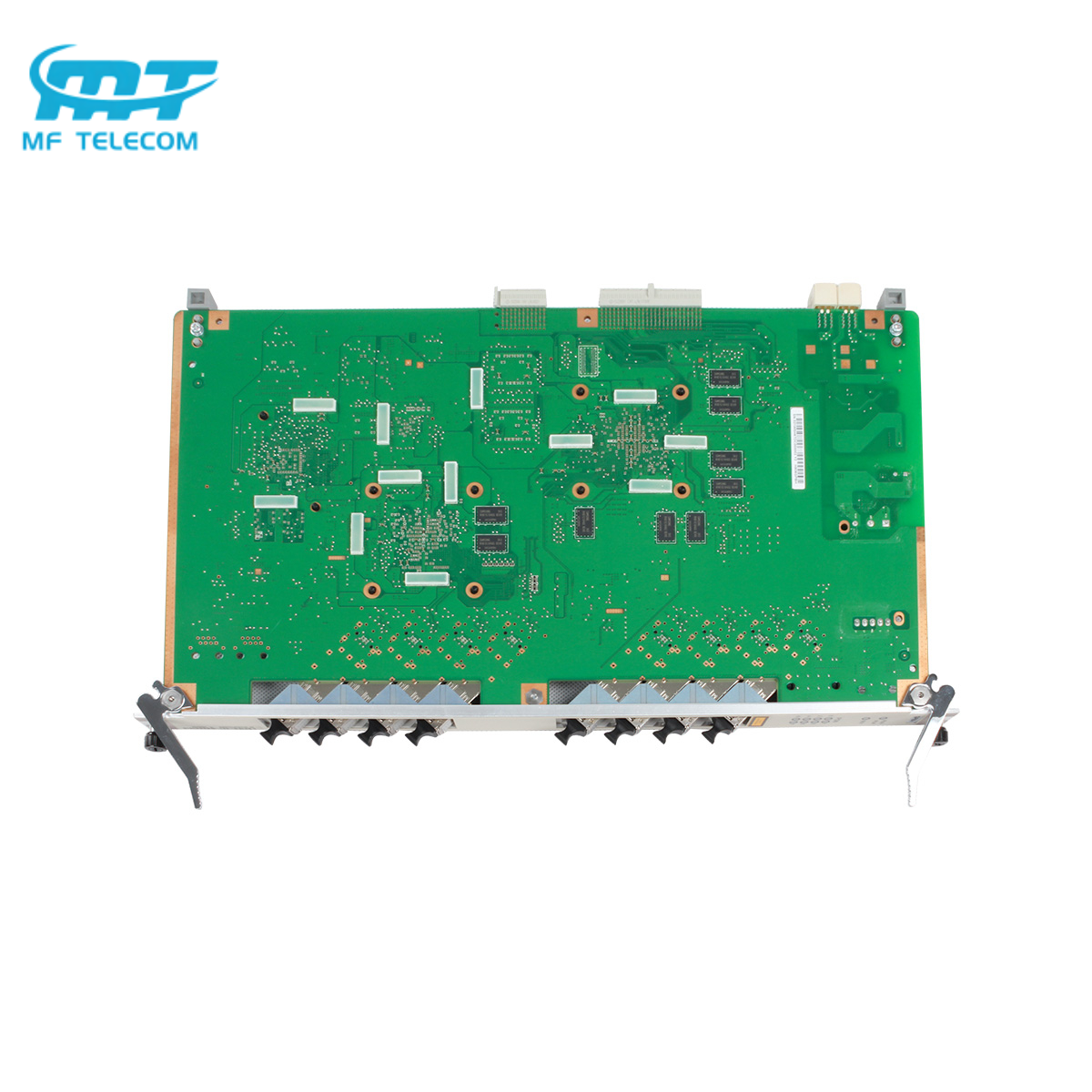

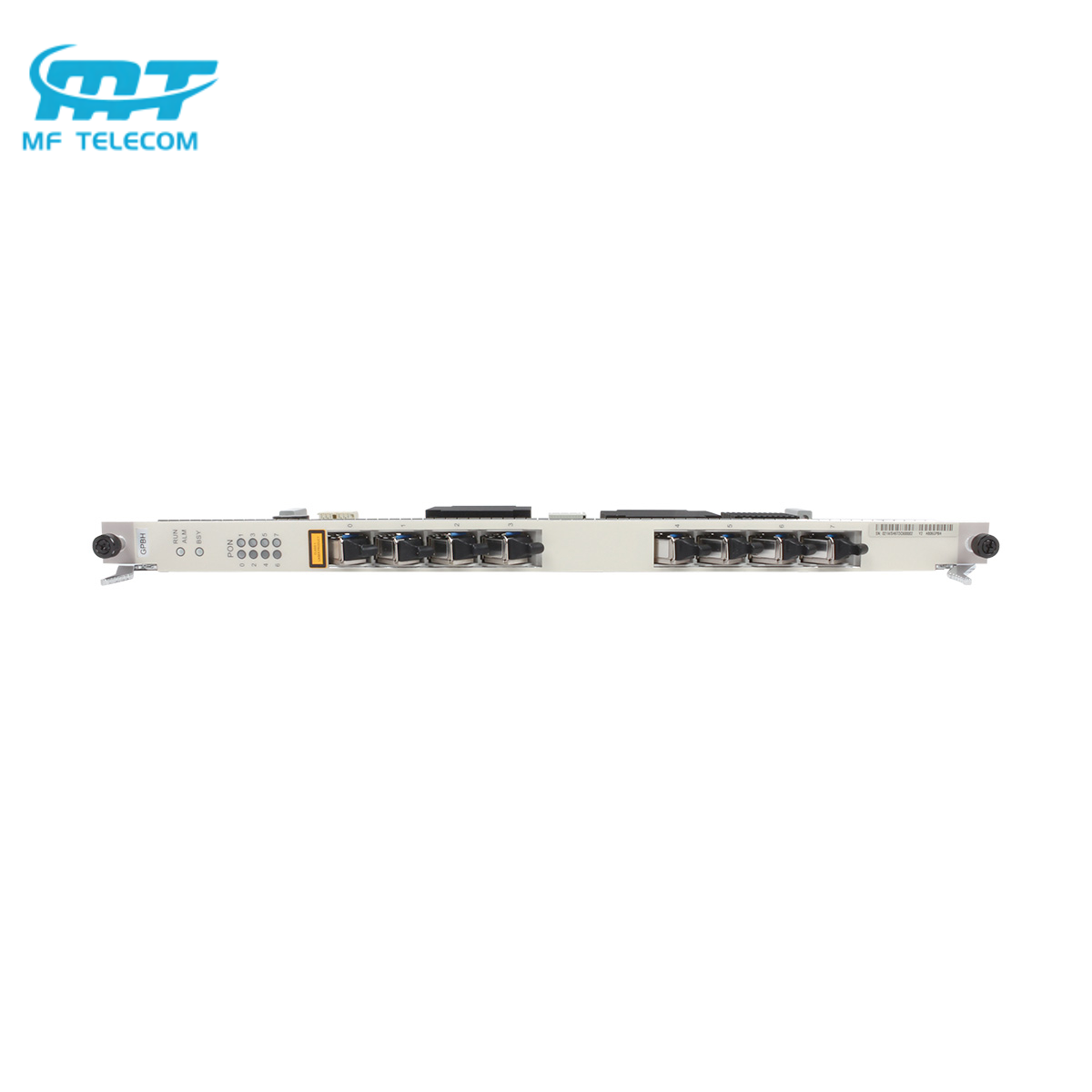

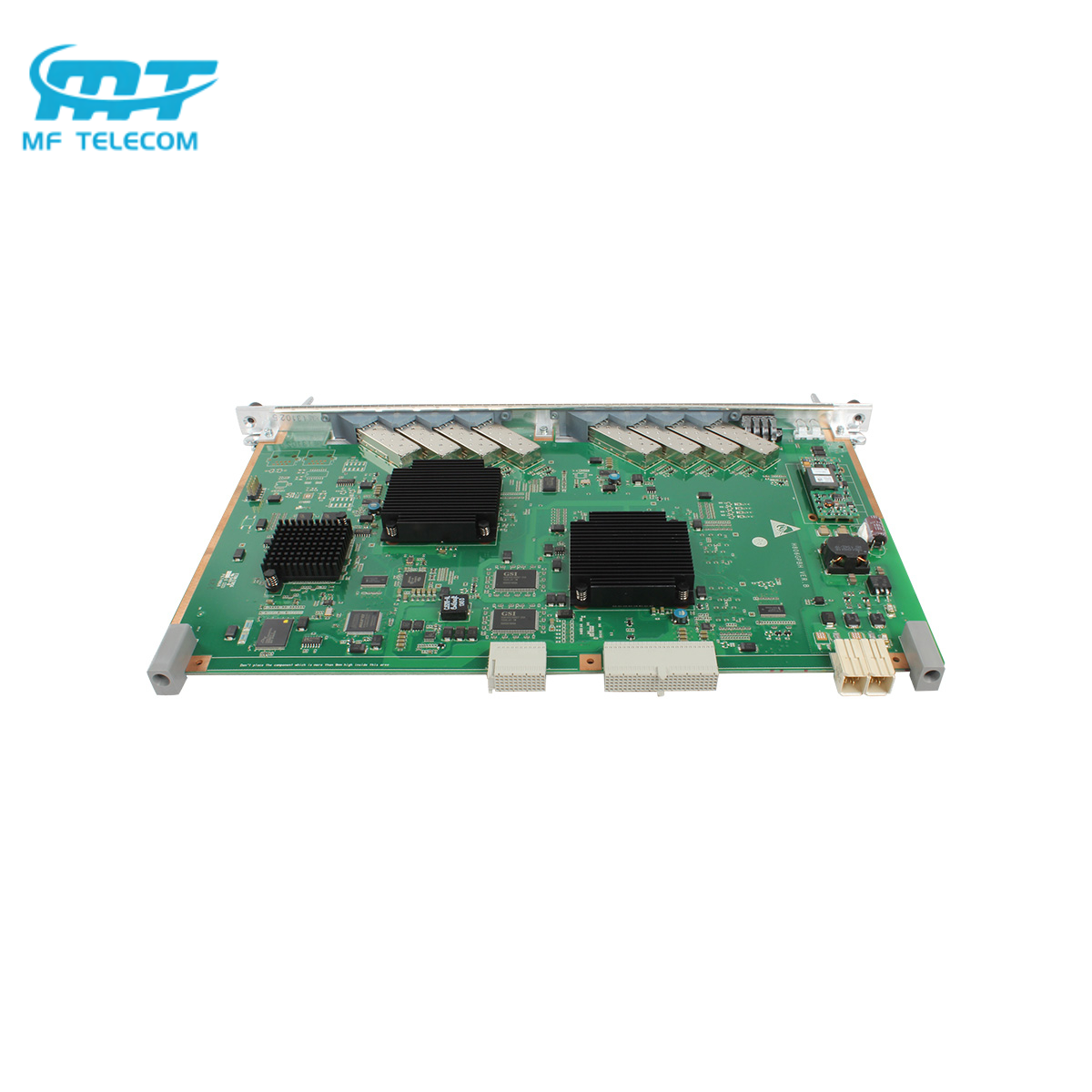

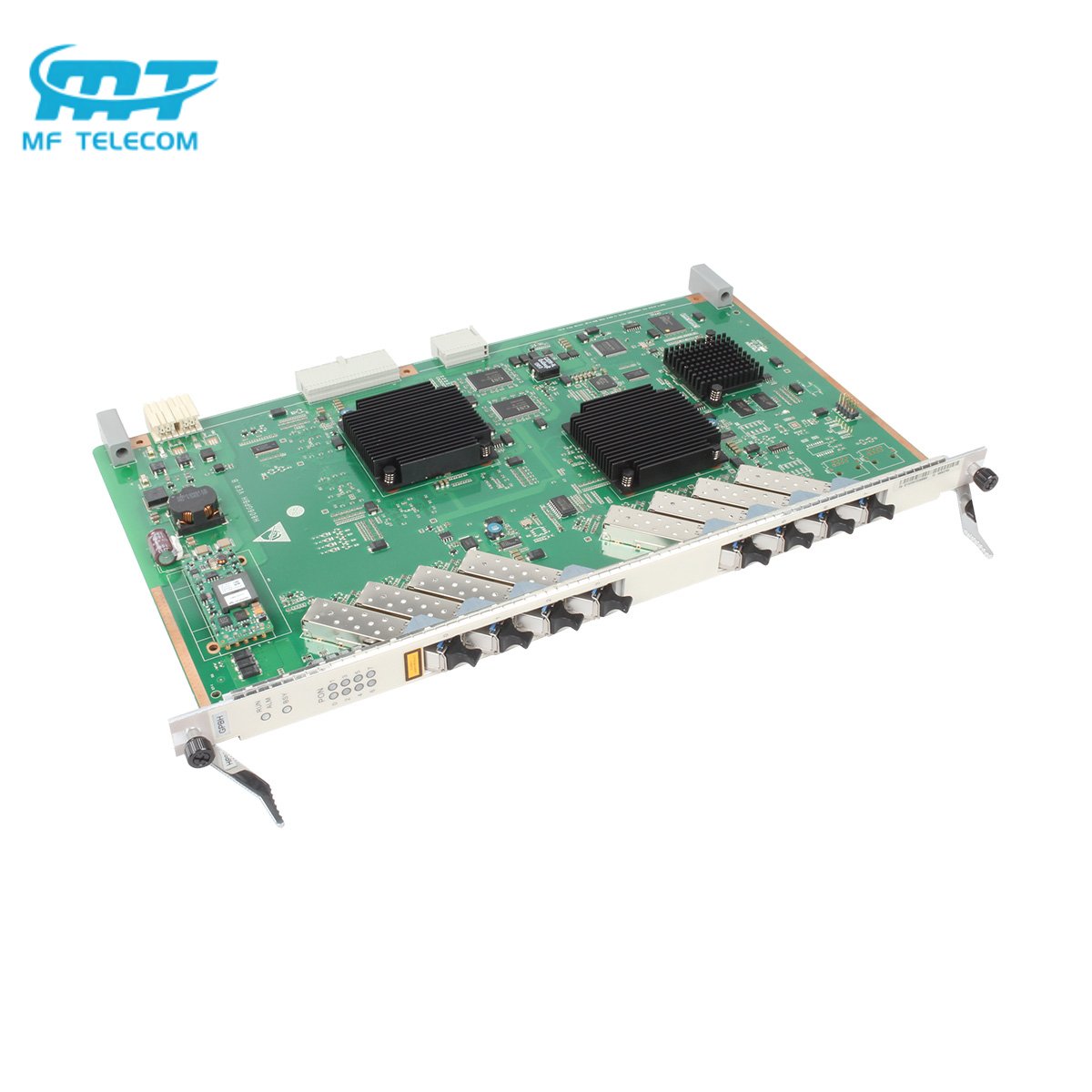

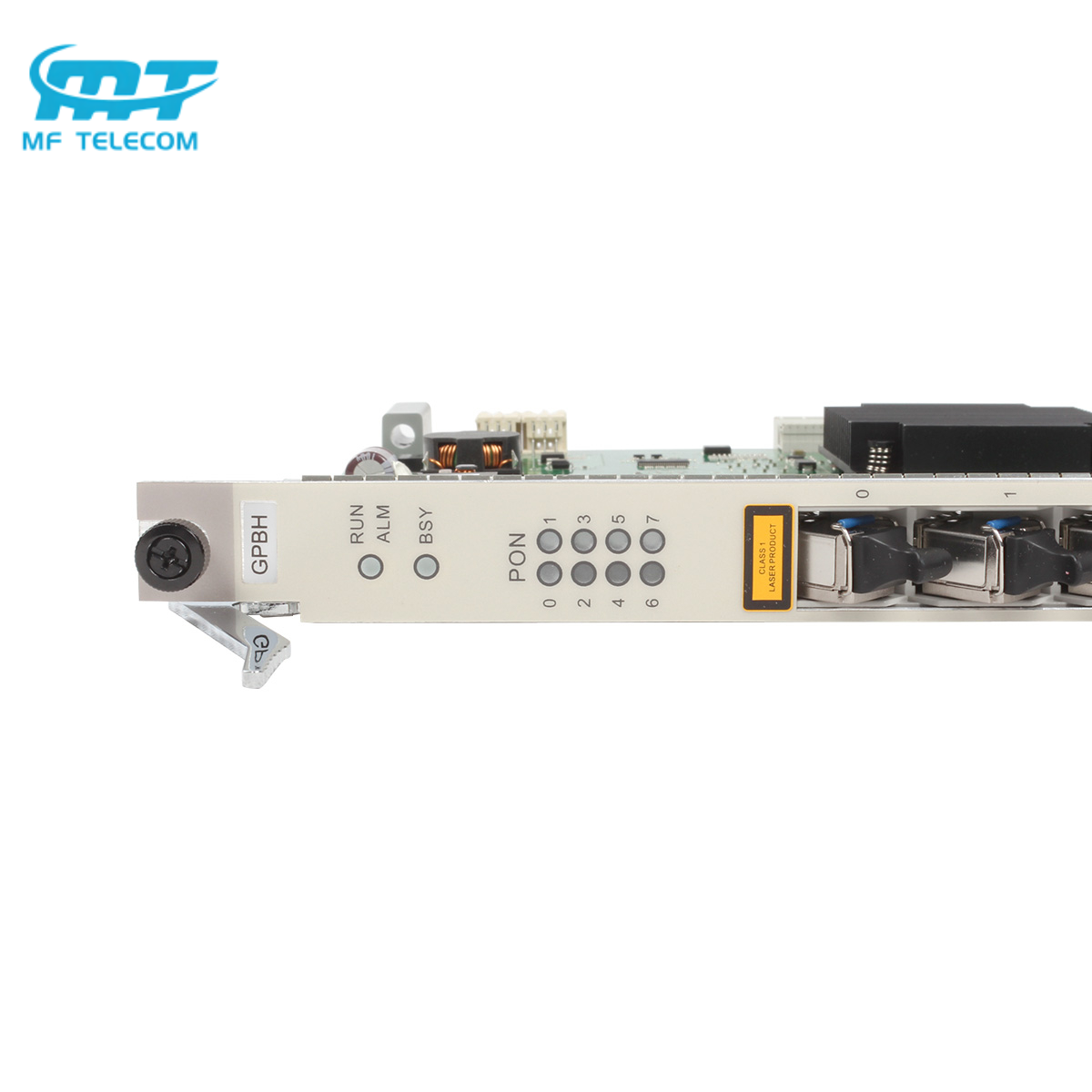

Huawei GPBH refers to an 8-port GPON (Gigabit Passive Optical Network) Service Board, a crucial component in Huawei's MA5600T series Optical Line Terminals (OLTs) used in broadband access networks for delivering fiber-to-the-home (FTTH) services like triple-play (voice, video, data). It's an enhanced version (compared to GPBD) offering features like ONU-based queue shaping and higher density, supporting various private line services, high-density IPTV access, and energy efficiency, often used with C+ or C++ SFP modules.
Product Features
High Density: Provides 8 GPON ports on a single board for connecting Optical Network Units (ONUs).
Enhanced Performance: Features high bandwidth, large MAC address capacity, and strong aggregation capabilities.
Service Versatility: Supports TDM, ATM, and Ethernet private lines for enterprise access.
Triple-Play Ready: Enables smooth delivery of IPTV and other multimedia services.
Advanced QoS: Implements Hierarchical Quality of Service (H-QoS) to meet SLA requirements.
Reliability: Offers features like OLT dual-system hot backup and disaster recovery.
Energy Saving: Utilizes unique chip and bus technology for low power consumption.
Application Scenarios
A European telecom provider deployed Huawei GPBH boards in its MA5683T OLT network to upgrade 50,000 residential FTTH connections. The 8-port design reduced hardware costs by 30%, while the 1:128 split ratio and 20km reach enabled coverage of suburban areas. Triple-play services (100Mbps internet, IPTV, VoIP) ran stably with ONU-based shaping, improving customer satisfaction by 40%.
C+ Module : One-fiber bi-directional optical module, class C+
Operating Wavelength
Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type
SFP
Port Rate
Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimum Output Optical Power
C+ Module : 3.00 dBm
Maximum Output Optical Power
C+ Module : 7.00 dBm
Maximum Receiver Sensitivity
C+ Module : -32.00 dBm
Optical Connector Type
SC/PC
Optical Fiber Type
Single-mode
Reach
20.00 km
Overload Optical Power
C+ Module : -12.0 dBm
Extinction Ratio
8.2 dB
Device Specifications
Dimensions (mm)
22.86 (W) x 237.00 (D) x 395.40 (H)
Power Consumption and Maximum Frame Size
Power Consumption
H806GPBH : Static: 32 W, Maximum: 46 W
H807GPBH: The data is being tested.
Maximum Frame Size
2004 bytes
Operating temperature
-25°C to +65°C
FAQ
Q: How many ports does the GPBH board have?
A:8 GPON ports.
Q: Which Huawei OLT devices is the GPBH compatible with?
A: It is widely compatible with Huawei mainstream OLTs, including MA5608T, MA5683T, and MA5680T.
Q: How does MF-Telecom support the GPBH purchase? A: We provide genuine Huawei hardware, 1-year warranty, global shipping (7-15 days), and 24/7 technical support from certified engineers.
Q: Does it come with optical modules?
A:Yes, typically equipped with C+ modules.
Q: Is the Huawei GPBH (e.g., H807GPBH) board compatible with MA5800 series OLTs?
A:No, the GPBH board isnot compatiblewith Huawei MA5800 series OLTs.
