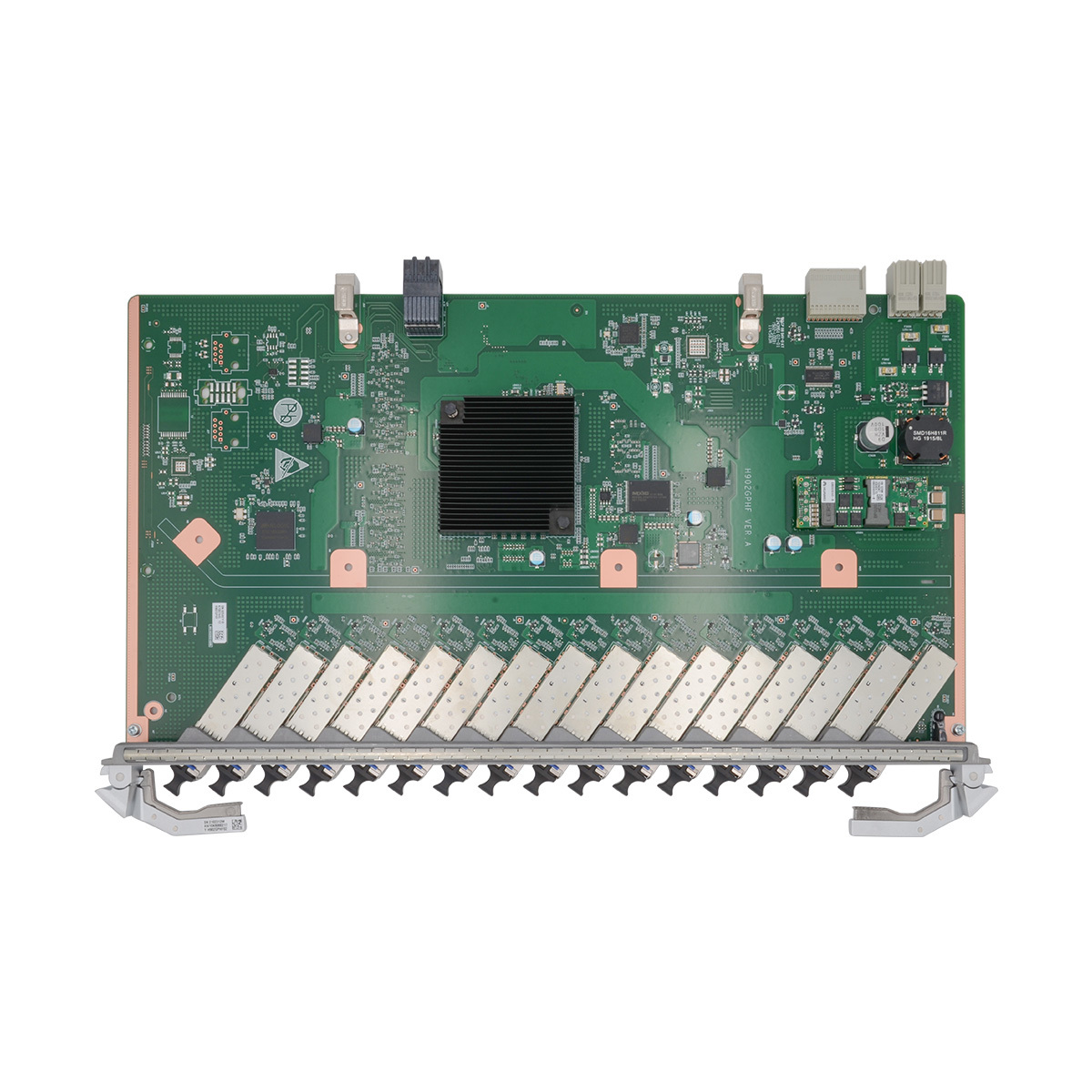

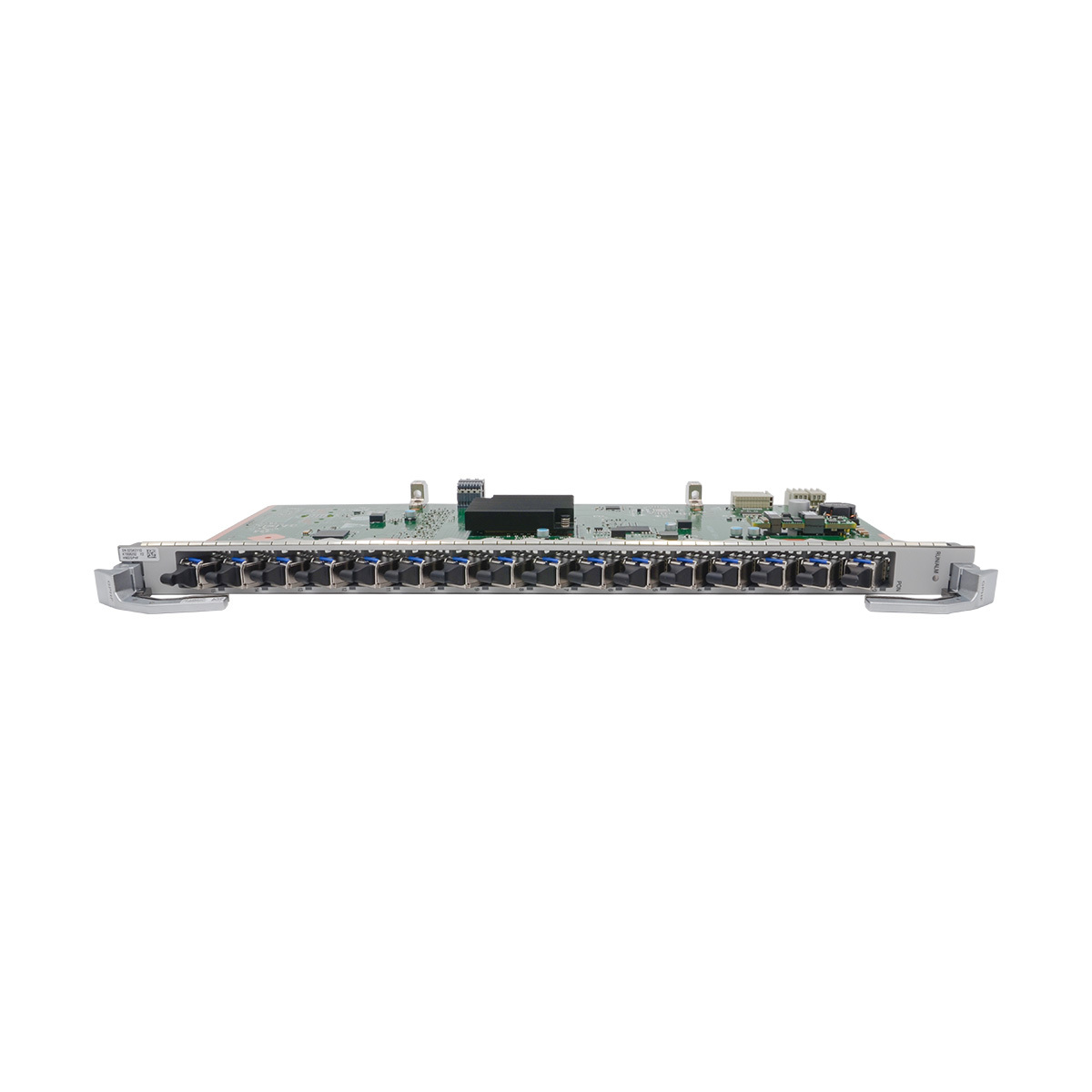

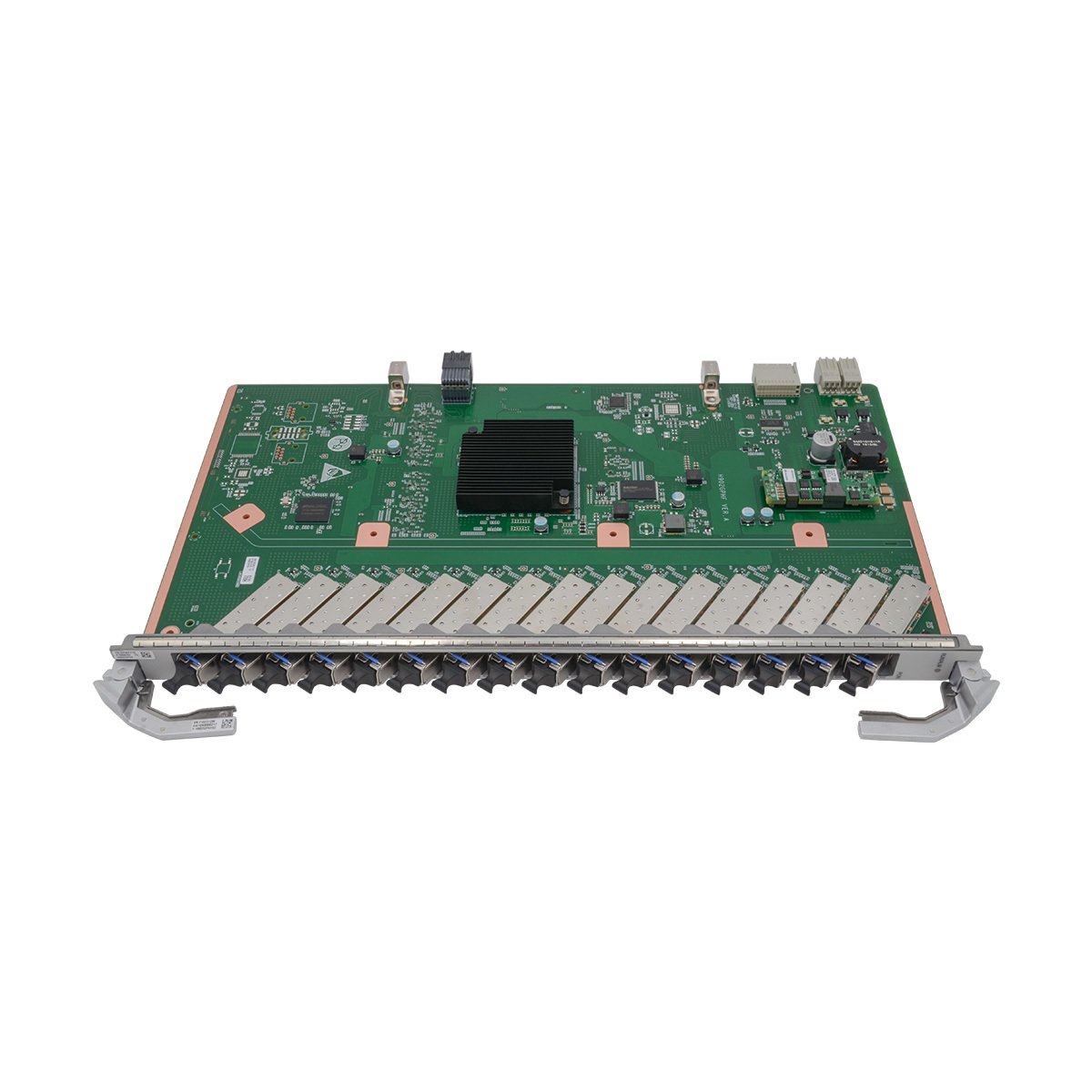

The Huawei GPHF is a high-density 16-port GPON Optical Line Terminal (OLT) interface board for the MA5800 series, featuring high-speed access (2.5G Down/1.25G Up), support for Class C+/C++ optics, advanced QoS (HQoS), jumbo frames, FEC, and protection (Type B/C) for delivering reliable, high-bandwidth fiber services with up to 1:128 split ratios for FTTx deployments.
Product Features
High Port Density: 16 GPON SFP ports on a single board.
High Speed: Supports 2.49 Gbps downstream and 1.25 Gbps upstream.
Advanced Optics: Works with Class B+/C+/C++ optical modules for flexible power budgets and reach (up to 20km).
High Split Ratio: Supports a maximum split ratio of 1:128 for efficient fiber use.
Enhanced QoS: Uses 4-level Hierarchical QoS (HQoS) for better user experience.
Jumbo Frame Support: Handles large frames (up to 9216 bytes) for efficient data transfer.
Application Scenarios
In Italy, ISP Mynet adopted Huawei GPON solutions including the GPHF board to participate in the EU’s €610 million "Voucher 2.0 Policy" . It enabled Mynet to upgrade 300Mbps enterprise networks to 2.5Gbps, supporting remote order management and cloud access for SMEs. The board’s stability and easy maintenance helped Mynet efficiently serve businesses nationwide, meeting surging demand for high-speed broadband and multi-service access.
