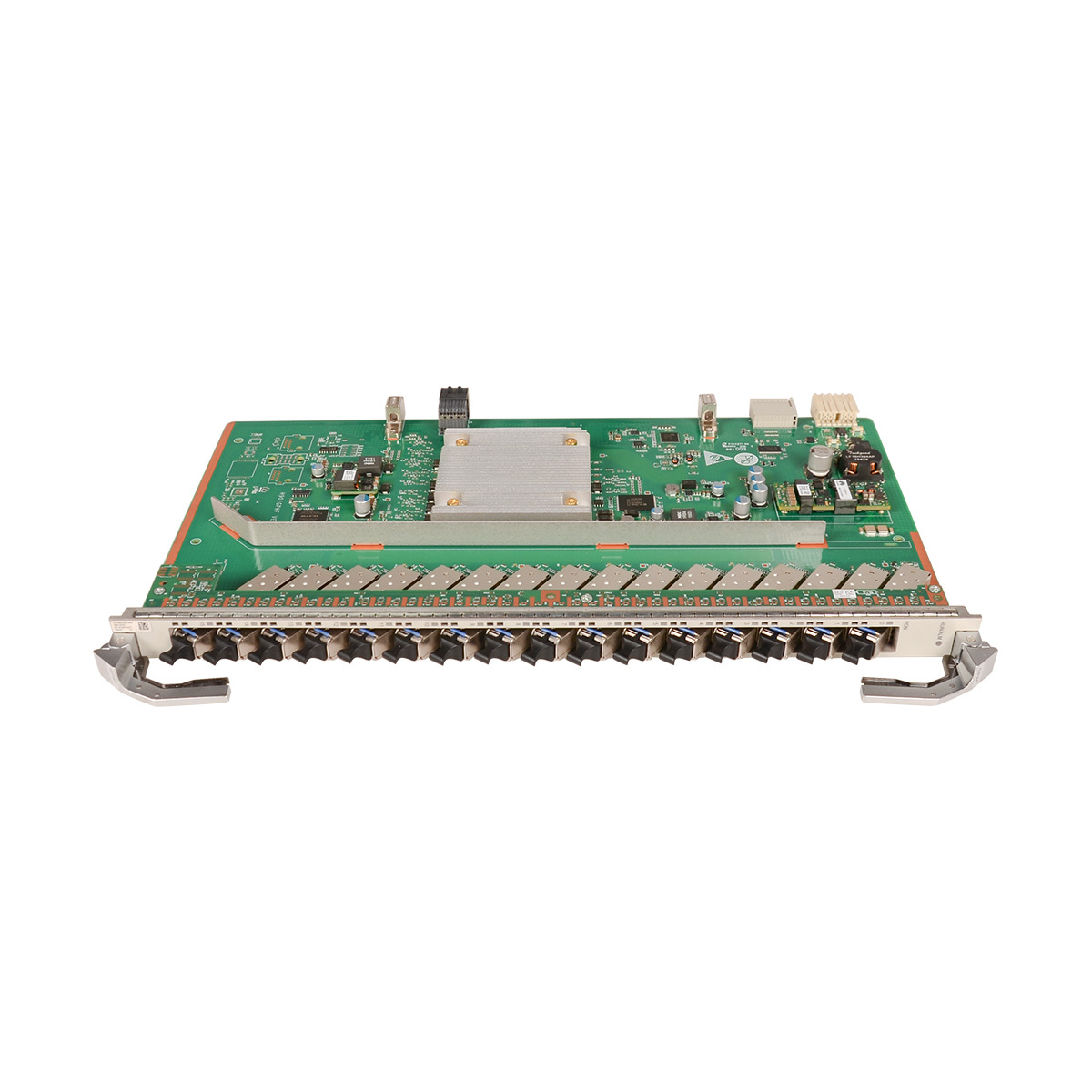

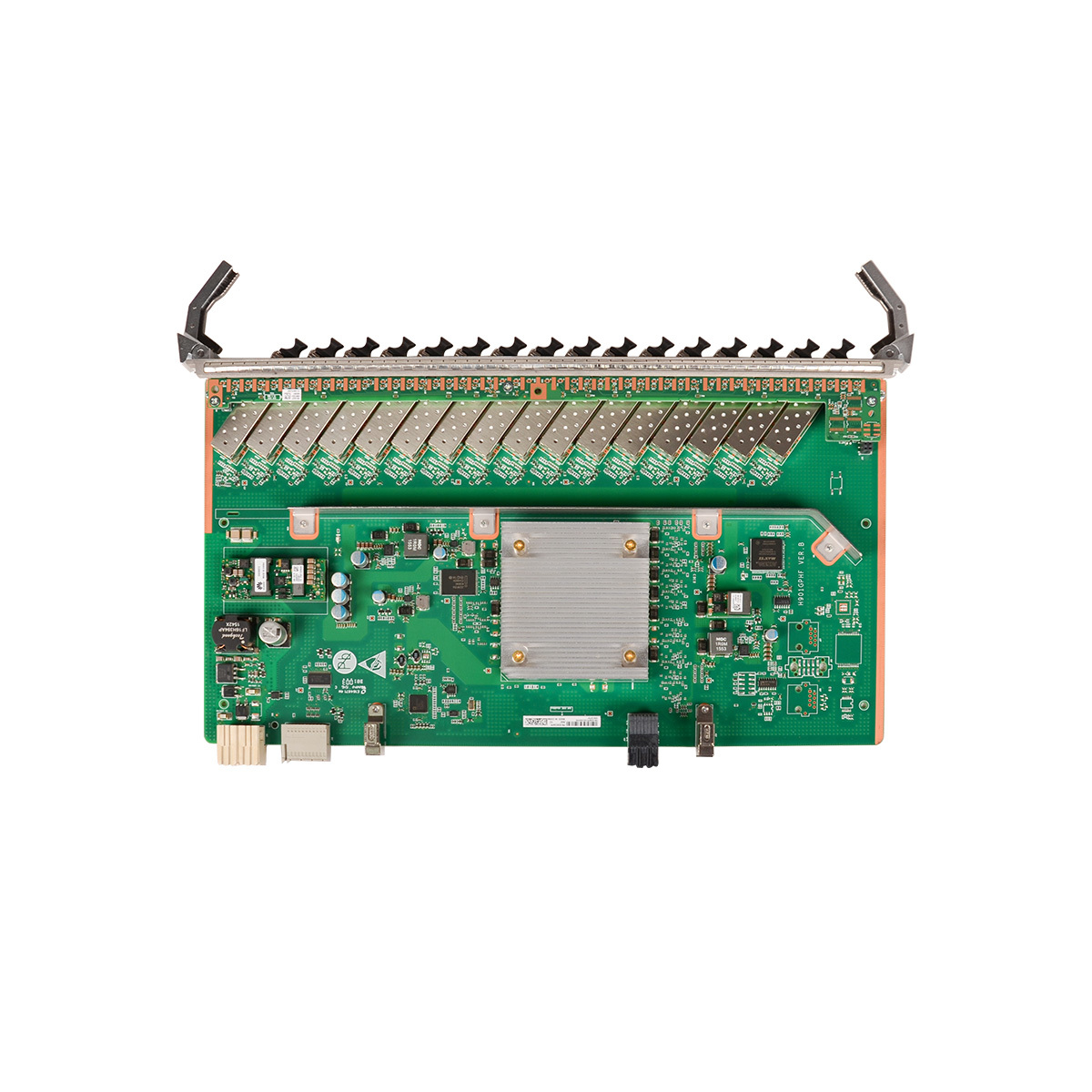

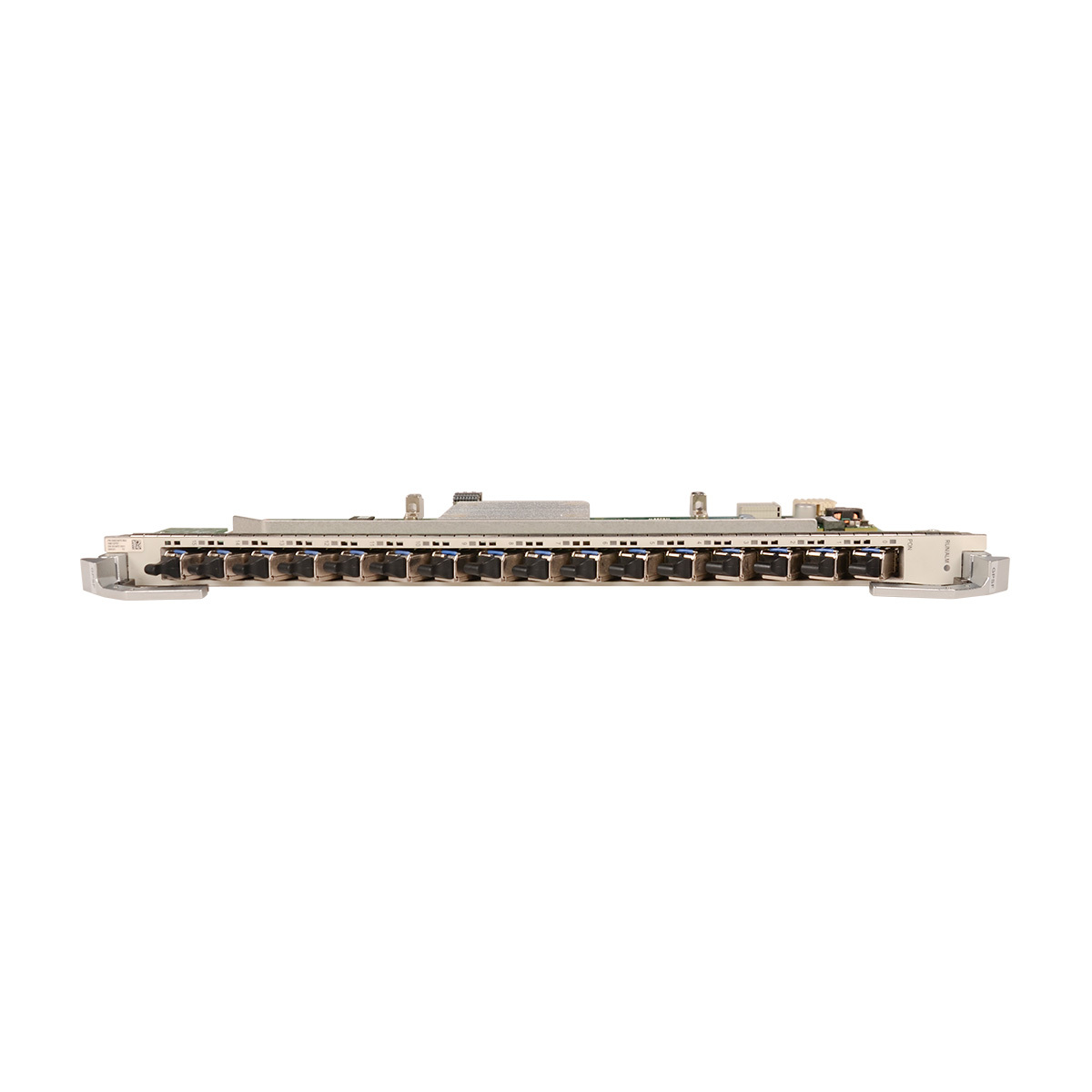

The Huawei GPSF is a high-density {1}16-port GPON Service Board for Huawei MA5800 OLTs, offering efficient Fiber-to-the-Home (FTTH) access with features like high subscriber density (up to 128 per port), long reach (20km+), Class C+/C++ SFP support for higher power/sensitivity, energy saving (idle port shutdown), large frame support (9216 bytes), and advanced fault detection (eOTDR) for simplified network management, all within a compact design.
Product Features
High Density & Capacity: 16 GPON ports on a single board, supporting up to 2048 users per board and 1:128 split ratio.
Advanced Optical Modules: Compatible with B+, C+, and C++ SFP modules for extended reach and better receiver sensitivity.
Energy Efficiency: Features like manual idle PON port shutdown to save power.
Long Reach: Supports long distances (up to 20km) for flexible network planning.
High Throughput: Supports 2.488 Gbps downstream and 1.244 Gbps upstream.
Jumbo Frame Support: Handles large frames (9216 bytes) for improved efficiency.
Application Scenarios
A European regional telecom operator deployed the Huawei GPSF GPON Board to upgrade its FTTH network. By integrating 500+ GPSF boards into Huawei MA5800-X17 OLTs, the operator expanded coverage to 100,000+ households, delivering 1Gbps broadband, IPTV, and voice services. The board’s 20km transmission capability eliminated fiber deployment costs in rural areas, while its energy-saving design reduced OPEX by 25% annually—facilitated by MF-Telecom’s timely delivery and technical support.
Huawei MA5800 X2/MA5800 X7/MA5800 X15/MA5800 X17 service board slot
Forwarding capability
40 Gbit/s
T-CONTs per PON port
1024
Service flows per PON board
16368
Maximum frame size
2052 bytes
Maximum number of MAC addresses
16384
Maximum distance difference between two ONUs under the same PON port (board capability)
40 km
FEC
Bidirection
CAR group
Supported
HQoS
Not supported
Variable-length OMCI
Supported
ONU-based shaping or queue-based shaping
Supported
Type B protection (dual-homing)
Not supported
Type B protection (single-homing)
Supported
Type C protection (dual-homing)
Not supported
Type C protection (single-homing)
Supported
1588v2
Not supported
Rogue ONT detection and isolation
Supported
Automatic shutdown at high temperature
Supported
Energy saving for service boards
Supported
Power consumption
H901GPSF: 25 W (static), 50 W (maximum) H902GPSF: 20 W (static), 46 W (maximum)
Weight
H901GPSF: 0.94 kg H902GPSF: 0.80 kg
FAQ
Q: Which Huawei OLT models is the GPSF board compatible with? A: It’s exclusively compatible with Huawei MA5800 series OLTs, including MA5800-X2, X7, X15, and X17.
Q: What SFP module types are compatible with the GPSF board? A: It works with B+, C+, and C++ class SFP modules.
Q: What is the after-sales service period? A: We provide a one-year warranty and technical support.
Q: How many PON ports does the GPSF have? A: It supports 16 ports.
Q: What quality assurance does MF-Telecom provide?
A: We offer 1-year warranty, original genuine products, and professional technical support.
Q: What is the forwarding capacity of the board? A: The forwarding capacity reaches 40 Gbit/s, which can meet the broadband data transmission needs of a large number of users.
