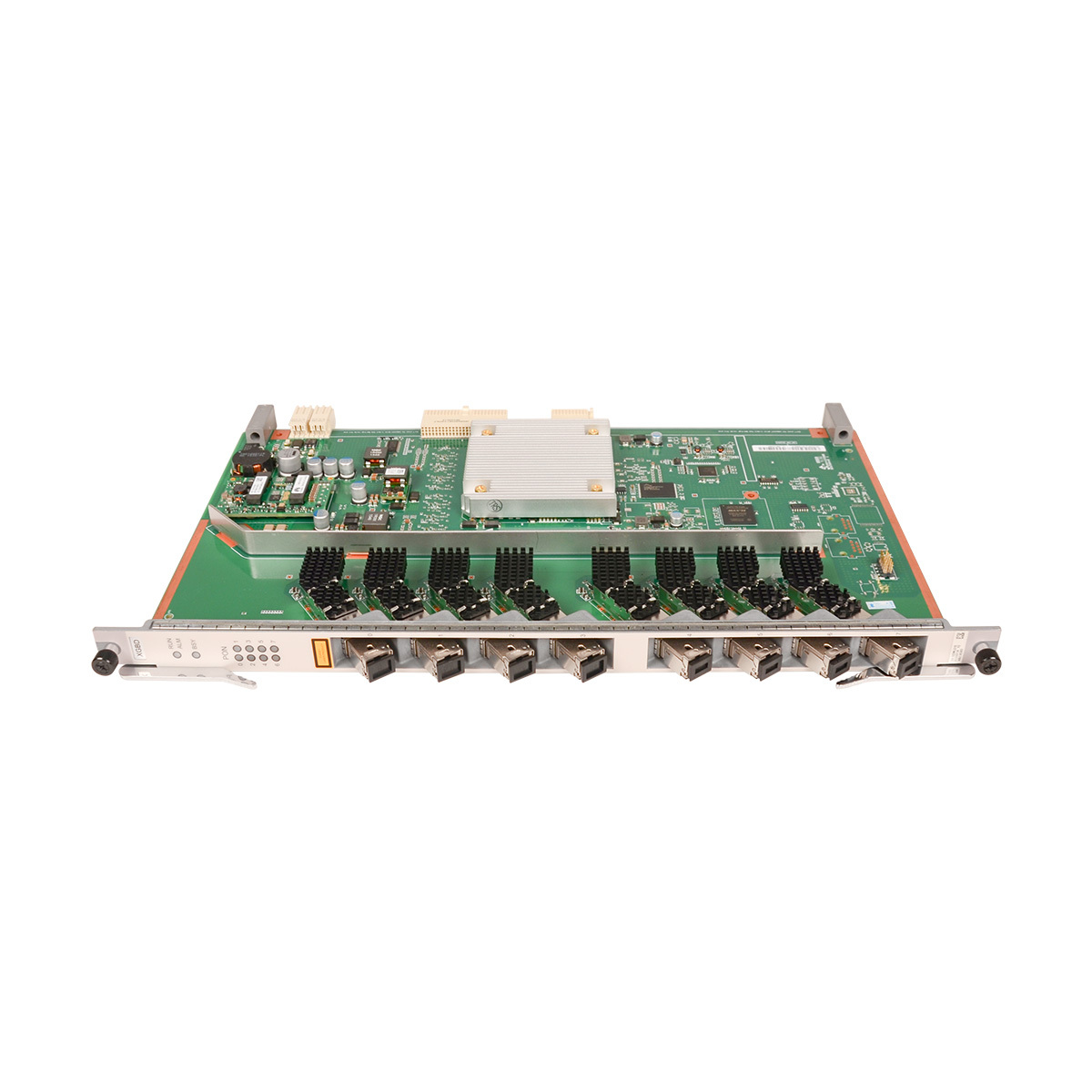

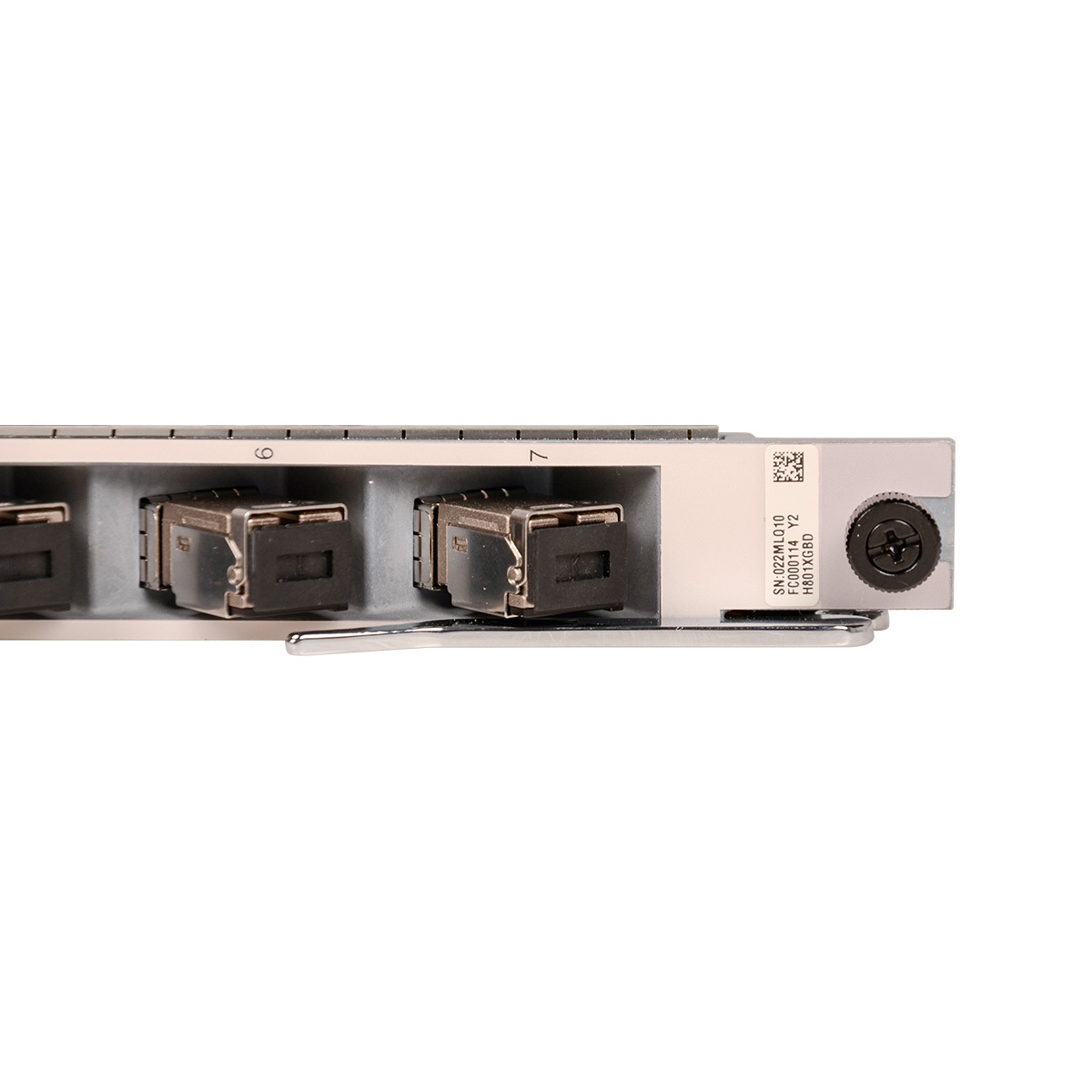

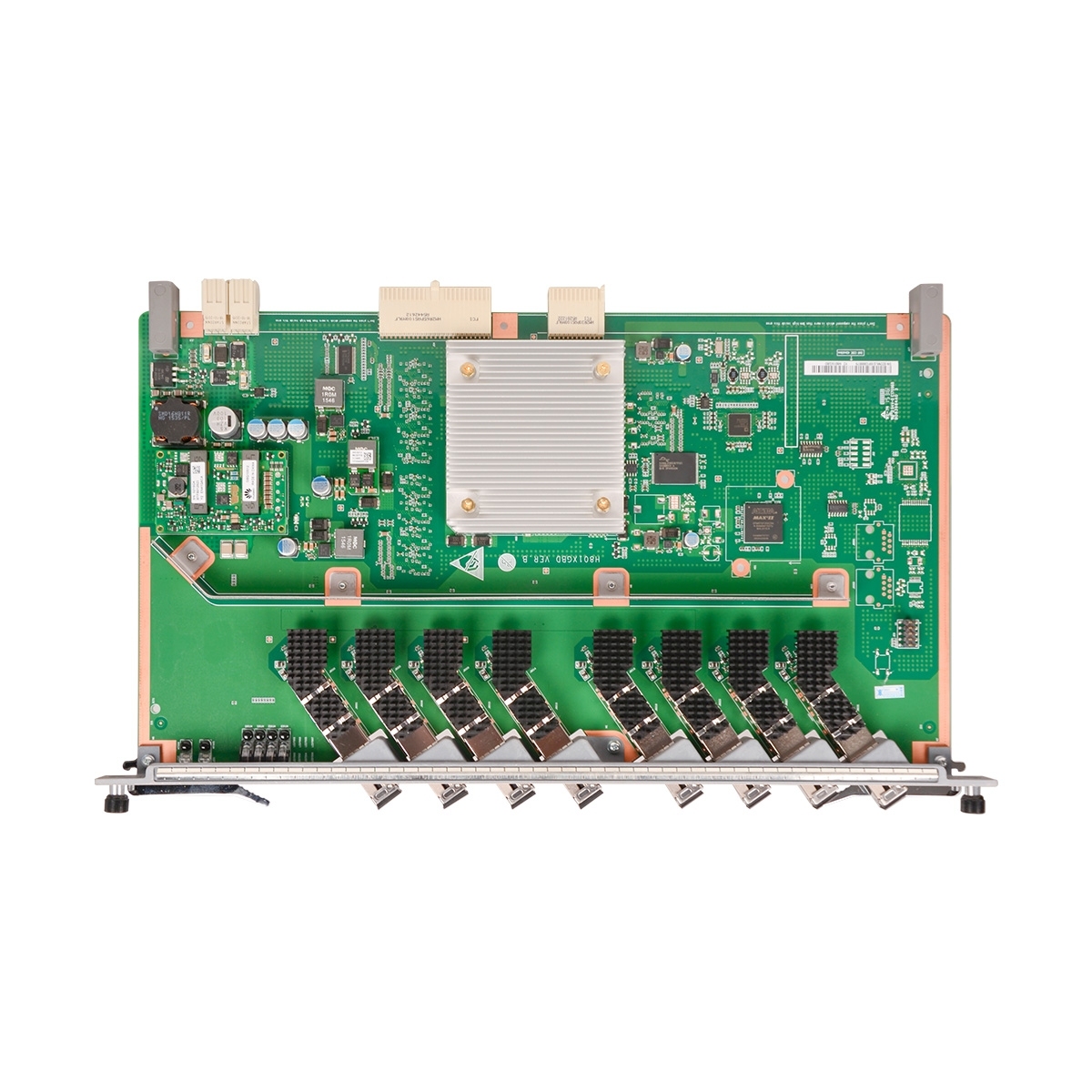

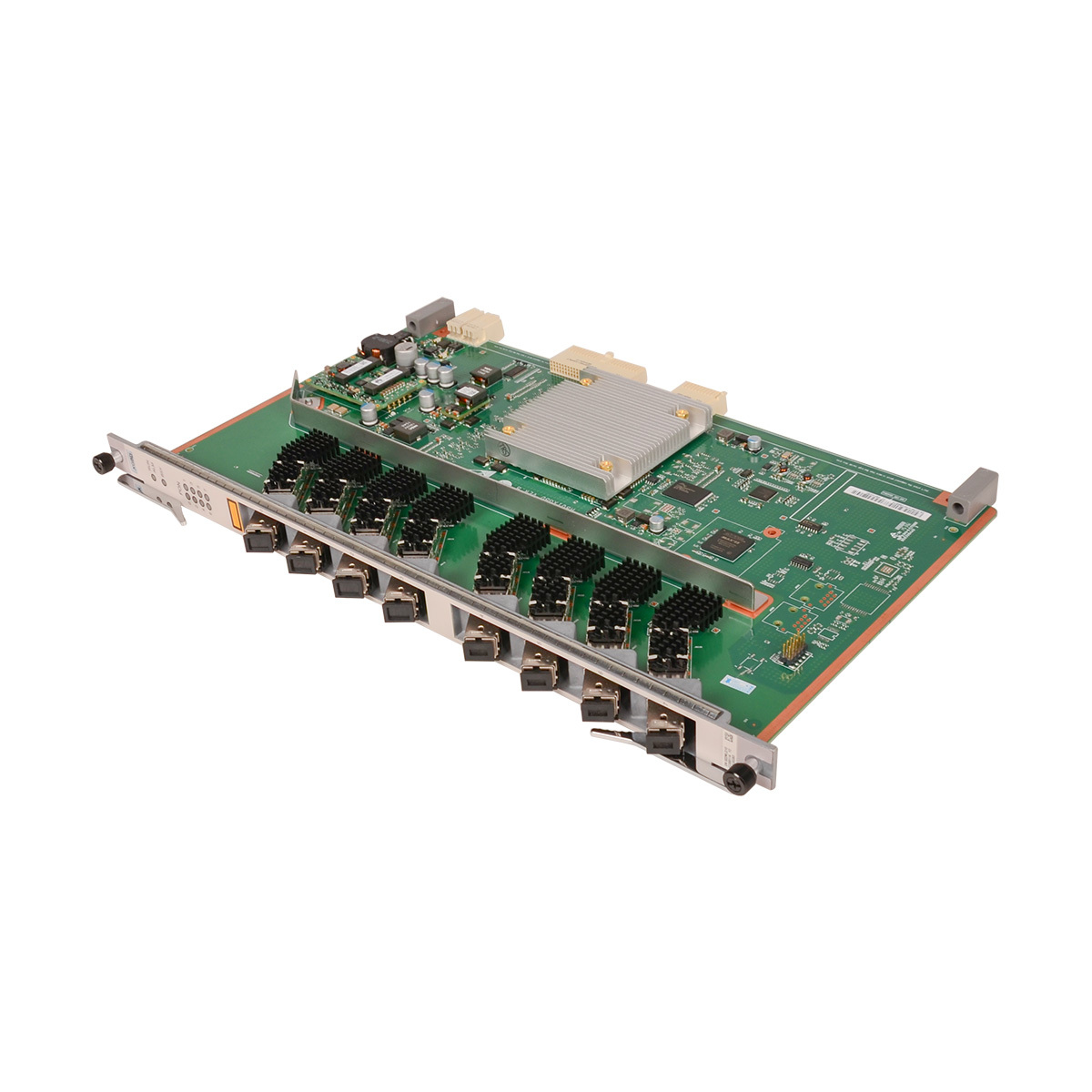

The Huawei H801XGBD is an 8-port 10G GPON OLT interface board pre-equipped with 10G GPON N1 optical modules, specifically engineered for seamless integration with Huawei MA5600T series OLTs (including MA5608T, MA5680T, and MA5683T). Boasting a port rate of 10 Gbit/s (Tx) and 2.5 Gbit/s (Rx), it delivers a 40 Gbit/s forwarding capability, supports 1K T-CONTs per PON port and 16K service flows per board, and features a 64K MAC address capacity. It handles a maximum frame size of 2004 bytes (or 9216 bytes with jumbo frame enabled) and, starting from V800R013, allows a maximum distance difference of 40 km between two ONUs under the same PON port.
Product Features
High-Density 10G GPON: 8 x 10G GPON SFP+ ports for robust service access.
High Split Ratio: Supports up to 1:256, maximizing fiber utilization and lowering costs.
Backward Compatibility: Allows smooth migration from GPON to 10G PON, reusing existing ODN.
High Performance: 100 Gbps forwarding capability for low latency.
Reliability: Supports Type B/C protection, rogue ONT detection, and high-temp shutdown.
Intelligent Management: Level 4 HQoS for enhanced user experience, jumbo frame support (9216 bytes).
Application Scenarios
Latin American Gigabit Network Deployment A major Mexican telecom operator upgraded its FTTH infrastructure with 500+ Huawei XGBD boards from MF-Telecom. The 8-port design and 1:256 splitting ratio reduced OLT port density needs by 40%, while dual-mode compatibility preserved existing GPON ONUs. The deployment supported 100,000+ gigabit subscribers, cutting latency by 50% vs. legacy GPON—backed by MF-Telecom’s 3-day shipping and post-deployment technical support.
A:It is an 8-port 10G GPON OLT interface board pre-equipped with 10G GPON N1 optical modules, designed for high-speed fiber access networks.
Q: Which Huawei OLT models can XGBD be used with?
A: It is fully compatible with Huawei MA5800, MA5683T, MA5608T, and other mainstream OLT chassis, supporting plug-and-play integration.
Q: How does MF-Telecom support the XGBD purchase? A: We provide genuine Huawei hardware, 1-year warranty, global shipping (3-5 days).
Q: What are the port rates of the XGBD? A: The port rate is 10 Gbit/s (Tx) and 2.5 Gbit/s (Rx).
Q: Is the XGBD compatible with the H801GICF uplink board? A: Yes. The XGBD (10G GPON service board) can work with the H801GICF (GE uplink board) on compatible OLTs to build a complete service + uplink solution
