Huawei CE6881-48S6CQ-K Switch

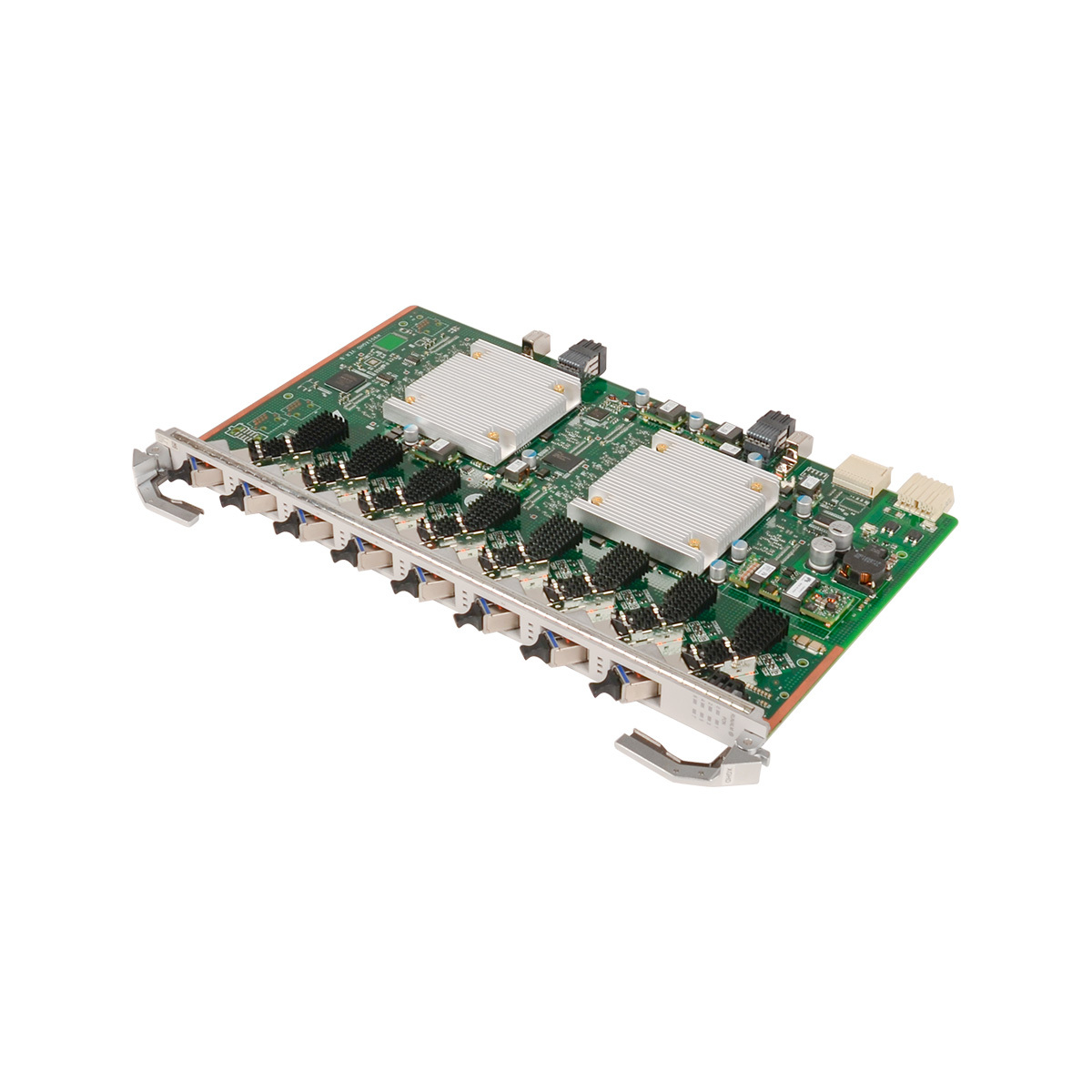

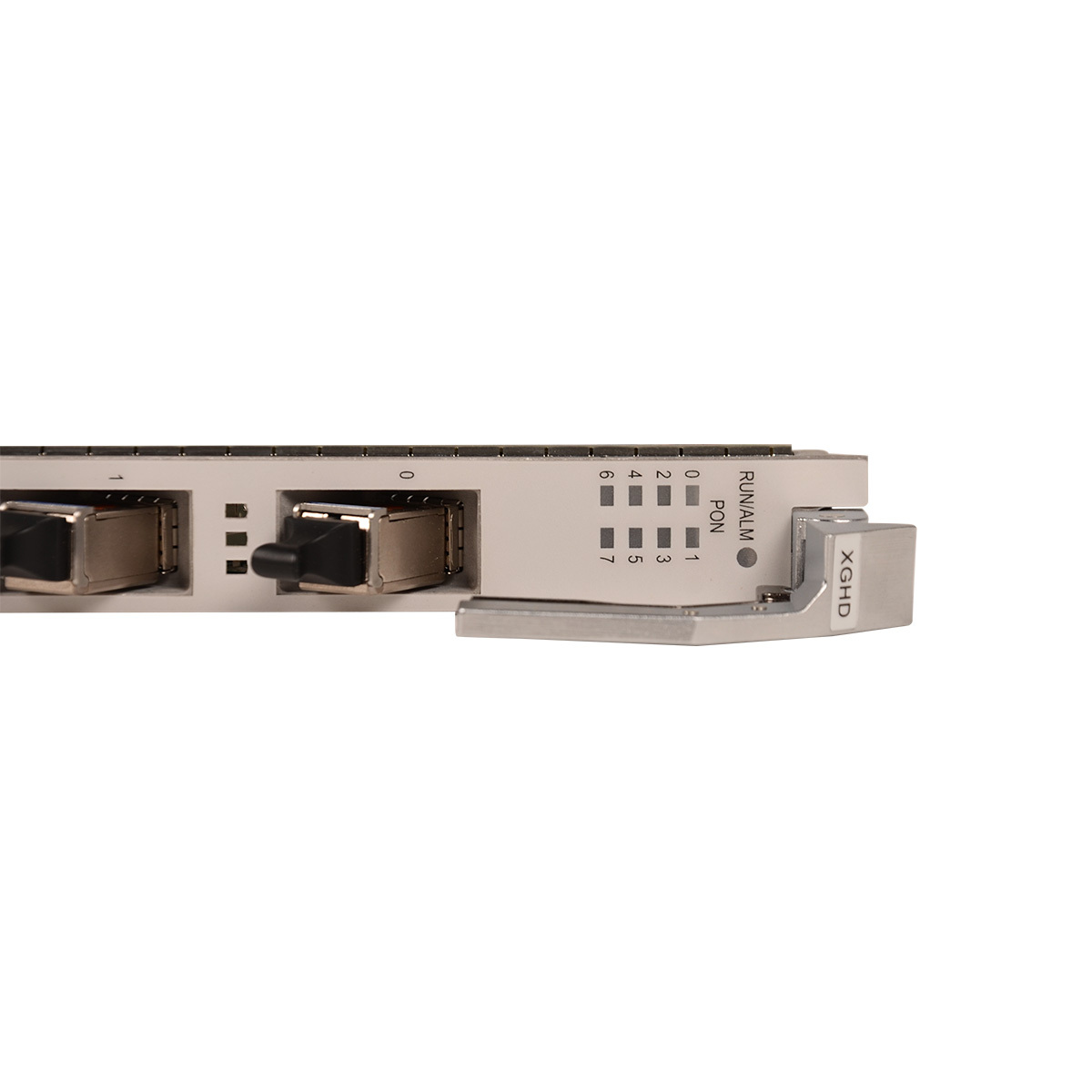

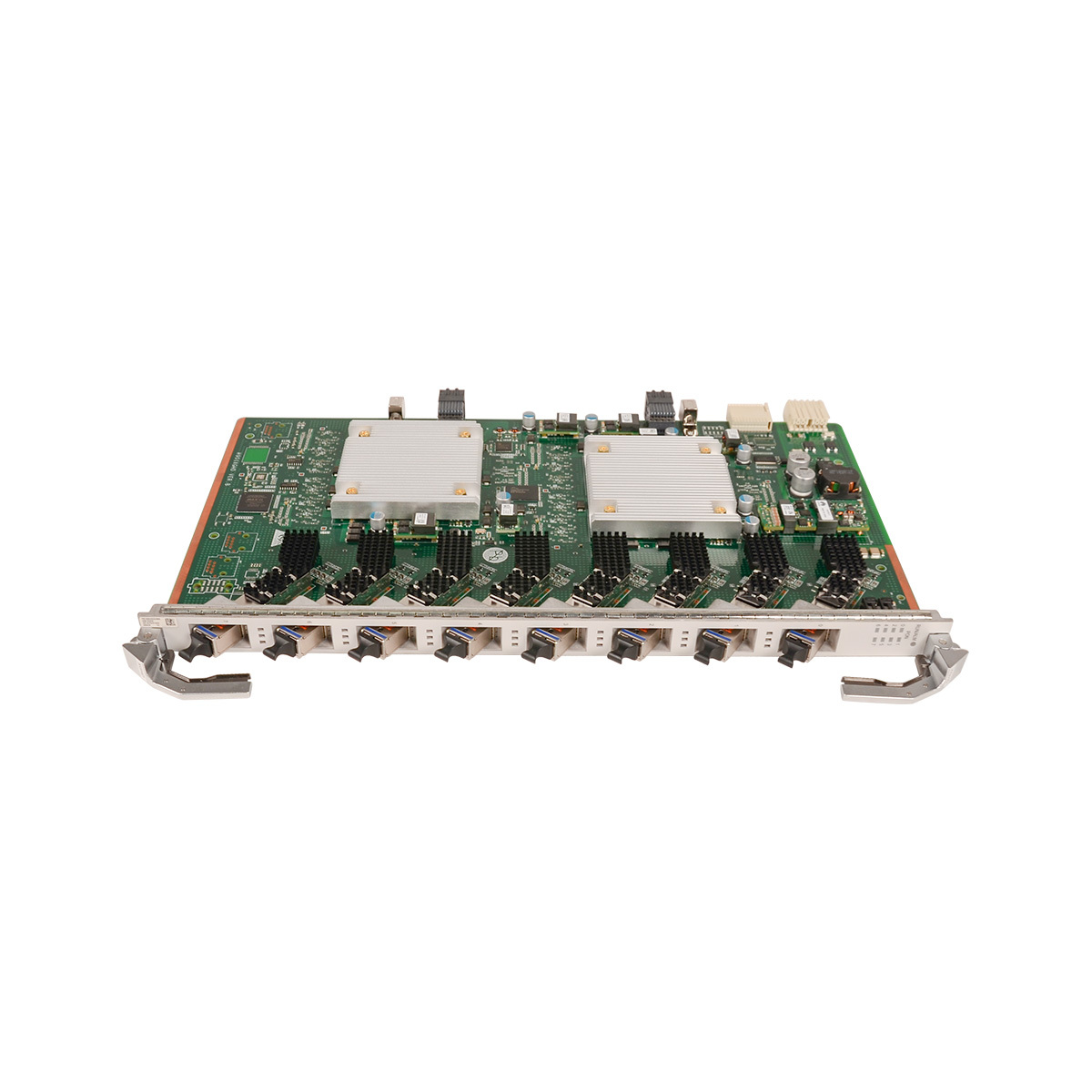

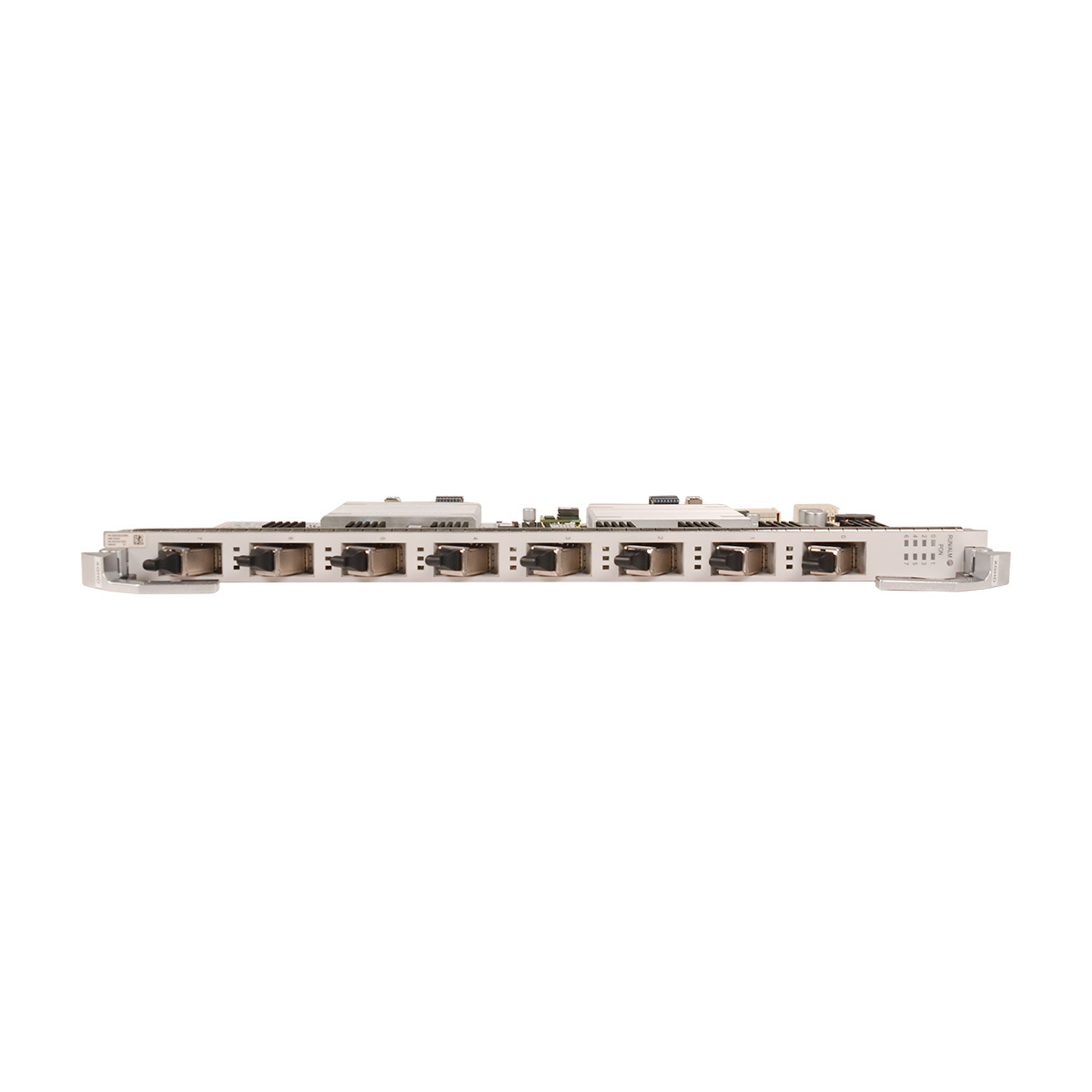

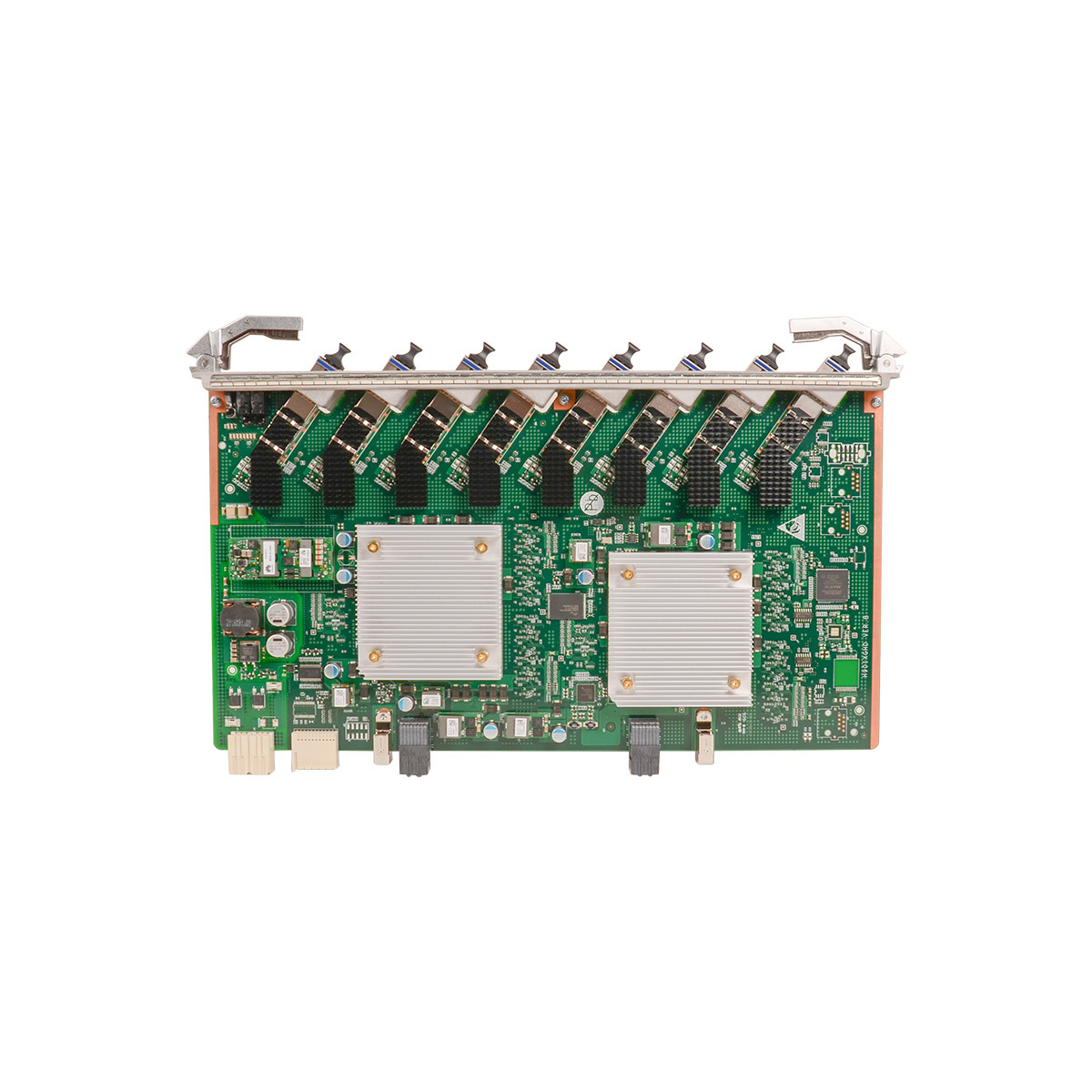

Huawei XGHD XG-PON Board

Name: Huawei XGHD XG-PON Board
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF0165
Price: 240.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.MF0165

Huawei XGHD MA5800 series 8-port XG-GPON interface board

Packing Box Specifications

39.9x 2.33x 25.7cm

Gross Weight

1.07kg

SFP+

N1, N2a

Lead Time

1-3 working days

Warranty

12 months

Shipping Method

DHL, UPS, FedEx, Sea/Air/Railway Freight

Payment Method

PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay

Description
Huawei PON Module

Huawei XGHD Overview

The Huawei XGHD board is an 8-port, high-density 10G GPON interface board for OLTs (like the MA5800), offering high capacity (up to 1:256 split, 40km range), advanced features like Type B/C protection, rogue ONT detection, high-temperature alarms, and support for jumbo frames and HQoS, enabling efficient, reliable, and scalable broadband access for growing bandwidth demands in fixed and mobile convergence networks.

Product Features

High Port Density: 8 x 10G GPON SFP interfaces per board.
High Capacity: Supports up to 1:256 split ratio and 40km transmission distance.
Reliability & Protection: Supports Type B/C protection and rogue ONU detection/isolation for stable service.
Intelligent Management: Features RSSI detection, illumination control, high-temp alarms, and automatic shutdown.
Performance: Handles 80 Gbit/s forwarding, supports jumbo frames (9216 bytes), and has Level 4 HQoS for better QoS.
Flexibility: Allows for smooth migration from GPON to 10G GPON, reusing existing ODNs.

Application Scenarios

Large-Scale 10G Symmetric Broadband for Urban High-Density Communities (Asia)

A leading telecom operator in Japan deployed XGHD interface boards with MA5800-X17 OLTs to roll out 10G symmetric broadband across Tokyo’s high-density residential and business districts, covering 300,000 households and 50,000 enterprises. Each XGHD’s 16 XGS-PON ports connected to user-side ONTs, delivering 10Gbps bidirectional bandwidth for 8K live streaming, low-latency cloud gaming, and enterprise cloud interconnection. The dynamic routing function optimized traffic to core networks, while QoS prioritized enterprise critical services. With 90 XGHD boards deployed, the operator achieved 14.4Tbps total access capacity, reducing OLT slot usage by 50% vs. 8-port alternatives—meeting the region’s surging demand for ultra-high-speed symmetric broadband.

Downloadable resources

Huawei XGHD Board Datasheet

Technical Specifications

Huawei XGHD Board Datasheet

Specification
Service ports
GPON Port	8 10G GPON Port
GPON SFP+ Module Specification
Type	One-fiber bi-directional optical module
Operating Wavelength	Tx: 1577 nm Rx: 1270 nm
Encapsulation Type	10G-GPON
Port Rate	Tx: 9.95 Gbit/s Rx: 2.49 Gbit/s
Minimun Output Optical Power	2 dBm
Maximum Output Optical Power	6 dBm
Maximum Receiver Sensitivity	-27.5 dBm
Optical Connector Type	SC/PC
Optical Fiber Type	Single-mode
Reach	20 km
Overload Optical Power	-7 dBm
Extinction Ratio	8.2 dB
Device Specifications
Dimensions (W x D x H)	23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption	Static: 42 W; Maximum: 65 W
Maximum Frame Size	2004 bytes; 9216 bytes (jumbo frame enabled)
Operating temperature	-40°C to +65°C

FAQ

Q: Which OLT systems is the Huawei XGHD compatible with?

A: It works with Huawei MA5800 X2, X7, X15, and X17 next-generation OLT systems.

Q: What is the board’s power consumption?

A: Static power consumption is 42W, with a maximum of 65W under full load.

Q: What is the lead time for ordering from MF-Telecom?

A: We offer 1-3 working days lead time for the Huawei XGHD XG-PON Board.

Q: Is the Huawei XGHD a genuine product?

A: Absolutely. MF-Telecom sources 100% authentic Huawei equipment with traceable serial numbers and quality certification.

Q: What is the after-sales service period?
A: We provide a one-year warranty and technical support.

Module Name	Tx optical power (AVG) [dBm]
GPON Optical Module
GPON ONU B+	0.5-5 dBm
GPON ONU C+	0.5-5 dBm
SFP-GPON-SMF--UPC-Class B+	1.5-5 dBm
SFP-GPON-SMF-PC-Class C+	3-7 dBm
SFP-GPON-SMF-UPC-Class C+ Pro	Classs C+: 3-7 dBm Classs D: 6-10 dBm
SFP-GPON-SMF-UPC-Class C++ -TUV&UL&FDA	6-10 dBm
XGS-PON Optical Module (SFP+)
SFP+ -XGS-PON-SMF-UPC-N1	2-5 dBm
SFP+ -XGS-PON-SMF-UPC-N2	4-7 dBm
SFP+ -XGS-PON-SMF-UPC-N2a	4-8 dBm
XG-PON Combo Optical Module (SFP+)
SFP+ -XG-PON&GPON-SMF-UPC-Class C+ Pro	GPON: Standard Mode: 4.5-8.5 dBm Enhanced Mode: 6-10 dBm XG-PON: Standard Mode: 5-9 dBm Enhanced Mode: 7.5-12 dBm
SFP+ -XG-PON&GPON-SMF-UPC-Class C+-01	GPON: 3-7 dBm XG-PON: 5-8 dBm
SFP+ -XG-PON&GPON-SMF-UPC-Class C+-01	GPON: 4.5-8.5 dBm XG-PON: 5-9 dBm
SFP+ -XG-PON&GPON-SMF-UPC-Class D	GPON: 6-10 dBm XG-PON: 8-12 dBm
XGS-PON Combo Optical Module
SFP+ -XGS-PON&GPON-SMF-UPC-Class B+	GPON: 1.5-5 dBm XG-PON: 1-4 dBm XGS-PON: 1-4 dBm
SFP+ -XGS-PON&GPON-SMF-UPC-Class C+	GPON: 3-7 dBm XG-PON: 5-8 dBm XGS-PON: 5-8 dBm
SFP+ -XGS-PON&GPON-SMF-UPC-Class C+ Pro	GPON: Standard Mode: 3-7 dBm Enhanced Mode: 6-10 dBm XGS-PON: Standard Mode: 5-8 dBm Enhanced Mode: 8-11 dBm
SFP+ -XGS-PON&GPON-SMF-UPC-Class D	GPON: 6-10 dBm XG-PON: 8-11 dBm XGS-PON: 8-11 dBm
