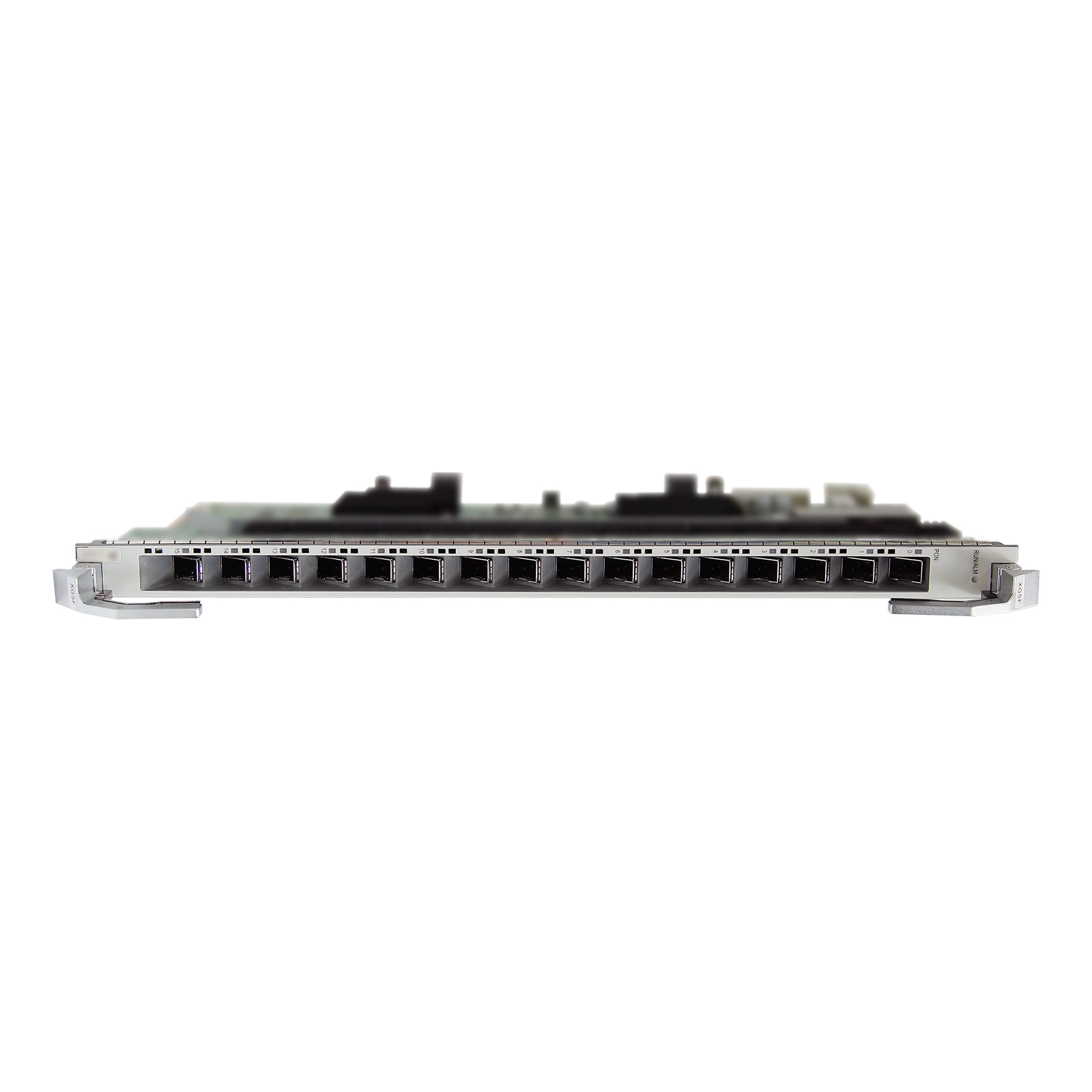

Huawei XGSF (or H901XSHF/CSHF) boards are high-density XGS-PON interface cards for MA5800 OLTs, offering 16 ports with massive capacity (up to 2048 users/port), 10G symmetrical/asymmetrical speeds, support for Jumbo frames (9216 bytes), long reach (40km distance difference), advanced QoS (Level 4 HQoS), and robust security features like rogue ONT detection and DoS attack defense, all while being energy efficient for gigabit broadband networks.
Product Features
High Density & Capacity: 16 XGS-PON ports per board, supporting up to 2048 ONUs per port and managing large MAC address tables.
High Bandwidth: Provides symmetric 10G (9.953 Gbps) upstream and downstream, plus GPON (1.2G/2.4G) on combo boards, with support for 9216-byte Jumbo Frames for better efficiency.
Advanced QoS: Implements Level 4 HQoS (Hierarchical Quality of Service) for improved user experience and traffic management.
Long Reach: Supports a significant distance difference (up to 40km) between ONUs on the same port, simplifying network planning.
Security: Includes features like rogue ONT detection/isolation, DoS/IP/MAC spoofing attack defense, and AES-128 encryption for GPON.
Energy Saving: Features manual shutdown of idle PON ports to conserve power.
Application Scenarios
Medium-Scale 10G Symmetric Broadband for Suburban Communities & SMEs (Europe)
A regional telecom operator in France deployed XGSF interface boards with MA5800-X7 OLTs to upgrade its suburban broadband network, covering 80,000 households and 12,000 small-to-medium enterprises (SMEs) across 9 cities. Each XGSF’s 8 XGS-PON ports connected to user-side ONTs, delivering 10Gbps symmetric bandwidth for 8K streaming, cloud collaboration, and SME high-speed data transfers. The L2 VLAN function isolated residential and enterprise traffic, while QoS prioritized business-critical services. With 50 XGSF boards deployed, the operator achieved 4Tbps total access capacity, meeting peak demands at 35% lower costs than high-density alternatives—perfectly matching the region’s medium-scale 10G access needs.
Maximum distance difference between 2 ONUs under the same PON port (board capability) [km]
40km
T-CONTs per port
2048
Service flows per board
16368
1588v2 Synchronization
N
9216-byte jumbo frames
N
CAR group
Y
Bidirectional FEC
Y
Type B protection (single-homing)
Y
Type B protection (dual-homing)
N
Type C protection (single-homing)
Y
Type C protection (dual-homing)
Y
HQoS
N
PON ISSU
Y
ONU-based or queue-based shaping
Y
Variable-length OMCI
Y
Rogue ONU detection and isolation
Y
Automatic shutdown at high temperature
Y
Energy conservation for service boards
Y
Dimensions without packaging (H x W x D) [mm]
399.20 mm x 23.30 mm x 257.90 mm
Weight without packaging [kg]
1.08 kg
Static power consumption [W]
42 W
Maximum power consumption [W]
83 W
Operating temperature [°C]
-40°C to +65°C
Maximum Frame Size of Boards (Default) [bytes]
2052 bytes
Maximum Frame Size of Boards (jumbo frame enabled) [bytes]
Nt supported
Maximum split ratio
1:256
FAQ
Q: Which OLT systems is the Huawei XGSF board compatible with? A: It works seamlessly with Huawei MA5800 X2, X7, X15, and X17 next-generation OLT systems.
Q: What is the maximum transmission distance of the XGSF XG-PON Board?
A: It supports a maximum distance difference of 40km between ONUs under the same PON port.
Q: What is the lead time for ordering from MF-Telecom?
A: We provide fast delivery with a lead time of 1-3 working days for the Huawei XGSF board.
Q: What is the split ratio supported by the XGSF XG-PON Board?
A: It supports a maximum split ratio of 1:256 for efficient network resource utilization.
Q: What is the after-sales service period? A: We provide a one-year warranty and technical support.
