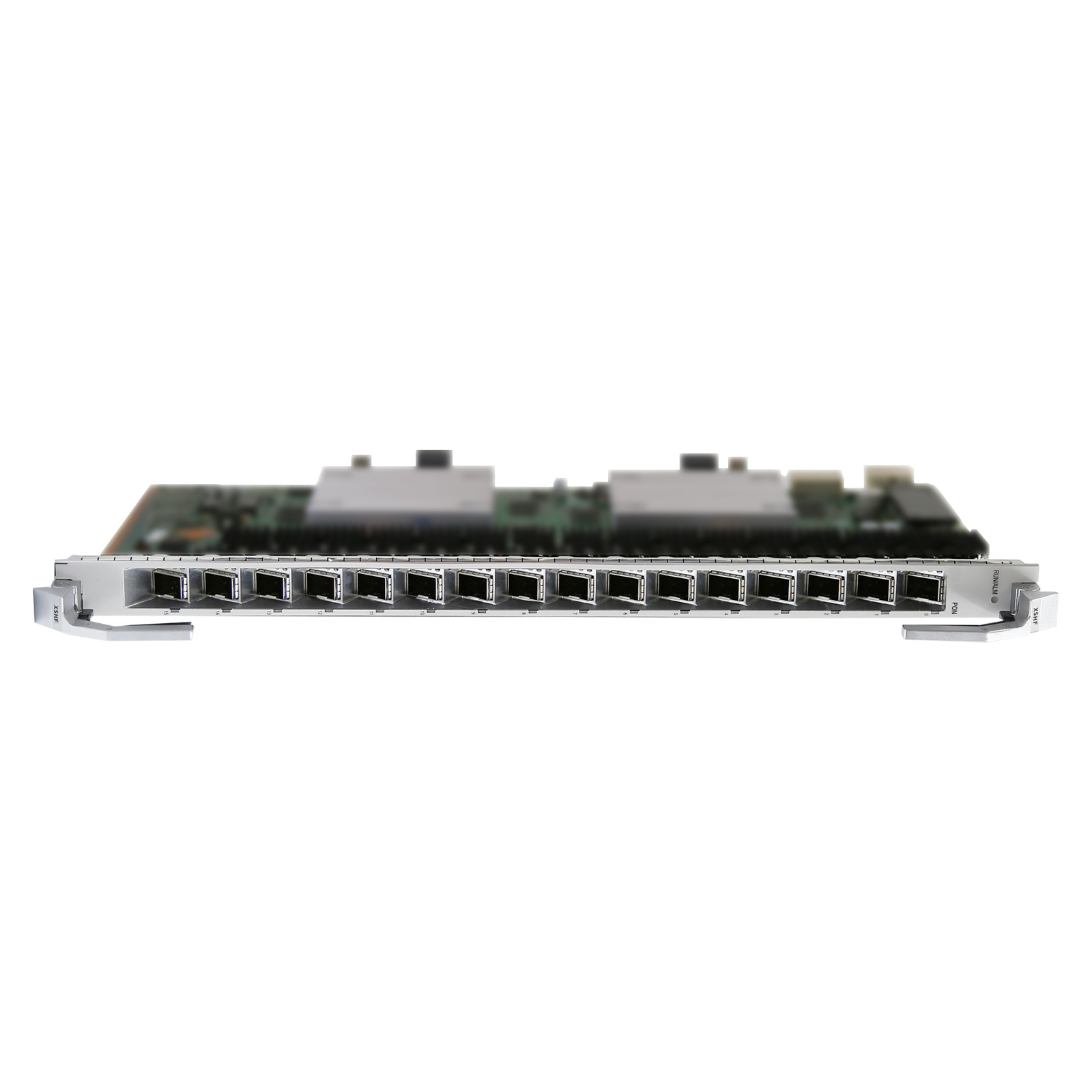

The Huawei XSHF board (like the H901XSHF) is a high-density, 16-port XGS-PON OLT interface board for the MA5800 series, offering symmetric 10G PON access, supporting both GPON & XGS-PON, with features like high reliability (Type B protection), efficient management (optical module monitoring, temperature alarms), and security (anti-DoS, MAC filtering) for next-gen broadband networks.
Product Features
High Density: 16 PON ports on a single board, enabling high user access.
XGS-PON & GPON Combo: Supports both XGS-PON (10G) and GPON (2.5G) services for flexible evolution.
Symmetric & Asymmetric Modes: Supports both symmetric (10G up/down) and asymmetric (2.5G/10G) rate modes.
Reliability: Features Type B OLT dual-homing for high availability.
Management & Monitoring: Includes optical module monitoring (temperature, power, current) and high-temperature alarms.
Security: Offers defense against DoS attacks, MAC/IP spoofing, and supports encryption (AES 128-bit).
Application Scenarios
Small-Scale 10G Symmetric Broadband for Rural Communities & SMEs (North America)
A regional telecom operator in Canada deployed XSHF interface boards with MA5800-X2 OLTs to expand 10G broadband across rural communities and small enterprises in Alberta, covering 25,000 households and 4,000 SMEs across 5 rural districts. Each XSHF’s 4 XGS-PON ports connected to user-side ONTs, delivering 10Gbps symmetric bandwidth for 4K/8K video, remote work, and SME cloud data transfers. The L2 VLAN function isolated residential and enterprise traffic, while QoS prioritized SME business services. With 30 XSHF boards deployed, the operator achieved 1.2Tbps total access capacity, meeting local 10G demands at 40% lower costs than higher-density alternatives—perfectly matching rural small-scale coverage needs.
Maximum distance difference between 2 ONUs under the same PON port (board capability) [km]
40km
T-CONTs per port
2048
Service flows per board
16368
1588v2 Synchronization
Y
9216-byte jumbo frames
Y
CAR group
Y
Bidirectional FEC
Y
Type B protection (single-homing)
Y
Type B protection (dual-homing)
Y
Type C protection (single-homing)
Y
Type C protection (dual-homing)
Y
HQoS
Y
PON ISSU
Y
ONU-based or queue-based shaping
Y
Variable-length OMCI
Y
Rogue ONU detection and isolation
Y
Automatic shutdown at high temperature
Y
Energy conservation for service boards
Y
Dimensions without packaging (H x W x D) [mm]
399.20 mm x 23.30 mm x 257.90 mm
Weight without packaging [kg]
1.21 kg
Static power consumption [W]
48 W
Maximum power consumption [W]
94 W
Operating temperature [°C]
-40°C to +55°C
Maximum Frame Size of Boards (Default) [bytes]
2052 bytes
Maximum Frame Size of Boards (jumbo frame enabled) [bytes]
9216 bytes
Maximum split ratio
1:256
