Huawei CE6881-48S6CQ-K Switch

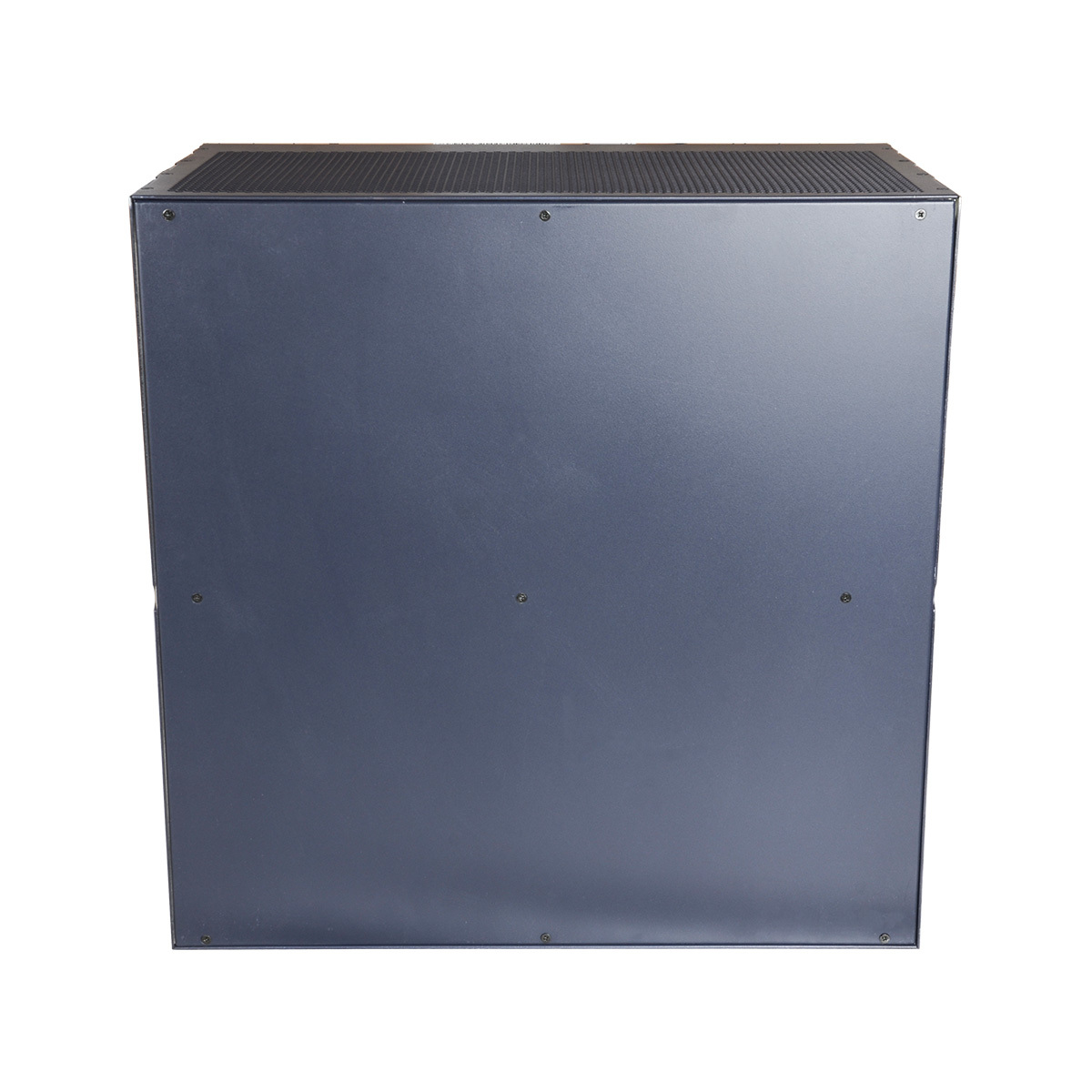

ZTE ZXA10 C300 OLT

Name: ZTE ZXA10 C300 OLT
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF0039
Price: 300.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.MF0039

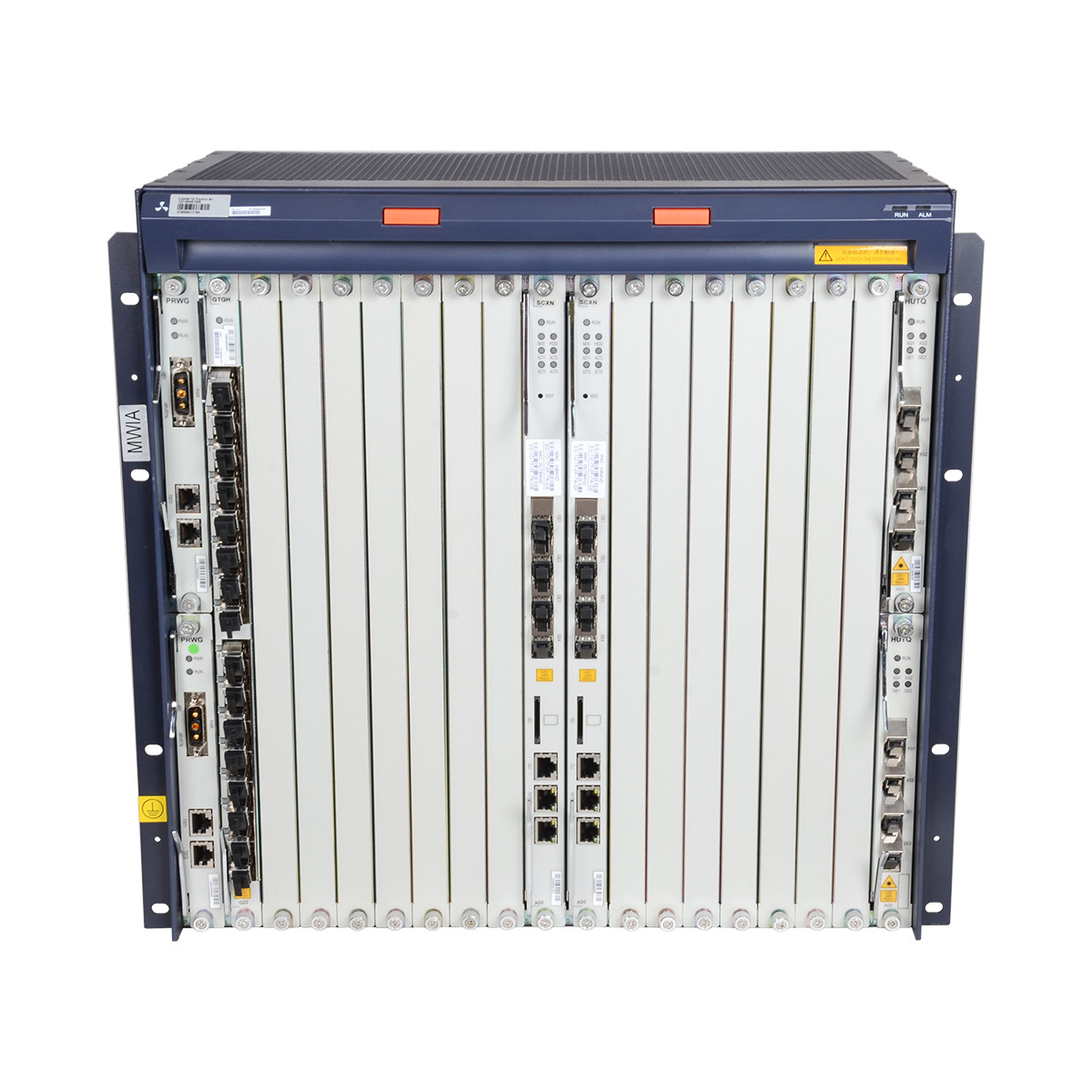

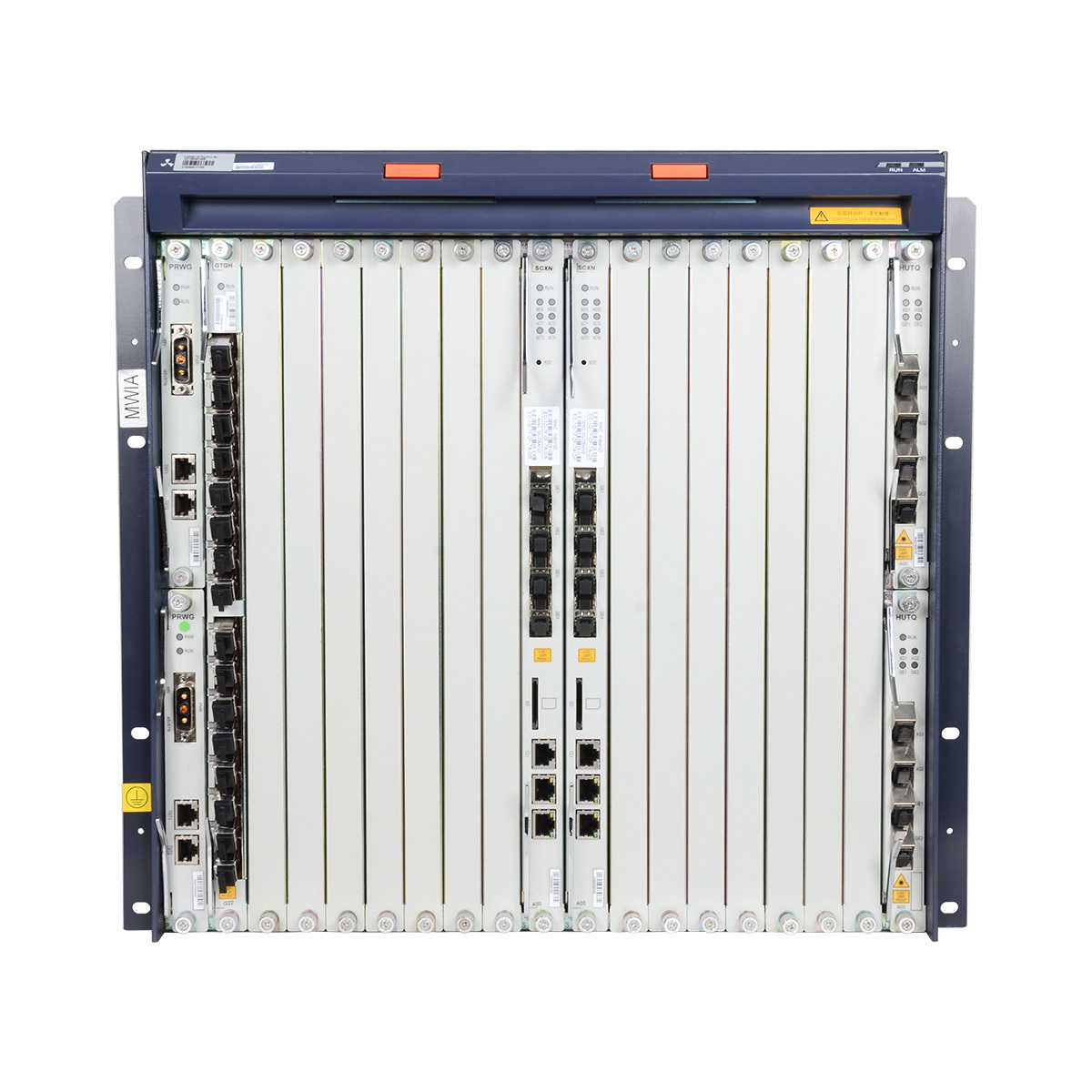

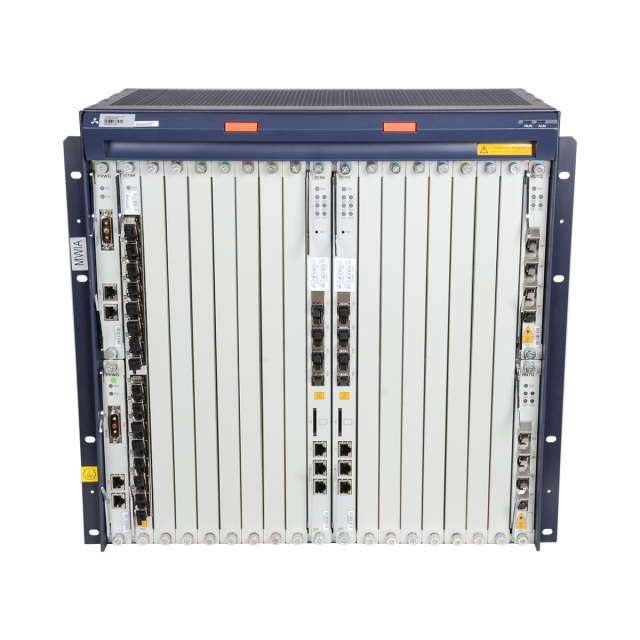

ZTE ZXA10 C300 Chassis with 2xSCXN control board, 2xHUTQ uplink Board, 2xPRWG power board, 1xGTGH interface boardC+ SFP Module

Packing Box Specifications

62*59*52cm

Gross Weight

35kgs

Condition

Original new

Lead Time

1-3 working days

Warranty

12 months

Shipping Method

DHL, UPS, FedEx, Sea/Air/Railway Freight

Payment Method

PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay

Control Board:

SCXN (480Gbps/32k MAC)

SCTM (2.56Tbps/256k MAC)

SCXL (800Gbps/32k MAC)

SCXM (480Gbps/32k MAC)

Power:

PRWG(30A)

PRWH(40A)

Get Price/Help

Bulk Quote View Quote List

Description

ZTE C300 Overview

The ZTE C300 (ZXA10 C300) is a high-capacity, GPON Optical Line Terminal (OLT) for mass FTTx (Fiber to the x) rollouts, known for its large density, diverse interfaces (GPON, XGPON, P2P), and unified platform, supporting future-proof NG-PON technologies, abundant services like IPTV/VoIP, high reliability with redundant components, and advanced QoS/security features for scalable, cost-effective optical access networks.

Product Features

Unified Platform: Supports GPON, XGPON1, EPON, P2P, and emerging NG-PON (Next-Generation PON) in one system for future-proofing.
High Density & Capacity: Large backplane (e.g., 5.76 Tbit/s) and multiple service slots for high-density port configurations.
Diverse Interfaces: Offers P2MP (Point-to-Multipoint), P2P (Point-to-Point), and TDM interfaces for various FTTx scenarios (FTTH, FTTO, FTTdp).
Abundant Service Support: Enables triple-play services (IPTV, VoIP, HSI), Mobile Backhaul, and VPNs, with enhanced multicast for IPTV.
High Reliability: Features 1+1 redundancy for control, fan, and power modules, plus PON Type B/C protection and uplink redundancy (LACP/STP/UAPS/ERPS).
Advanced QoS: Includes 8 queues per port, various scheduling (SP, DWRR), and marking for service differentiation.

Supported Boards

Card Name	Description	Function
GTGO	8-port GPON interface card	Supports eight GPON SFP interfaces.
		Supports maximum split ratio 1:128.
		Supports optical power monitoring.
		Supports optical module ALS.
GTGH	16-port GPON interface card	Supports 16 GPON SFP interfaces.
		Supports maximum split ratio 1:128
		Supports optical power monitoring.
		Supports optical module ALS.
GTXO	8-port XG-PON1 interface card	Supports eight XG-PON1 XFP interfaces.
		Supports maximum split ratio 1:128.
		Supports optical power monitoring.
		Supports optical module ALS.
GTBO	8-port GPON/XG-PON1 interface card	Supports eight GPON/XG-PON1 XFP interfaces.
		Supports maximum split ratio 1:256.
		Supports optical power monitoring.
		Supports optical module ALS.
GTTO	8-port XG-PON2(XGS-PON) interface card	Supports eight XG-PON2 XFP interfaces
		Supports maximum split ratio 1:256.
		Supports optical power monitoring.
		Supports optical module ALS.
ETGO	8-port EPON interface card	Supports eight EPON SFP interfaces.
		Supports maximum split ratio 1:64.
		Supports optical power monitoring.
		Supports optical module ALS.
ETGH	16-port EPON interface card	Supports 16 EPON SFP interfaces.
		Supports maximum split ratio 1:64.
		Supports optical power monitoring.
		Supports optical module ALS.
ETXD	2-port asymmetric 10G-EPON interface card	Supports two 10G-EPON XFP interfaces.
		Supports maximum split ratio 1:128.
		Supports optical power monitoring.
		Supports optical module ALS.
ETTO	8-port asymmetric/symmetric 10G-EPON interface card	Supports eight 10G-EPON XFP interfaces
		Supports asymmetric 10G-EPON and symmetric 10G-EPON.
		Supports maximum split ratio 1:128.
		Supports optical power monitoring.
		Supports optical module ALS.

Compatible ONTs

F601	1GE
F660 V8.0	1GE+3FE+1TEL+WIFI 5dbi
F670L	4GE+1TEL+1USB+2.4/5G WIFI 5dBi
F663NV3a	1GE+3FE+1TEL+WIFI
F660 V9.0	1GE+3FE+1TEL+WIFI 5dbi
F670L V9.0	4GE+1TEL+1USB+2.4/5G WIFI 5dBi
F601C	1GE+CATV
F6610M	4GE+1TEL+2USB+2.4/5G WIFI6 (5dBi) AX3000

Application Scenarios & Real-World Cases

1. National FTTH Network Upgrade in Bolivia (Entel)

As Bolivia’s largest telecom operator with 4 million+ users, Entel selected the ZXA10 C300 OLT as the core of its first large-scale FTTx network project . Deployed across four major regions, the platform supported seamless evolution to NG PON/WDM PON technologies while delivering high-speed broadband to residential and enterprise users. With its 16,384-subscriber capacity and 16×10GE uplink, the ZXA10 C300 helped Entel narrow the digital divide, enhance wired service quality, and consolidate its leading position in the Bolivian market. MF-Telecom supplies authentic ZXA10 C300 units for similar large-scale deployments worldwide.

2. Spain’s FTTH Market Expansion (Orange Spain/Jazztel)

To compete in Spain’s competitive broadband market, Jazztel (later acquired by Orange Spain) partnered with ZTE to deploy a national FTTH network using the ZXA10 C300 OLT . The platform’s high port density (16-port GPON boards) and low power consumption reduced TCO, while its compatibility with GPON/EPON/XG-PON enabled flexible service rollouts. Within two years, the network covered 4 million households and 300,000 businesses, driving Jazztel to become Spain’s second-largest fixed-line operator. Post-acquisition, Orange Spain expanded the project with 2.2 million additional fiber lines, relying on the ZXA10 C300’s stable performance for triple-play (internet, voice, TV) services.

3. Belarus National Broadband Infrastructure (BelTelecom)

BelTelecom, Belarus’ top fixed-line operator, chose the ZXA10 C300 OLT for its nationwide FTTH network initiative . The project, spanning Minsk and seven regions, aimed to deliver high-speed internet, HDTV, distance education, and telemedicine services to 5 million users. The ZXA10 C300’s industry-leading switching capacity, easy O&M tools, and environmental adaptability (-25℃~+55℃) ensured reliable operation across diverse geographic conditions. Its support for IEEE 1588v2 time synchronization also enabled high-quality IPTV streaming. The deployment laid the foundation for Belarus’ digital transformation, with MF-Telecom offering global logistics support for such mission-critical infrastructure projects.

Downloadable resources

ZTE C300 OLT Datasheet

Technical Specifications

ZTE C300 OLT Datasheet
Model No.	C300	C350	C320
Height	10U (19 inch/21 inch)	6U (19 inch)	2U (19 inch)
Service	GPON/XG-PON/	GPON/XG-PON/	GPON/XG-PON/
interface	XGS-PON	XGS-PON	XGS-PON
	EPON/10G-EPON	P2P	EPON/10G-EPON
	Ethernet (P2P)		P2P
	TDM
Service card slot	14/16	7	2
Uplink interface	GE /10GE	GE /10GE	GE /10GE
Switching capacity of backplane bus	6.4 Tbit/s	2.4 Tbit/s	520 Gbit/s
Power	-48V/-60V DC , 1:1	-48V/-60V DC , 1:1	-48V/-60V DC，1:1
Power	-48V/-60V DC , 1:1	-48V/-60V DC , 1:1	110V/220V AC
Dimensions (H×W×D)	443.7×482.6×270mm(19-inch)	263.9×482.6×240 mm	86.1×482.6×270mm
Dimensions (H×W×D)	449.2×535×270mm(21-inch)	263.9×482.6×240 mm	86.1×482.6×270mm
Shelf Weight (Empty)	12.5kg (19-inch)	8kg	2.5kg
Shelf Weight (Empty)	14kg (21-inch)	8kg	2.5kg

FAQ

Q: What is the operating temperature range of the ZXA10 C300?

A: It operates stably at -25℃～+55℃, with non-condensing humidity ranging from 5% to 95%.

Q: How many GPON subscribers can the ZXA10 C300 support at most?

A: It can accommodate up to 16,384 GPON subscribers, meeting large-scale access demands.

Q: Is technical support available globally?
A: MF-Telecom offers technical support and 1-year warranty for genuine ZTE C300 OLTs.

Q: Does ZXA10 C300 OLT support redundancy and reliability features?
A: Yes. It supports dual AC/DC power supply redundancy and dual main control board (MCB) hot backup to avoid single points of failure.

Q: Does MF-Telecom provide genuine ZXA10 C300 OLT and after-sales support?
A: Yes. All ZXA10 C300 OLTs supplied by MF-Telecom are 100% genuine with official certification. We provide a 12-month warranty, technical consultation to ensure smooth deployment.
