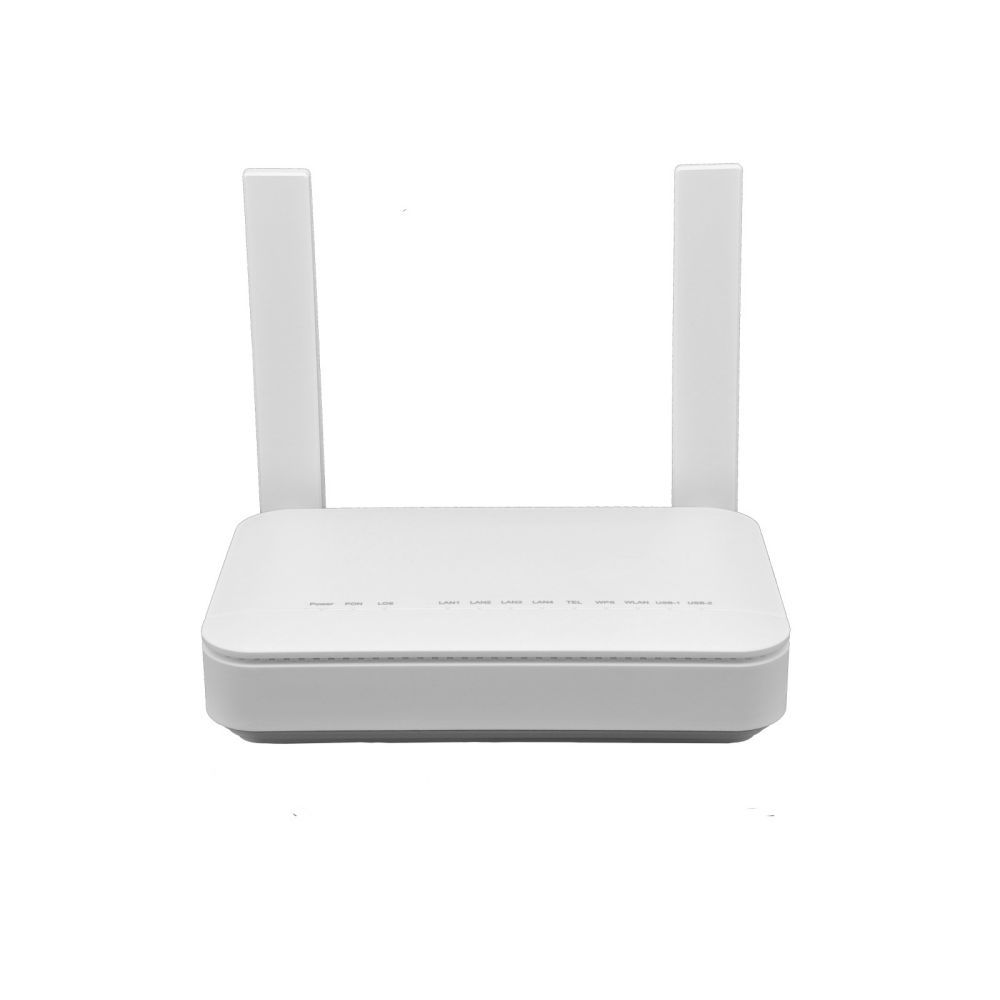

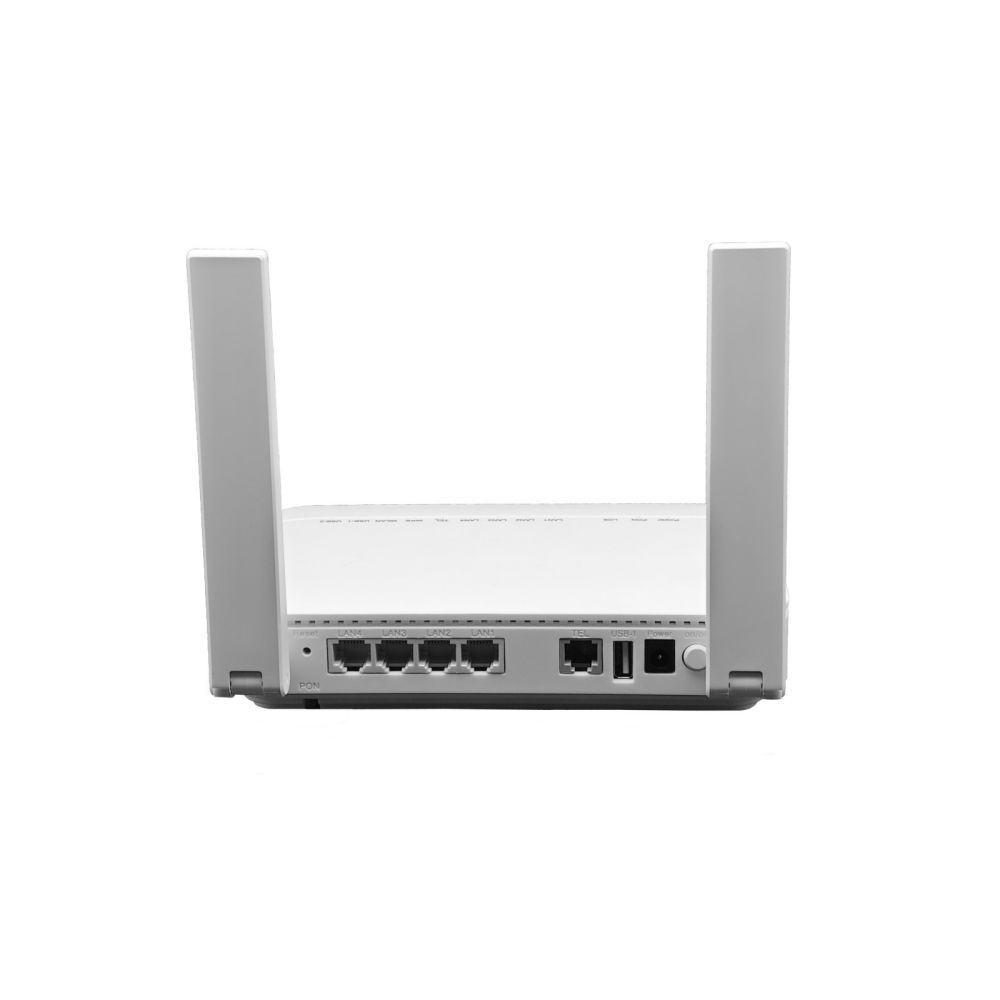

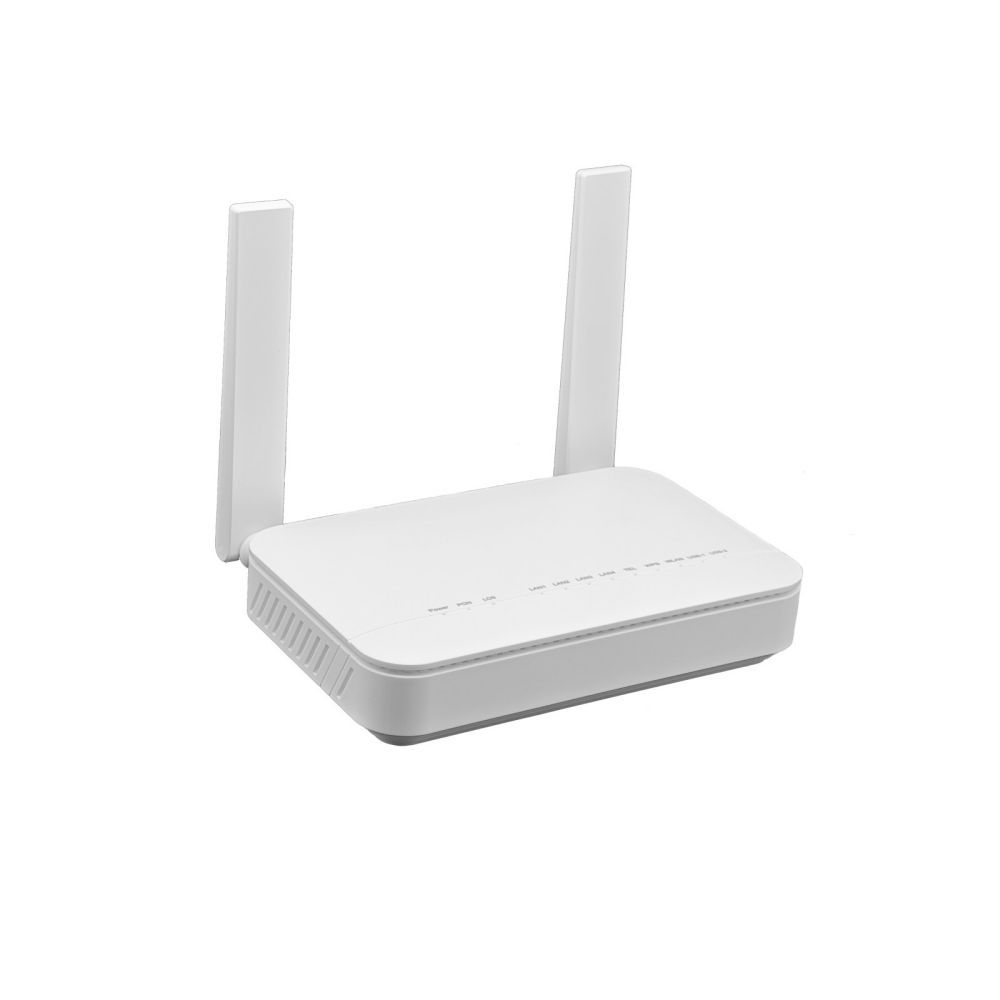

The F6610M AX3000 WiFi6 XPON ONT is an advanced network device that combines the power of XPON technology with the cutting-edge features of WiFi6. With ultra-fast speeds and enhanced network efficiency, it provides a seamless and reliable Internet experience. Equipped with 4 GE LAN ports, 1 TEL port, and 2 USB ports, it provides high-speed connectivity for a wide range of devices. The F6610M offers advanced security features, easy installation, and powerful network management options. Experience lightning-fast Internet speeds and superior performance with this feature-rich device.
|
Port |
GE |
WAN-SC/UPC |
TEL |
USB |
|
Number |
4 |
1 |
1 |
2 |
1. XPON Technology: EPON, GPON Adaptive WAN Side Networking
2. WiFi 6: Experience the next generation of wireless standards with faster speeds, larger capacity, and better performance.
3. Dual-band WiFi: Supports 2.4GHz and 5GHz bands for optimal wireless performance and connectivity.
4. Multiple Ethernet Ports: Connect multiple devices via wired connections for reliable and high-speed data transmission.
|
Basic Parameters |
|
|
Ports |
2 x POTS + 4 x GE + 2.4G/5G 11ax Wi-Fi + 2 x USB |
|
SC/UPC XPON |
|
|
Working environment |
Operating temperature: 0ºC to 40ºC |
|
Environment humidity: 5% to 95% (noncondensing) |
|
|
Static power consumption |
5.3 W |
|
Max. power consumption |
18 W |
|
Power specifications |
Power adapter input: 100 to 240 V AC, 50–60 Hz |
|
System power supply: 11–14 V DC, 1.5 A |
|
|
WLAN |
2.4GHZ: 802.11n 5GHZ: 802.11ax |
|
Network-side Port |
GPON/EPON |
|
Indicators |
POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB |
|
GPON Port |
• Class B+ • Receiver sensitivity: –27 dBm to –29 dB • Overload optical power: –8 dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength Blocking Filter (WBF) of G.984.5 • Flexible mapping between the GEM port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA • Type B (single-homing and dual-homing) |
|
WLAN |
• IEEE 802.11 b/g/n/ax (2.4G) • IEEE 802.11 a/n/ac/ax (5G) • 2 x 2 MIMO (2.4G) • 2 x 2 MIMO (5G) • Antenna gain: 5 dBi • WMM/Multiple SSIDs/WPS • 2.4G and 5G concurrency • Air interface rate: 574 Mbit/s (2.4G), 2.402 Gbit/s (5G) • Beamforming • Band steering • DL OFDMA • DL MU-MIMO • 1024 QAM • 160 MHz frequency bandwidth • WPA3 |
|
Dimensions (length x width x height) |
195 mm x 125 mm x 35 mm |
|
Weight |
About 400g |
|
Common O&M |
• Web UI/TR069 • Variable-length OMCI messages • Dual-system software backup and rollback |
