Home > All Collections > Optical Access Network > Optical Line Terminal > C300 > ZTE ZXA10 C320 OLT
  • ZTE ZXA10 C320 OLT
  • ZTE ZXA10 C320 OLT
  • ZTE ZXA10 C320 OLT
  • ZTE ZXA10 C320 OLT
  • ZTE ZXA10 C320 OLT
  • ZTE ZXA10 C320 OLT

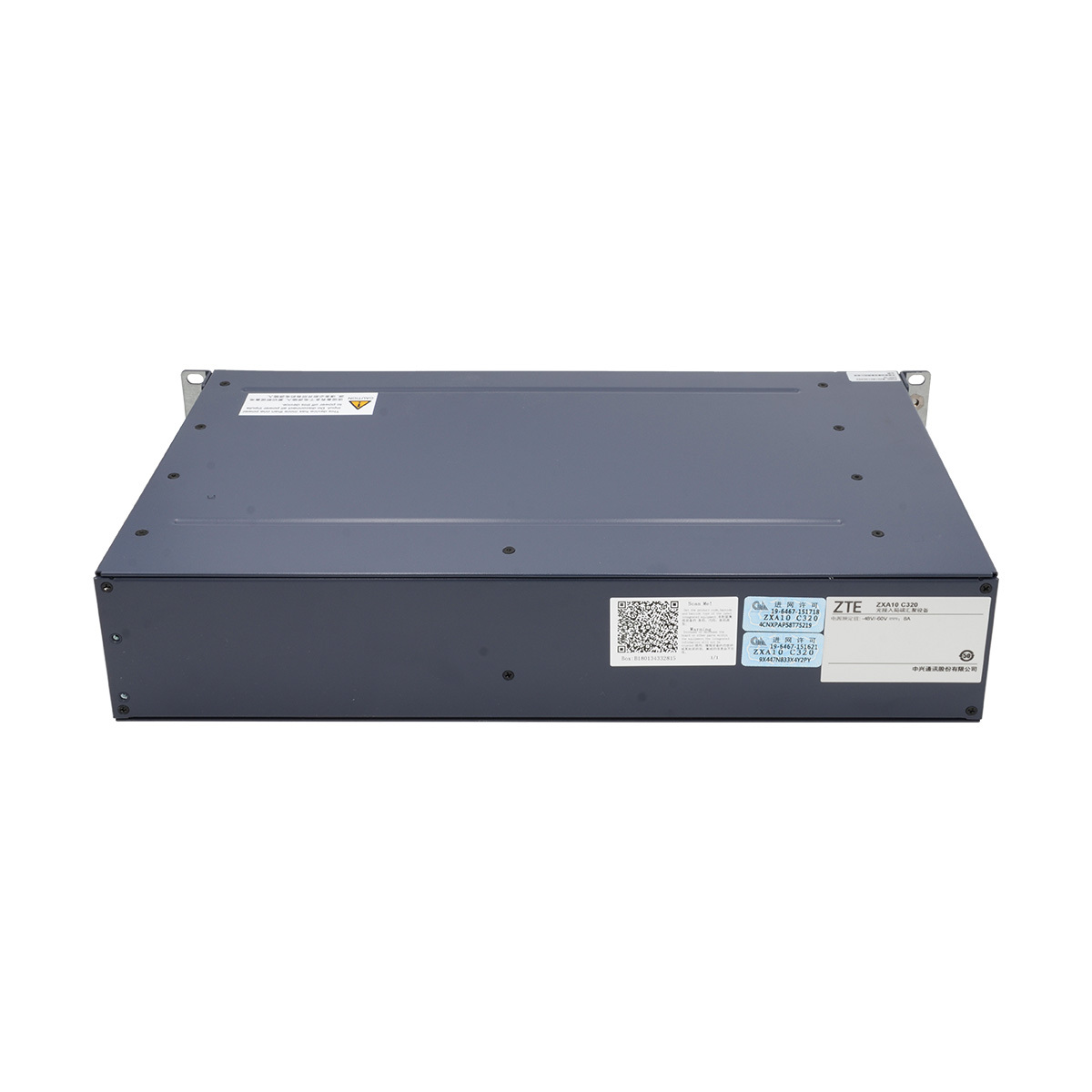

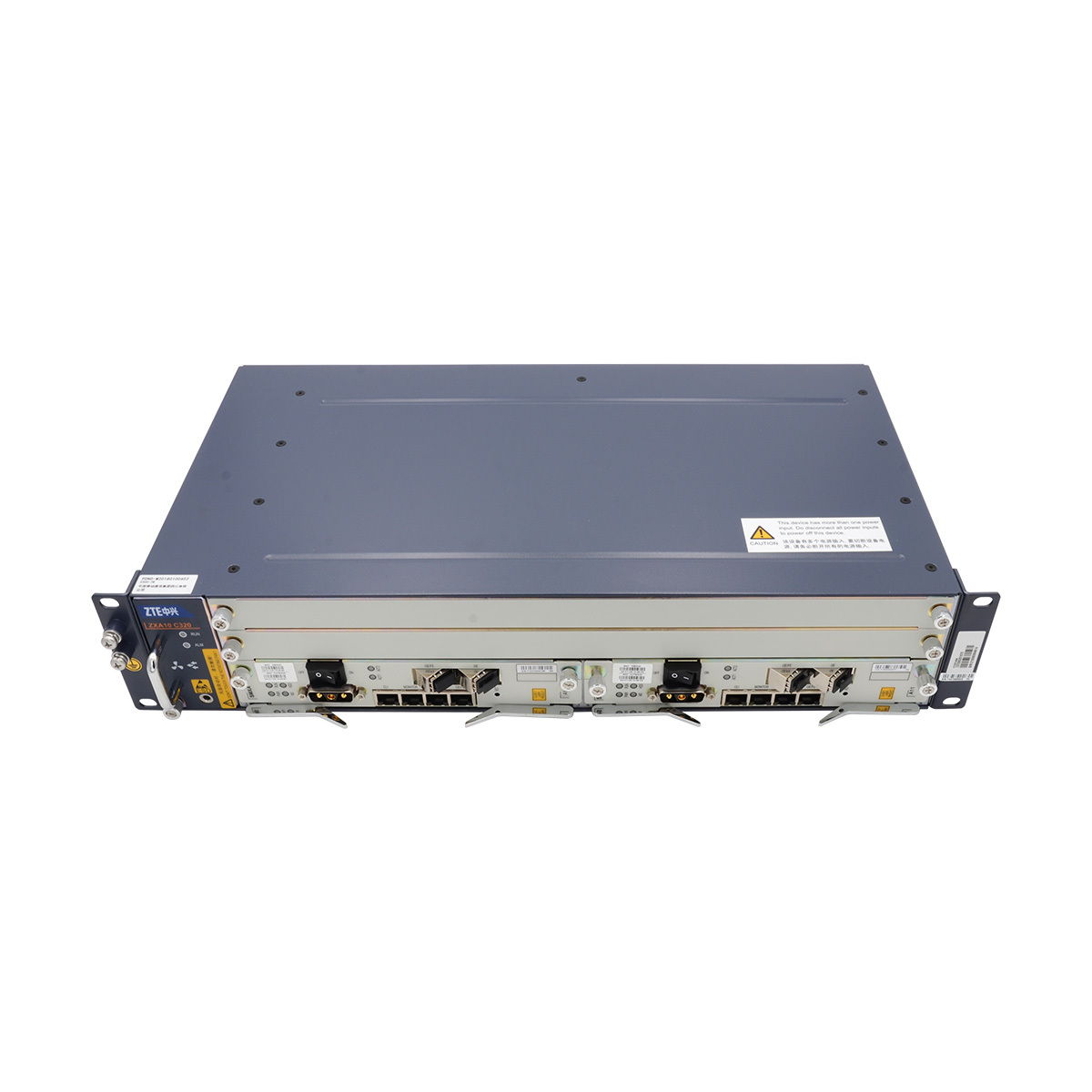

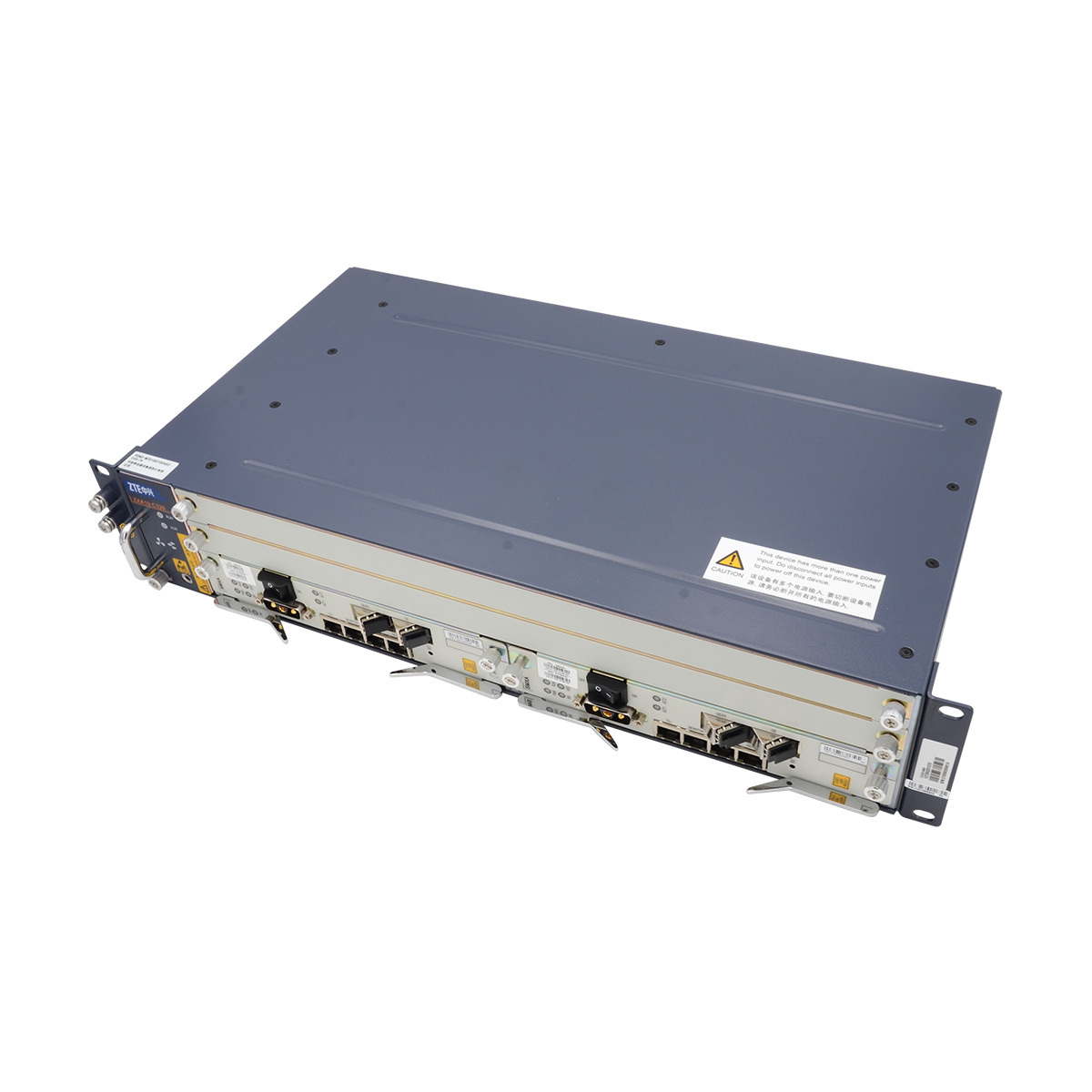

ZTE ZXA10 C320 OLT

No.MF0037
ZTE ZXA10 C320 OLT Chassis with 2xSMXA (UCDC1 pinch card embedded) GE Main Control Board with DC power port integrated
Packing Box Specifications
60*40*25cm
Gross Weight
11.5kgs
Condition
Original
Lead Time
1-3 working days
Warranty
12 months
Shipping Method
DHL, UPS, FedEx, Sea/Air/Railway Freight
Payment Method
PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay
Control Board:
SMXA/3 or 5 (10G Uplink)
SMXA/1(GE Uplink)
Power:
PRAM-AC
DC Power
Get Price/Help
Bulk Quote View Quote List
  • ZTE ZXA10 C320 OLT
  • ZTE ZXA10 C320 OLT
  • ZTE ZXA10 C320 OLT

Description

ZTE C320 Overview

The ZTE ZXA10 C320 is a compact, 2U FTTx OLT platform offering unified GPON/XG-PON1/P2P access, supporting abundant services (VoIP, IPTV, HSI) with strong QoS/security, high reliability (redundancy), and flexible deployment for low-density/space-constrained areas, featuring up to 4096 GPON subscribers, diverse interfaces, and advanced traffic management for carrier-class performance.

Product Features

  • Platform: Compact 2U chassis, ideal for limited spaces.
  • Capacity: 420 Gb/s backplane, 84 Gb/s switching capacity, supports up to 4096 GPON subscribers.
  • Service Support: Unified access for GPON, XG-PON1, EPON, P2P, supporting IPTV, VoIP, HSI, Mobile Backhaul, VPNs.
  • Versatile Interfaces: Supports various uplink (10GE/GE/FE/E1/T1) and service (GPON/P2P/XG-PON1) cards, with high split ratios (up to 1:128) and long reach (20-60km).
  • High Reliability: Redundant control/power cards, PON protection (Type B/C), LACP/STP/RSTP/MSTP for uplink, Synchronous Ethernet & 1588v2 support, and embedded OTDR.
  • Quality of Service (QoS): 8 queues per port, SP/DWRR/DSPC scheduling, rate limiting, and traffic shaping for differentiated services.

Supported Boards

Card Name Description Function
GTGO 8-port GPON interface card Supports eight GPON SFP interfaces.
Supports maximum split ratio 1:128.
Supports optical power monitoring.
Supports optical module ALS.
GTGH 16-port GPON interface card Supports 16 GPON SFP interfaces.
Supports maximum split ratio 1:128
Supports optical power monitoring.
Supports optical module ALS.
GTXO 8-port XG-PON1 interface card Supports eight XG-PON1 XFP interfaces.
Supports maximum split ratio 1:128.
Supports optical power monitoring.
Supports optical module ALS.
GTBO 8-port GPON/XG-PON1 interface card

 Supports eight GPON/XG-PON1 XFP interfaces.
Supports maximum split ratio 1:256.
Supports optical power monitoring.
Supports optical module ALS.
GTTO 8-port XG-PON2(XGS-PON) interface card Supports eight XG-PON2 XFP interfaces
Supports maximum split ratio 1:256.
Supports optical power monitoring.
Supports optical module ALS.
ETGO 8-port EPON interface card Supports eight EPON SFP interfaces.
Supports maximum split ratio 1:64.
Supports optical power monitoring.
Supports optical module ALS.
ETGH 16-port EPON interface card Supports 16 EPON SFP interfaces.
Supports maximum split ratio 1:64.
Supports optical power monitoring.
Supports optical module ALS.
ETXD 2-port asymmetric 10G-EPON interface card Supports two 10G-EPON XFP interfaces.
Supports maximum split ratio 1:128.
Supports optical power monitoring.
Supports optical module ALS.
ETTO 8-port asymmetric/symmetric 10G-EPON interface card Supports eight 10G-EPON XFP interfaces
Supports asymmetric 10G-EPON and symmetric 10G-EPON.
Supports maximum split ratio 1:128.
Supports optical power monitoring.
Supports optical module ALS.

Compatible ONTs

F601 1GE
F660 V8.0 1GE+3FE+1TEL+WIFI 5dbi
F670L 4GE+1TEL+1USB+2.4/5G WIFI 5dBi
F663NV3a 1GE+3FE+1TEL+WIFI
F660 V9.0 1GE+3FE+1TEL+WIFI 5dbi
F670L V9.0 4GE+1TEL+1USB+2.4/5G WIFI 5dBi
F601C 1GE+CATV
F6610M 4GE+1TEL+2USB+2.4/5G WIFI6 (5dBi) AX3000

Application Scenarios & Real-World Cases

1. Southeast Asian Urban Gigabit Rollout
A leading Indonesian operator deployed ZXA10 C320 to deliver 10Gbps FTTH to 800,000 households, supporting 4K/8K streaming and smart city applications.
​
2. European Enterprise & Industrial IoT
A German telecom used the OLT to unify enterprise cloud access, industrial IoT, and 5G backhaul for manufacturing zones, cutting OPEX by 35%.
​
3. Middle Eastern Broadband Expansion
A UAE operator adopted ZXA10 C320 for national broadband deployment, serving 1.2 million residential and 100,000 enterprise users with scalable bandwidth.

Downloadable resources

ZTE C320 OLT Datasheet

Technical Specifications

ZTE C320 OLT Datasheet
Model No. C300  C350 C320
Height 10U (19 inch/21 inch) 6U (19 inch) 2U (19 inch)
Service  GPON/XG-PON/ GPON/XG-PON/ GPON/XG-PON/
interface XGS-PON XGS-PON XGS-PON
EPON/10G-EPON P2P EPON/10G-EPON
Ethernet (P2P) P2P
TDM
Service card slot  14/16 7 2
Uplink  interface  GE /10GE GE /10GE GE /10GE
Switching capacity of backplane bus 6.4 Tbit/s 2.4 Tbit/s 520 Gbit/s
Power -48V/-60V DC , 1:1 -48V/-60V DC , 1:1  -48V/-60V DC，1:1
110V/220V AC
Dimensions (H×W×D) 443.7×482.6×270mm(19-inch) 263.9×482.6×240 mm 86.1×482.6×270mm
449.2×535×270mm(21-inch)
Shelf Weight (Empty) 12.5kg (19-inch) 8kg 2.5kg
14kg (21-inch)

FAQ

Q: What is the chassis configuration of ZTE ZXA10 C320?
A: 19-inch 2U chassis with 5 slots (2 line card, 2 switch/control, 1 fan module).

Q: Which access technologies does it support?
A: GPON (ITU G.984.x), XG-PON1 (G.987.x/G.988), EPON, and P2P.

Q: Is it compatible with other ZTE OLT line cards?
A: Yes, fully compatible with ZXA10 C300 line cards to reduce costs.

Q: Does MF-Telecom provide genuine ZXA10 C300 OLT and after-sales support?
A: Yes. All ZXA10 C300 OLTs supplied by MF-Telecom are 100% genuine with official certification. We provide a 12-month warranty, technical consultation to ensure smooth deployment.

Q: Is technical support available globally?​
A: MF-Telecom offers technical support and 1-year warranty for genuine ZTE C300 OLTs.
