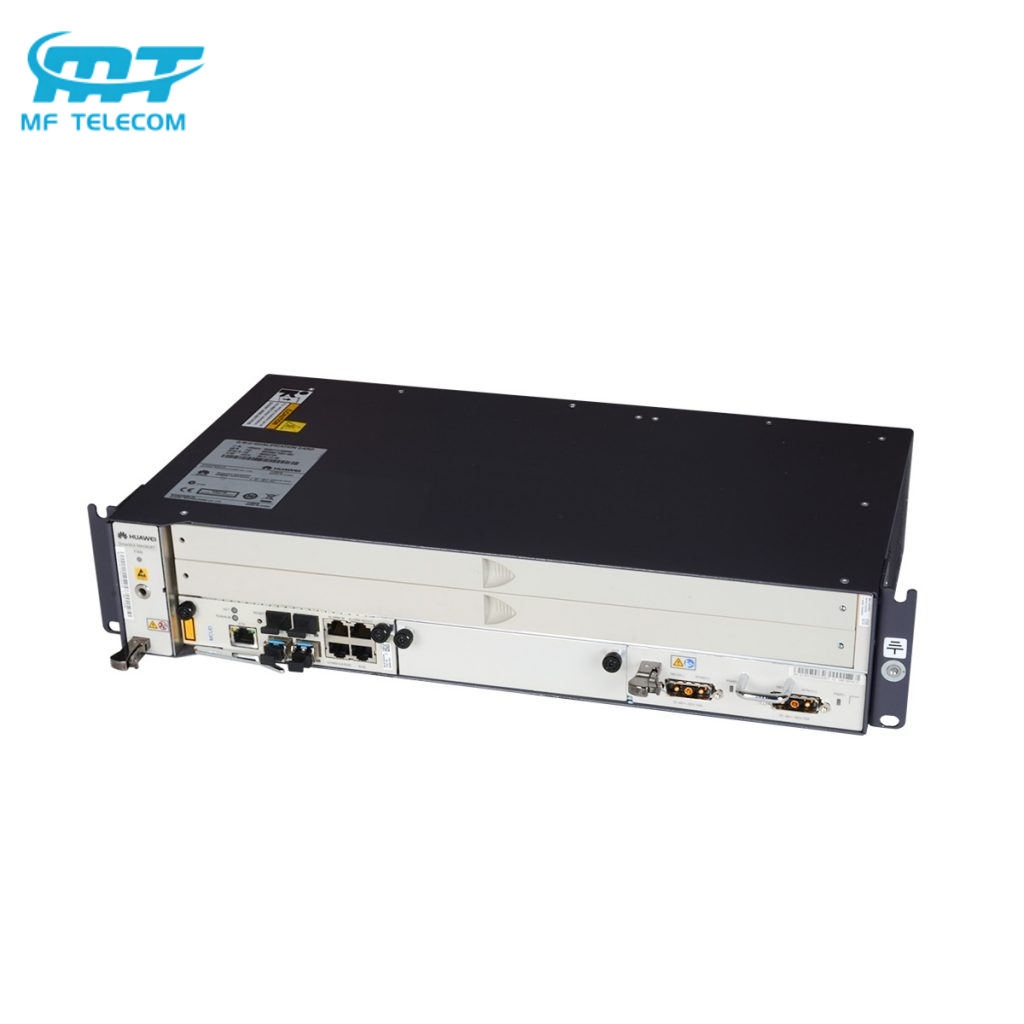

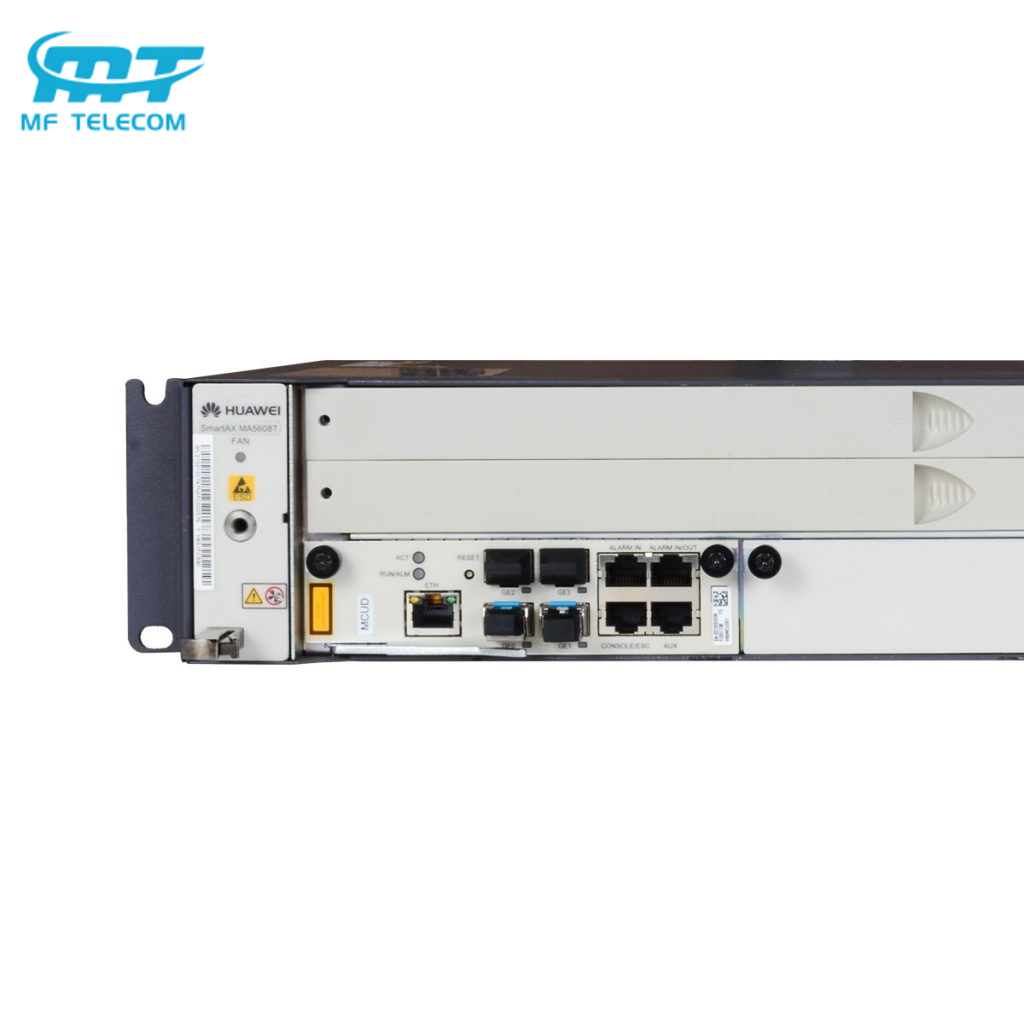

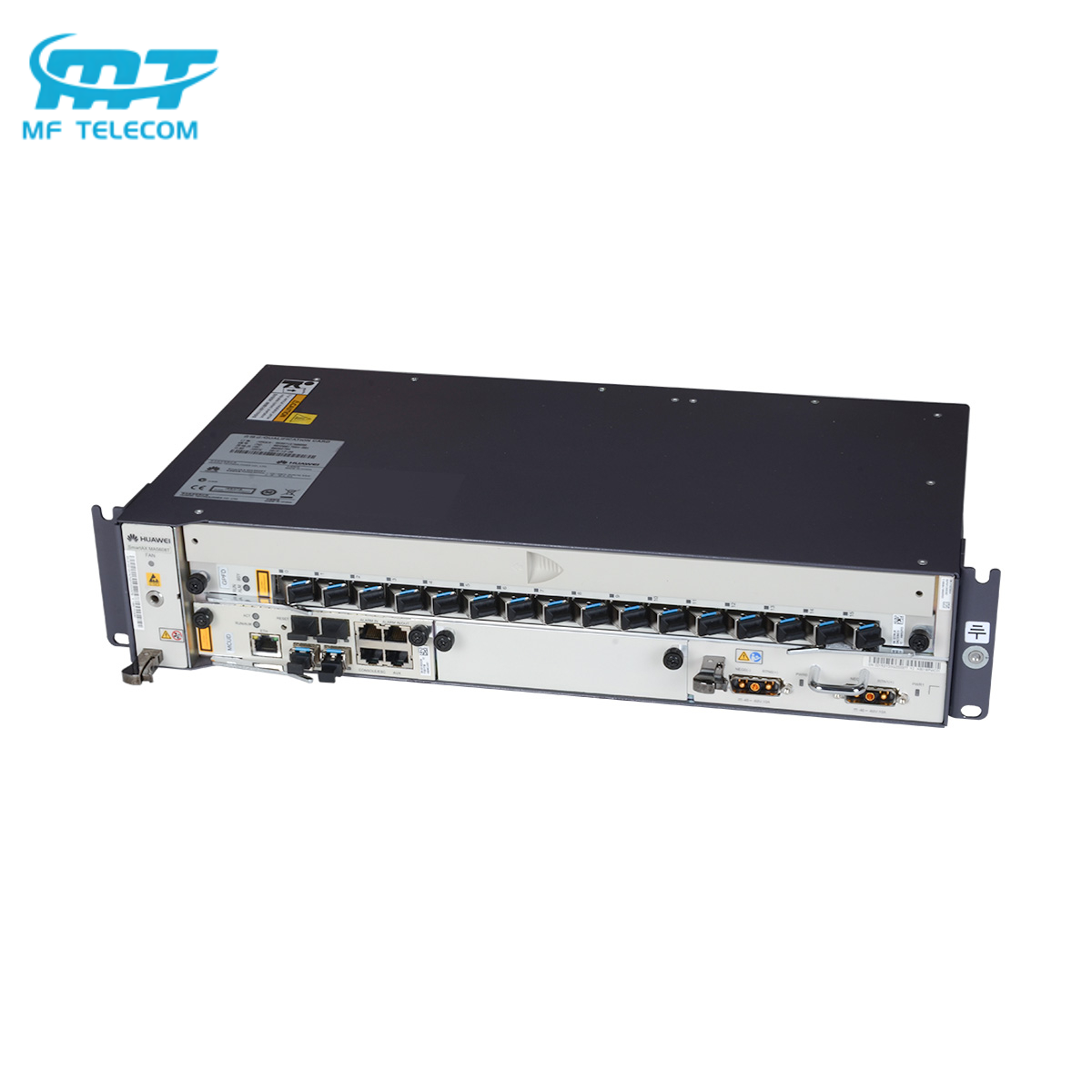

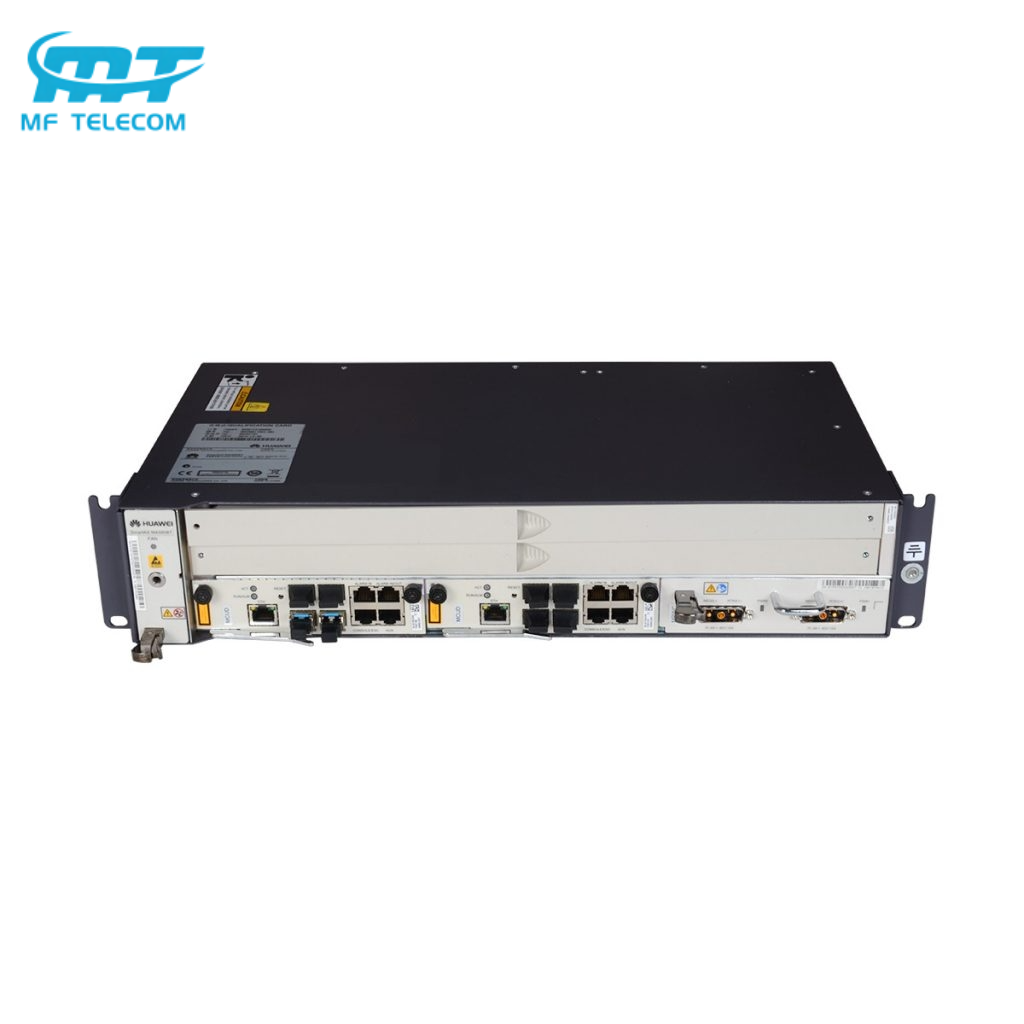

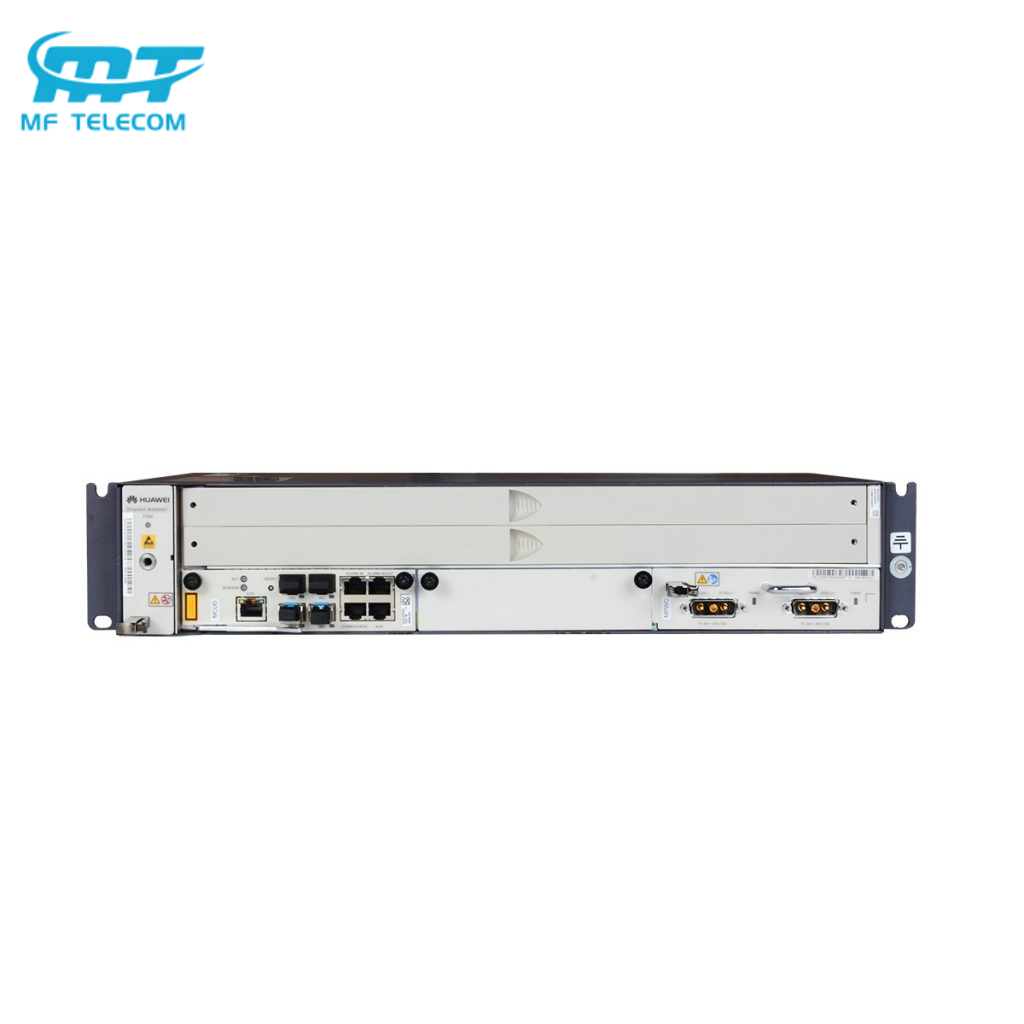

| Huawei MA5608T OLT Datasheet |
| Maintenance port |
Number of 10 Mbit/s/100 Mbit/s maintenance Ethernet ports: 1 |
| Number of serial ports for local/remote maintenance: 1 |
| Monitoring port |
Number of environment monitoring serial ports: 1 |
| Maximum number of ADSL2+ ports in a subrack |
128 |
| Maximum number of VDSL2 ports in a subrack |
128 |
| Maximum number of EFM SHDSL ports in a subrack |
64 NOTE: The MA5608T only supports the EFM SHDSL ports. |
| Maximum number of TDM SHDSL ports in a subrack |
32 |
| Maximum number of POTS ports in a subrack |
128 |
| Maximum number of ISDN BRA ports in a subrack |
64 |
| Maximum number of ISDN PRA ports in a subrack |
64 |
| Maximum number of GPON ports in a subrack |
32 |
| Maximum number of 10G GPON ports in a subrack |
16 |
| Maximum number of P2P FE ports in a subrack |
96 |
| Maximum number of P2P GE ports in a subrack |
96 |
| Management ports |
| Outband management Ethernet port (RJ-45) |
MCUD/MCUD1 |
| Local serial port (Console) |
MCUD/MCUD1 |
| Upstream ports |
| GE optical port |
MCUD1: 2 Ports Board |
| MCUD:4 Ports Board |
| ETHB/SPUF: 8 Ports Board |
| 10GE optical port |
MCUD1: 2 Ports Board |
| SPUF: 8 Ports Board |
| E1 port |
TOPA: 16 Ports Board |
| STM-1 upstream optical port |
TOPA: 2 Ports Board |
| Service ports |
| GPON port |
GPBD/GPBH: 8 Ports Board |
| GPFD: 16 Ports Board |
| 10G GPON port |
XGBC: 4 Ports Board |
| XGBD: 8 Ports Board |
| P2P GE optical port |
OPGD/OPGE: Single-fiber bi-directional: 48 Ports Board, Two-fiber bi-directional: 24 Ports Board |
| P2P FE optical port |
OPGD/OPGE: Single-fiber bi-directional: 48 Ports Board, Two-fiber bi-directional: 24 Ports Board |
| Ethernet optical port |
ETHB: 8 Ports Board |
| E1 port |
H802EDTB: 16 Ports Board |
| ADSL2+ |
ADPD/ADPM/ADPE : 64 Ports Board |
| VDSL2 |
VDRD : 24 Ports Board |
| VDMF/VCMM : 48 Ports Board |
| VDPM/VDQM/VDPE/VDPD/VCPE : 64 Ports Board |
| EFM SHDSL |
SHLM : 16 Ports Board |
| SHGM : 32 Ports Board |
| TDM SHDSL |
H802EDTB: 16 Ports Board |
| POTS |
ASPB : 64 Ports Board |
| ADSL2+&POTS |
CAME : 48 Ports Board |
| VDSL2&POTS |
CVME : 48 Ports Board |
| CCPE : 64 Ports Board |
| ISDN BRA |
DSRD/DSRE :32 Ports Board |
| Power parameters |
| Power supply mode |
DC or AC |
| Rated voltage |
DC power supply: -48 V / -60 V AC power supply: 110 V / 220 V |
| Working voltage range |
DC power supply: -38.4 V to -72 V AC power supply: 100 V to 240 V |
| Maximum input current |
DC power supply: 10 A AC power supply: 6 A |
| Working environment temperature |
-40°C to +65°C |
| Working environment humidity |
5% RH to 95% RH |
| Atmosphere pressure |
61 kPa to 106 kPa |
| Altitude |
< 4000 m |
| Device Specifications |
| Dimensions (W x D x H, excluding mounting brackets) |
442mm×244.5mm×88.1mm |
| Dimensions (W x D x H, including mounting brackets) |
535mm×244.5mm×88.1mm, for ETSI cabinet NOTE:ETSI standard dimension is to add the ETSI mounting bracket on the IEC mounting bracket. |
| 482.6mm×244.5mm×88.1mm, for IEC cabinet |
| Weight (empty chassis) |
3.55KG |
