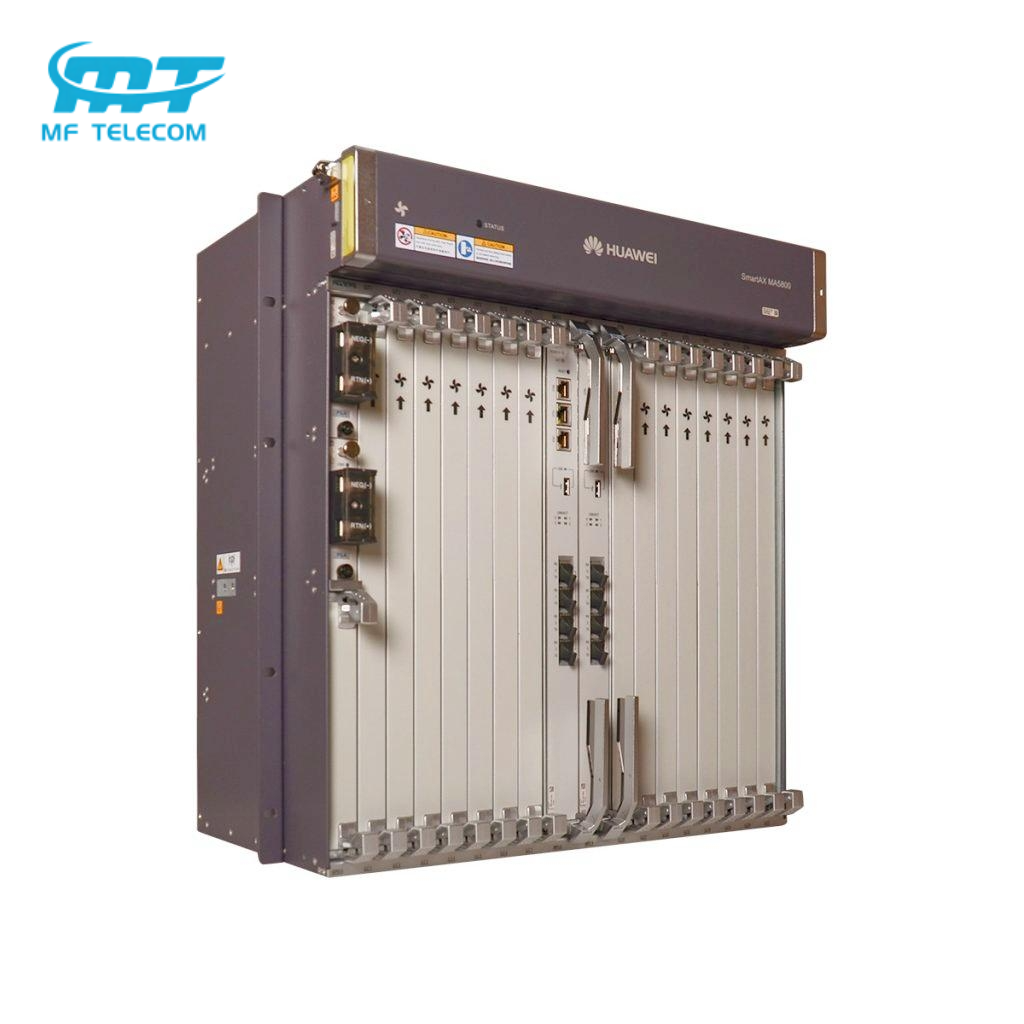

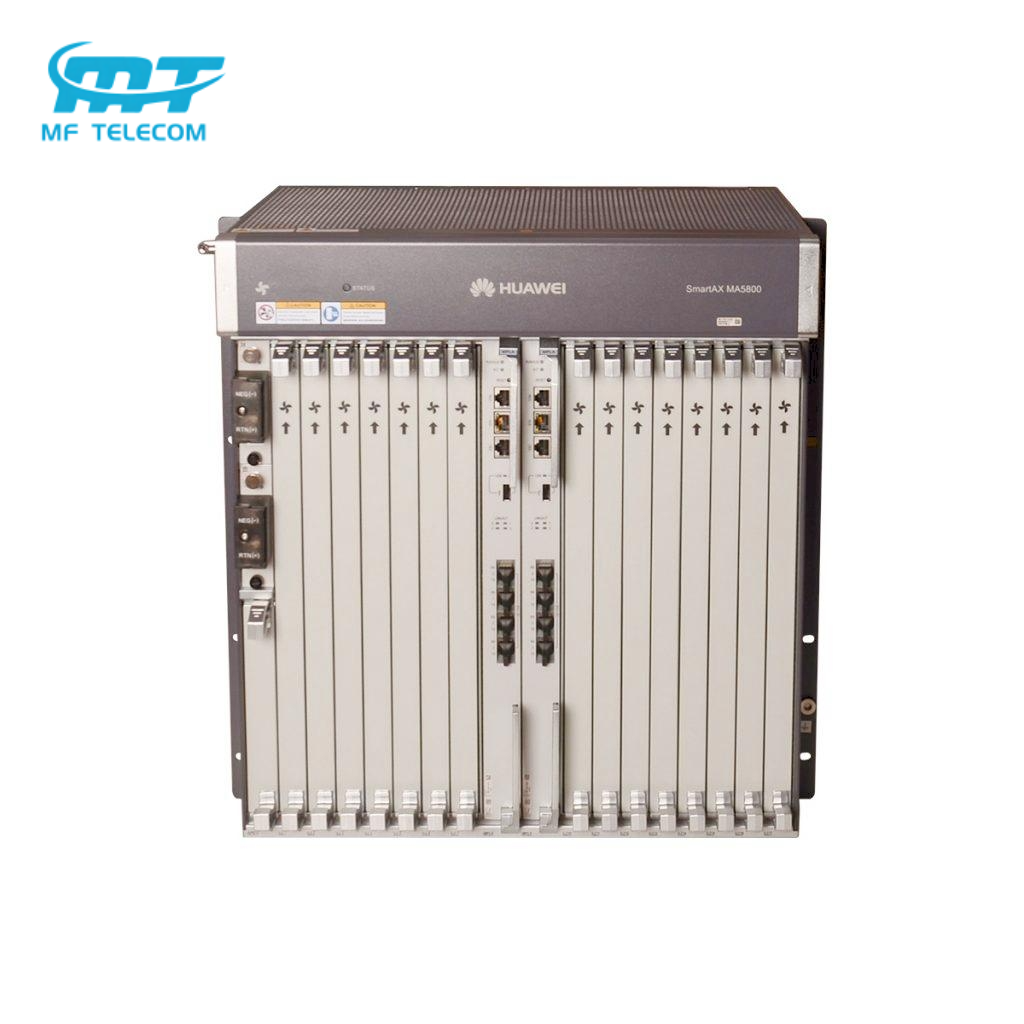

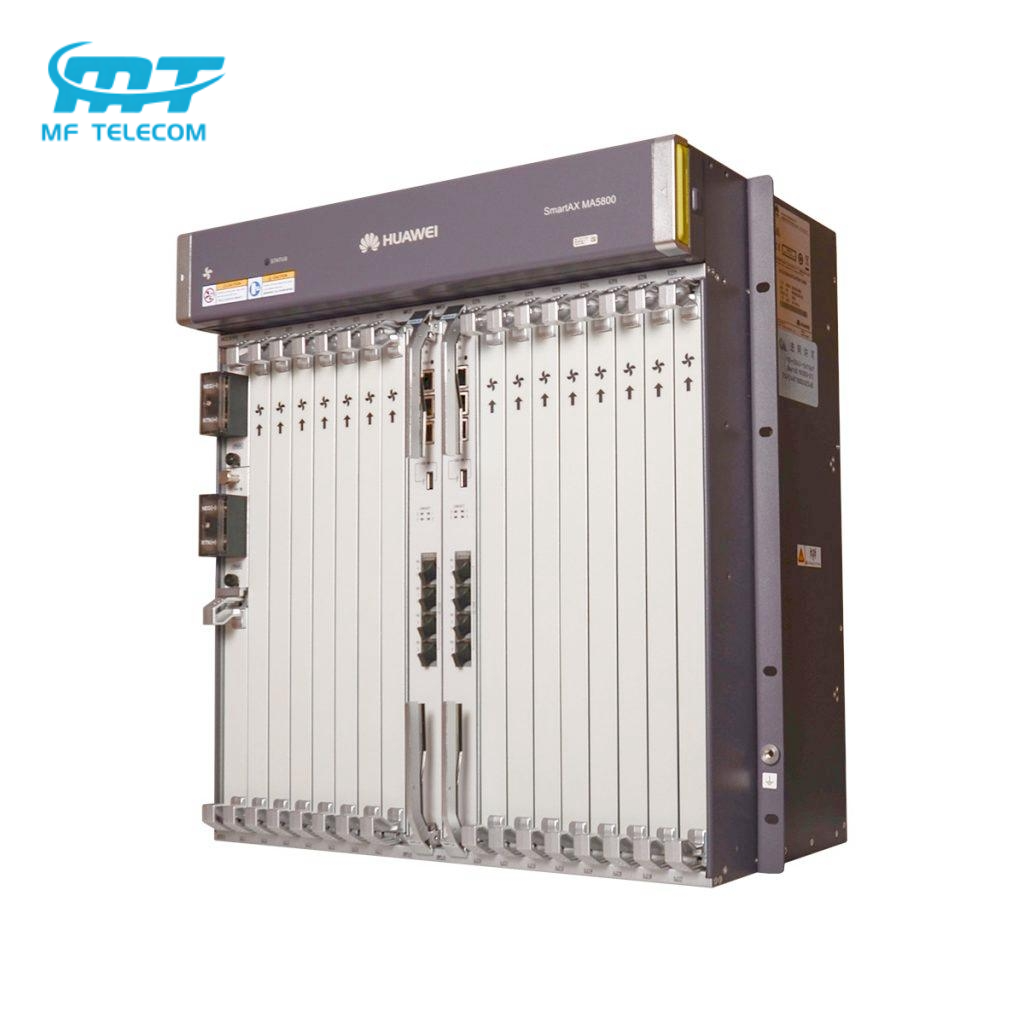

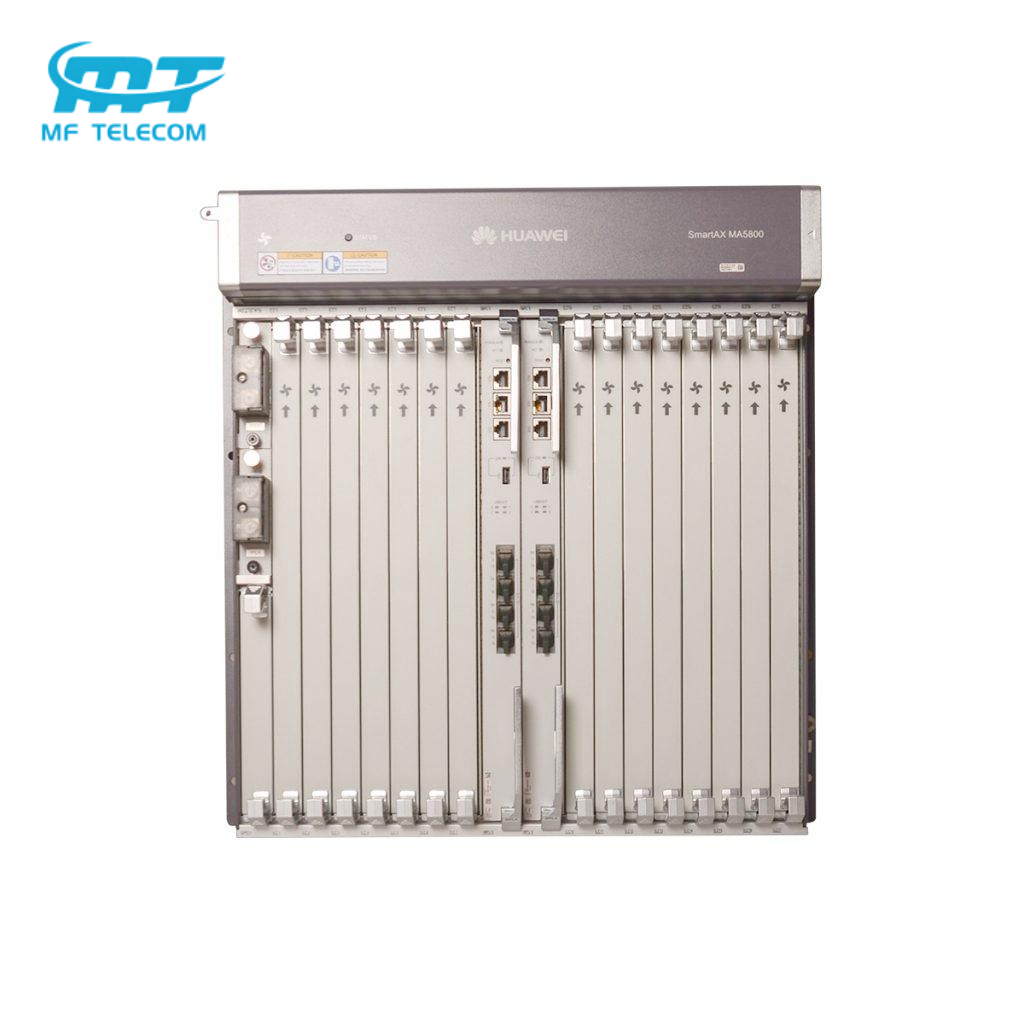

Huawei MA5800-X15 Overview
The Huawei MA5800-X15 is a high-capacity, next-gen Optical Line Terminal (OLT) with a distributed architecture, offering 15 service slots for 200Gbps per slot, supporting unified access for GPON, 10G PON, and P2P services, enabling smooth evolution to 40G/100G PON, and delivering enhanced features for large-scale FTTx, enterprise, and mobile backhaul networks with features like 4K/8K video support, service slicing, and robust L2/L3 capabilities.
Product Features
- Distributed Architecture: First OLT with separate control and forwarding, providing high throughput (200Gbps/slot) and ISSU (In-Service Software Upgrade) without service interruption.
- Unified Access: Supports GPON, 10G PON (XG-PON, XGS-PON), P2P GE/10GE, unifying fiber and copper access onto one platform.
- Any Port Any Service (Flex-PON): Allows seamless upgrades from GPON to XG(S)-PON.
- High Capacity: 15 service slots, supports high numbers of 4K/8K/VR video users (around 16,000), large MAC/ARP tables (262k/65k entries).
Supported Boards
Control Board
|
MPLA |
4*10GE Uplink, 100 Gbit/s |
| MPLB |
4*10GE Uplink, 200 Gbit/s |
| MPLG |
2*SFP+/SFP 10GE/GE/FE +1*QSP28 100G, 200 Gbit/s |
| Power Board |
PILA |
DC power Board |
| GPON Interface Board |
H901/H902GPHF |
16-port Advanced GPON OLT Interface Board |
| H901GPSF |
16-port GPON OLT Interface Board |
| H901/H902GPUF |
16-port GPON OLT Interface Board |
| H901GPLF |
16-port GPON OLT Interface Board |
| Flex-PON Interface Board |
H901/H902FLHF |
16-port Flex-PON OLT Interface Board |
| XG-PON Interface Board |
H901XGHD |
8-port Advanced XG-PON OLT Interface Board |
| H901XGSF |
16-port XG-PON OLT Interface Board |
| XGS-PON Interface Board |
H901XSHF |
16-port Advanced XGS-PON OLT Interface Board |
| H902XSHD |
8-port Advanced XGS-PON OLT Interface Board |
| H901/H902TWED |
8-port Enhanced TWDM PON OLT Interface Board |
| XG-PON Combo Interface Board |
H901CGHF |
16-port XG-PON&GPON Combo OLT Interface Board |
| H901CGID |
8-port XG-PON&GPON Combo OLT Interface Board |
| H902CGHD |
8-port Advanced XG-PON & GPON Combo OLT Interface Board |
| H902CGHF |
16-port XG-PON&GPON Combo OLT Interface Board |
| XGS-PON Combo Interface Board |
H901/H902CSHF |
16-port XGS-PON&GPON Combo OLT Interface Board |
| H902CSHD |
8-port Advanced XGS-PON & GPON Combo OLT Interface Board |
Compatible ONTs
| Item |
Description |
| HG8310M |
1GE |
| EG8120L |
1GE+1FE+1TEL |
| HG8321R |
1GE+1FE+1TEL |
| HG8321V |
1GE+1FE+1TEL+CATV(12V) |
| HG8546M |
1GE+3FE+1USB+1TEL+WIFI(5dBi) |
| EG8141A5 |
1GE+3FE+1USB+1TEL+WIFI(5dBi) |
| EG8247H5 |
1GE+3FE+1USB+1TEL+CATV(5V)+WIFI(5dBi) |
| EG8143A5 |
1GE+3FE+1USB+1TEL+CATV(5V)+WIFI(5dBi) |
| HG8247H5 |
1GE+3FE+1TEL+1USB+CATV(12V)+WIFI(5dBi) |
| EG8145V5 |
4GE+1TEL+1USB+2.4/5G WIFI(5dBi) |
| EG8247W5 |
4GE+1TEL+2USB+CATV+2.4/5G WIFI(5dBi) 4Antennas |
| EG8147X6 |
4GE+USB+CATV+2.4/5G WIFI6 AX3000 (5dBi) |
| HG8245Q2 |
4GE+1TEL+2USB+2.4/5G WIFI |
| EG8145X6 |
4GE+1TEL+2USB+2.4/5G WIFI6 (5dBi) |
| HN8145X6 |
10GPON 4GE+1TEL+2USB+2.4/5G WIFI6 (5dBi) |
| HN8346V5 |
10GPON 4GE+1TEL+2USB+2.4/5G WIFI (5dBi) |
| K662C |
ONT/Edge Router with 1GE+3GE+2.4G/5GHz Wi-Fi6 |
Application Scenarios & Real-World Cases
1. European National Gigabit Rollout
A top European operator deployed MA5800-X15 to deliver 10Gbps FTTH to 3 million households across 5 countries, supporting 8K streaming and smart city applications.
2. Asian Data Center Interconnection
A leading Singaporean telecom used the OLT for data center interconnection (DCI) and enterprise cloud access, reducing latency by 30% and OPEX by 40%.
3. Middle Eastern 5G & Industrial IoT
A major UAE operator adopted MA5800-X15 for 5G small cell backhaul and industrial IoT in free trade zones, connecting 200,000+ IoT devices with ultra-low latency.
Downloadable resources
Technical Specifications
| Huawei MA5800-X15 OLT Datasheet |
| Item |
MA5800-X15 |
| Access features |
| GPON/XG(S)-PON Access |
10GE/GE P2P Access |
| Layer 2 features |
| VLAN+MAC forwarding |
SVLAN+CVLAN forwarding |
| PPPoE+ |
DHCP option82 |
| Layer 3 features |
| Static route |
RIP/RIPng |
| OSPF/OSPFv3 |
IS-IS |
| BGP/BGP4+ |
ARP |
| DHCP relay |
VRF |
| Multicast |
| IGMP v2/v3 |
IGMP Proxy/Snooping |
| MLD v1/v2 (V100R016C10 and later versions) |
MLD Proxy/Snooping (V100R016C10 and later versions) |
| VLAN-based IPTV multicast |
IPv4 PIM and PIM-SSM (V100R017C00 and later versions) |
| QoS |
| Traffic classification |
Priority processing |
| trTCM-based traffic policing |
WRED |
| Traffic shaping |
HQoS |
| PQ/WRR/PQ+WRR |
ACL |
| MPLS&PWE3 |
| MPLS LDP |
MPLS RSVP-TE |
| MPLS OAM |
MPLS BGP IP VPN |
| PW protection switching |
Tunnel protection switching |
| TDM/ETH PWE3 |
| IPv6 |
| IPv4/IPv6 dual stack |
IPv6 L2 and L3 forwarding |
| DHCPv6 relay |
| System reliability |
| GPON type B/type C protection |
ERPS (G.8032) |
| BFD (V100R016C10 and later versions) |
10G GPON type B/type C protection |
| Monitor Link (V100R018C10 and later versions) |
Intra-board and inter-board LAG |
| Service overload control |
MSTP |
| 2 control boards and 2 power boards for redundancy protection |
In-service board fault detection and rectification |
| In-service software upgrade (ISSU) of the control board |
| Application security |
| 802.1x |
AAA |
| Eco-friendly and energy-saving |
| In compliance with the Code of Conduct v8 released by the European Commission(V100R021C10 and later versions) |
| VXLAN (V100R018C00 and later versions) |
| Virtual eXtensible LAN |
| SRv6 (V100R019C1x and later versions) |
| Segment Routing IPv6 |
| Slice (V100R021C00 and later versions) |
| Service slicing |
FAQ
Q: What is the maximum port capacity of the MA5800-X15?
A: The maximum port capacity depends on the configured PON service boards. With high-density 16-port GPON/XGS-PON boards fully installed, it supports up to 240 PON ports (15 service slots × 16 ports), enabling large-scale user access.
Q: What physical dimensions does the device have?
A: 7U height (316.2mm), 19-inch width, 22.5kg weight (full configuration), suitable for data center and central office deployment.
Q: What after-sales support does MF-Telecom provide?
A: We offer 1-year warranty, remote configuration guidance, and on-site support (in key regions).
Q: Do you support customization?
A: OLT products are official original equipment and do not support customization.
Q: What is the after-sales service period?
A: We provide a one-year warranty and technical support.
