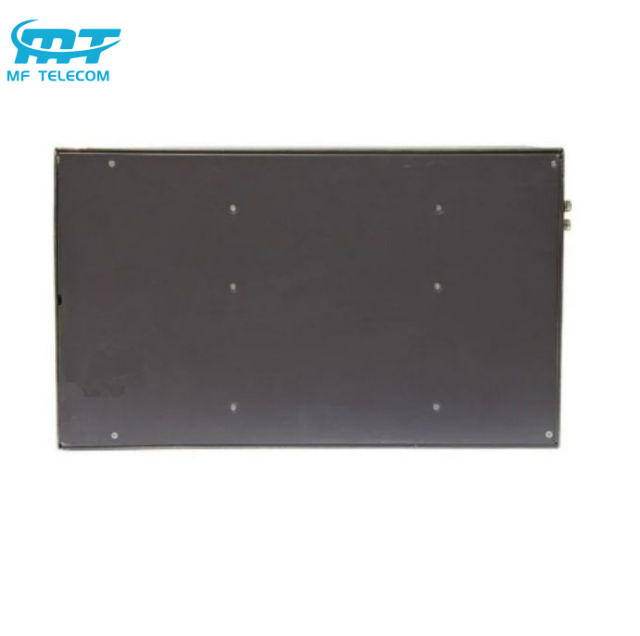

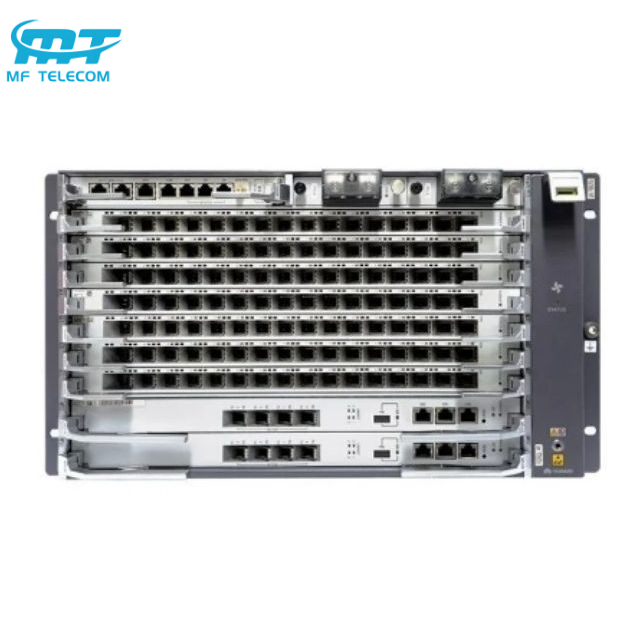

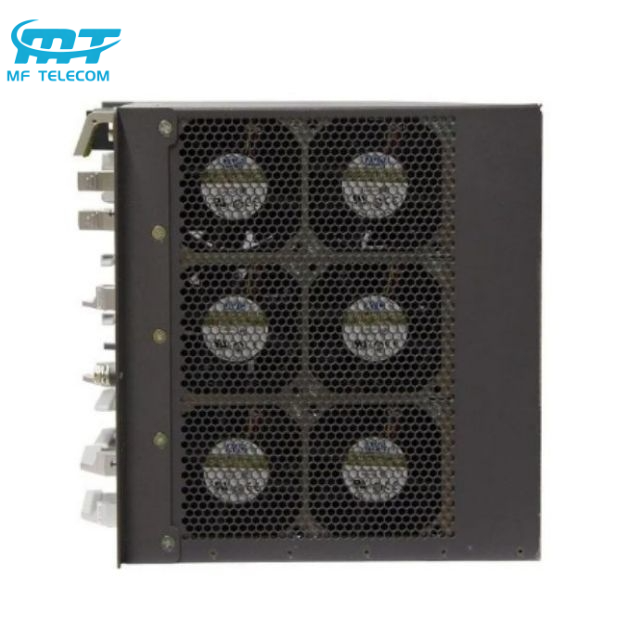

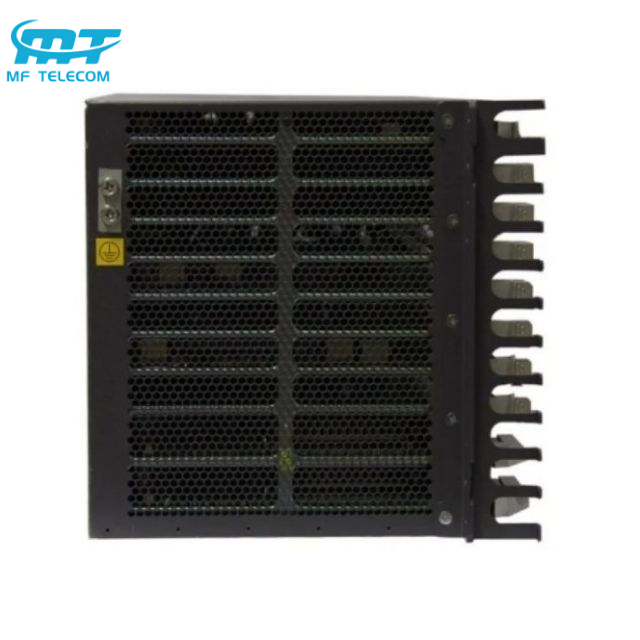

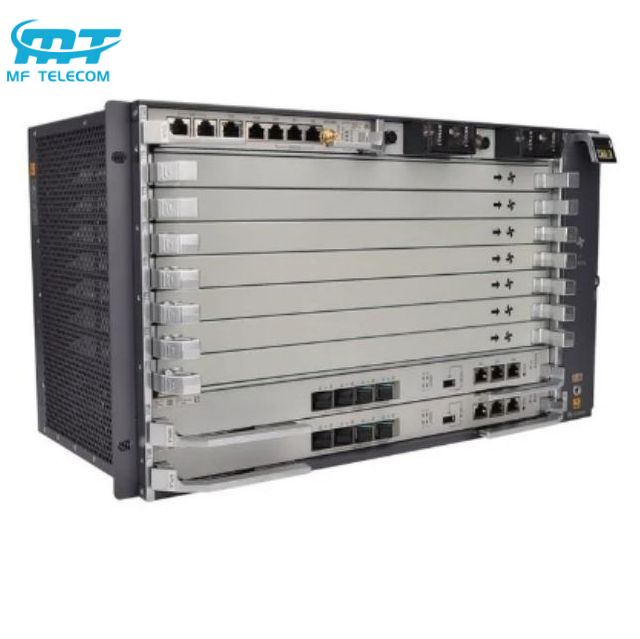

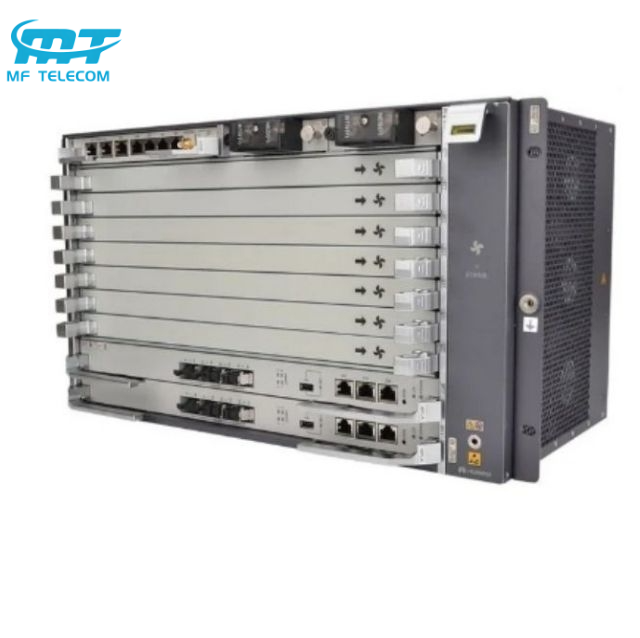

Huawei MA5800-X7 Overview
The Huawei MA5800-X7 is a high-capacity, distributed Optical Line Terminal (OLT) with 7 service slots, featuring a programmable architecture for ultra-broadband, 4K/8K/VR video, and unified access (fiber/copper). Key features include a 200G per slot throughput, support for GPON, 10G PON, and future 40G/100G PON, intelligent energy saving, and smooth upgrades with its Flex-PON solution, enabling massive non-blocking user access and simplified network management.
Product Features
- Architecture: Distributed Architecture: Separates control and forwarding for higher throughput and scalability, with a programmable Network Processor (NP) chip.
- Access & Services: Unified Access: Integrates fiber (PON, 10G PON, 40G/100G PON ready) and copper line access onto one platform.
- Evolution & Flexibility: Flex-PON: Smoothly upgrades from GPON to XG(S)-PON, reducing costs.
- Intelligence & Energy Saving: Intelligent O&M: Features intelligent Operation & Maintenance.
- Physical & Power: Slots: 7 service slots in a 6U high subrack.
Supported Boards
Control Board
|
MPLA |
4*10GE Uplink, 100 Gbit/s |
| MPLB |
4*10GE Uplink, 200 Gbit/s |
| MPLG |
2*SFP+/SFP 10GE/GE/FE +1*QSP28 100G, 200 Gbit/s |
| Power Board |
PILA |
DC power Board |
| GPON Interface Board |
H901/H902GPHF |
16-port Advanced GPON OLT Interface Board |
| H901GPSF |
16-port GPON OLT Interface Board |
| H901/H902GPUF |
16-port GPON OLT Interface Board |
| H901GPLF |
16-port GPON OLT Interface Board |
| Flex-PON Interface Board |
H901/H902FLHF |
16-port Flex-PON OLT Interface Board |
| XG-PON Interface Board |
H901XGHD |
8-port Advanced XG-PON OLT Interface Board |
| H901XGSF |
16-port XG-PON OLT Interface Board |
| XGS-PON Interface Board |
H901XSHF |
16-port Advanced XGS-PON OLT Interface Board |
| H902XSHD |
8-port Advanced XGS-PON OLT Interface Board |
| H901/H902TWED |
8-port Enhanced TWDM PON OLT Interface Board |
| XG-PON Combo Interface Board |
H901CGHF |
16-port XG-PON&GPON Combo OLT Interface Board |
| H901CGID |
8-port XG-PON&GPON Combo OLT Interface Board |
| H902CGHD |
8-port Advanced XG-PON & GPON Combo OLT Interface Board |
| H902CGHF |
16-port XG-PON&GPON Combo OLT Interface Board |
| XGS-PON Combo Interface Board |
H901/H902CSHF |
16-port XGS-PON&GPON Combo OLT Interface Board |
| H902CSHD |
8-port Advanced XGS-PON & GPON Combo OLT Interface Board |
Compatible ONTs
| Item |
Description |
| HG8310M |
1GE |
| EG8120L |
1GE+1FE+1TEL |
| HG8321R |
1GE+1FE+1TEL |
| HG8321V |
1GE+1FE+1TEL+CATV(12V) |
| HG8546M |
1GE+3FE+1USB+1TEL+WIFI(5dBi) |
| EG8141A5 |
1GE+3FE+1USB+1TEL+WIFI(5dBi) |
| EG8247H5 |
1GE+3FE+1USB+1TEL+CATV(5V)+WIFI(5dBi) |
| EG8143A5 |
1GE+3FE+1USB+1TEL+CATV(5V)+WIFI(5dBi) |
| HG8247H5 |
1GE+3FE+1TEL+1USB+CATV(12V)+WIFI(5dBi) |
| EG8145V5 |
4GE+1TEL+1USB+2.4/5G WIFI(5dBi) |
| EG8247W5 |
4GE+1TEL+2USB+CATV+2.4/5G WIFI(5dBi) 4Antennas |
| EG8147X6 |
4GE+USB+CATV+2.4/5G WIFI6 AX3000 (5dBi) |
| HG8245Q2 |
4GE+1TEL+2USB+2.4/5G WIFI |
| EG8145X6 |
4GE+1TEL+2USB+2.4/5G WIFI6 (5dBi) |
| HN8145X6 |
10GPON 4GE+1TEL+2USB+2.4/5G WIFI6 (5dBi) |
| HN8346V5 |
10GPON 4GE+1TEL+2USB+2.4/5G WIFI (5dBi) |
| K662C |
ONT/Edge Router with 1GE+3GE+2.4G/5GHz Wi-Fi6 |
Application Scenarios & Real-World Cases
1. North American 10G FTTH Deployment
A top U.S. operator deployed MA5800-X7 to deliver 10Gbps symmetrical FTTH to 1.2 million households, supporting smart home ecosystems and 8K streaming.
2. European 5G & Enterprise Integration
A major German telecom used the OLT to unify 5G small cell backhaul, office broadband, and industrial IoT for manufacturing zones, cutting network latency by 50%.
3. Southeast Asian Urban Broadband Expansion
A leading Indonesian operator adopted MA5800-X7 for metro-area access, serving 800,000 residential and 50,000 enterprise users with scalable bandwidth.
Downloadable resources
Technical Specifications
| Huawei MA5800-X7 OLT Datasheet |
| Item |
MA5800-X7 |
| Access features |
| GPON/XG(S)-PON Access |
10GE/GE P2P Access |
| Layer 2 features |
| VLAN+MAC forwarding |
SVLAN+CVLAN forwarding |
| PPPoE+ |
DHCP option82 |
| Layer 3 features |
| Static route |
RIP/RIPng |
| OSPF/OSPFv3 |
IS-IS |
| BGP/BGP4+ |
ARP |
| DHCP relay |
VRF |
| Multicast |
| IGMP v2/v3 |
IGMP Proxy/Snooping |
| MLD v1/v2 (V100R016C10 and later versions) |
MLD Proxy/Snooping (V100R016C10 and later versions) |
| VLAN-based IPTV multicast |
IPv4 PIM and PIM-SSM (V100R017C00 and later versions) |
| QoS |
| Traffic classification |
Priority processing |
| trTCM-based traffic policing |
WRED |
| Traffic shaping |
HQoS |
| PQ/WRR/PQ+WRR |
ACL |
| MPLS&PWE3 |
| MPLS LDP |
MPLS RSVP-TE |
| MPLS OAM |
MPLS BGP IP VPN |
| PW protection switching |
Tunnel protection switching |
| TDM/ETH PWE3 |
| IPv6 |
| IPv4/IPv6 dual stack |
IPv6 L2 and L3 forwarding |
| DHCPv6 relay |
| System reliability |
| GPON type B/type C protection |
ERPS (G.8032) |
| BFD (V100R016C10 and later versions) |
10G GPON type B/type C protection |
| Monitor Link (V100R018C10 and later versions) |
Intra-board and inter-board LAG |
| Service overload control |
MSTP |
| 2 control boards and 2 power boards for redundancy protection |
In-service board fault detection and rectification |
| In-service software upgrade (ISSU) of the control board |
| Application security |
| 802.1x |
AAA |
| Eco-friendly and energy-saving |
| In compliance with the Code of Conduct v8 released by the European Commission(V100R021C10 and later versions) |
| VXLAN (V100R018C00 and later versions) |
| Virtual eXtensible LAN |
| SRv6 (V100R019C1x and later versions) |
| Segment Routing IPv6 |
| Slice (V100R021C00 and later versions) |
| Service slicing |
FAQ
Q: How many service slots does the Huawei MA5800-X7 OLT have?
A: It is equipped with 7 service slots, supporting flexible configuration of various PON and Ethernet service boards.
Q: What PON technologies does the MA5800-X7 support?
A: It supports GPON, XG-PON, and XGS-PON.
Q: What upstream ports are available on the MA5800-X7?
A: Its main control board (MPLA/MPLB) has built-in 4 GE/10 GE upstream ports, with optional expansion via upstream interface boards.
Q: What is the after-sales service period?
A: We provide a one-year warranty and technical support.
Q: Do you support customization?
A: OLT products are official original equipment and do not support customization.
