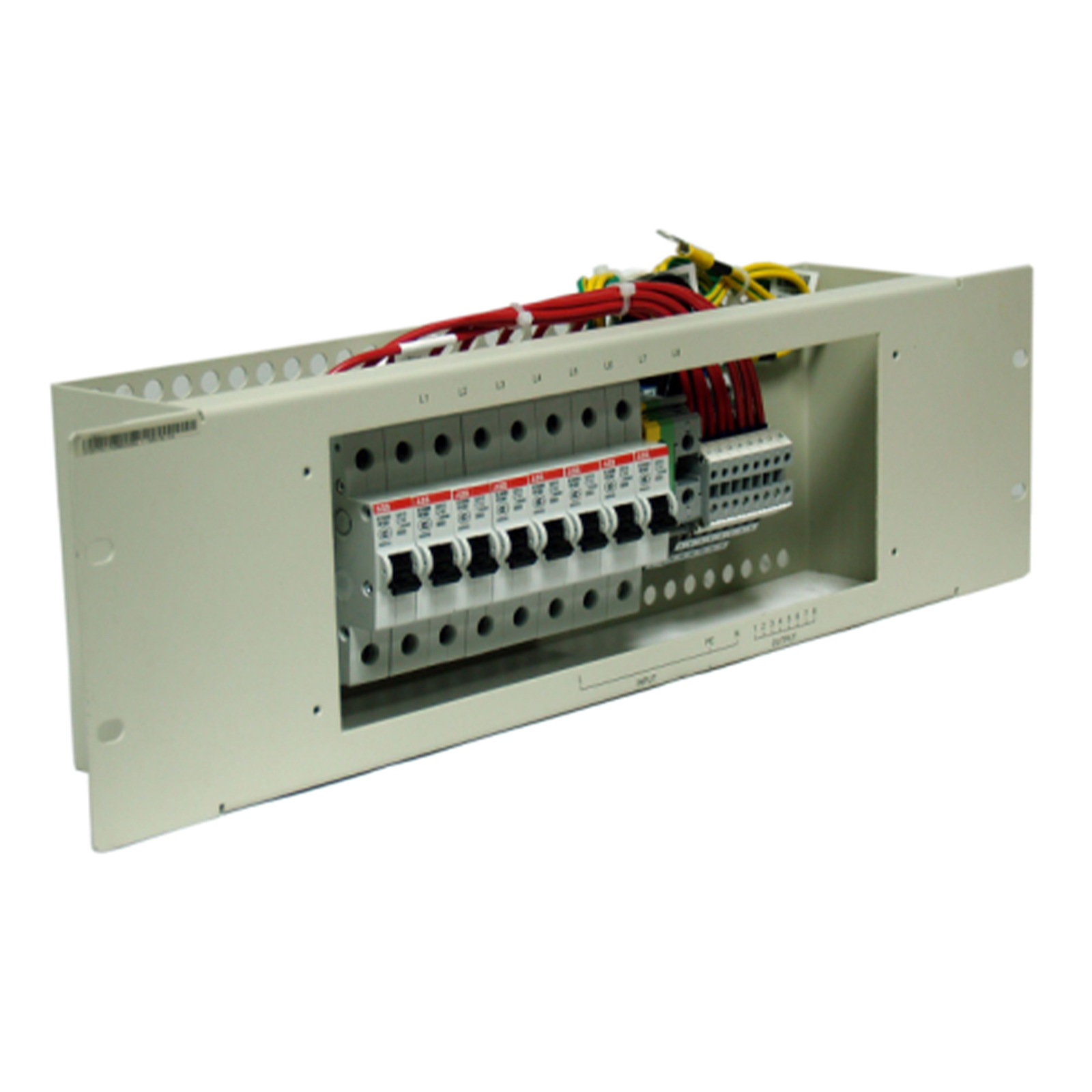

Huawei 2200 W AC Power Distribution Box. A 2200 W AC power distribution box provides short-circuit protection and overload protection.
Specifications of a 2200 W AC power distribution box
Item
Description
Input
Input voltage
Rated voltage: 100 V AC to 240 V AC
Operating voltage: 90 V AC to 276 V AC
Input mode
Typical application: two AC inputs (1+1). The delivered terminal block has two AC input terminals (1+1) by default.
Three AC inputs (2+1)
Four AC inputs (2+2)
Maximum input current
Two AC inputs (1+1): 32 A + 32 A (maximum)
Three AC inputs (2+1): 16 A x 2 + 32 A (maximum)
Four AC inputs (2+2): 16 A x 4 (maximum)
Frequency
50/60±3 Hz
Output
Output voltage
Rated voltage: 100 V AC to 240 V AC
Operating voltage: 90 V AC to 276 V AC
Number of outputs
Four outputs, with short-circuit protection function
Current of each output
16 A (maximum)
Output protection
Overcurrent protection and short-circuit protection (Power supply needs to be restored manually once the power distribution box enters a protection state.)
Environment specifications
Operating temperature
0°C to 45°C (32°F to 113°F)
Storage temperature
-40°C to +70°C (-40°F to +158°F)
Relative humidity
5% to 95%
Altitude
-60 m to +3000 m (-197 ft. to +9483 ft.)
Safety standards compliance
EN60950-1, IEC60950-1
Environmental standards compliance
RoHS, WEEE, Huawei regulation on the 13 hazardous substances
Dimensions (H x W x D)
133 mm x 436 mm x 94.5 mm (5.2 in. x 17.2 in. x 3.7 in.)
Color
NC purple gray
Model
IM1W24APD
Part number
02355418
2200 W AC Power Distribution Box FAQ
Q1: Can this power distribution box simultaneously power 4 servers and 4 switches? Is the total power sufficient?
A1: Absolutely sufficient! Each server consumes an average of approximately 200W, and each switch approximately 100W. The total power for 8 devices is approximately 1200W, far below the rated power of 2200W. It also supports short-term peak power of 3000W, ensuring stable and stress-free power supply.
Q2: How exactly is the "triple protection" triggered? How is it restored after triggering?
A2: Automatic power cut-off occurs in case of overload (>2200W), short circuit, or overvoltage (>260V). After troubleshooting (e.g., unplugging overloaded devices, repairing short circuits), simply press the reset button on the side of the power distribution box to restore power. Operation is simple.
Q3: What are the core advantages compared to ordinary power strips? What professional scenarios is it suitable for?
A3: The core advantages are safety and stability: It has triple protection and industrial-grade materials, making it suitable for professional scenarios such as computer rooms and enterprise core equipment; ordinary power strips have no protection and are only suitable for temporary power supply of non-core equipment in homes/offices.
