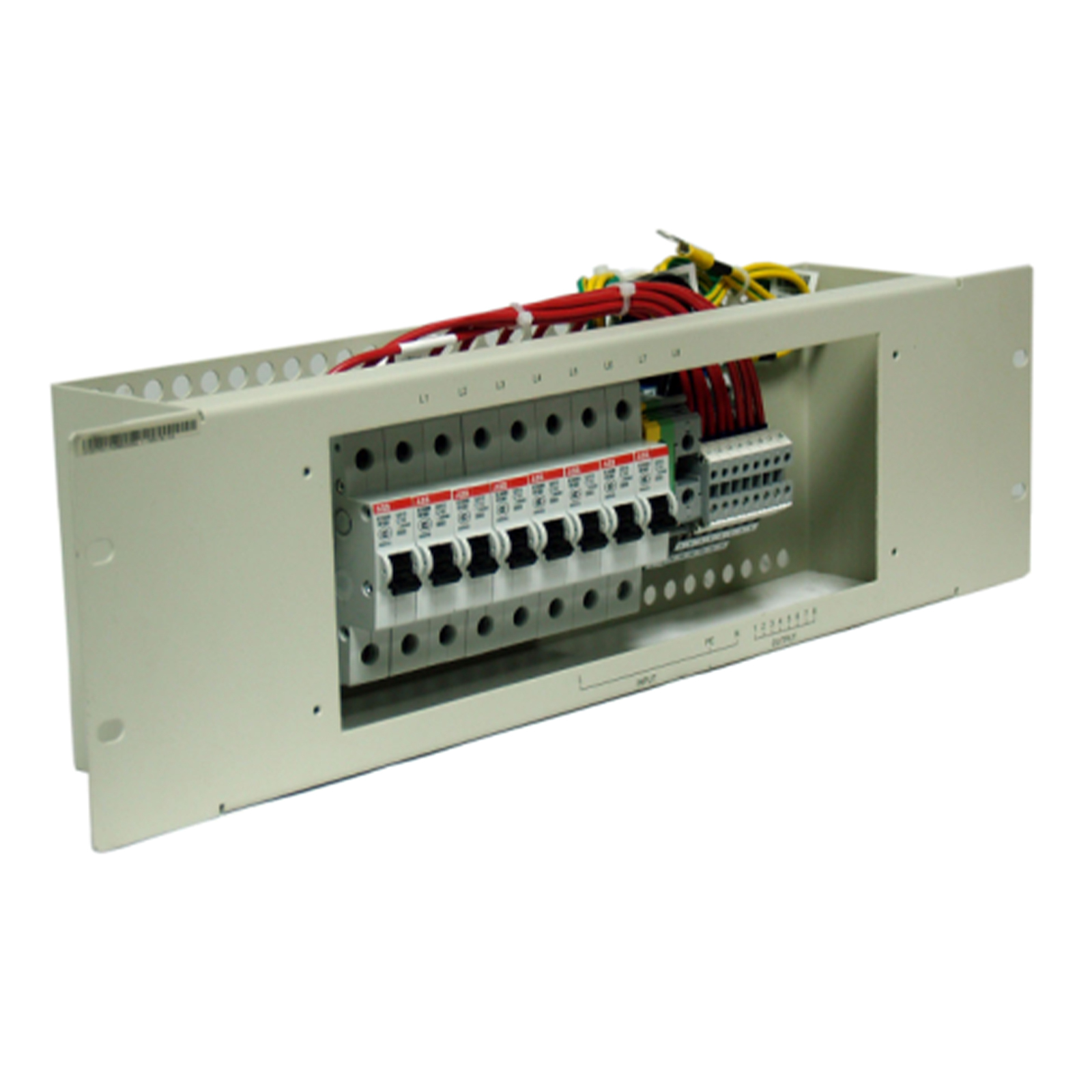

Huawei 800 W AC Power Distribution Box. An 800 W AC power distribution box can convert one power input into eight power outputs, and it provides short-circuit protection and overload protection.
Specifications of an 800 W AC power distribution box
Item
Description
Input
Input voltage
Rated voltage: 100 V AC to 240 V AC
Operating voltage: 90 V AC to 276 V AC
Input terminal
Cord end terminal (applicable to 0.75-25 mm2 power cables)
Output
Output voltage
Rated voltage: 100 V AC to 240 V AC
Operating voltage: 90 V AC to 276 V AC
Number of outputs
Eight outputs controlled by eight circuit breakers
Current of each circuit breaker
10 A
Output protection
Overcurrent protection (Power supply needs to be restored manually once the power distribution box enters the overcurrent protection state.)
Output terminal
Cord end terminal (applicable to 1.0 mm2 cables)
Environment specifications
Operating temperature
-25°C to +55°C (-13°F to +131°F)
Storage temperature
-40°C to +70°C (-40°F to +158°F)
Relative humidity
≤ 95%
Standard atmospheric pressure
70 kPa to 106 kPa
Dimensions (H x W x D)
133 mm x 383 mm x 94.5 mm (5.2 in. x 15.1 in. x 3.7 in.)
Model
IN6W18L10A
Part number
02355417
800 W AC Power Distribution Box FAQ
Q1: Can it power 3 mini switches, 2 printers, and 2 surveillance cameras simultaneously? Is the power sufficient?
A1: Absolutely sufficient! The total power is approximately 600W, far below the 800W rated value. It supports short-term peak power of 1200W, providing stable and stress-free power supply.
Q2: How do I restore power after the dual protection is triggered? Is the operation complicated?
A2: Not complicated! It automatically cuts off power in case of overload (>800W) or short circuit. After troubleshooting, simply press the reset button to restore power. No professional skills are required.
Q3: What is the core difference between this product and a high-power distribution box (800W and above)?
A3: The core difference lies in size and cost: This product is compact, portable, and inexpensive, suitable for scenarios with up to 20 devices; the high-power version is larger and more expensive, suitable for scenarios with dense equipment. This product is more cost-effective for small-scale scenarios.
