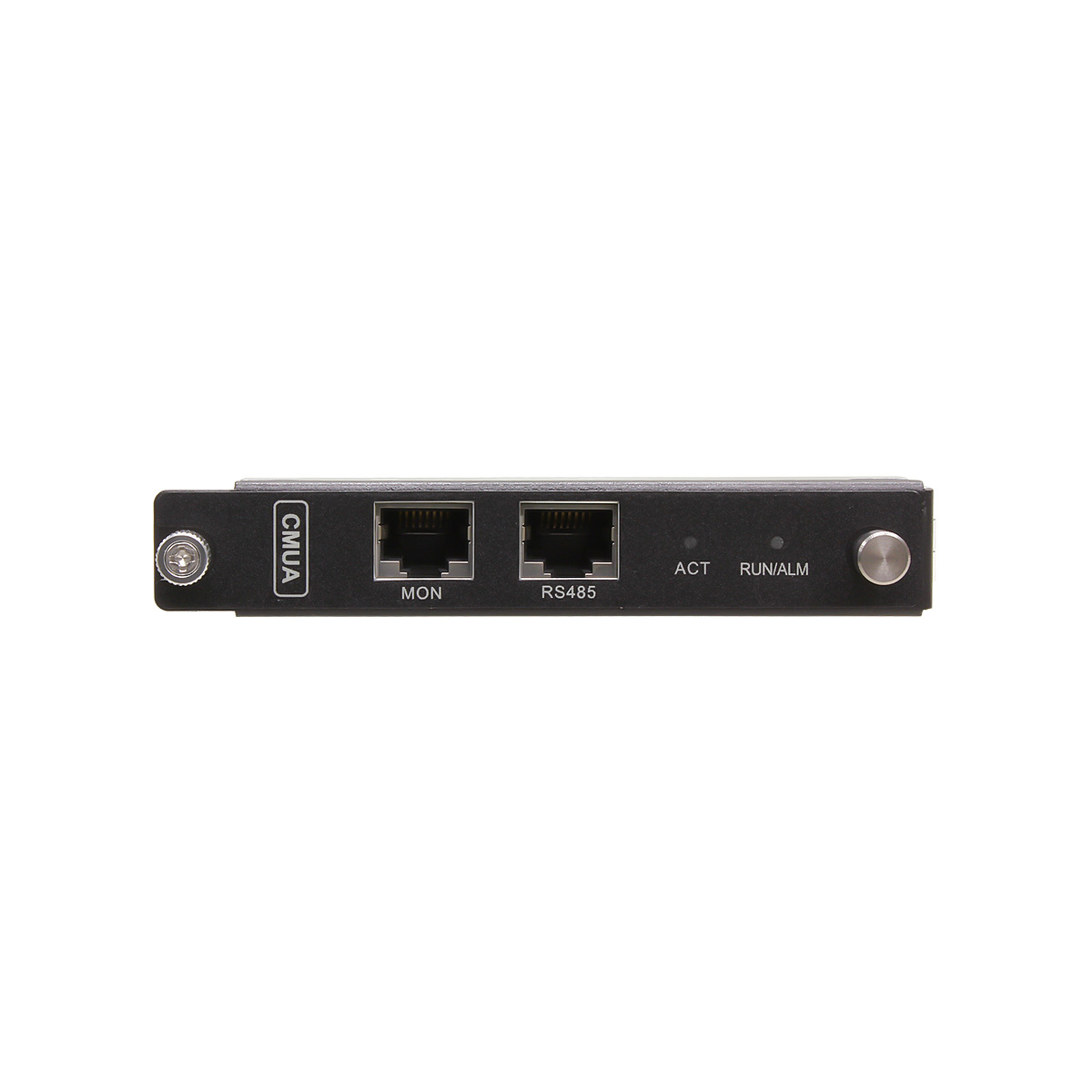

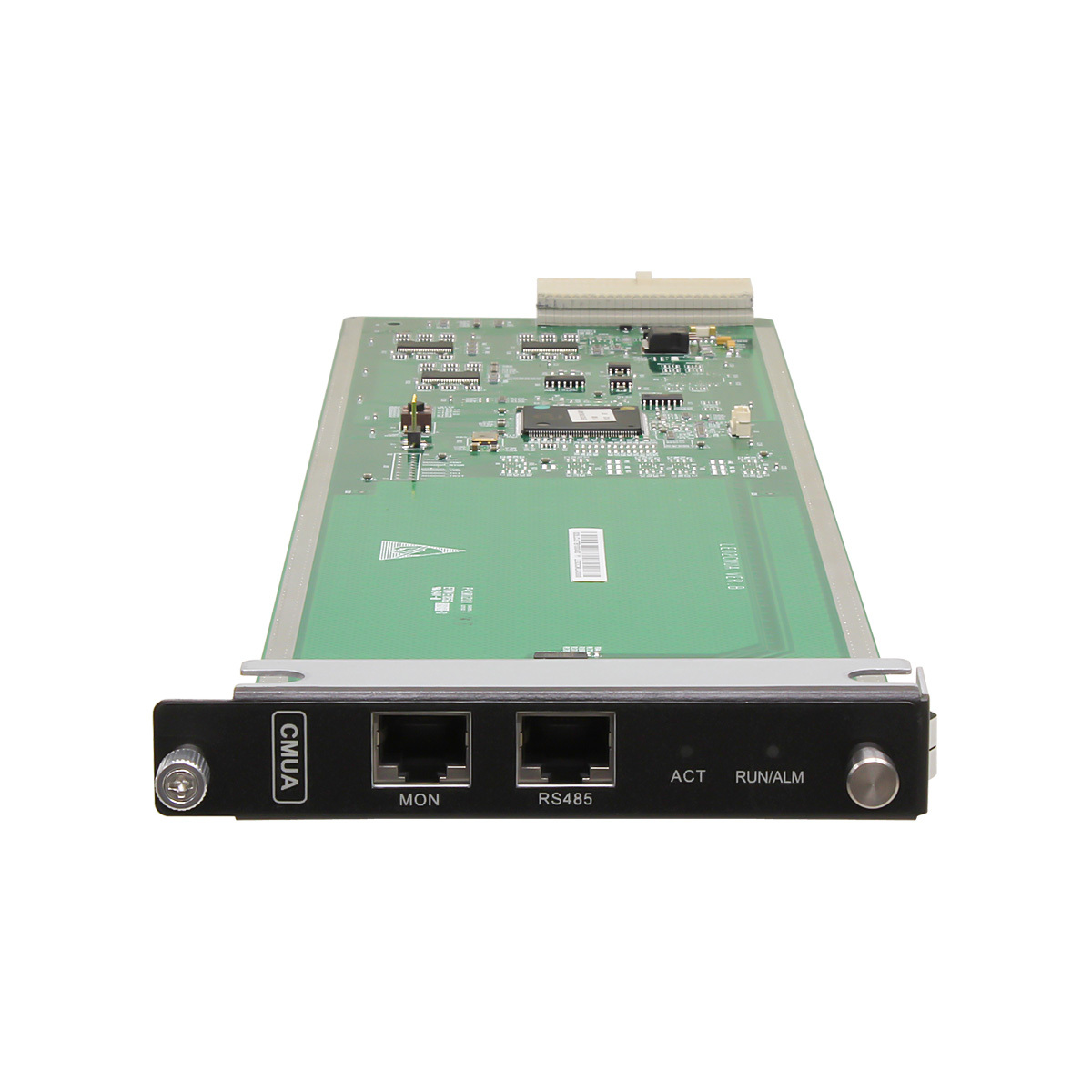

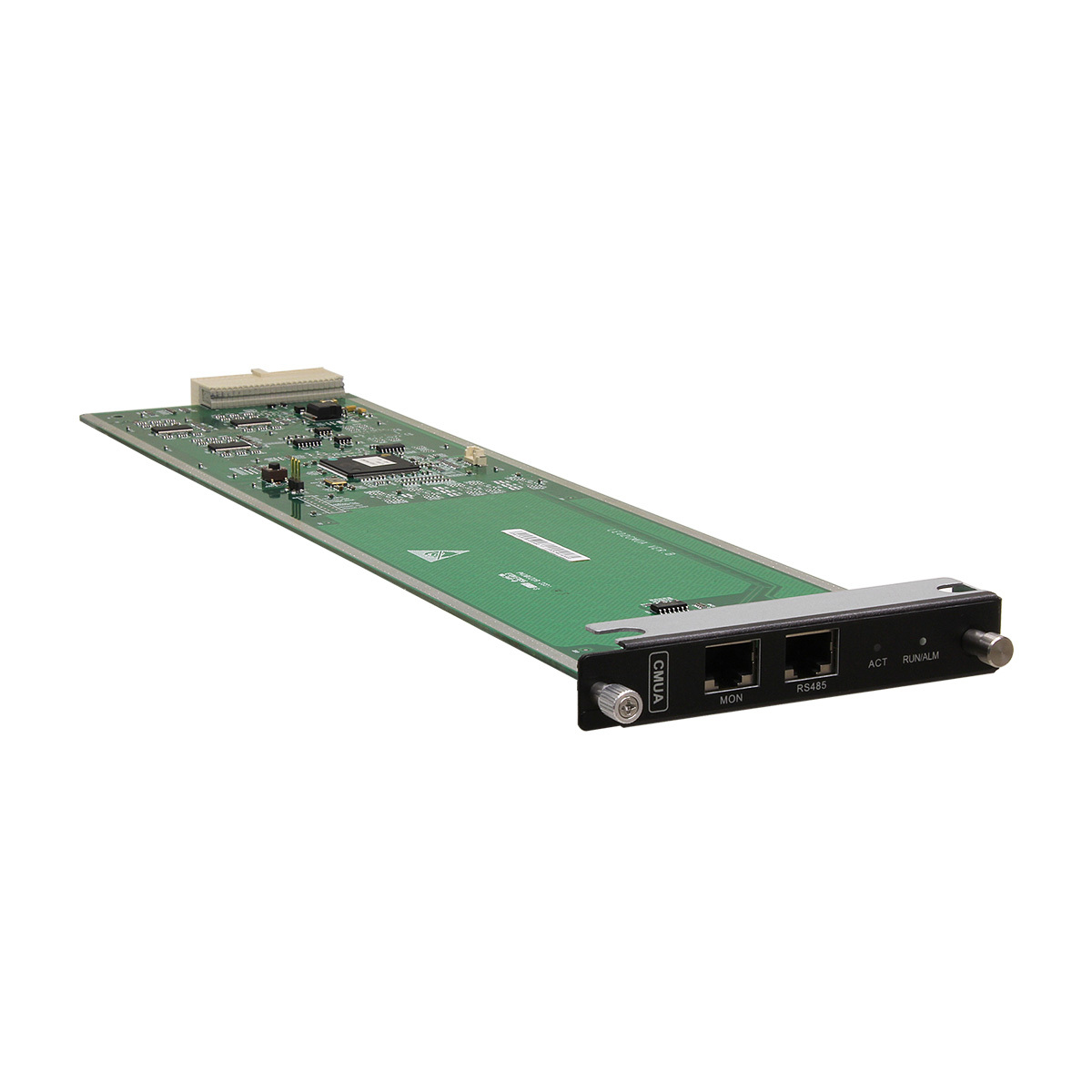

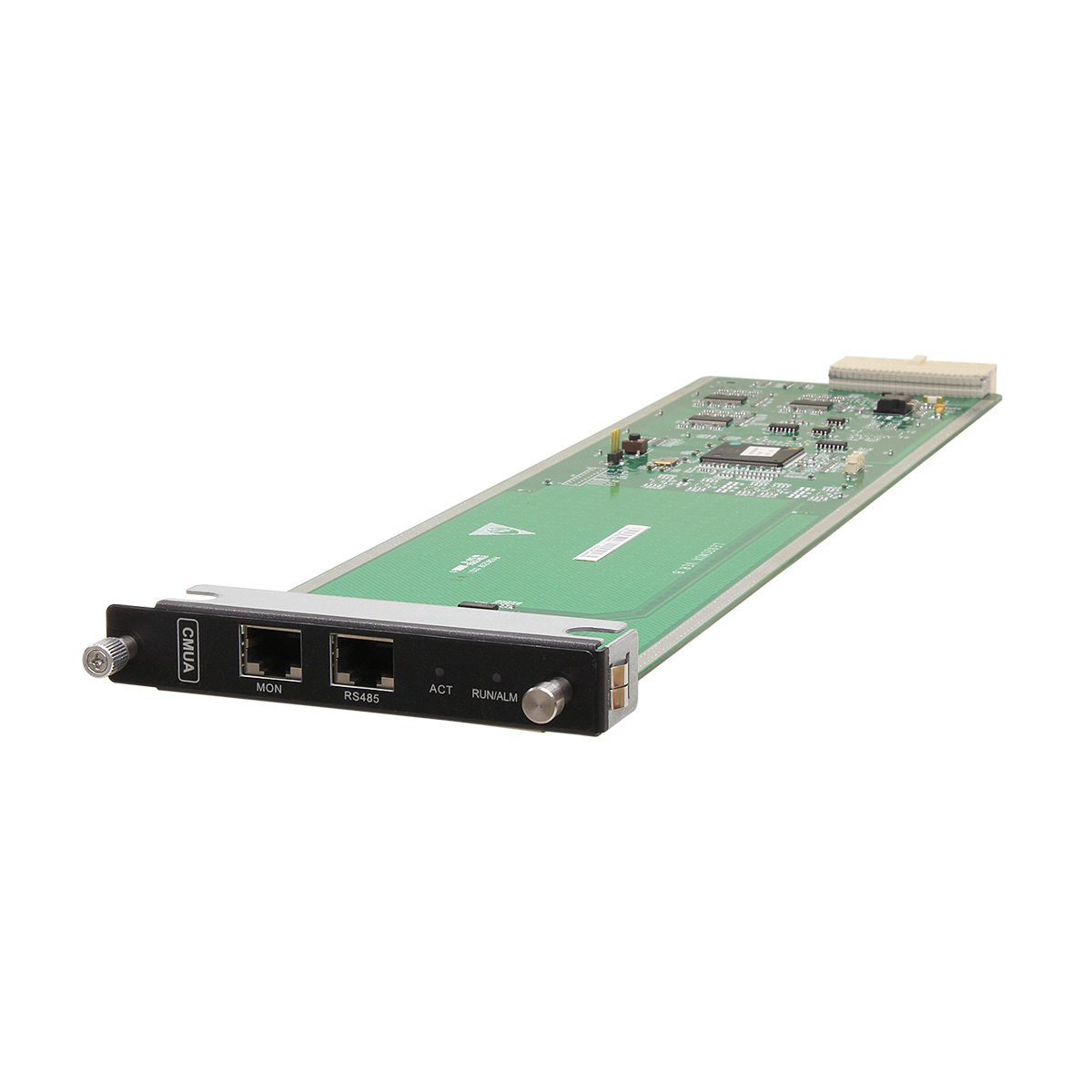

The EH1D200CMU00 consists of the following modules:
Device management module: sends interface control signals for device management.
Backplane interface module: provides management channels for power modules, fan modules, and communication channels between the active and standby EH1D200CMU00 cards.
The EH1D200CMU00 manages power modules and fan modules in a chassis. The EH1D200CMU00 is hot swappable. Two EH1D200CMU00 cards can be installed in a chassis to work in active/standby mode.
Fan module management
The EH1D200CMU00 provides the following fan module management functions:
Fan module presence detection
Fan module registration management
Fan speed monitoring
Fan speed control
Management and report of fan module alarms
Query of fan module electronic labels
The EH1D200CMU00 supports real-time fan module presence detection. Fan modules in the chassis register with the EH1D200CMU00. After they register, the EH1D200CMU00 obtains electronic labels of the fan modules and saves the electronic labels for users to query. Meanwhile, the EH1D200CMU00 monitors the speed and alarms of the fan modules in real time.
When detecting an alarm about a fan module, the EH1D200CMU00 reports the alarm to the MPU. When the alarm is cleared, the EH1D200CMU00 reports alarm clearance to the MPU.
When the EH1D200CMU00 receives a fan speed adjustment instruction from the MPU, it delivers the instruction to the fan modules. The fan modules then adjust their speed according to the instruction. If a chassis has no EH1D200CMU00 installed, fans run at full speed.
The EH1D200CMU00 supports real-time power module presence detection. Power modules in a chassis register with the EH1D200CMU00. After they register, the EH1D200CMU00 obtains electronic labels of the power modules and saves the electronic labels for users to query. Then the power modules are managed using the RS485 bus or I2C bus:
Using the RS485 bus:
The EH1D200CMU00 queries the current and voltage of power modules in real-time.
When detecting an alarm about a power module, the EH1D200CMU00 sends the alarm to the MPU. When the alarm is cleared, the EH1D200CMU00 reports alarm clearance to the MPU.
When the switch is working in deep energy saving mode, the EH1D200CMU00 automatically shuts down redundant power modules to save power. You can set the deep energy saving mode using the set power manage mode command.
Using the I2C bus:
When detecting an alarm about a power module, the EH1D200CMU00 sends the alarm to the MPU. When the alarm is cleared, the EH1D200CMU00 reports alarm clearance to the MPU.
Centralized Control Tailored for Network Equipment Management The EH1D200CMU00 offers centralized monitoring specifically engineered for chassis embedded in complex network infrastructures. Targeted toward systems engineers and facilities managers, this solution enables integrated management of power and cooling components across multiple modules. Designed to enhance operational stability, the unit facilitates communication between active and standby cards, supporting hot-swappable replacements to ensure uninterrupted service. Its role is critical for environments demanding high availability and rapid fault resolution within data center or telecommunications chassis.
Advanced Monitoring and Technical Specifications The EH1D200CMU00 integrates device management and backplane interface modules to execute real-time detection and control functions. It precisely monitors fan presence, speed, and status alarms, while managing power modules through RS485 or I2C communication protocols. The device supports an active/standby dual-card configuration, providing redundancy to increase system reliability. Measuring 19.8 mm by 112.9 mm by 412.7 mm and weighing 0.22 kg, it operates with a maximum power consumption of 1 W. The unit’s energy-saving capabilities include automatically shutting down redundant power modules to optimize efficiency.
Industry Applications and Operational Value In network infrastructure and data center environments, the EH1D200CMU00 delivers essential control over cooling and power elements, contributing to system longevity and reduced downtime. Its ability to integrate alarm reporting and fan speed adjustment streamlines fault detection and maintenance workflows. By enabling centralized registration and monitoring of power modules, it supports optimized energy consumption and chassis stability. This unit is invaluable for communication equipment providers and enterprise IT departments seeking to maintain continuous chassis operation and enhance overall equipment performance.
Product Advantages
Integrated Modular Design for System Resilience The EH1D200CMU00 features a modular structure that integrates device management with the chassis backplane interface to deliver seamless coordination between power and fan subsystems. This design supports hot-swappable functionality and active/standby dual-card arrangements, ensuring system endurance during maintenance or fault conditions. Its compact dimensions facilitate easy installation within standard chassis, while integration with RS485 and I2C buses enhances communication flexibility. Such architecture improves system scalability and reduces single points of failure, critical for mission-critical network deployments.
Reliable Operations with Enhanced Control Features From a performance perspective, the EH1D200CMU00 provides comprehensive real-time monitoring and precise control of power consumption and cooling parameters. Users benefit from its alarm reporting capabilities, which promptly notify management processor units of anomalies. The unit’s ability to dynamically adjust fan speeds and power module activity enables energy-efficient operation aligned with workload demands. These advantages translate to lower operational risk, simplified maintenance processes, and measurable reductions in energy costs—paramount concerns for network administrators.
Specifications of the EH1D200CMU00
Item
Description
Physical specifications
Dimensions (H x W x D): 19.8 mm x 112.9 mm x 412.7 mm (0.78 in. x 4.44 in. x 16.25 in.)
Weight: 0.22 kg (0.49 lb)
Maximum power consumption: 1 W
Use Scenarios
Optimizing Cooling Systems within Data Center Chassis In data center environments, the EH1D200CMU00 plays a pivotal role by supervising chassis fan modules to maintain optimal cooling performance. Data centers require stringent environmental control to prevent hardware failure due to overheating. This centralized monitoring unit ensures continuous surveillance of fan status and speed, generating alarms for early fault detection. Its hot-swappable and redundant design supports uninterrupted operation during component upgrades or replacements. Integrated with centralized management processors, this unit enables automated adjustments to cooling based on real-time data, contributing to system reliability and energy efficiency.
Power Module Management in Telecommunications Infrastructure Telecommunication facilities utilize the EH1D200CMU00 to monitor and regulate power modules within chassis housing communication equipment. The unit’s ability to query voltage and current parameters in real time ensures that the power subsystem remains stable and efficient. Redundant power modules can be automatically powered down during low-demand periods, optimizing energy consumption. Compliance with communication standards and integration over RS485 or I2C interfaces allows seamless interaction with existing management platforms. This capability enhances uptime and reduces operational expenditures while facilitating scalable infrastructure management.
FAQ
What are the main functions of the EH1D200CMU00? The EH1D200CMU00 centrally manages power and fan modules within a chassis, providing real-time detection, control, and alarms. It supports hot swapping and active/standby redundancy to ensure reliable operation and energy-saving by shutting down redundant power modules automatically.
Can the EH1D200CMU00 be installed without shutting down the system? Yes, the EH1D200CMU00 features a hot-swappable design that allows installation or replacement without powering down the entire chassis. This ensures continuous system operation, which is critical for high-availability network environments.
How does customization work for the EH1D200CMU00? Customization options for the EH1D200CMU00 include logo printing, packaging adaptations, and firmware pre-configuration. These services are offered to fit specific business requirements, supporting tailored integration within your existing system infrastructure.
What kind of technical support is available for the EH1D200CMU00? Guangzhou Mifan Electronic Technology Co., Ltd provides professional technical support and stable firmware updates for the EH1D200CMU00, ensuring reliable performance and ease of maintenance throughout the product lifecycle. Contact us for detailed technical guidance.
