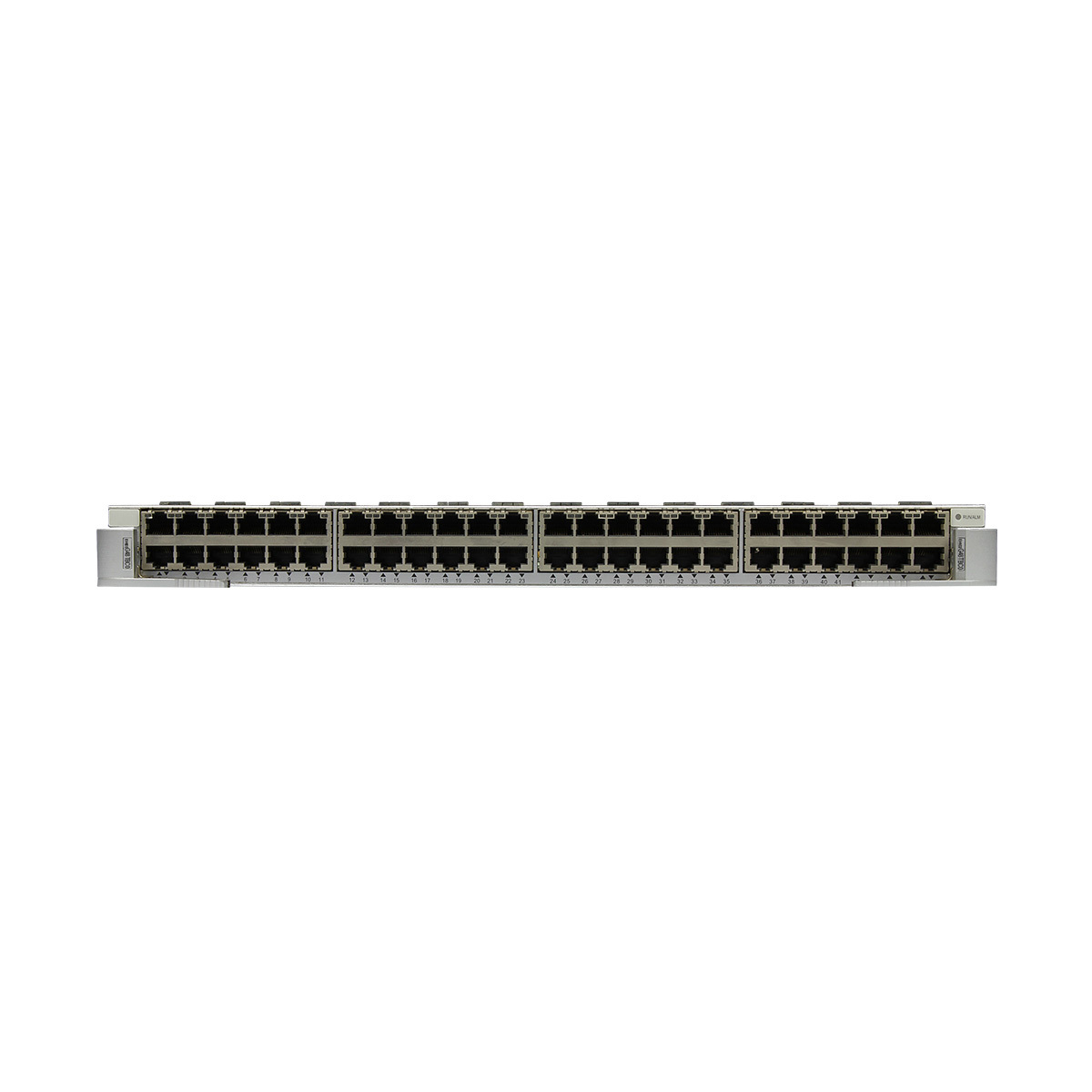

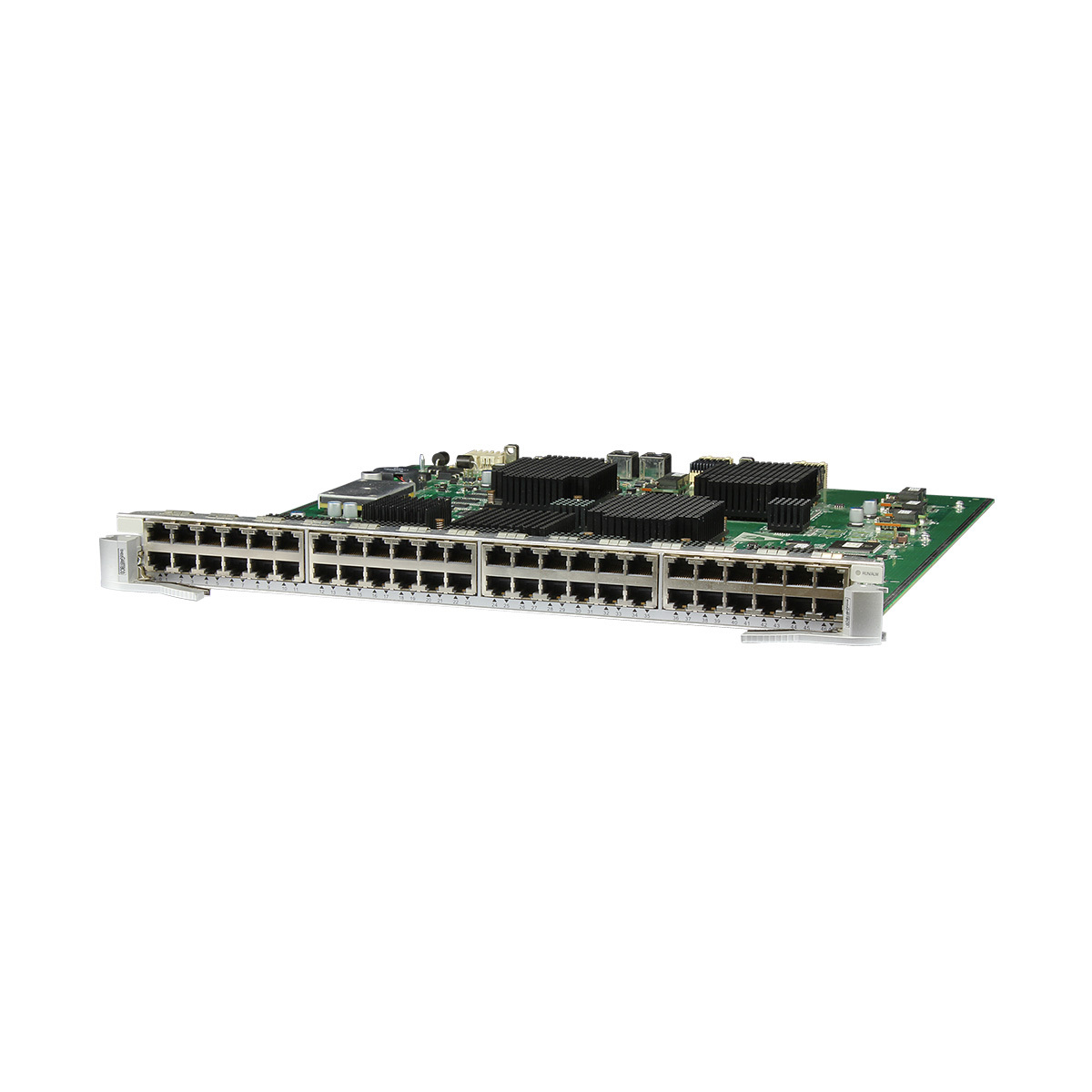

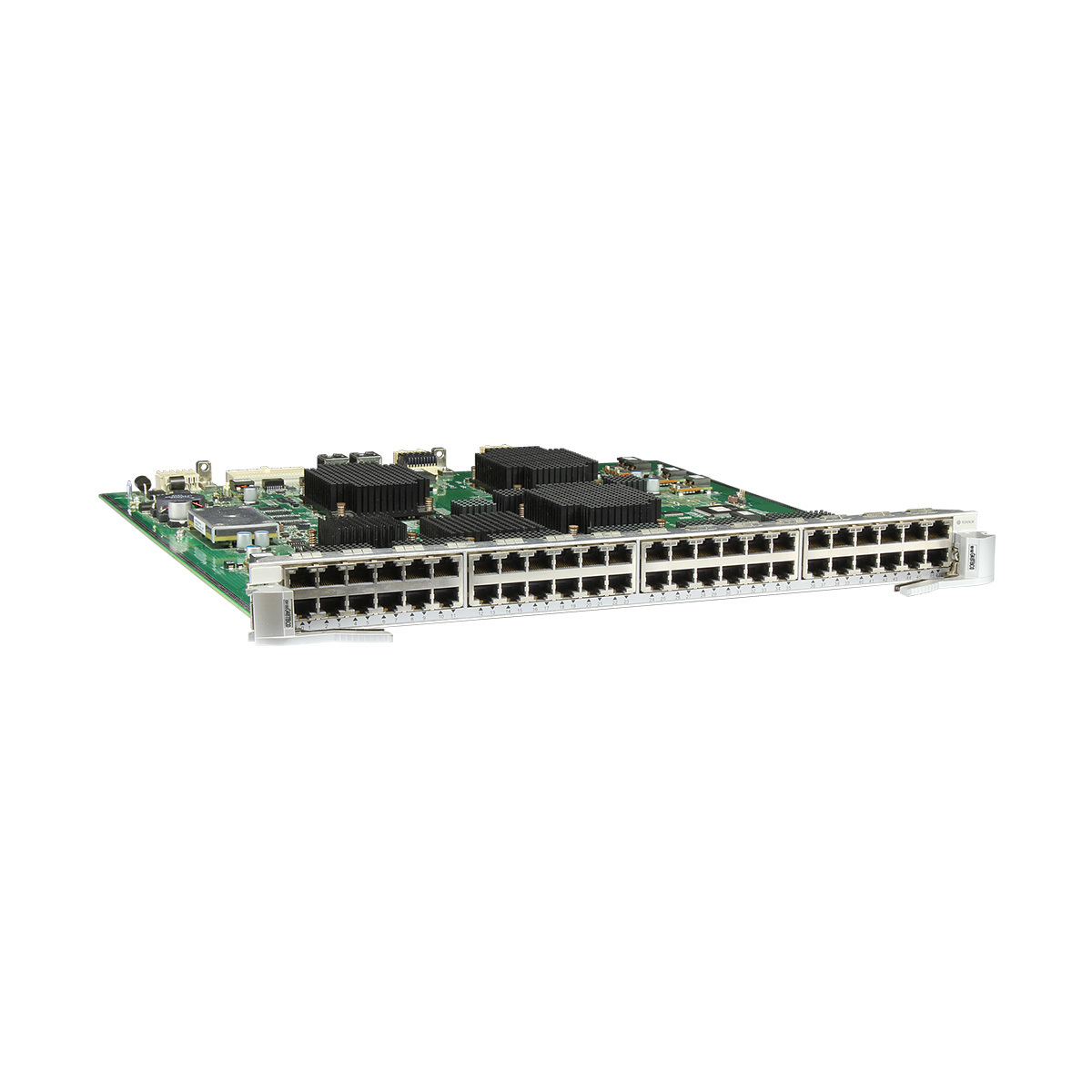

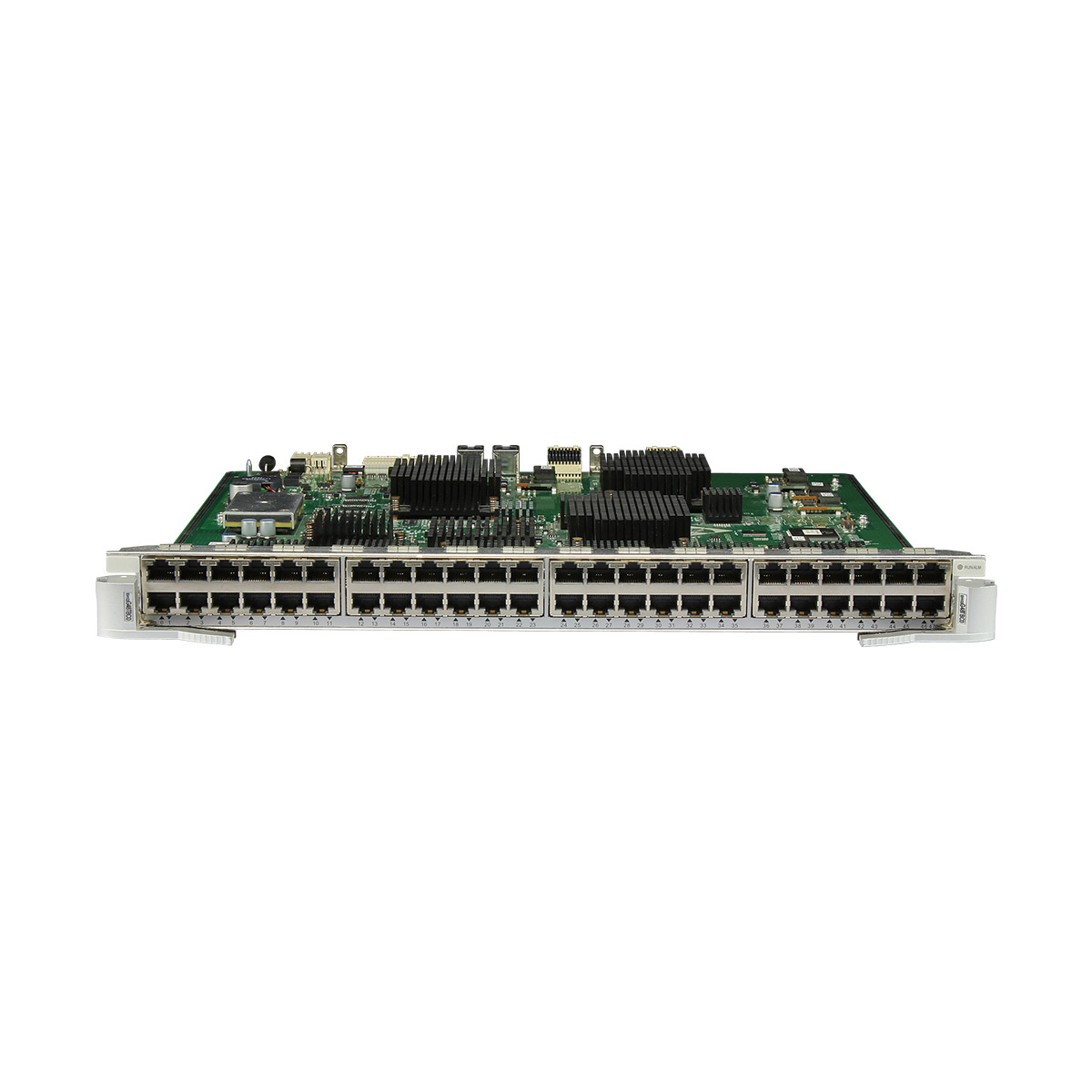

Huawei S9700 Switch EH1D2G48TBC0 48-Port 10/100/1000BASE-T Interface Card (BC, RJ45) The EH1D2G48TX1E provides high performance, large entry sizes, and a large buffer for data switching. This card is highly integrated and has a large port density.
Advanced Modular Solution for Enterprise Network Architects The Huawei EH1D2G48TBC0 Interface Card is engineered for professional networking environments requiring scalable and high-density Ethernet port expansion. Specifically designed for integration with Huawei S9700 series switches, it targets network engineers and IT procurement teams managing large-scale infrastructures. This module supports 48 10/100/1000BASE-T ports, positioning it as an essential component for backbone networks demanding reliable multi-gigabit connectivity and streamlined scalability.
High Throughput and Protocol Compatibility for Network Efficiency With a forwarding capacity of up to 50 Gbit/s and a distributed forwarding architecture, the Huawei EH1D2G48TBC0 Interface Card ensures consistent line-rate switching performance. The card adheres to IEEE 802.3ab standards with RJ45 connectors, supporting multiple Ethernet frame formats such as Ethernet_II, SAP, and SNAP. Additionally, its hot-swappable design allows for seamless hardware upgrades without interruption, facilitating operational continuity. The compact physical dimensions and compatibility with S9703, S9706, and S9712 chassis reinforce its versatility in various deployment scenarios.
Critical Applications in Data Centers and Campus Networks This interface card’s robust port density and throughput make it suitable for high-performance switching in data centers and enterprise campus networks. It effectively supports network backbone infrastructure upgrades, facilitates distributed forwarding to minimize latency, and accommodates mixed optical and electrical interface deployments. Operational within demanding network environments, the Huawei EH1D2G48TBC0 Interface Card contributes to enhanced scalability, optimized traffic management, and reliable network maintenance workflows.
Product Advantages
Modular Design Optimizing System Integration The Huawei EH1D2G48TBC0 Interface Card is designed with modularity to seamlessly fit Huawei’s S9700 chassis with slot configurations ranging from 3 to 12 ports. Its hot-swappable architecture permits insertion or removal without powering down the switch, reducing downtime and maintenance complexity. Compliant with IEEE 802.3ab standards and utilizing RJ45 connectors, the design supports versatile cable types and Ethernet frame protocols, ensuring interoperability within diverse wired infrastructures. This integration-friendly structure simplifies system upgrades and expands network capacity efficiently.
Robust Performance with Operational Continuity Focus Performance-wise, the Huawei EH1D2G48TBC0 Interface Card delivers dependable 50 Gbit/s data throughput and supports line-rate switching, crucial for latency-sensitive applications. The distributed forwarding capability improves data processing efficiency across the switch’s data plane. From an operational perspective, the hot-swappable feature enhances usability by allowing maintenance or expansion without service disruption. Firmware stability, backed by Guangzhou Mifan Electronic Technology Co., Ltd., further ensures dependable, long-term network performance and user value in critical installations.
Provides forty-eight 10M/100M/1000M Ethernet electrical ports for data transmission and line-rate switching.
Capable of handling 50 Gbit/s traffic.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
The EH1D2G48TBC0 is hot swappable.
Ports on the EH1D2G48TBC0
Attribute
Description
Connector type
RJ45
Standards compliance
IEEE 802.3ab
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the EH1D2G48TBC0
Item
Description
Physical specifications
Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight: 2.90 kg (6.39 lb)
Maximum power consumption: 160 W
Environment specifications
Operating temperature: 0°C to 45°C (32°F to 113°F)
Operating relative humidity: 5% RH to 95% RH (noncondensing)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Storage relative humidity: 5% RH to 95% RH (noncondensing)
Use Scenarios
Enterprise Campus Network Backbone Enhancement In enterprise campus environments requiring high-density port availability and stable multi-gigabit throughput, the Huawei EH1D2G48TBC0 Interface Card functions as a core switching module within Huawei S9700 chassis. It supports network backbone upgrades by enabling seamless traffic forwarding at line rate, minimizing latency through distributed forwarding. The card’s compatibility with standard Ethernet protocols facilitates integration with existing network ecosystems. Its hot-swappable design allows campus IT administrators to perform live hardware maintenance, ensuring uninterrupted connectivity for business operations.
High-Density Data Center Network Expansion Data centers demand scalable, reliable interface cards to accommodate growing traffic and port density needs. The Huawei EH1D2G48TBC0 Interface Card offers 48 10/100/1000BASE-T ports and 50 Gbit/s throughput, meeting the bandwidth and scalability criteria in data center switching layers. Its compliance with IEEE 802.3ab and support for varied Ethernet frame formats ensure interoperability across diverse server and storage equipment. This card integrates into Huawei S9700 chassis architectures, facilitating distributed forwarding to reduce bottlenecks and supporting live hot-swapping to maintain high availability during component replacement or scaling events.
EH1D2G48TX1E FAQ
Q1: What are the core functions of this service board? How are the advantages of hybrid optoelectronic and WDM combined? A1: It contains 48 10GE hybrid optoelectronic ports (SFP+/RJ45), supporting WDM modules (10-80km) and 10G/1G dual rates; 48 ports for ultra-high density and long-distance transmission, low power consumption ≤205W, suitable for long-distance hybrid interface scenarios with limited fiber resources.
Q2: What are the core advantages compared to a regular 48-port hybrid optoelectronic board? A2: The advantages are WDM compatibility (long distance + fiber optimization), ultra-high density saving slots, and compatibility with both optical and electrical interfaces, simultaneously solving the three major pain points of long-distance transmission: high fiber optic usage, complex deployment, and high cost.
Q3: Does it require specific WDM modules/cables? Which core protocols does it support? A3: Compatible with Huawei standard SFP+ WDM wavelength division multiplexing modules (CWDM/DWDM), ordinary optical modules, and Cat6a/Cat7 network cables; supports IPv4/IPv6 dual-stack, QoS, LACP, and VRRP to meet the high reliability requirements of long-distance transmission.
Q4: How to determine if this service board needs to be deployed? Is the installation complex? A4: Deployment is recommended when a large cross-regional network requires 40+ mixed-interface terminal access, pursues long-distance transmission, and wants to optimize fiber optic resources; supports hot-swapping, installation requires no professional tools, and the ports automatically adapt to WDM/ordinary modules and optical/electrical modes.
