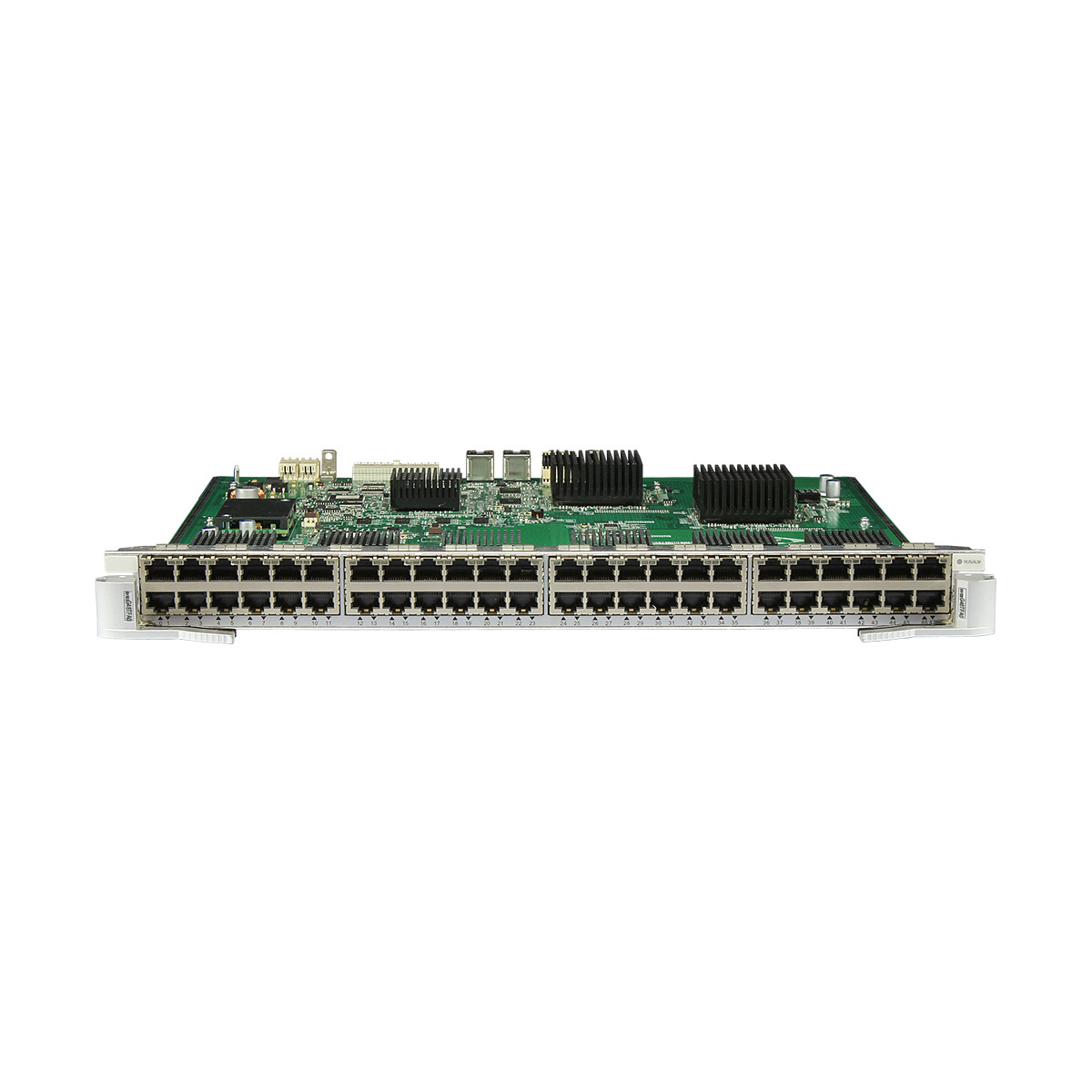

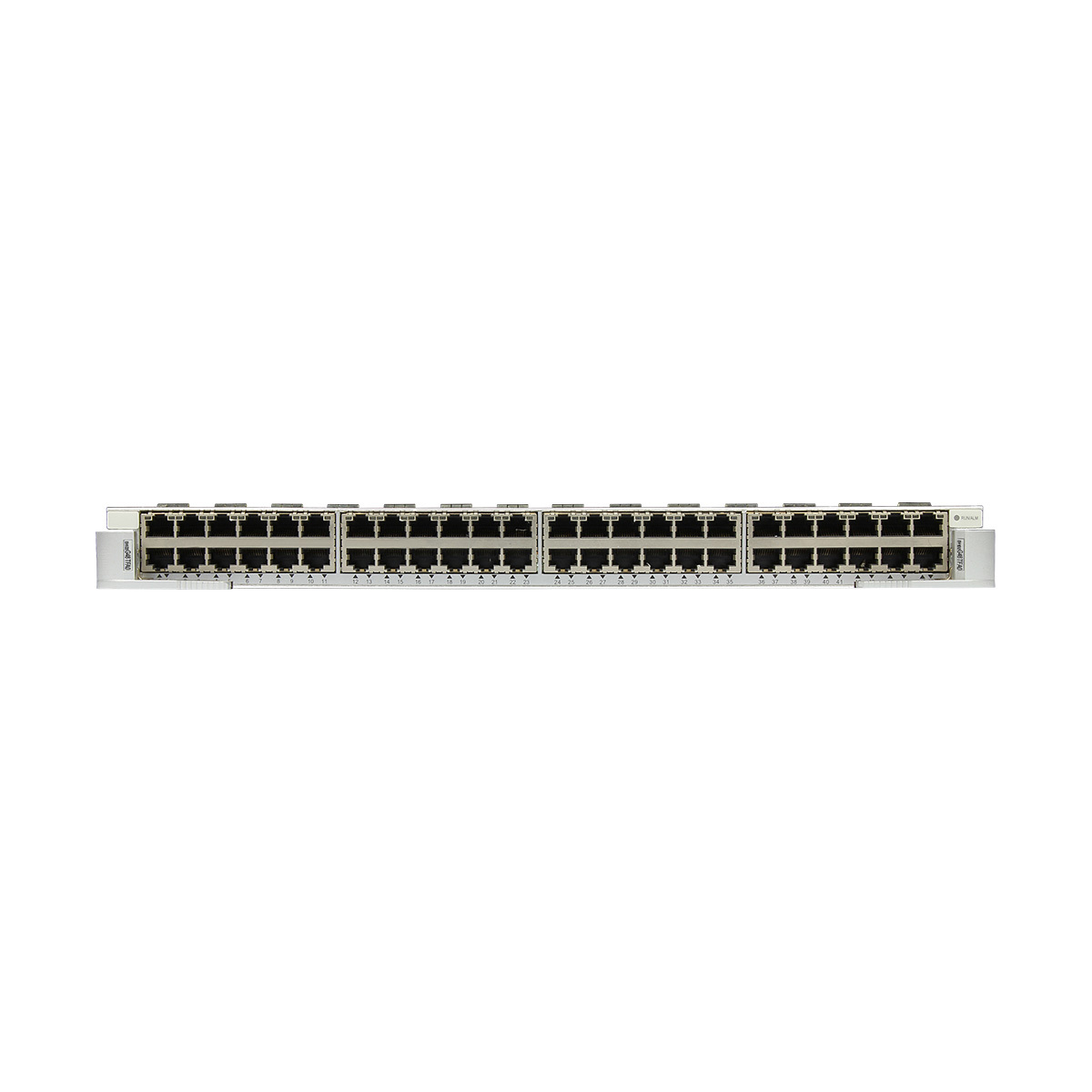

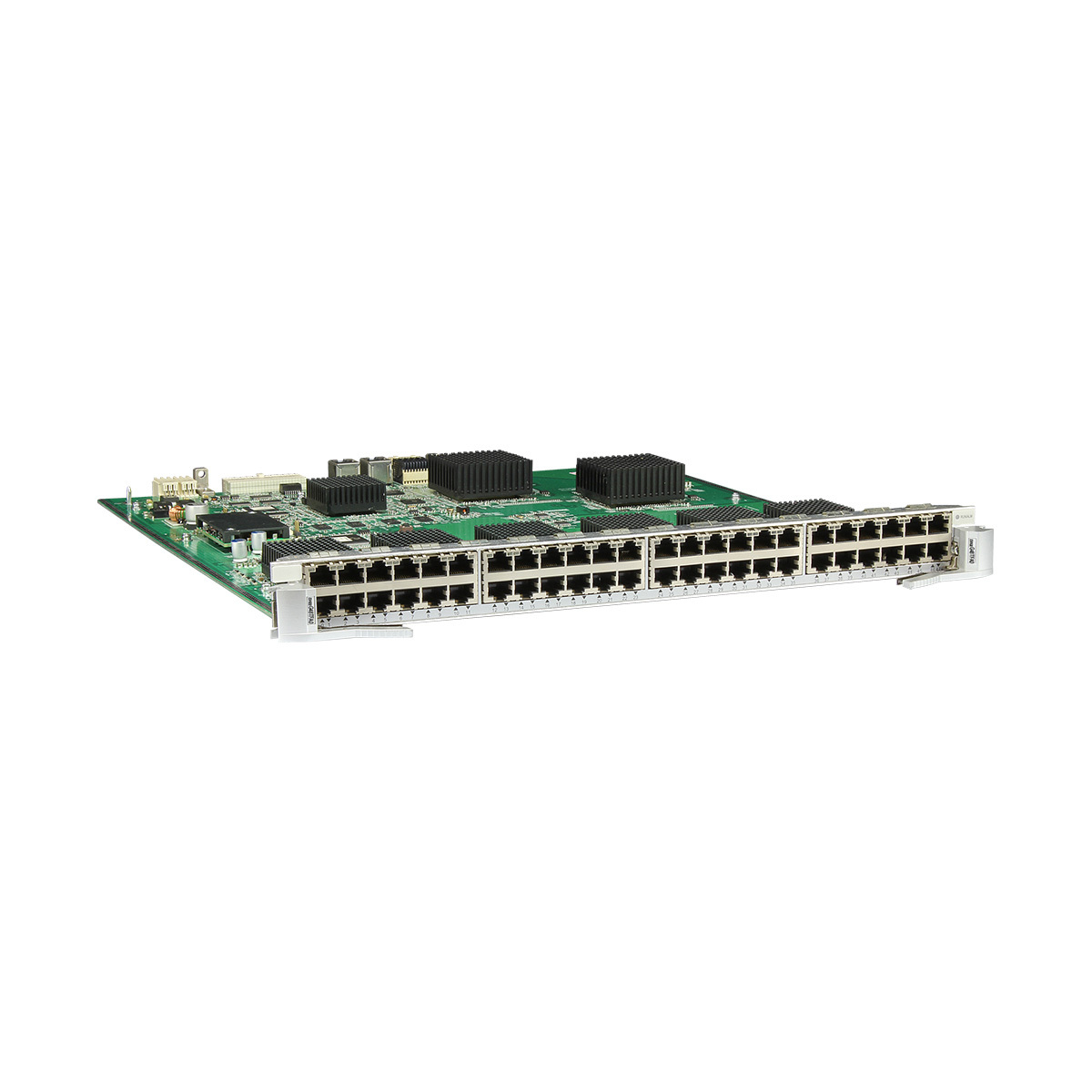

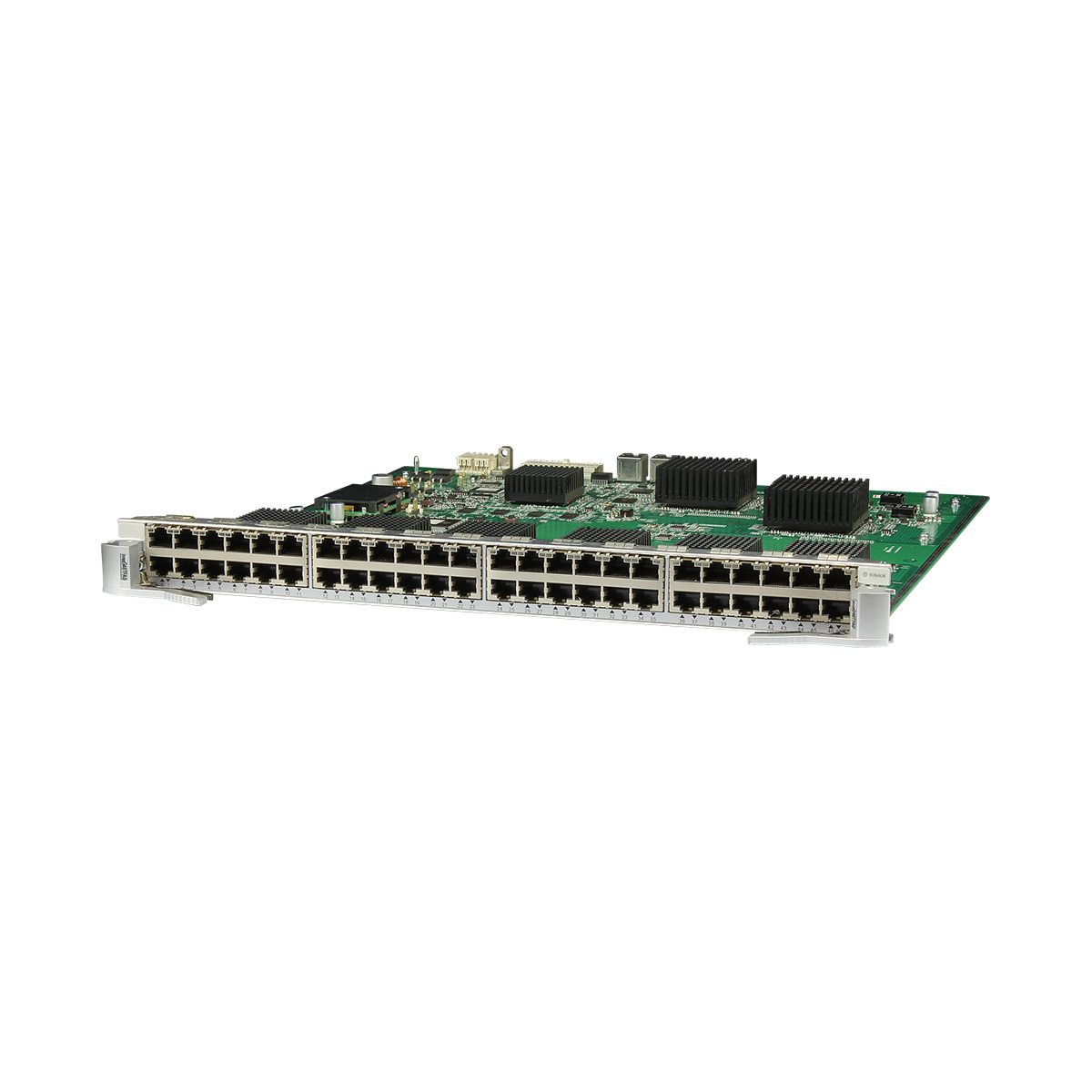

Functional Integration for Enterprise Networks The Huawei EH1D2G48TFA0 Interface Card is purpose-built for integration within Huawei S9700 switch series, including S9703, S9706, and S9712 chassis. Targeted at network engineers and infrastructure managers, this module delivers a high-density port solution with 48 RJ45 10/100/1000BASE-T interfaces. Its compatibility with multiple chassis slots enables scalable deployments suited for growing enterprise networks requiring reliable, high-throughput copper connectivity. The module’s hot-swappable design ensures service continuity during maintenance, aligning with operational requirements for minimal downtime. As such, the Huawei EH1D2G48TFA0 Interface Card is an essential component for expanding switch capabilities in professional network environments.
Technical Specifications and Protocol Compliance Designed to meet rigorous industry standards, the Huawei EH1D2G48TFA0 Interface Card supports distributed forwarding capabilities that optimize traffic management across the switch fabric. Featuring compliance with IEEE 802.3ab and Ethernet II framing, it guarantees interoperability and protocol adherence for IP-based communications. The interface card’s operating parameters include a power consumption rate capped at 48W and dimensions conducive to dense rack deployments. Its RJ45 connectors provide standardized 10/100/1000 Mbps network speeds suitable for mixed data transmission scenarios. Environmental tolerances, such as operational temperature from 0°C to 45°C and relative humidity capabilities, enable high reliability in typical data center conditions.
Application in Data Centers and Campus Networks This interface card extends the functional breadth of Huawei S9700 switches in demanding environments such as enterprise data centers and large campus networks. It supports network administrators in upgrading legacy infrastructure while maintaining protocol consistency and facilitating network segmentation through distributed data forwarding. The card’s hot-swappable design minimizes service interruptions during system expansions or replacements. By enhancing port density with 48 stable RJ45 interfaces, it supports mixed-interface terminal access, redundant network paths, and efficient copper Ethernet connectivity. Consequently, the Huawei EH1D2G48TFA0 Interface Card delivers significant operational value in scalable, high-availability network architectures.
Product Advantages
Design and Modular Integration Benefits The Huawei EH1D2G48TFA0 Interface Card features a compact and modular design optimized for seamless integration into multiple Huawei S9700 chassis models, including S9703, S9706, and S9712. Its hot-swappable structure allows engineers to add, replace, or maintain interface cards without shutting down the switch system, maintaining network uptime. The design supports distributed forwarding that enhances data flow efficiency by balancing traffic load across the switch fabric. Compliance with IEEE 802.3ab standards assures compatibility with existing copper-based Ethernet infrastructure, reducing integration complexity and aiding standardized network architecture development. These structural advantages facilitate scalable and maintainable network deployments.
Performance Optimization and Operational Reliability Regarding performance, the Huawei EH1D2G48TFA0 Interface Card delivers line-rate switching across all 48 RJ45 10/100/1000BASE-T ports, ensuring consistent throughput with minimal latency. Its electrical interface complies with Ethernet II frame format and IP protocols, supporting reliable network communication. The card’s moderate power consumption at 48W balances performance with energy efficiency, an important factor in large-scale deployments. With operating temperature and humidity specifications suitable for standard data center conditions, this interface card guarantees high availability and stable operation. Its hot-swappable feature simplifies routine system management, minimizing disruptions and providing value through ease of maintenance and longevity.
Provides forty-eight GE electrical ports for data transmission and line-rate switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
The EH1D2G48TFA0 is hot swappable.
Ports on the EH1D2G48TFA0
Attribute
Description
Connector type
RJ45
Standards compliance
IEEE 802.3ab
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the EH1D2G48TFA0
Item
Description
Physical specifications
Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight: 2.50 kg (5.51 lb)
Maximum power consumption: 48 W
Environment specifications
Operating temperature: 0°C to 45°C (32°F to 113°F)
Operating relative humidity: 5% RH to 95% RH (noncondensing)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Storage relative humidity: 5% RH to 95% RH (noncondensing)
Use Scenarios
Expanding Enterprise Network Infrastructure In demanding enterprise network environments, the Huawei EH1D2G48TFA0 Interface Card is utilized to expand port capacity within Huawei S9700 switch chassis. Network engineers deploy this card to accommodate increasing user and device connectivity demands while ensuring compliant data communication with IEEE 802.3ab standards. The module’s distributed forwarding capability enables efficient traffic segmentation and load balancing, critical for maintaining optimal performance across complex network topologies. Integration of the card into existing switch slots follows standardized installation procedures, facilitating flexible upgrades and scale-out strategies without disrupting active network services.
Role in Campus Network and Data Center Operations Within campus networks and data centers, the Huawei EH1D2G48TFA0 Interface Card serves a critical role by providing dense copper Ethernet connectivity for edge access switches. It supports mixed-interface terminal environments where a variety of end-user devices require stable 1GbE connections. Compliance with protocol and operational standards ensures interoperability with broader network systems and infrastructure. The hot-swappable feature maximizes operational uptime by enabling rapid card replacement or upgrades. This interface card fits into workflow processes that prioritize modular expansion and resilience, supporting dependable network performance in institutional and enterprise IT ecosystems.
EH1D2G48TFA0 FAQ
Q1: What are the core functions of this service board? How are the advantages of BiDi single-fiber and optoelectronic hybrid technology combined?
A1: It contains 48 10GE optoelectronic hybrid ports (SFP+/RJ45), supporting BiDi single-fiber bidirectional modules (2-40km) and 10G/1G dual rates; 48 ports provide ultra-high density + single-fiber bidirectional transmission, doubling fiber utilization, with low power consumption ≤208W, suitable for scenarios with limited fiber resources.
Q2: What are the core advantages compared to a regular 48-port optoelectronic hybrid board?
A2: The advantages are BiDi single-fiber compatibility (saving 50% of fiber), ultra-high density saving slots, and compatibility with both optical and electrical interfaces. It simultaneously solves the three major pain points of limited fiber resources, insufficient slots, and high power consumption in short- and medium-distance transmission, making it more suitable for dense deployment scenarios.
Q3: Does it require specific BiDi modules/cables? Which core protocols does it support?
A3: Compatible with Huawei standard SFP+ BiDi single-fiber bidirectional modules (including different transmission distances), ordinary dual-fiber optical modules, and Cat6a/Cat7 network cables; supports IPv4/IPv6 dual-stack, QoS, LACP, and flow control, meeting the high reliability requirements for short- and medium-distance transmission.
Q4: How to determine if this service board needs to be deployed? Is the installation complex?
A4: Deployment is recommended when large networks require 40+ mixed-interface terminal access, fiber optic resources are scarce, and the transmission distance is 2-40km; supports hot-swapping, installation requires no professional tools, and the ports automatically adapt to BiDi/ordinary modules and optical/electrical modes, making it plug-and-play.
