Huawei CE6881-48S6CQ-K Switch

Huawei EH1D2PS00P00 Interface Card

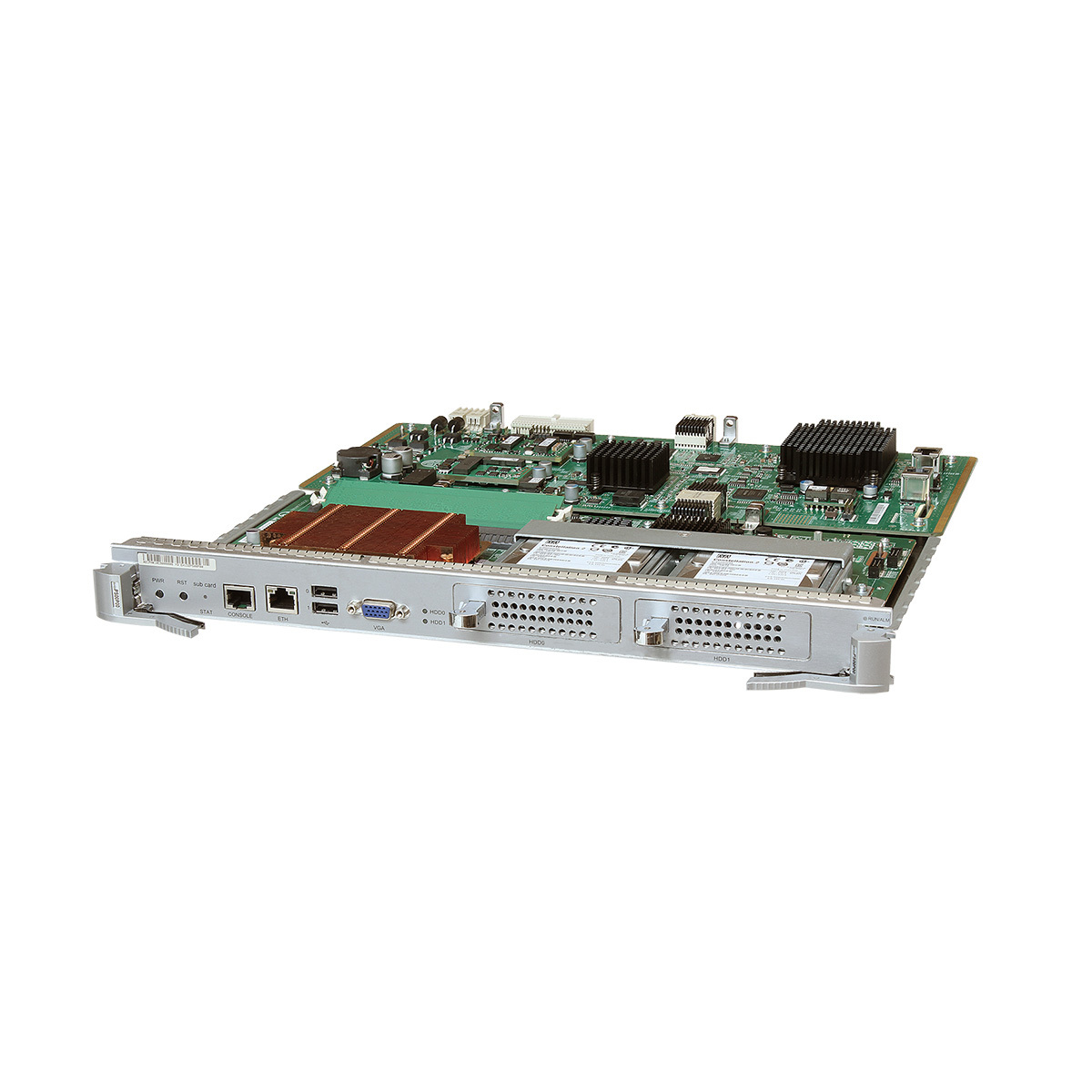

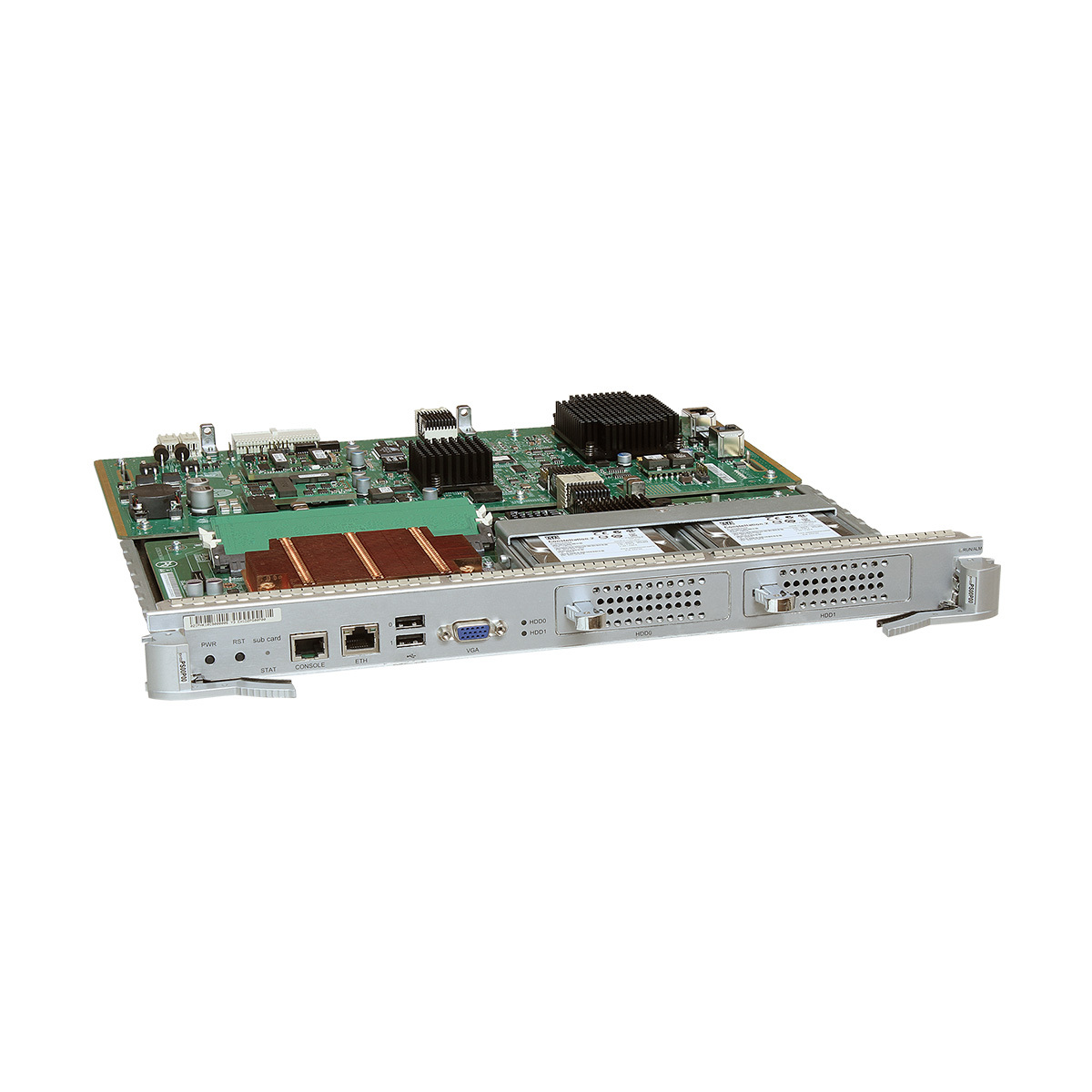

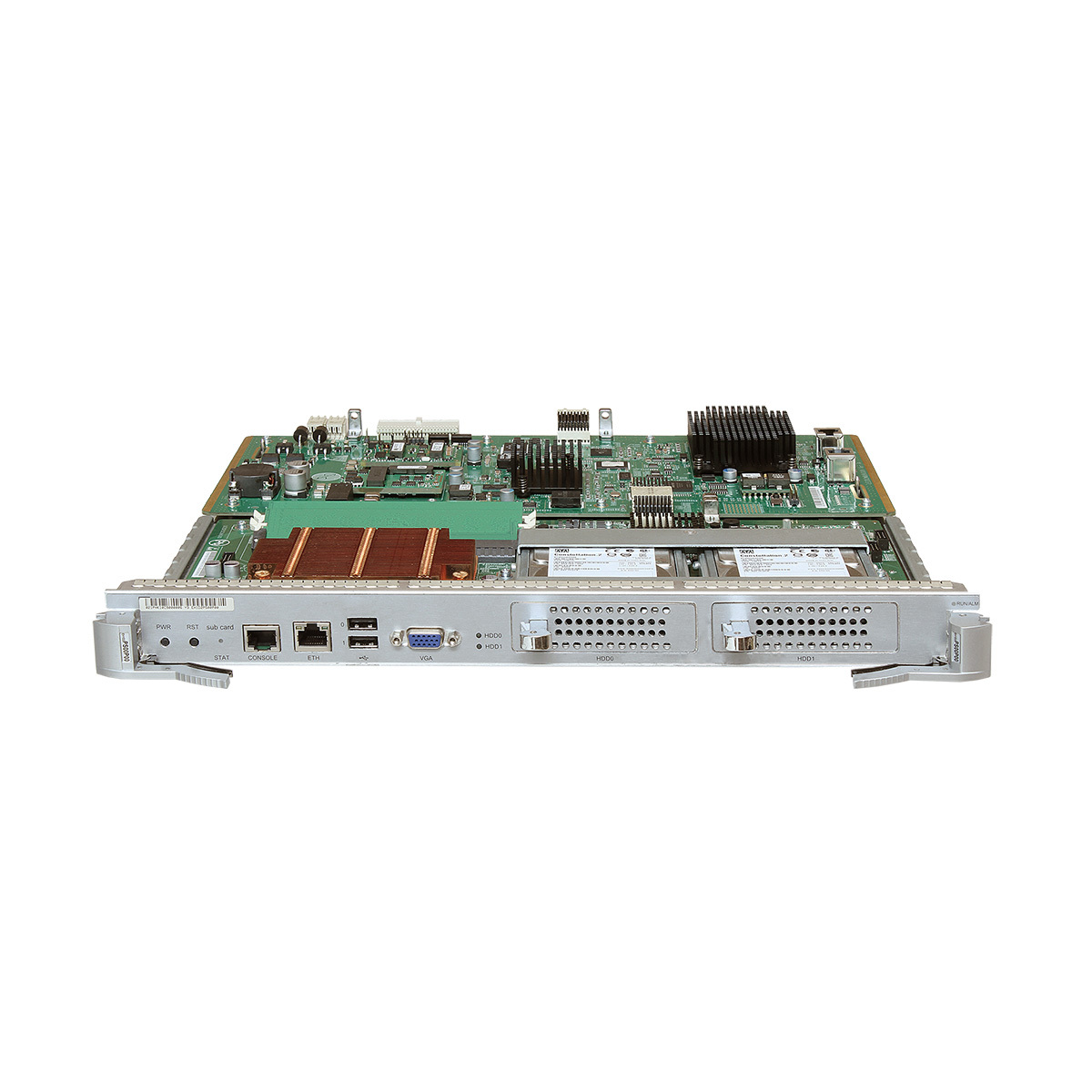

Name: Huawei EH1D2PS00P00 Interface Card
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF0437
Price: 50.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.MF0437

Huawei H1D2PS00P00 Open Service Platform Unit

Brand

Huawei

Part Number

03021PHK

Packing Box Specifications

35*39*42cm

Gross Weight

5kg

Condition

Original New

Get Price/Help

Bulk Quote View Quote List

Description
Huawei Switch Module

EH1D2PS00P00 Introduction

Huawei H1D2PS00P00 Open Service Platform Unit.

An LE0D0VAMPA00 card can be installed in:

Slots 01 to 03 in an S7703 or S7703 PoE chassis.
Slots 01 to 06 in an S7706 or S7706 PoE chassis.
Slots 01 to 12 in an S7712 chassis.

Functions

In addition to processing and forwarding service data, the EH1D2PS00P00 can also provide certain functions using specific operating system and application software.

The EH1D2PS00P00 supports intrusion prevention system (IPS) software.

The IPS software provides the following security functions:

Detects attacks based on a signature database. The IPS software can identify attacks that target vulnerabilities of commonly used applications (such as Microsoft Office) and operating systems (such as Microsoft Windows), and abnormalities of these applications and operating systems.
Identifies behaviors that violate RFC standards through application identification, protocol decoding, and state detection, and prevents applications that may use vulnerabilities of protocols to initiate attacks from running.
Detects attacks to HTTPS traffic and takes measures to protect the traffic.
Automatically updates and updating the signature database to defend against vulnerabilities of applications and operating systems in advance.
Supports periodic and emergent update of the signature database and allows users to add customized signatures.
Implements highly precise intrusion prevention using the default security policy and provides the bypass function.

The IPS software also provides comprehensive management functions:

Fine-grained rights management: The IPS manages user rights based on different user levels, including monitoring level, configuration level, and management level.
System management based on the web system, command line interface (CLI), and simple network management protocol (SNMP).
Reports on logs and alarms: The IPS uses log analysis software to collect and analyze logs and alarms accurately, and provides various reports on the logs and alarms. Users can customize reports.

Functions of the EH1D2PS00P00

Function	Description
Application software	IPS and other application software
CPU	Intel Core processor, 2.1 GHz, 4 cores, 6 MB cache
Memory	DDR3-1066/1333 MT/s Standard configuration: two 2 GB memory cards (total capacity of 4 GB) Maximum configuration: two 8 GB memory cards (total capacity of 16 GB)
Built-in flash memory	8 GB
Hard disk	Provides two 2.5-inch 500 GB enterprise Serial Advanced Technology Attachment (SATA) hard disks. Supports RAID 0 and RAID 1. Supports hot swapping. NOTICE: Huawei-certified hard disks are required. Reliability of non-Huawei-certified hard disks cannot be ensured. Huawei is not responsible for any problems caused by non-Huawei-certified hard disks and will not fix such problems. Hard disks provided by Huawei are certified.
Service port	Two 10GE ports NOTE: The two ports are not on the card panel. You can run the interface interface-type interface-number command to enter the view of the two service ports. The interface-type indicates the interface type and the interface-number indicates the interface number that is 0 or 1.
Management port	One VGA port supports: Hot swapping Standard DB15 socket Two USB ports support: Hot swapping USB 2.0 High-Speed USB Specification Rev.2.0 One serial port: UART port One GE port: 10M/100M/1000M auto-sensing, RJ45 connector. The port enters sleeping state when no link is established.
Energy-saving	Dynamic voltage and frequency scaling for CPU Sleeping of idle ports Card power detection

Functions of the EH1D2PS00P00

Function	Description
Basic function	Service data processing and forwarding
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	The EH1D2PS00P00 is hot swappable.

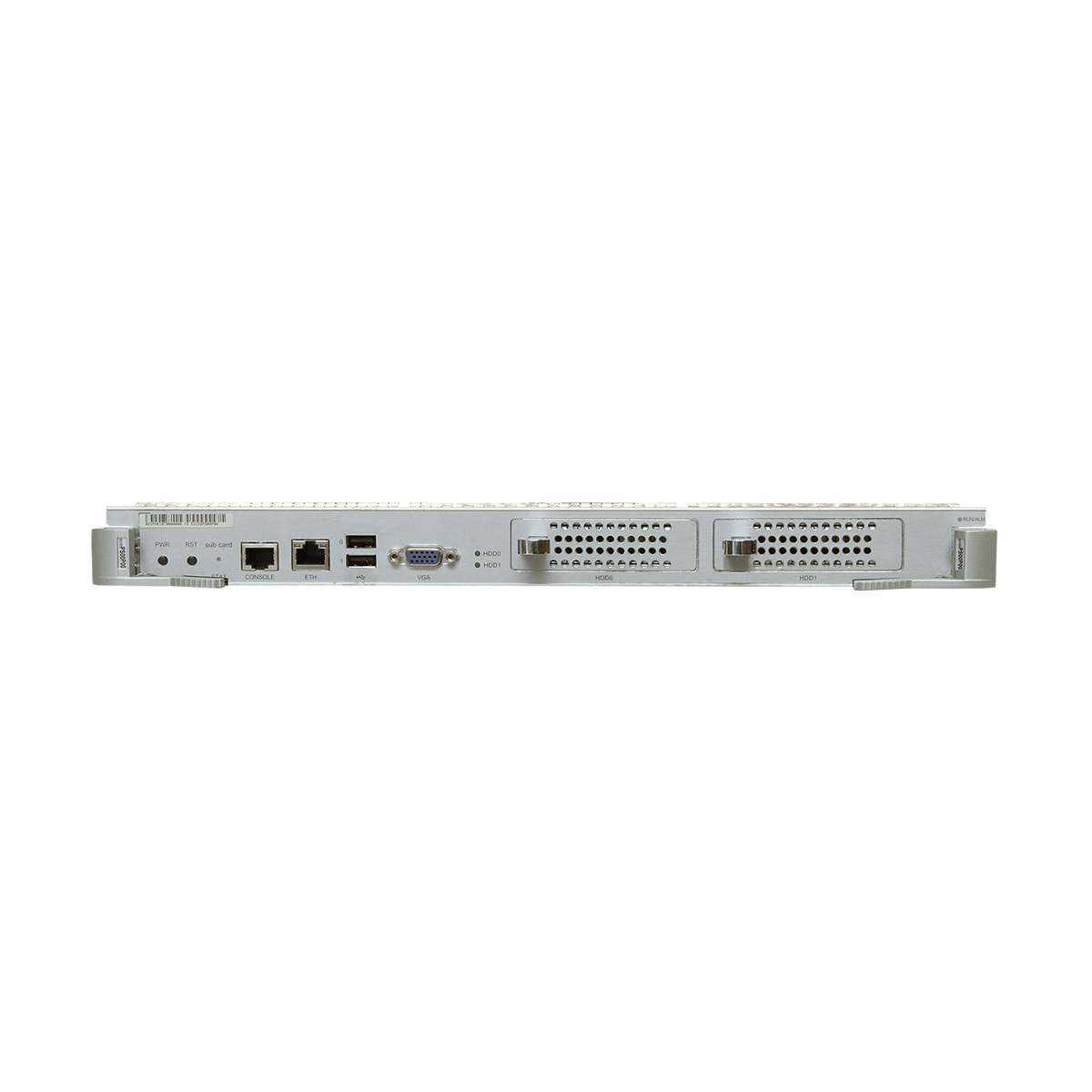

Ports on the EH1D2PS00P00

1	One console management port. A configuration terminal can connect to this port to implement onsite configuration.
2	One ETH management port (10M/100M/1000M BASE-T auto-sensing). A configuration terminal or network management workstation can connect to this port to set up a local or remote configuration environment.
3	Two USB ports. Peripherals such as a USB mouse or keyboard can connect to USB ports.
4	One VGA port. A monitor can connect to this port.
5	Two hard disk slots.

Specifications of the EH1D2PS00P00

Item	Description
Physical specifications	Dimensions (H x W x D): 35.1 mm x 394.7 mm x 426.8 mm (1.38 in. x 15.54 in. x 16.80 in.) Weight: 5.50 kg (12.13 lb) Maximum power consumption: 137.5 W

EH1D2PS00P00 FAQ

Q1: Is this power module compatible with the Huawei S12708 switch? Is an additional adapter required?

A1: Fully compatible! No additional adapter is needed. Simply insert it into the S12708 switch's power supply slot. It is perfectly compatible with the switch's native power supply logic.

Q2: Are there any special operating requirements for using the "hot-swap" function on high-end switches? What precautions should be taken when replacing it?

A2: No special requirements! It supports hot-swapping while powered on. When replacing, simply press the anti-misinsertion clip to remove the faulty module and insert the new module. The entire process takes less than 1 minute, and the service is unaware of the issue. Please wear an anti-static wrist strap.

Q3: What are the core differences between this power module and the Huawei ES1D2PS00P00? How to choose?

A3: The core difference lies in the compatible models: EH1D2PS00P00 is compatible with high-end series such as S9300/S9700/S12700; ES1D2PS00P00 is compatible with mid-range series such as S6720/S6730. Choose EH1D2PS00P00 for high-end switches and ES1D2PS00P00 for mid-range switches.

Optical Modules Supported by Huawei S Series Switches

Module Name	Maximum Transmission Distance
FE SFP/eSFP Optical Modules
SFP-FE-SX-MM1310	2 km
eSFP-FE-LX-SM1310	15 km
S-SFP-FE-LH40-SM1310	40 km
S-SFP-FE-LH80-SM1550	80 km
SFP-FE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module)	15 km
SFP-FE-LX-SM1550-BIDI (Single-Fiber-Bidirectional Module)	15 km
GE eSFP Optical Modules
eSFP-GE-SX-MM850	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1): 0.275 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.5 km Multimode fiber (OM2): 0.55 km Multimode fiber (OM3): 1 km
SFP-GE-LX-SM1310	10 km
S-SFP-GE-LH40-SM1310	40 km
S-SFP-GE-LH40-SM1550	40 km
S-SFP-GE-LH80-SM1550	80 km
eSFP-GE-ZX100-SM1550	100 km
SFP-GE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-LX-SM1490-BIDI (Single-Fiber-Bidirectional Module)	10 km
LE2MGSC40DE0 (Single-Fiber-Bidirectional Module)	40 km
LE2MGSC40ED0 (Single-Fiber-Bidirectional Module)	40 km
SFP-GE-ZBXD1 (Single-Fiber-Bidirectional Module)	80 km
SFP-GE-ZBXU1 (Single-Fiber-Bidirectional Module)	80 km
SFP-GE-BXU1-SC (Single-Fiber-Bidirectional Module)	10 km
GE CSFP Optical Modules
CSFP-GE-FE-BXD1	10 km
CSFP-GE-FE-BIDI2	20 km
CSFP-GE-FE-BIDI4	40 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1471	80 km
CWDM-SFPGE-1491	80 km
CWDM-SFPGE-1511	80 km
CWDM-SFPGE-1531	80 km
CWDM-SFPGE-1551	80 km
CWDM-SFPGE-1571	80 km
CWDM-SFPGE-1591	80 km
CWDM-SFPGE-1611	80 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1271	80 km
CWDM-SFPGE-1291	80 km
CWDM-SFPGE-1311	80 km
CWDM-SFPGE-1331	80 km
CWDM-SFPGE-1351	80 km
CWDM-SFPGE-1371	80 km
CWDM-SFPGE-1391	80 km
CWDM-SFPGE-1411	80 km
CWDM-SFPGE-1431	80 km
CWDM-SFPGE-1451	80 km
CWDM-SFPGE-1471	80 km
CWDM-SFPGE-1491	80 km
CWDM-SFPGE-1511	80 km
CWDM-SFPGE-1531	80 km
CWDM-SFPGE-1551	80 km
CWDM-SFPGE-1571	80 km
CWDM-SFPGE-1591	80 km
CWDM-SFPGE-1611	80 km
GE-DWDM eSFP Optical Modules
DWDM-SFPGE-1560-61	120 km
10GE SFP+ Optical Modules
SFP-10G-USR	0.1 km
OSXD22N00	Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.1 km Multimode fiber (with modal bandwidth of 500 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1, OM2, OM3): 0.22 km
OMXD30000	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
SFP-10G-iLR	1.4 km
OSX010000	10 km
OSX040N01	40 km
SFP-10G-ER-1310	40 km
SFP-10G-ZR	80 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-ER-SM1330-BIDI (Single-Fiber-Bidirectional Module)	40 km
SFP-10G-ER-SM1270-BIDI (Single-Fiber-Bidirectional Module)	40 km
10GE XFP Optical Modules
XFP-SX-MM850	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
XFP-STM64-LX-SM1310	10 km
XFP-STM64-LH40-SM1550	40 km
XFP-STM64-SM1550-80km	80 km
10GE-CWDM SFP+ Optical Modules
SFP-10G-ZCW1471	70 km
SFP-10G-ZCW1491	70 km
SFP-10G-ZCW1511	70 km
SFP-10G-ZCW1531	70 km
SFP-10G-ZCW1551	70 km
SFP-10G-ZCW1571	70 km
SFP-10G-ZCW1591	70 km
SFP-10G-ZCW1611	70 km
10GE-CWDM XFP Optical Modules
CWDM-XFP10G-1471	70 km
CWDM-XFP10G-1491	70 km
CWDM-XFP10G-1511	70 km
CWDM-XFP10G-1531	70 km
CWDM-XFP10G-1551	70 km
CWDM-XFP10G-1571	70 km
CWDM-XFP10G-1591	70 km
CWDM-XFP10G-1611	70 km
10GE-DWDM SFP+ Optical Modules
SFP-10G-ZDWT	60 km
10GE-DWDM XFP Optical Modules
DWDM-XFP10G-1533-47	80 km
DWDM-XFP10G-1534-25	80 km
DWDM-XFP10G-1535-04	80 km
DWDM-XFP10G-1552-52	80 km
DWDM-XFP10G-1553-33	80 km
DWDM-XFP10G-1554-13	80 km
DWDM-XFP10G-1530-33	80 km
DWDM-XFP10G-1549-32	80 km
DWDM-XFP10G-1531-12	80 km
DWDM-XFP10G-1531-90	80 km
DWDM-XFP10G-1550-12	80 km
DWDM-XFP10G-1550-92	80 km
DWDM-XFP10G-1532-68	80 km
DWDM-XFP10G-1551-72	80 km
DWDM-XFP10G-1529-55	80 km
DWDM-XFP10G-1548-51	80 km
40GE QSFP+ Optical Modules
QSFP-40G-SR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-iSR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-eSR4	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
QSFP-40G-iSM4	1.4 km
QSFP-40G-eSM4	10 km
QSFP-40G-LX4	Single-mode fiber: 2 km Multimode fiber (OM3): 0.15 km
QSFP-40G-LR4	10 km
QSFP-40G-ER4	40 km
QSFP-40G-SR-BD	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-SDLC-PAM	Multimode fiber (OM3): 100 m Multimode fiber (OM4): 150 m
QSFP-40G-eSDLC-PAM	Multimode fiber (OM3): 100 m Multimode fiber (OM4): 300 m
40GE CFP Optical Modules
CFP-40G-SR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
CFP-40G-LR4	10 km
CFP-40G-ER4	40 km
CFP-40G-ZR4	80 km
100GE CFP Optical Modules
CFP-100G-SR10	Multimode fiber (OM2): 0.03 km Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
CFP-100G-LR4	10 km
CFP-100G-ER4	40 km
100GE QSFP28 Optical Modules
QSFP28-100G-LR4	10 km
QSFP28-100G-10KM	10 km
QSFP28-100G-PSM4	500 m
QSFP28-100G-SR4	Multimode fiber (OM3): 70 m Multimode fiber (OM4): 100 m
QSFP-100G-eSR4	Multimode fiber (OM3): 200 m Multimode fiber (OM4): 300 m
QSFP-100G-CLR4	2 km
QSFP-100G-CWDM4	2 km
QSFP-100G-ER4-Lite	Single-mode fiber (G.652): Disables the RS-FEC function: 30 km Enables the RS-FEC function: 40 km
GPON Optical Modules
H87MMA5671A2	20 km
Industrial Optical Modules
OGSM01880	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1): 0.275 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.5 km Multimode fiber (OM2): 0.55 km
OGSC10DD0	10 km
OGSC40DD0	40 km
SFP+10GE-LH10-SM1310	10 km
SFP-10G-SR	0.3 km
SFP-10G-iLR	1.4 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-BX-D1-I (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-BX-U1-I (Single-Fiber-Bidirectional Module)	10 km
