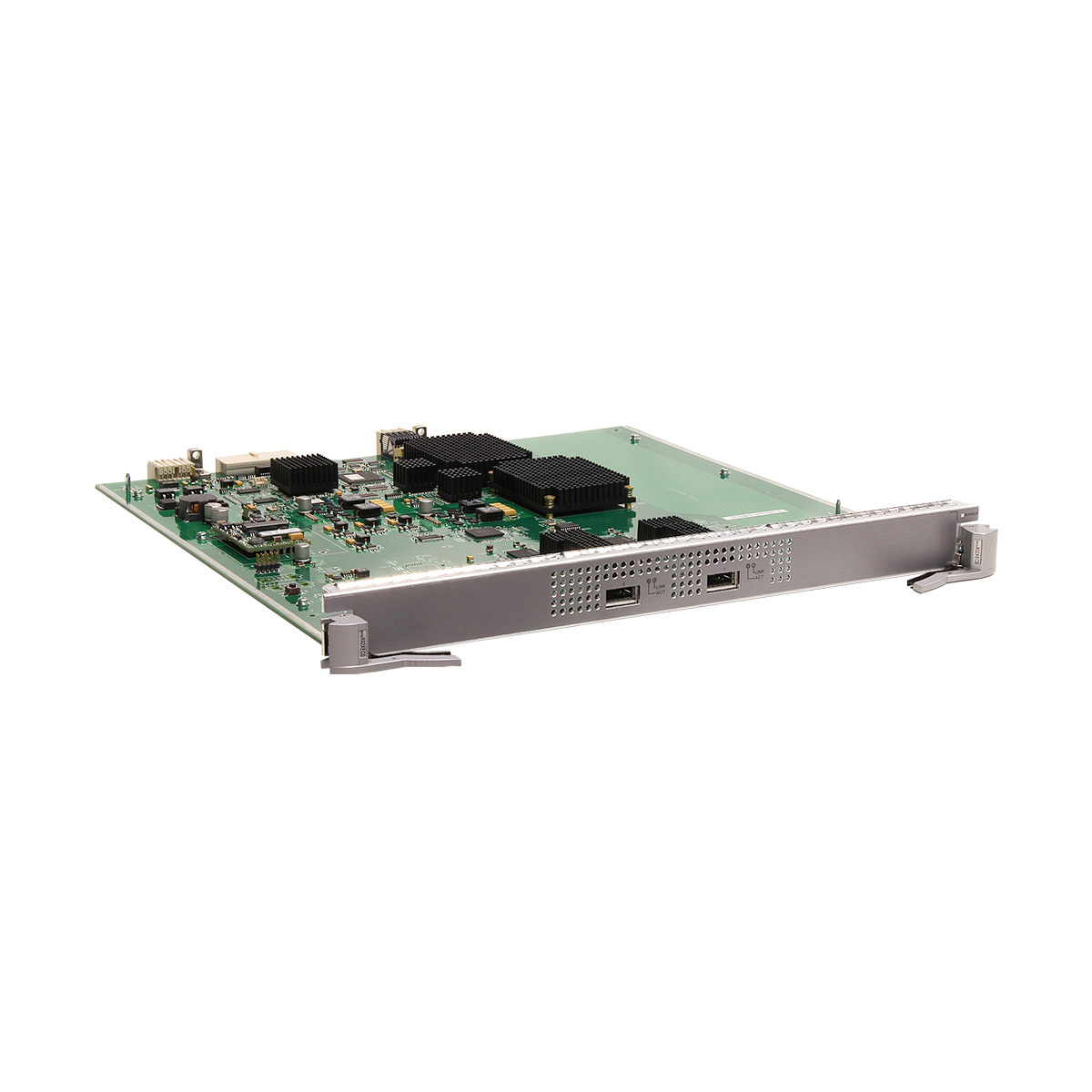

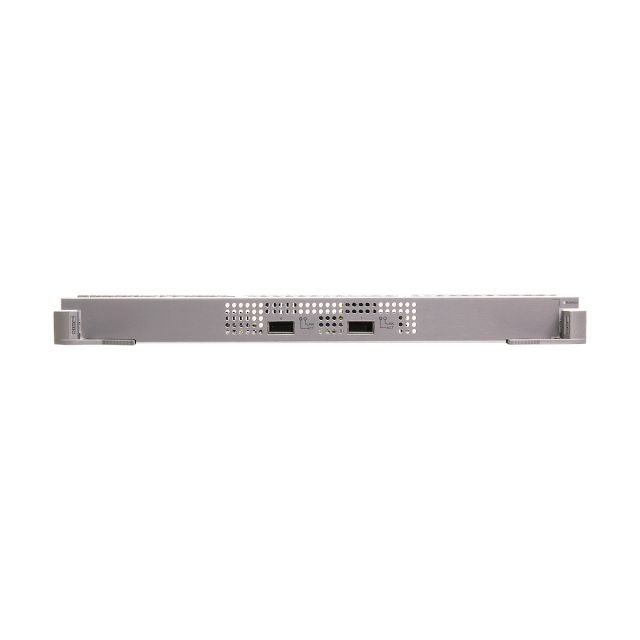

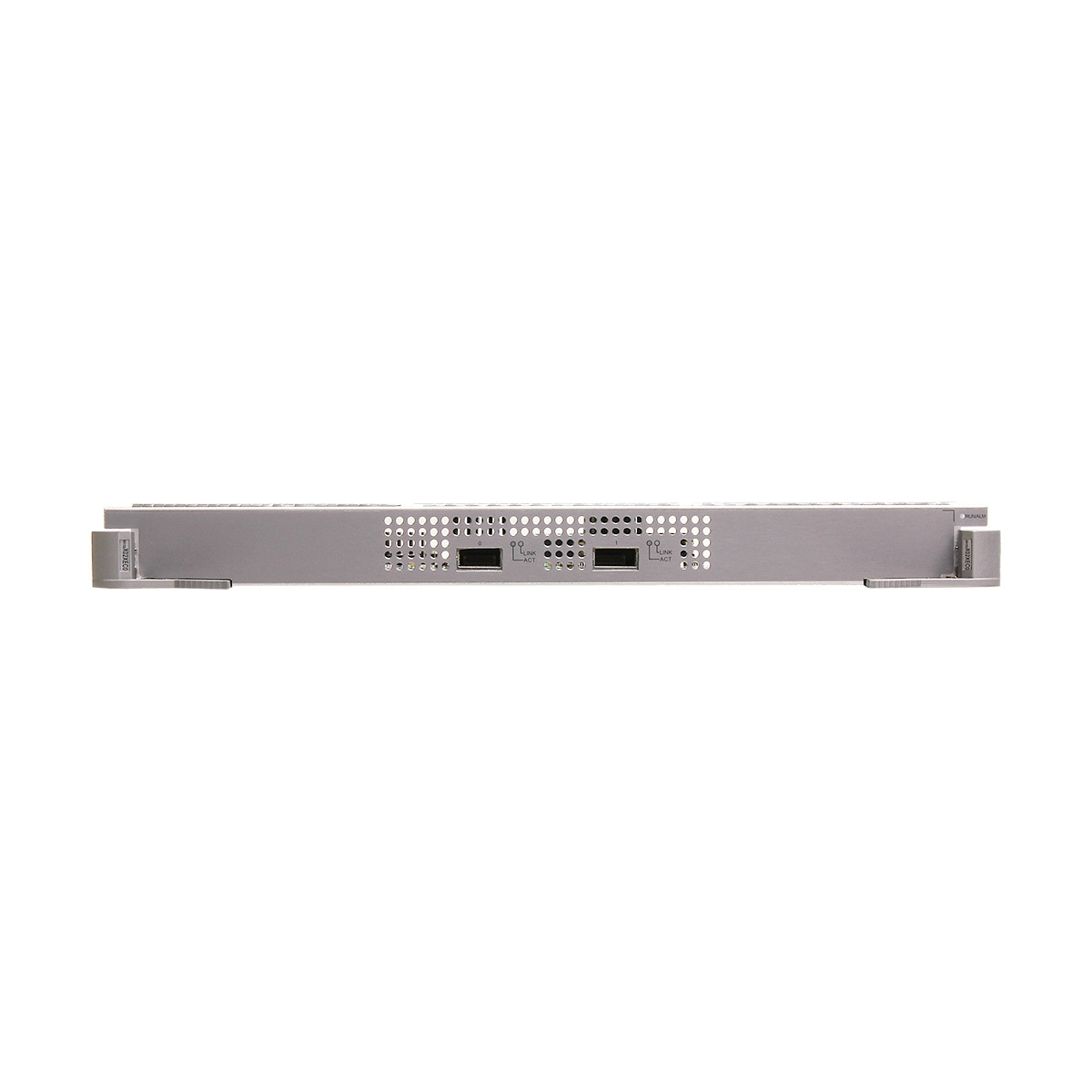

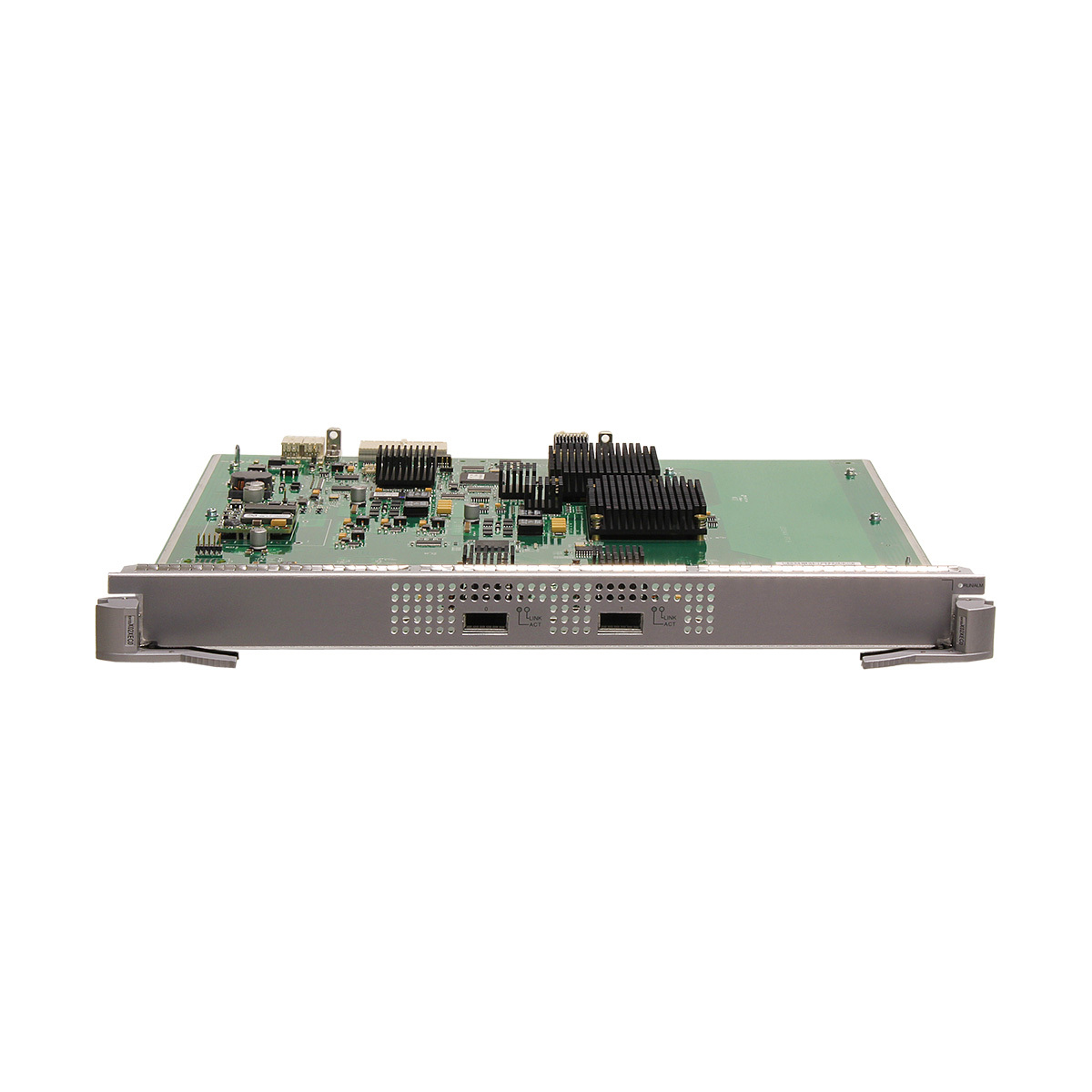

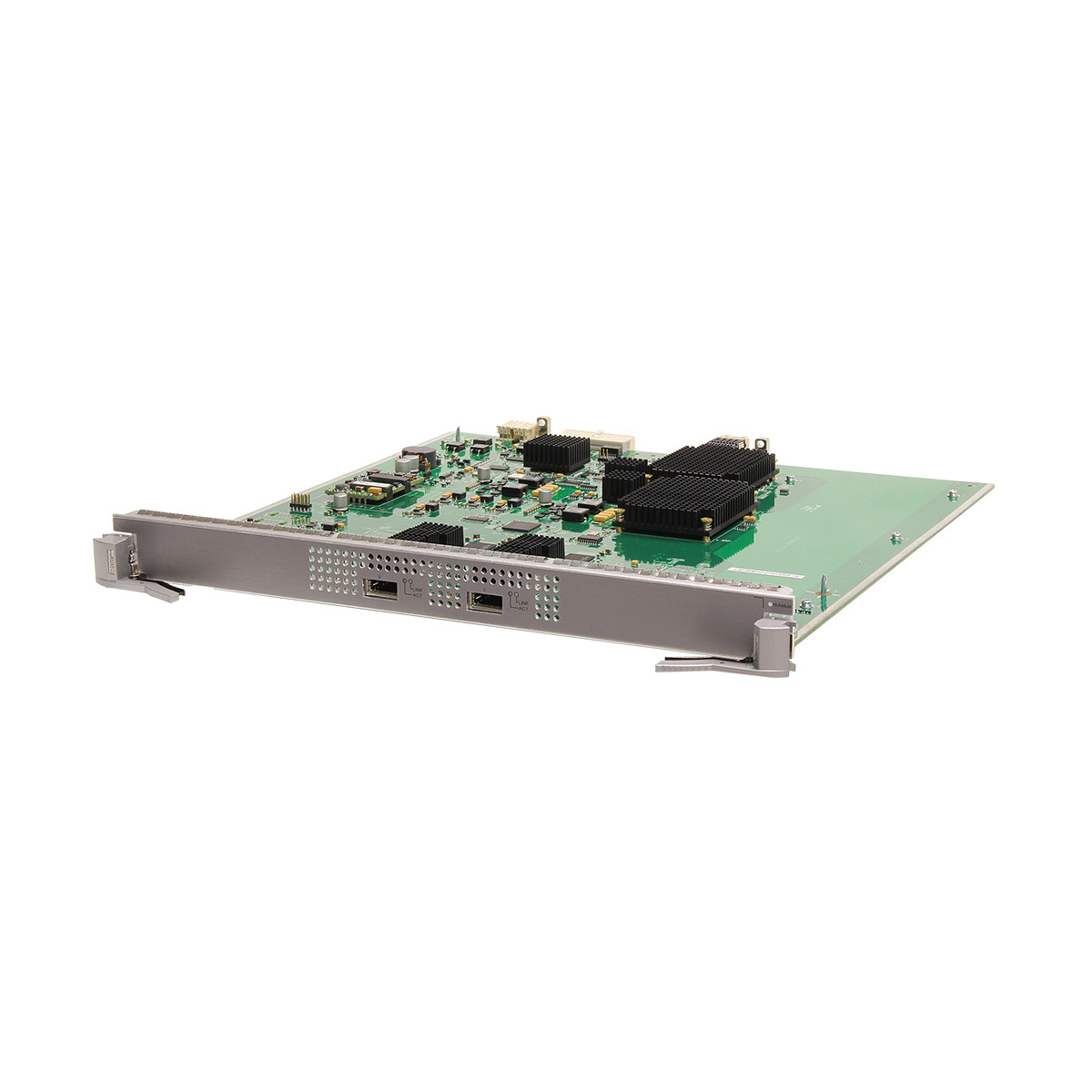

Huawei EH1D2X02XEC0 Interface Card

Functional Role Tailored for High-Capacity Networks
The Huawei EH1D2X02XEC0 Interface Card is engineered to enhance Huawei S9700 series switches with dual 10 Gigabit Ethernet optical ports, serving enterprise-grade data centers and service providers requiring reliable high-throughput connections. Target users include network architects and engineers aiming to expand 10GbE capacity while maintaining system uptime. Its hot-swappable attribute supports continuous operations during maintenance or device upgrades. This interface card addresses the critical need for scalable and flexible network expansion in multi-segment enterprise and carrier-class infrastructures where performance and reliability are paramount.

Advanced Technical Specifications for Efficient Data Handling
This interface card integrates two XFP ports delivering 10GBASE-X standard connectivity compliant with IEEE 802.3ae, facilitating line-rate switching with distributed data forwarding functionality. Featuring Ethernet_II, SAP, and SNAP frame format support, it interoperates seamlessly with a range of Huawei SFP+ and XFP optical modules, thus covering various transmission distances. Measuring 394.7 mm by 426.8 mm and consuming a maximum of 61 W power, the module operates reliably within 0°C to 45°C and 5% to 95% non-condensing humidity. Its low power profile also supports energy-efficient network designs, critical in cost-sensitive deployments.

Integration and Value in Telecommunication Infrastructure
The Huawei EH1D2X02XEC0 Interface Card plays a pivotal role in high-speed optical interconnection for data centers, enterprise backbone networks, and branch-to-headquarters links. Its adaptability to multiple Huawei optical modules allows network administrators to tailor transmission distances and optimize latency-sensitive applications. The interface card streamlines network architecture by supporting distributed forwarding and link aggregation strategies, reinforcing service-level agreements with minimal downtime risk. This solution’s compliance with telecommunications standards ensures interoperability and long-term network evolution, delivering measurable ROI and operational stability in demanding environments.


Product Advantages

Structural and System Design Excellence
The modular design of the Huawei EH1D2X02XEC0 Interface Card ensures straightforward integration within the Huawei S9700 switch framework, facilitating efficient space utilization at 394.7 mm × 426.8 mm dimensions. The hot-swappable capability minimizes service interruptions during maintenance, aligning with modern network availability requirements. Its compliance with IEEE 802.3ae and compatibility with a broad spectrum of Huawei 10G optical modules enables flexible deployment scenarios. This interface card supports distributed forwarding architecture, allowing concurrent data flows and mitigating bottlenecks in high-traffic network segments, thus embodying the principles of scalable and resilient system design.

High Performance and Operational Usability
This interface card delivers consistent line-rate switching across two 10GBASE-X optical ports, optimized for low latency and high stability. The ultra-low power consumption, not exceeding 61 W, suits energy-sensitive environments and extends operational cost efficiency. Hot-swappability facilitates rapid field upgrades without requiring shutdowns, reducing operational disruptions and labor intensity. Support for diverse Ethernet frame formats enhances integration within heterogeneous network protocols. Collectively, these performance characteristics enable network managers to sustain high availability and throughput, simplifying deployment and maintenance in complex infrastructure.


Functions and features of the EH1D2X02XEC0

Specifications of the EH1D2X02XEC0

Use Scenarios

Application in Data Center High-Speed Interconnections
In data center environments, the Huawei EH1D2X02XEC0 Interface Card functions as a critical component enabling 10 GbE optical links between core and aggregation layers. It supports the rapid data forwarding demands of cloud computing platforms and virtualization infrastructures where low latency and reliability are essential. The hot-swappable feature ensures that maintenance or expansion tasks do not disrupt ongoing operations, while compatibility with multiple Huawei XFP and SFP+ modules allows tailored reach for intra- and inter-data center connections. Integration with Huawei S9700 switches promotes streamlined workflow, enhancing network flexibility and responsiveness to evolving traffic patterns.

Role in Branch-Headquarters Optical Network Connectivity
For enterprises requiring secure and efficient branch-to-headquarters communications, the Huawei EH1D2X02XEC0 Interface Card facilitates stable 10G optical transport enabling critical business applications. Its ultra-low power consumption supports deployments in locations with energy constraints or solar-powered facilities. The card’s compliance with IEEE 802.3ae guarantees interoperability with standard Ethernet protocols, simplifying integration into existing WAN infrastructures. By supporting distributed data forwarding and link aggregation, it enhances bandwidth utilization and resilience, improving overall network performance and business continuity across geographically dispersed sites.


EH1D2X02XEC0 FAQ

Q1: What are the core functions of this service board? What is its power consumption?

A1: It includes two 10GE SFP+ ports, supporting distributed stable forwarding and link aggregation; ultra-low power consumption ≤45W, supports hot-swapping, and is suitable for extreme scenarios.

Q2: What are its core advantages compared to a regular 2-port 10GbE board?

A2: The advantages are ultra-low power consumption ≤45W (suitable for solar power/low-power civilian applications), precise point-to-point adaptation, low latency, and better suited to extreme scenario requirements.

Q3: Does it require a specific optical module? What extreme scenarios is it suitable for?

A3: It is compatible with Huawei standard SFP+ 10G optical modules (including long-distance models); suitable for branch-headquarters interconnection, direct connection of two devices, and solar-powered low-light power supply sites.

Q4: How do I determine if this service board needs to be deployed? Is the installation complex?

A4: Deployment is recommended when the scenario only requires 2 10 Gigabit ports, power supply ≤50W, or when pursuing extreme simplicity; it supports hot-swapping, and installation requires no professional tools, it is plug and play.
