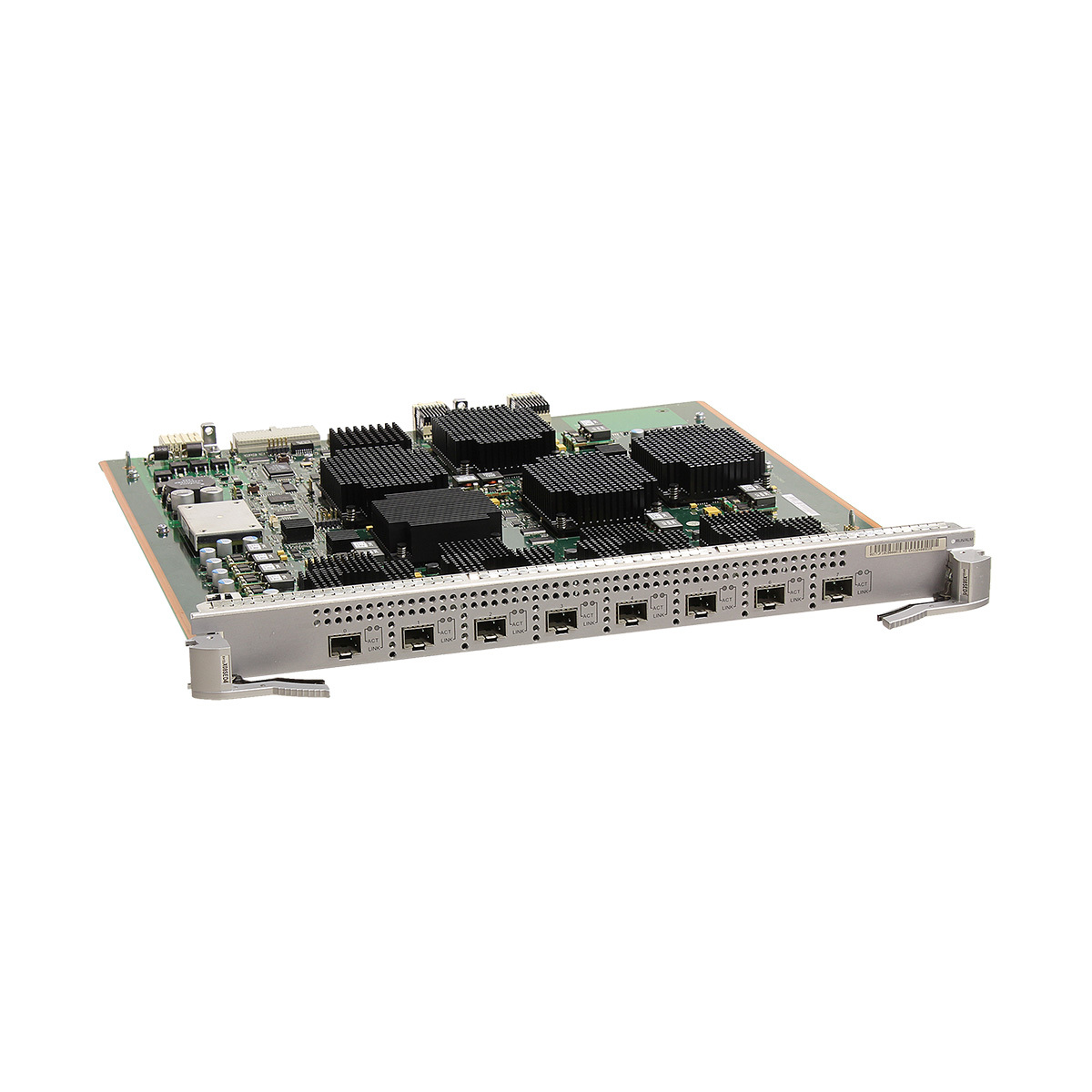

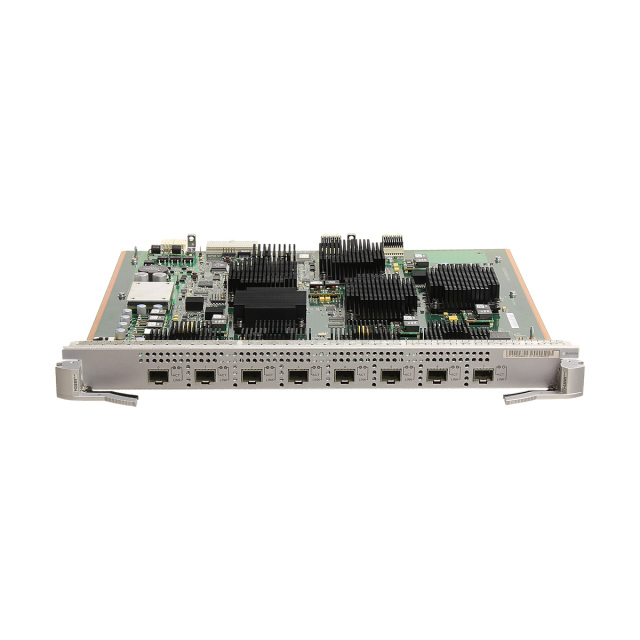

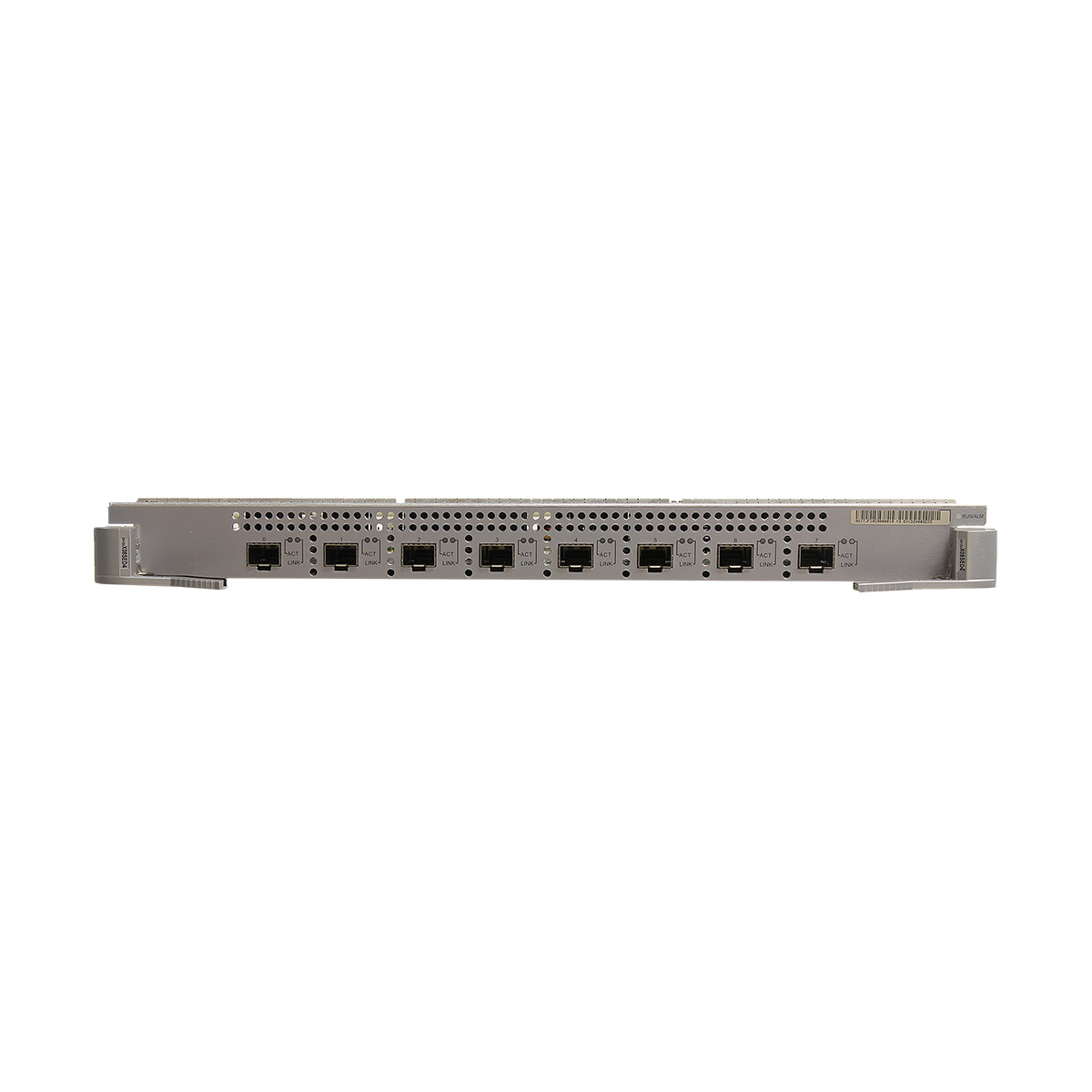

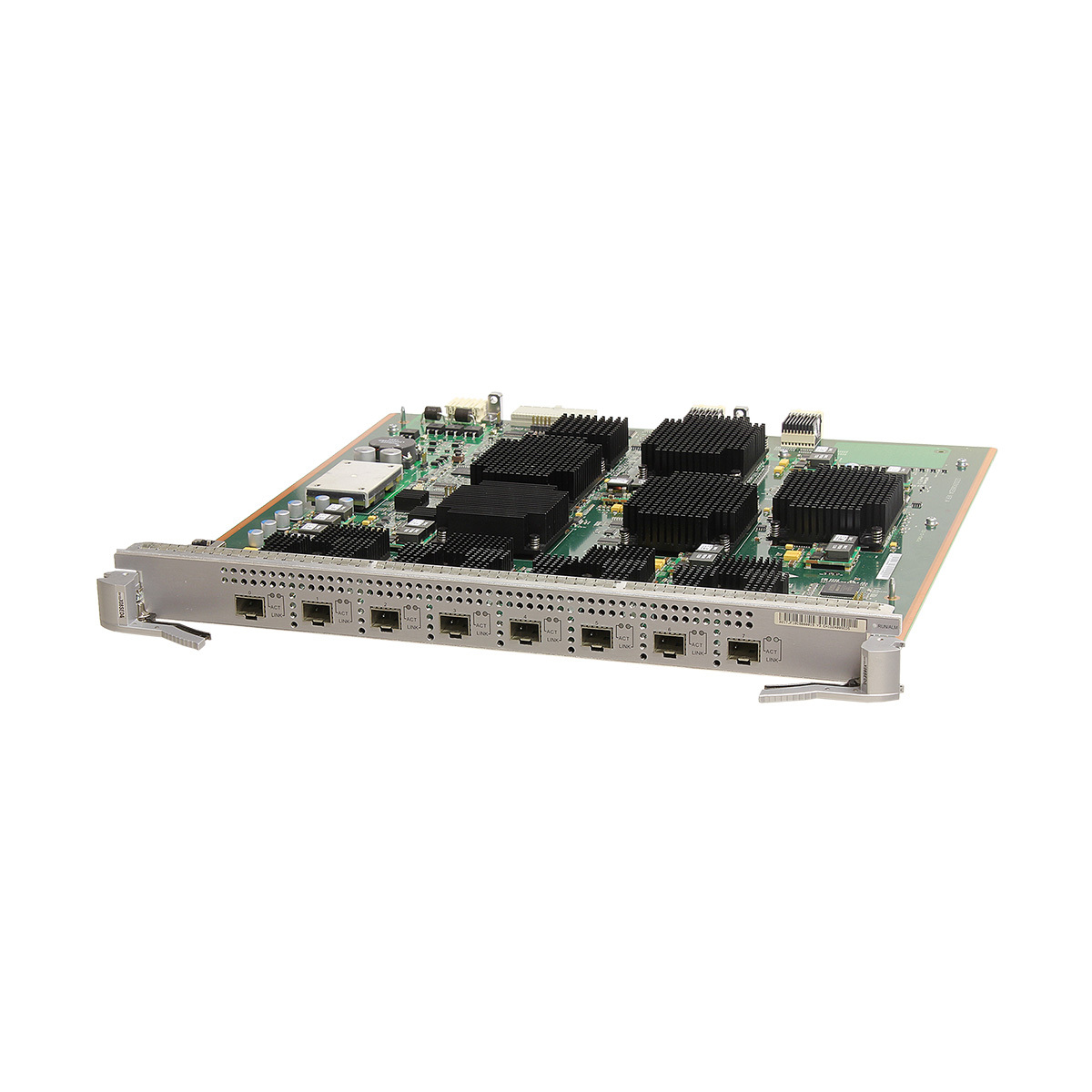

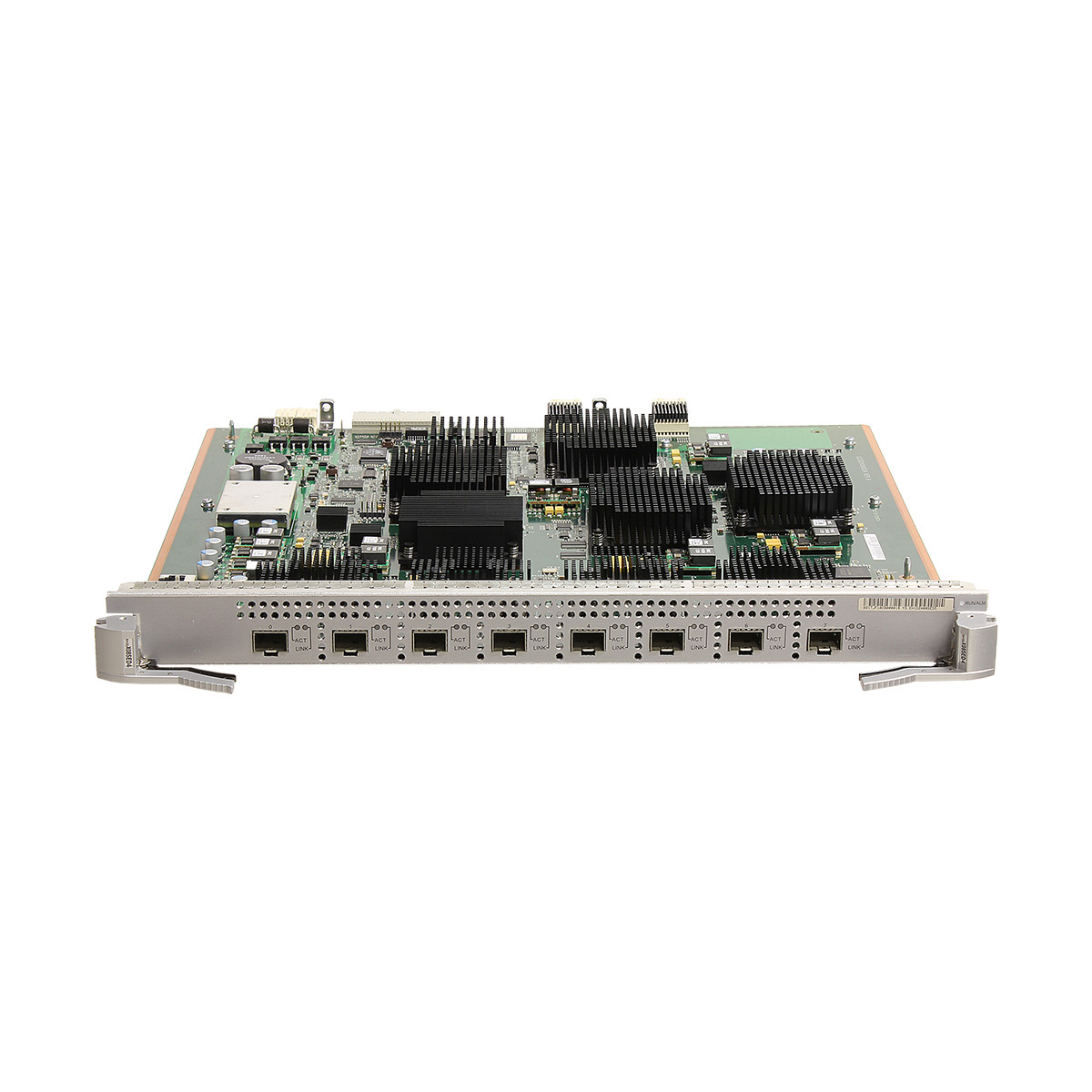

Huawei EH1D2X08SED4 Interface Card

Optimized Solution for Enterprise Network Expansion
The Huawei EH1D2X08SED4 Interface Car is engineered for professional network environments requiring high-capacity interface expansion. Specifically designed for deployment in Huawei S9700 chassis models such as S9703, S9706, and S9712, this module supports organizations seeking scalable and reliable Ethernet switching solutions. Target users include network engineers and system architects aiming to enhance backbone connectivity and optimize data center infrastructure. The solution facilitates distributed forwarding and service port clustering, making it suitable for enterprise and service provider network upgrades.

Advanced Technical Specifications for Efficient Data Handling
Equipped with eight 10GBASE-X optical ports compliant with IEEE 802.3ae Ethernet standards, the Huawei EH1D2X08SED4 Interface Car ensures line-rate switching with low power consumption, capped at 198.1 W. Its hot-swappable design supports maintenance without disrupting network operations. The module is compatible with a broad range of SFP+ optical modules, including 10GE SFP+, 10GE-CWDM, and 10GE-DWDM types, providing flexibility in network configurations. Physical dimensions and operating conditions support deployment in constrained environments while maintaining robust signal integrity and system reliability.

Integration into High-Speed Data Centers and Enterprise Networks
This interface card facilitates enhanced throughput within data centers and large enterprise networks by enabling simultaneous high-speed transmission across multiple 10G optical ports. It supports distributed concurrent data forwarding, optimizing traffic management in multi-service environments. The device’s adaptability to different optical modules and compliance with standardized Ethernet protocols make it ideal for network edge deployment and service port clustering. By integrating the Huawei EH1D2X08SED4 Interface Car, organizations benefit from improved network segmentation, reduced downtime through hot-swapping, and power-efficient operation tailored to modern IT infrastructure needs.


Product Advantages

Robust Modular Design and Slot Compatibility
The Huawei EH1D2X08SED4 Interface Car boasts a compact form factor tailored for seamless integration into Huawei S9700 switch chassis with multiple slot configurations. Its hot-swappable architecture permits on-the-fly installation or replacement, significantly reducing system downtime and maintenance windows. The card supports varied SFP+ optical modules and cables, enhancing adaptability across multiple network topologies. Its compliance with IEEE 802.3ae Ethernet standards ensures interoperability within standardized network ecosystems, while the efficient structural design maintains thermal and power efficiency within data center environments.

Enhanced Network Performance and Operational Efficiency
By delivering eight dedicated 10GBASE-X ports, the Huawei EH1D2X08SED4 Interface Car enables high throughput and line-rate switching essential for demanding applications. The device’s distributed forwarding capabilities optimize packet processing, facilitating efficient traffic distribution across network nodes. Its low power requirement is beneficial for operational cost control in data centers facing energy constraints. The intuitive plug-and-play installation and automatic slot detection streamline deployment processes. This combination delivers a solution that improves network reliability, operational continuity, and scalability, providing measurable ROI for network operators.


Functions and features of the EH1D2X08SED4

Specifications of the EH1D2X08SED4

Use Scenarios

Enterprise Data Center Bandwidth Expansion
In enterprise data centers facing growing bandwidth demands, the Huawei EH1D2X08SED4 Interface Car acts as a critical component for upgrading core switch capacity within Huawei S9700 chassis. It supports seamless integration into existing infrastructures, enabling enhanced 10G optical connectivity essential for virtualization, cloud services, and high-throughput applications. The card’s hot-swappable design facilitates scheduled maintenance and rapid scaling without requiring network downtime. Compliance with IEEE standards ensures compatibility with multi-vendor optical modules, enabling flexible network design strategies that meet rigorous enterprise performance standards.

Telecommunication Network Edge Deployment
Within telecom service provider environments, the Huawei EH1D2X08SED4 Interface Car serves to extend 10GBASE-X interfaces at the network edge, supporting high-speed data aggregation and service port clustering. Its ability to operate reliably across broad temperature and humidity ranges ensures suitability for diverse field conditions. The interface card’s compatibility with numerous SFP+ modules allows customized optical configurations to match specific transmission distances and protocols. Integration into Huawei S9700 series chassis provides a modular platform for evolving network architectures while maintaining service availability through hot-swapping capabilities, critical for uninterrupted telecom operations.


EH1D2X08SED4 FAQ

Q1: What are the core functions of this service board? What is its power consumption?

A1: It contains 8 10GE SFP+ ports, supports distributed forwarding and link aggregation; power consumption ≤110W, more energy-efficient than ordinary 10 Gigabit cards, and supports hot-swapping.

Q2: What are the core advantages compared to ordinary 8-port 10 Gigabit cards?

A2: The advantages are ultra-low power consumption (suitable for power-constrained scenarios), distributed forwarding, precise matching of small network needs, energy saving, and high transmission efficiency.

Q3: Does it require specific optical modules? What data center environments is it suitable for?

A3: Compatible with Huawei standard SFP+ 10G optical modules; suitable for small data centers, branch network sites, and 10 Gigabit access scenarios with limited power supply/heat dissipation.

Q4: How do I determine if this service board needs to be deployed? Is installation complex?

A4: Deployment is recommended when a small network requires 8 10 Gigabit ports and the data center has limited power supply; it supports hot-swapping, installation requires no professional tools, automatic slot recognition, and is plug-and-play.
