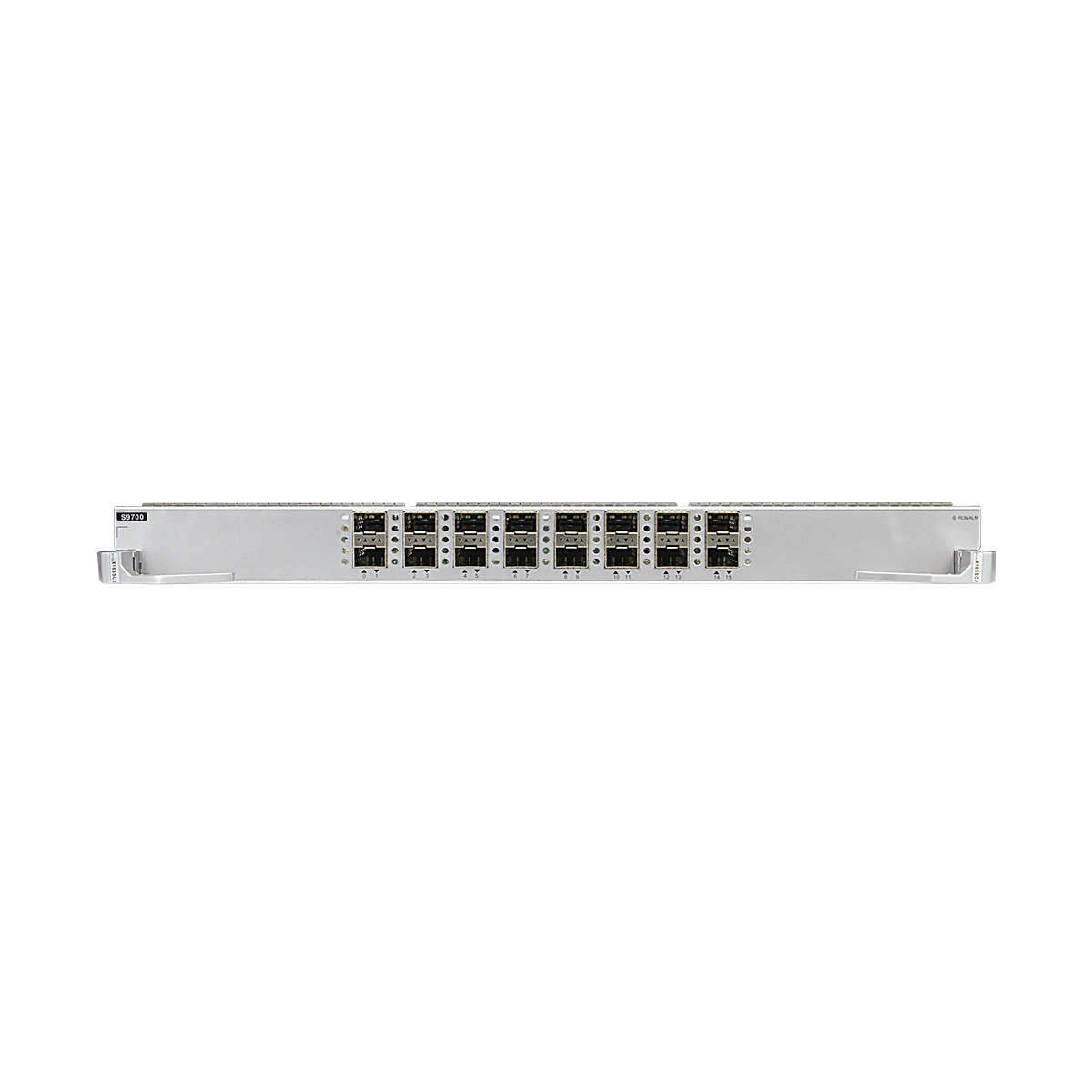

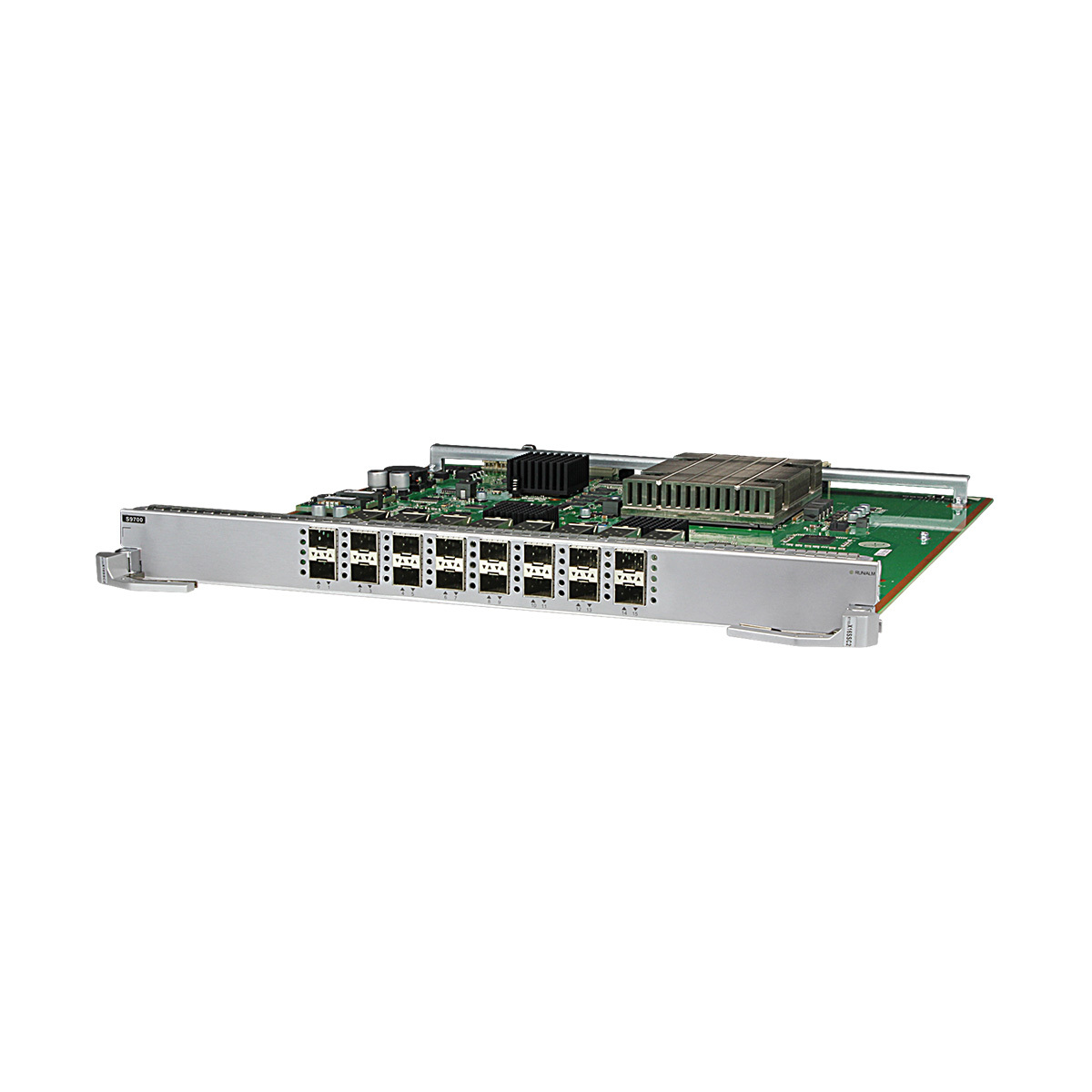

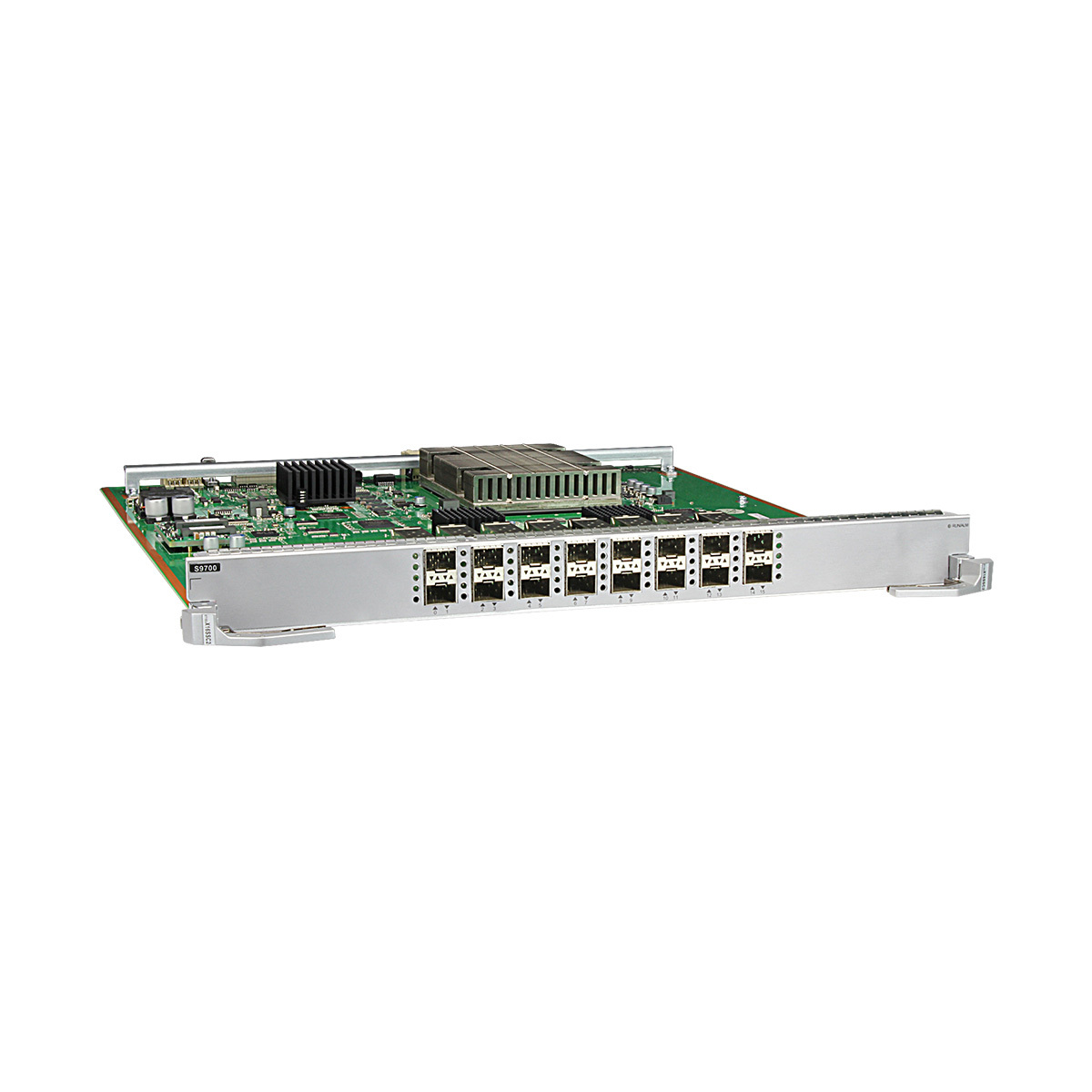

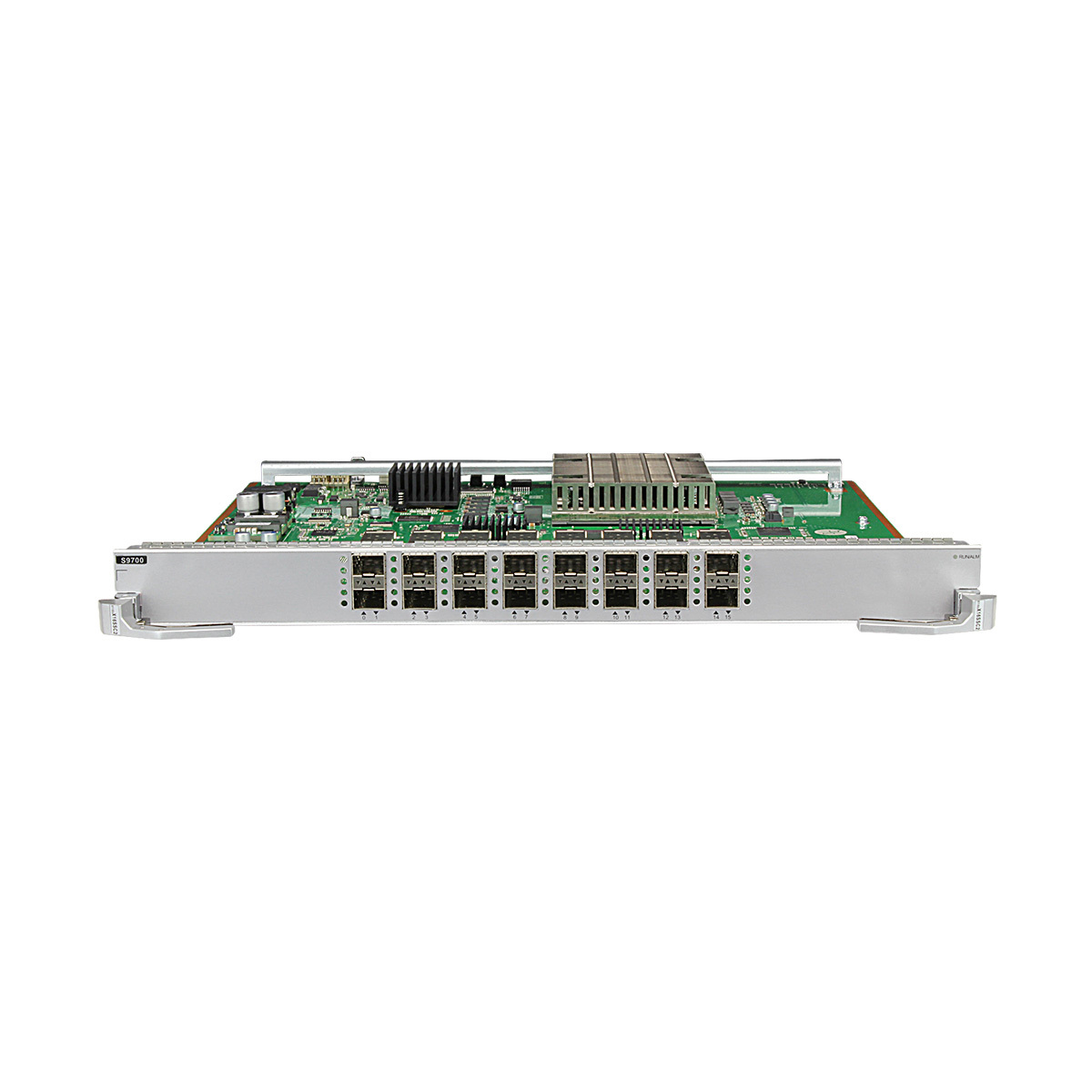

Huawei EH1D2X16SSC2 Interface Card

Functional Positioning and Target Users of the Huawei EH1D2X16SSC2 Interface Card
The Huawei EH1D2X16SSC2 Interface Card serves as a critical network expansion module targeted at enterprise and data center environments deploying Huawei S9700 series chassis. This interface card is specifically engineered for network engineers and infrastructure managers who require reliable 10 Gigabit Ethernet connectivity across multiple ports. It supports flexible deployment in medium to large-scale switching systems, enabling users to scale out their network capacity efficiently. By integrating sixteen high-speed 10GE optical ports, the card addresses the demand for increased bandwidth and stable network segmentation, suitable for complex network topologies and performance-driven enterprise environments. This product is essential for organizations aiming to enhance their core switching infrastructure with distributed forwarding capabilities.

Technical Features and Specifications of the Huawei EH1D2X16SSC2 Interface Card
This interface card integrates sixteen 10GE optical ports compliant with IEEE 802.3z and IEEE 802.3ae standards, ensuring compatibility with a broad range of SFP+ optical modules. Designed for high-performance network switching, it supports distributed forwarding, allowing concurrent data processing through a distributed data plane to optimize traffic management. The card accommodates hot swapping, enabling maintenance or upgrades without network disruption. Its physical dimensions (394.7 mm x 426.8 mm x 35.1 mm) and power consumption of 131 W are optimized for integration within Huawei S9700 chassis slots. Additional technical attributes include support for service port clustering and link aggregation, which enhance fault tolerance and increase bandwidth utilization. These features collectively provide network administrators with sophisticated yet manageable infrastructure enhancements.

Industry Applications and Practical Value of the Huawei EH1D2X16SSC2 Interface Card
The Huawei EH1D2X16SSC2 Interface Card is extensively deployed in enterprise campus networks, data centers, and high-density optical uplinks requiring scalable and resilient network solutions. It facilitates the expansion of 10GE port capacity within Huawei S9700 switch deployments, supporting agile network scaling and efficient traffic distribution through link aggregation and service port clustering. In data center environments, the card’s hot-swappable design and distributed forwarding improve uptime and streamline network upgrades, reducing operational costs. Telecommunications providers and large enterprise IT departments benefit from the card’s compatibility with diverse optical modules, allowing integration into heterogeneous network topologies while maintaining performance and compliance. This solution thus represents a strategic investment supporting sustainable network evolution and robust data transmission.


Product Advantages

Design and System Integration Strengths of the Huawei EH1D2X16SSC2 Interface Card
The Huawei EH1D2X16SSC2 Interface Card is architected for seamless integration into Huawei S9700 chassis, supporting multiple slot configurations (S9703, S9706, S9712) to match diverse deployment scales. Its modular design facilitates straightforward installation and supports hot swapping, minimizing service interruption during hardware maintenance or scaling processes. The card’s compatibility with various Huawei SFP+ optical modules enhances system flexibility, enabling optimized network configurations tailored to operational requirements. Structurally, the card’s physical dimensions and power specifications are calibrated to maintain performance efficiency within high-density switch environments. This logical design and system synergy reduce complexity in network expansions while ensuring consistent network service reliability.

Performance and Usability Benefits Delivered by the Huawei EH1D2X16SSC2 Interface Card
In terms of performance, the Huawei EH1D2X16SSC2 Interface Card enables efficient traffic management through distributed forwarding and supports link aggregation for enhanced bandwidth utilization and network stability. Its sixteen 10GE optical ports offer high throughput essential for modern enterprise data demands. The hot-swappable feature significantly improves maintenance operations, allowing replacements or upgrades with no network downtime, thereby increasing operational efficiency. Its compliance with industry standards ensures interoperability and long-term supportability. From a usability perspective, system recognition of the card’s slots and clustering capabilities simplifies network management. These factors combine to deliver a solution that enhances network resilience and optimizes return on infrastructure investments.

Functions and features of the EH1D2X16SSC2

Specifications of the EH1D2X16SSC2

Use Scenarios

Enterprise Campus Networks Expansion with Huawei EH1D2X16SSC2 Interface Card
In enterprise campus environments, the Huawei EH1D2X16SSC2 Interface Card addresses the growing demand for high-speed, scalable network infrastructure. It functions as a key upgrade for Huawei S9700 switch deployments, expanding 10GE port capacity to accommodate increasing data traffic between multiple departments and distributed locations. The card’s support for service port clustering enables centralized management while maintaining segmented traffic flows, which optimizes network resource allocation. Compliance with IEEE standards guarantees seamless integration with existing network hardware. This solution fits into enterprise network architectures by enabling flexible, segmented, and high-bandwidth connections, thereby supporting evolving IT requirements such as cloud services and virtualization demands.

Data Center High-Density Optical Uplink Integration Using Huawei EH1D2X16SSC2 Interface Card
Within data center infrastructure, the Huawei EH1D2X16SSC2 Interface Card enhances high-density optical uplinks critical for connecting servers, storage arrays, and core network devices. Its sixteen 10GE ports facilitate aggregation of large data streams, enabling rapid data exchange and reducing bottlenecks. The card’s hot-swappable design and distributed forwarding capability contribute to uninterrupted service availability and traffic efficiency, which are paramount in data center operations. Additionally, compatibility with Huawei SFP+ modules supports diverse optical transmission requirements, from short reach to long-haul connections. Integrated into network management systems, this card improves scalability and reliability, ensuring data centers can meet performance SLAs while optimizing physical space and energy consumption.


EH1D2X16SSC2 FAQ

Q1: What are the core functions of this service board? Does it support clustering and hot-swapping?

A1: It contains 16 10GE SFP+ ports, supporting service port clustering, distributed forwarding, and link aggregation; it supports hot-swapping, allowing online installation/replacement without service interruption.

Q2: What are the core advantages compared to a regular 16-port 10GbE board?

A2: The advantages are support for service port clustering (architectural expansion) and distributed forwarding, adapting to small and medium-sized scenarios' access and expansion needs, with stronger stability and scalability.

Q3: Does it require specific optical modules? How is the clustering function enabled?

A3: It is compatible with Huawei standard SFP+ 10G optical modules; the clustering function is enabled through switch system configuration, allowing unified management of multiple boards without additional hardware.

Q4: How do I determine if this service board needs to be deployed? Is installation complex?

A4: Deployment is recommended for small and medium-sized networks requiring 16-port 10GbE access and subsequent expansion, and where architectural flexibility is prioritized; installation requires no professional tools, automatic slot recognition, and simple configuration.
