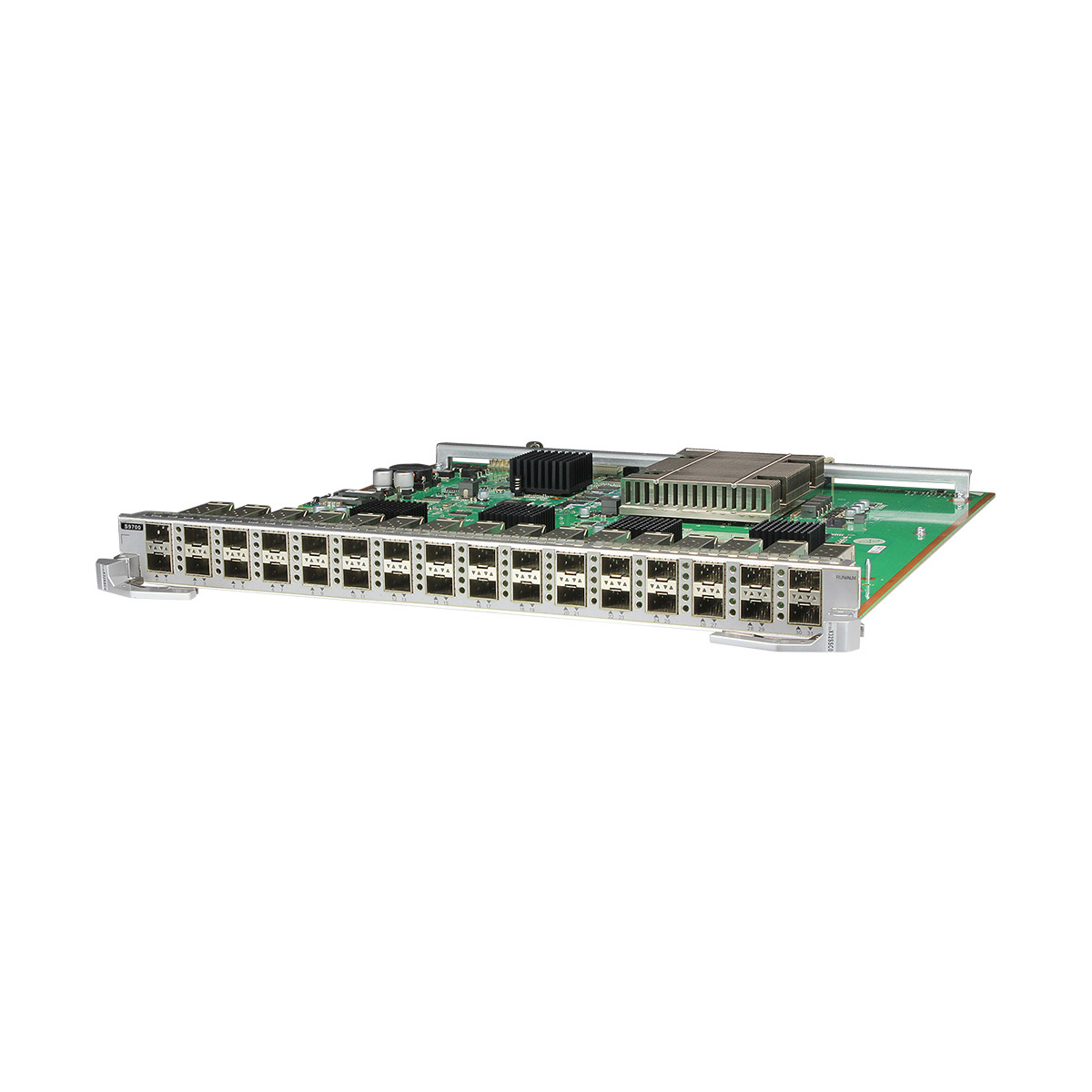

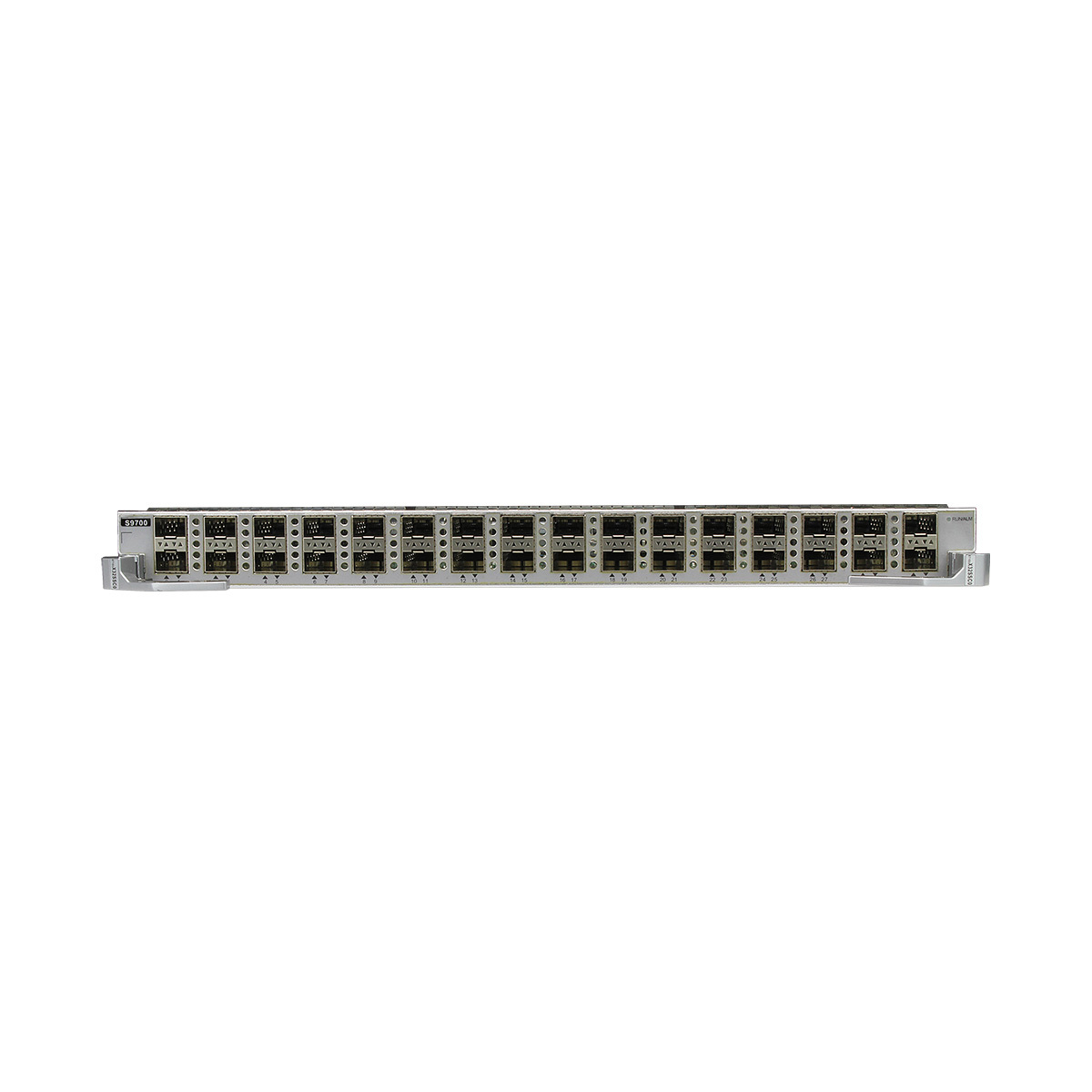

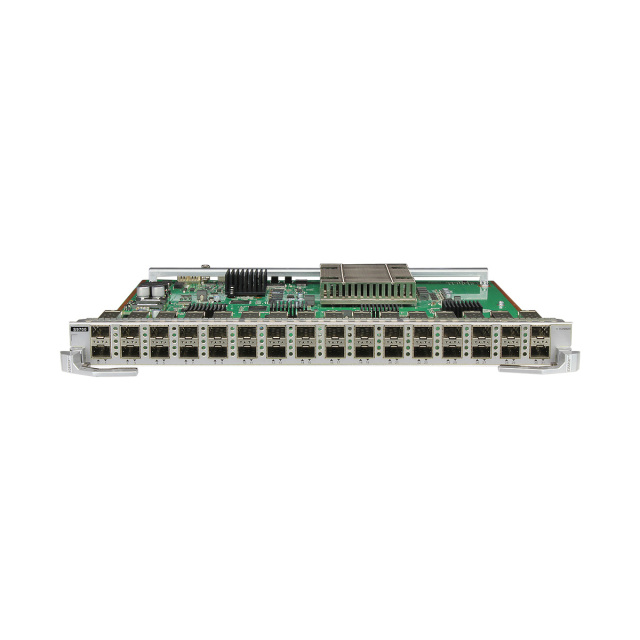

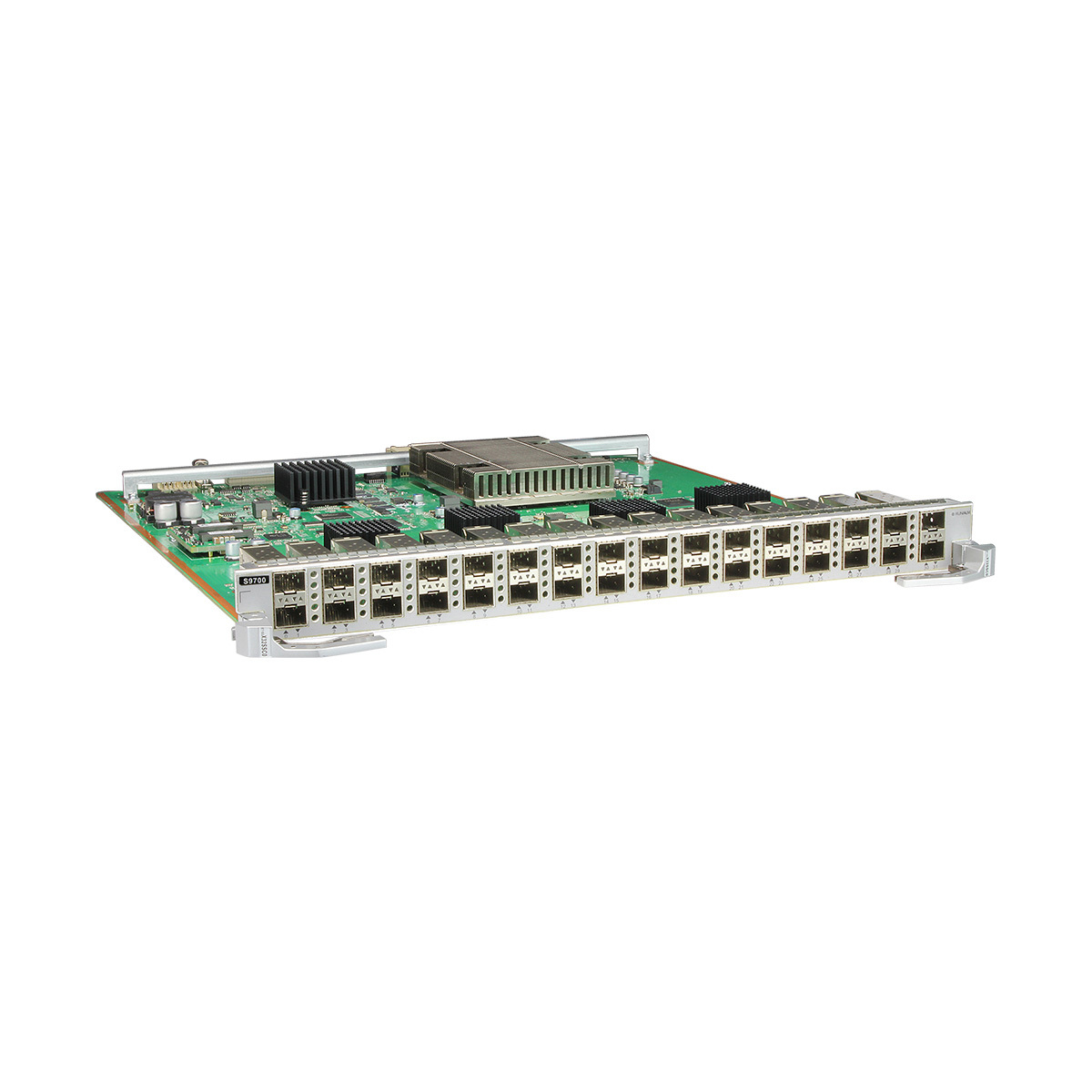

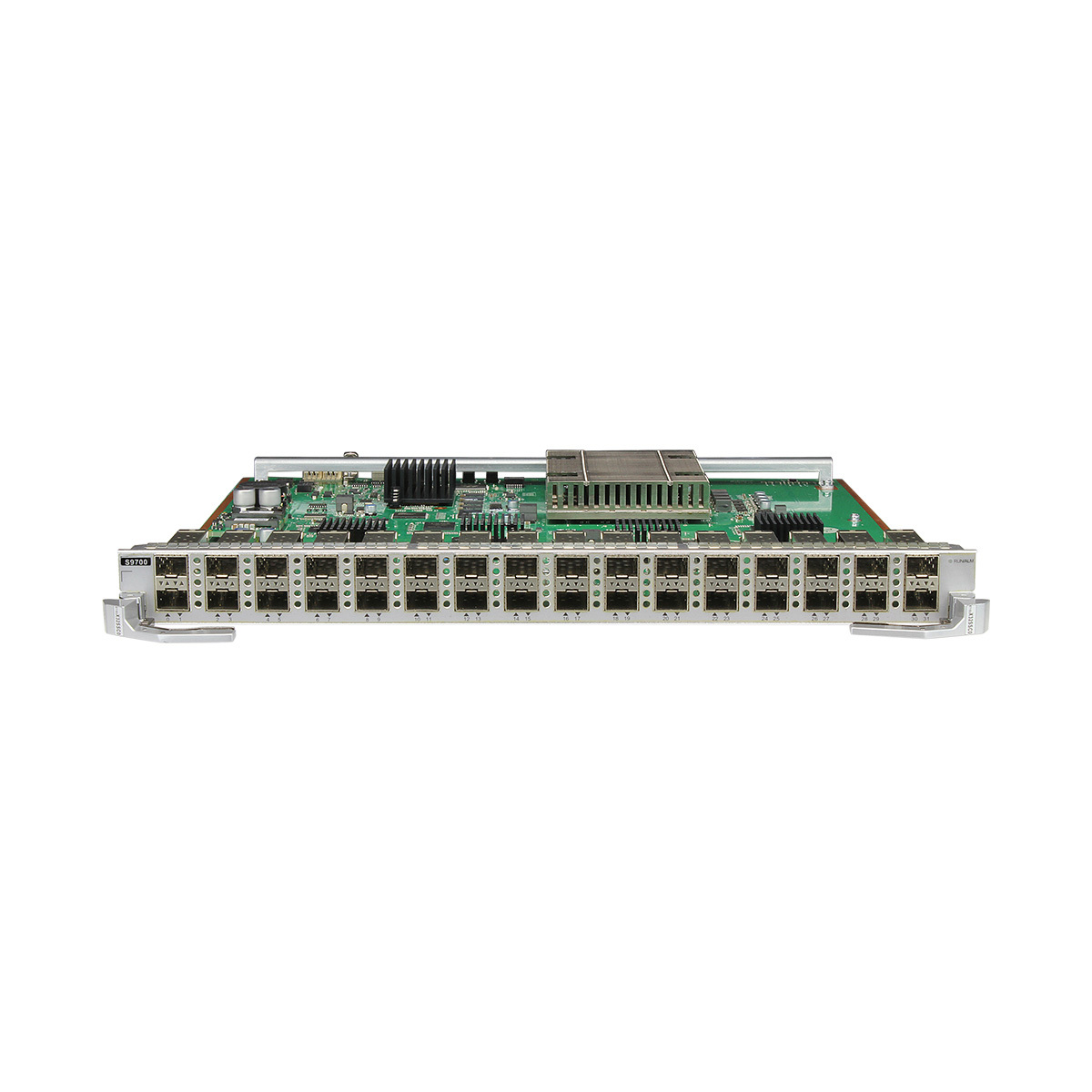

Functional Integration Tailored for Enterprise Networking The Huawei EH1D2X32SSC0 Interface Card is engineered for deployment within Huawei S9700 series switches, targeting medium to large-scale enterprise and data center environments. Designed to enhance network scalability and reliability, this module provides thirty-two 10GE optical ports using SFP+ connectors to support simultaneous high-speed data flows. It benefits network engineers by offering service port clustering and distributed forwarding, optimizing data processing across multiple streams. The hot-swappable design facilitates uninterrupted service during routine maintenance or network growth, positioning this card as a strategic component for organizations requiring agile, high-capacity infrastructure.
Technical Specifications Emphasizing Performance Metrics Equipped with thirty-two high-density 10GBASE-X ports, the Huawei EH1D2X32SSC0 Interface Card operates in compliance with IEEE 802.3z and IEEE 802.3ae standards, supporting Ethernet II, SAP, and SNAP frame formats. It is compatible with a variety of Huawei standard SFP+ optical modules, ensuring adaptability across diverse network configurations. The card's physical dimensions (394.7 mm by 426.8 mm by 35.1 mm) and power consumption of 207 Watts are optimized for integration into S9703, S9706, and S9712 chassis slots, ensuring efficient space utilization. Environmental tolerances range from 0°C to 45°C operational temperature and 5% to 95% relative humidity, supporting robust performance under standard data center conditions.
Industry Application Enhancing Network Architecture and Reliability In practical deployment, the Huawei EH1D2X32SSC0 Interface Card plays a critical role in expanding 10 Gigabit network access and accelerating switching capacity within enterprise and data center networks. Its support for distributed forwarding improves network throughput and reduces latency, enabling scalable cluster expansions through service port clustering. The hot-swappable feature allows IT teams to conduct hardware maintenance without service interruption, thereby ensuring high availability and operational continuity. Integration into Huawei S9700 chassis enables centralized management of optical connectivity, advancing network infrastructure that demands high density, flexibility, and resilience.
Product Advantages
Optimized Structural and System Design for Modular Expansion The architecture of the Huawei EH1D2X32SSC0 Interface Card centers on modular integration with Huawei S9700 switch series, supporting multi-slot configurations across S9703, S9706, and S9712 chassis. Its compact form factor and adherence to SFP+ standards allow seamless insertion and replacement without specialized tools. The distributed forwarding capability embedded within the card leverages concurrent data planes for increased throughput, while service port clustering provides architects with efficient mechanisms to scale network topology. This modular adaptability ensures alignment with evolving network demands and infrastructure scaling strategies.
Enhanced Performance and Operational Flexibility From a performance perspective, the Huawei EH1D2X32SSC0 Interface Card delivers high-density 10 Gigabit connectivity with robust support for hot swapping, significantly minimizing downtime during maintenance. The compatibility with Huawei-standard optical modules optimizes port utilization and reduces integration complexity. Network administrators benefit from improved switching stability and capacity due to distributed forwarding, which balances traffic load across the system. These features collectively enhance overall operational efficiency, enabling faster data transmission and simplified network management in mission-critical environments.
Functions and features of the EH1D2X32SSC0
Function
Description
Basic functions
Provides thirty-two 10GE optical ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Software feature
Service port clustering
Hot swapping
Supported
Ports on th EH1D2X32SSC0
Optical port attributes (GE optical module)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP optical module used.
For the optical modules supported by the EH1D2X32SSC0 and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Optical port attributes (10GE optical module, high-speed cable or SFP+ optical cable)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP+ - SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ - 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used.
For the optical modules supported by the EH1D2X32SSC0 and their attributes, see 10GE SFP+ Optical Modules, 10GE-CWDM SFP+ Optical Modules and 10GE-DWDM SFP+ Optical Modules.
Standards compliance
IEEE 802.3ae
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the EH1D2X32SSC0
Item
Description
Physical specifications
Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight: 3.02 kg (6.66 lb)
Maximum power consumption: 207 W
Environment specifications
Operating temperature: 0°C to 45°C (32°F to 113°F)
Operating relative humidity: 5% RH to 95% RH (noncondensing)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Storage relative humidity: 5% RH to 95% RH (noncondensing)
Use Scenarios
Integration in Data Center Network Infrastructure In data center environments demanding scalable, high-throughput optical connectivity, the Huawei EH1D2X32SSC0 Interface Card fulfills a vital function by providing thirty-two 10GBASE-X SFP+ ports within Huawei S9700 chassis. This interface card addresses the requirements for dense port availability and efficient data switching through distributed forwarding. Its hot-swappable design ensures that hardware upgrades or replacements can proceed without interrupting service. By facilitating service port clustering, it supports load balancing and redundancy protocols vital to maintaining uptime and throughput in data center operations, fitting seamlessly into existing network management frameworks.
Deployment in Enterprise Network Expansion Projects Within large enterprise operational settings, this interface card supports network expansion initiatives by enabling batch 10 Gigabit access to core switches. Its compatibility with multiple optical modules allows customization in accordance with varying network segments and transmission distances. The hot-swapping capability reduces operational risk during scaling or maintenance, while distributed forwarding enhances data path efficiency under heavy traffic conditions. Integrating into Huawei’s S9700 series chassis, the EH1D2X32SSC0 Interface Card enables systematic cluster growth and network architecture optimization, aligning with enterprise IT objectives for scalability and resilience.
EH1D2X32SSC0 FAQ
Q1: What are the core functions of this service board? Does it support clustering and hot-swapping?
A1: It contains 32 10GE SFP+ ports, supporting service port clustering, distributed forwarding, and link aggregation; it supports hot-swapping, allowing online installation/replacement without service interruption.
Q2: What are its core advantages compared to ordinary 10 Gigabit boards?
A2: The advantages are high-density 32 ports, service port clustering (architectural expansion), and distributed forwarding, adapting to batch access + cluster expansion scenarios, with stronger stability and scalability.
Q3: Does it require specific optical modules? How is the clustering function enabled?
A3: It is compatible with Huawei standard SFP+ 10G optical modules; the clustering function is enabled through switch system configuration, supporting unified management of multiple boards without additional hardware.
Q4: How do I determine if this service board needs to be deployed? Is the installation complex?
A4: Deployment is recommended when medium-sized networks require batch 10 Gigabit access + subsequent architecture expansion, and slot resources are limited; installation requires no professional tools, automatic slot recognition upon insertion, and simple cluster configuration.
