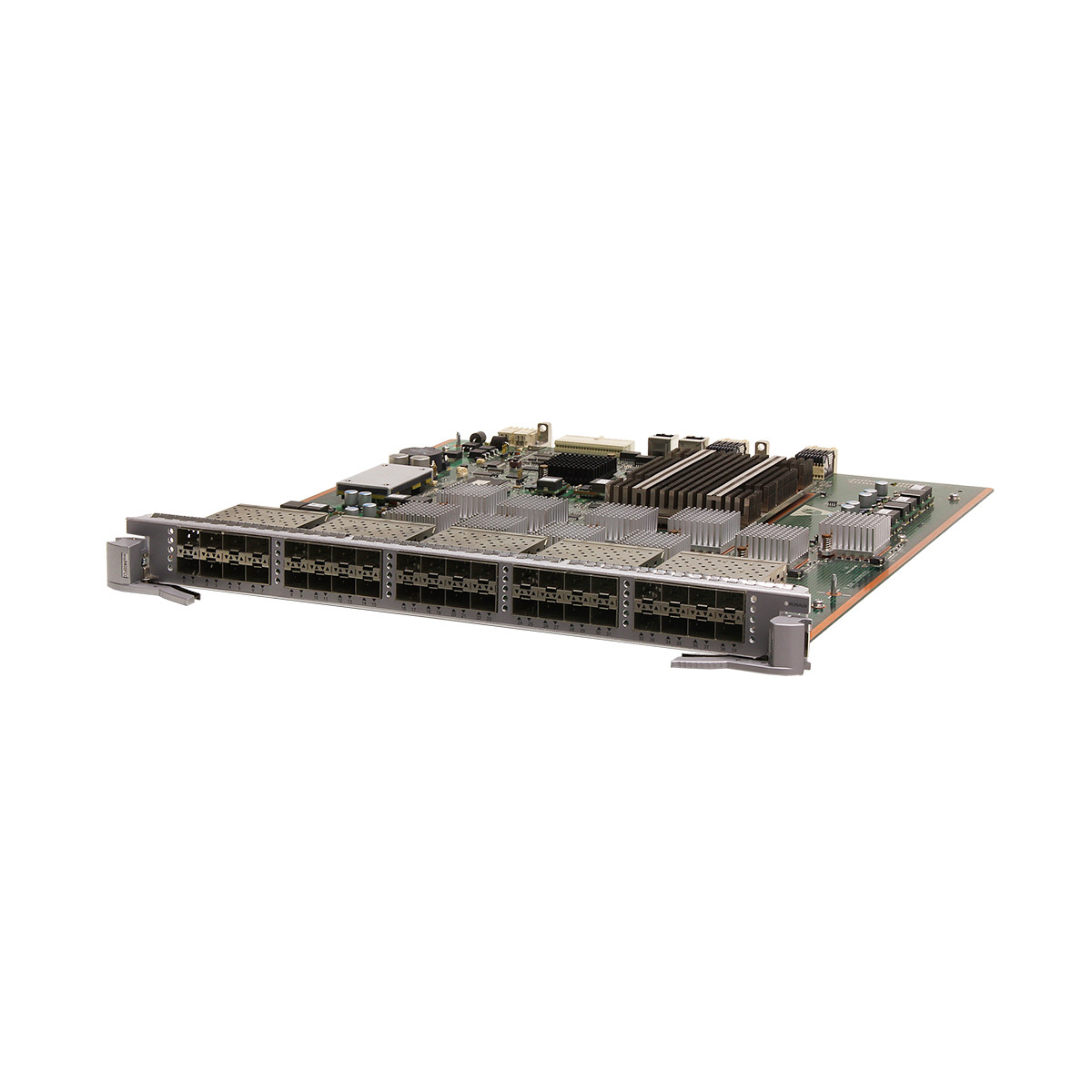

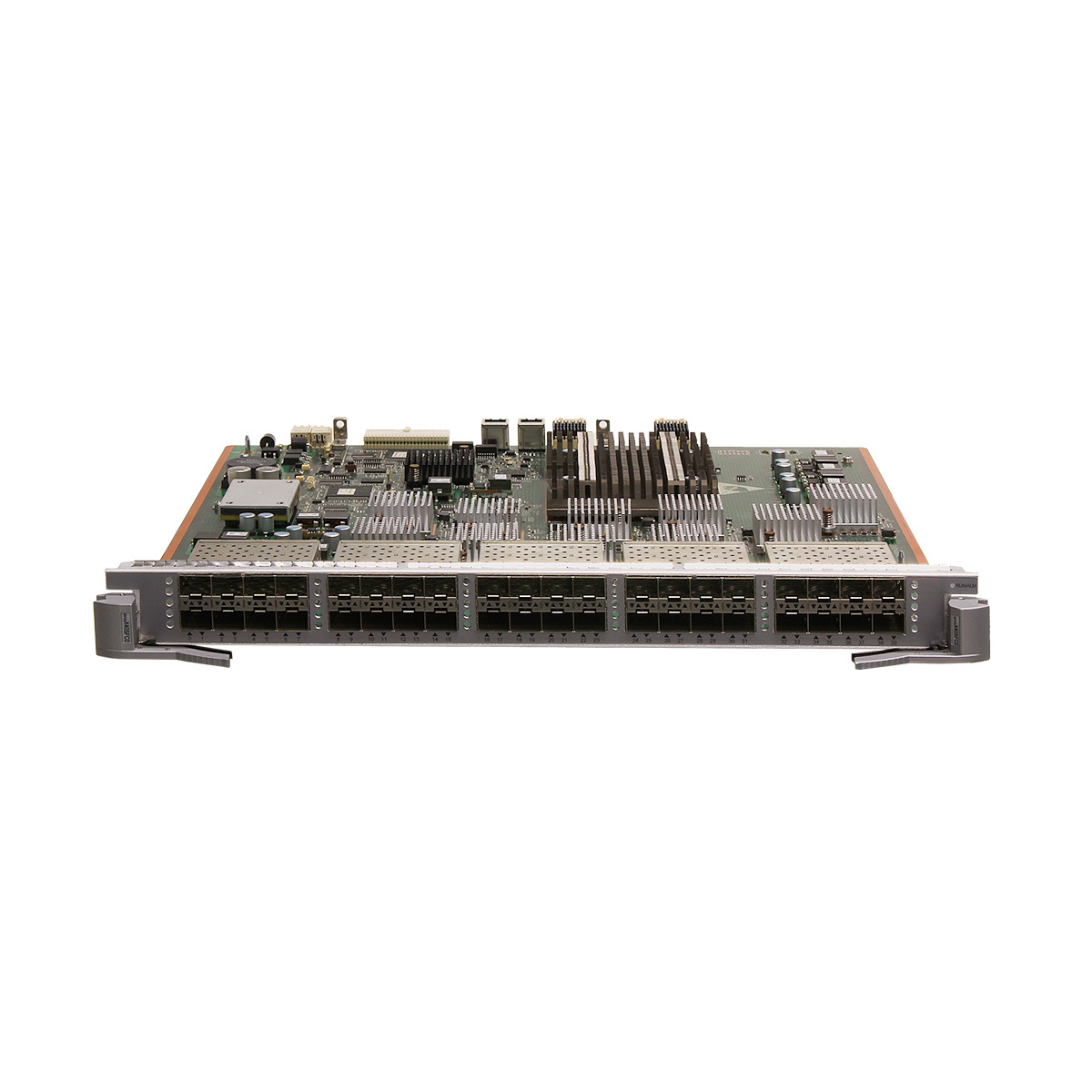

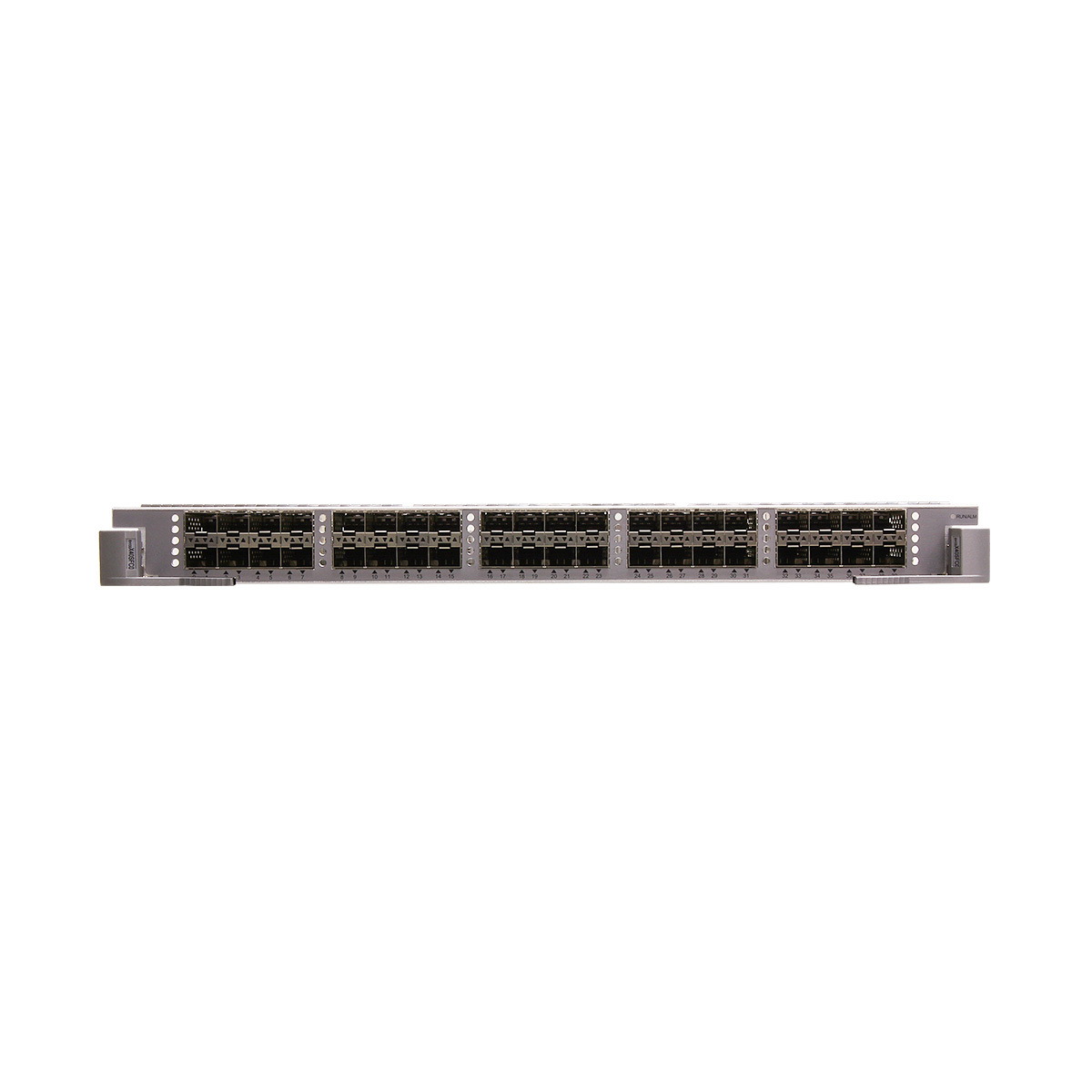

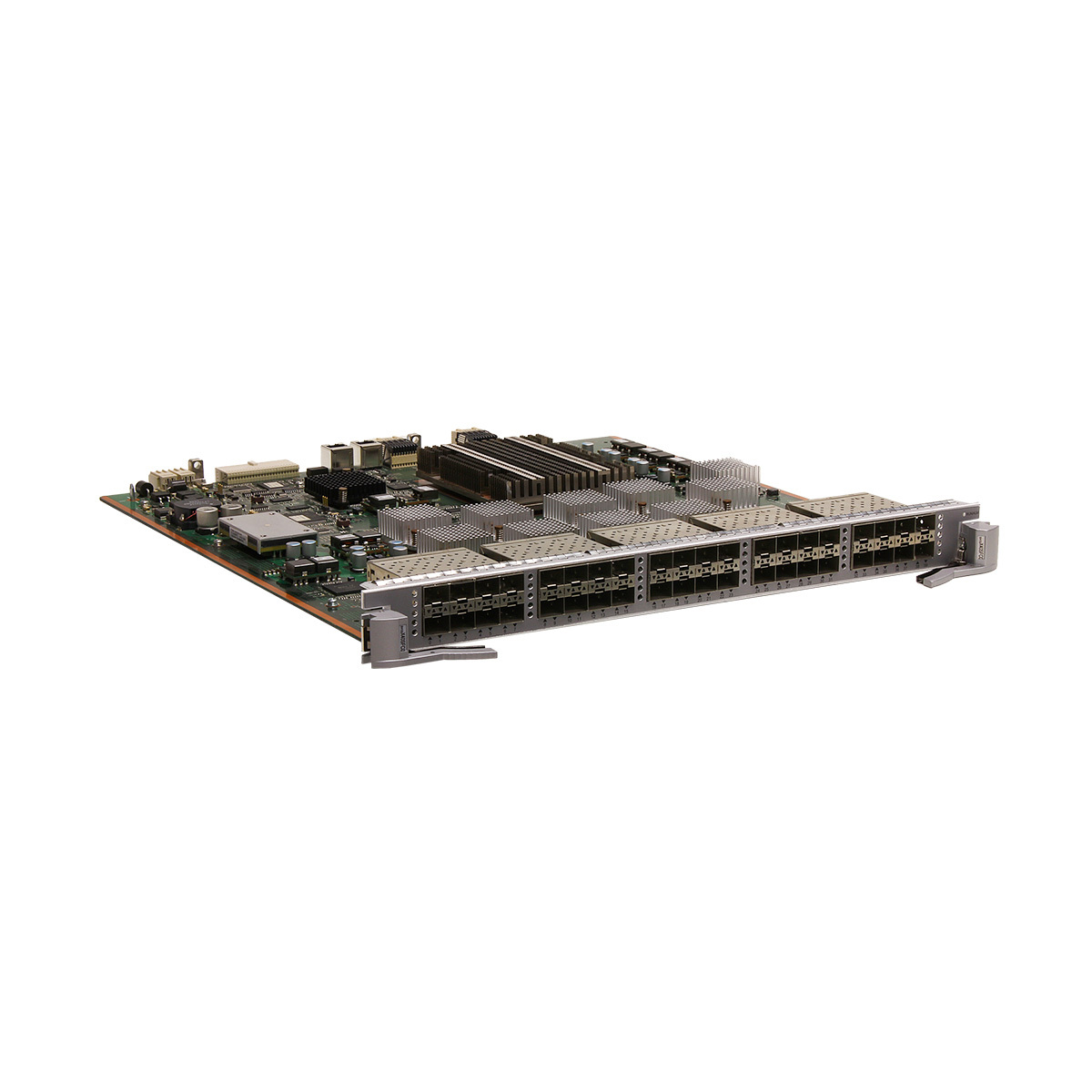

Advanced Networking Module for Enterprise Infrastructure The Huawei EH1D2X40SFC0 Interface Card is engineered for integration into Huawei S9700 series switch platforms, targeting network architects and IT infrastructure teams requiring high-capacity 10 Gigabit Ethernet connectivity. This interface card supports S9703, S9706, and S9712 chassis, facilitating flexible deployment across diverse enterprise environments. Designed to enhance network scalability, it provides a modular solution for expanding data center bandwidth while supporting distributed forwarding to optimize data processing loads, meeting demanding enterprise and carrier-grade network requirements.
Technical Specifications Driving Network Efficiency This high-performance module incorporates forty 10GBASE-X SFP+ optical ports that comply with IEEE 802.3z and IEEE 802.3ae standards, assuring interoperability and robust communication protocols. It offers full support for Huawei SFP and SFP+ modules to accommodate varying transmission distances and fiber types. Operating reliably within 0°C to 45°C temperature and wide humidity ranges, the card is optimized for consistent performance. Its hot-swappable design minimizes operational downtime during maintenance or upgrades, while power consumption is capped at 183 W, balancing energy efficiency with network throughput demands.
Industry Applications Enhancing Data Center and Campus Networks Primarily utilized in enterprise core, aggregation, and campus network deployments, the Huawei EH1D2X40SFC0 Interface Card supports high-density 10G network access essential for medium to large-scale data centers. It enables seamless capacity expansion and network modernization without service interruption due to its hot-swappable capabilities. Network operators benefit from its capability to facilitate distributed data forwarding, enhancing traffic management and reducing latency. By supporting diverse optical transceivers, it adapts to various fiber infrastructure requirements, making it an ideal choice for scalable, reliable telecommunications and enterprise networking solutions.
Product Advantages
Modular Design and Scalable Integration The Huawei EH1D2X40SFC0 Interface Card features a modular design allowing integration into multiple Huawei S9700 chassis variants, including S9703, S9706, and S9712. Its compact form factor and adherence to industry standards ensure straightforward system compatibility and future scalability. The design supports hot-swapping, which facilitates easy maintenance and hardware upgrades without disrupting network operations. This adaptability translates to lower total cost of ownership by enabling phased capacity expansion aligned with evolving network demands, making it a versatile component within Huawei’s network architecture.
Optimized Performance and Operational Efficiency This interface card delivers consistent 10G Ethernet performance with forty high-density ports, supporting diverse optical modules to meet different transmission requirements. The distributed forwarding feature enhances packet processing efficiency, reducing latency and increasing throughput. Ease of management is enhanced by standardized connector compatibility and broad environmental tolerance, ensuring reliable operation in various deployment conditions. These performance characteristics combined with low power consumption and hot-swappable capability provide network operators with a reliable and cost-effective solution tailored for critical infrastructure environments.
Functions and features of the EH1D2X40SFC0
Function
Description
Basic function
Provides forty 1000M/10GE BASE-X optical ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Software feature
Service port clustering
Hot swapping
TheEH1D2X40SFC0is hot swappable.
Ports on th EH1D2X40SFC0
Optical port attributes (GE optical module)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP optical module used. For the optical modules supported by the EH1D2X40SFC0 and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Optical port attributes (10GE optical module, high-speed cable or SFP+ optical cable)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP+ - SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ - 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used.
For the optical modules supported by the EH1D2X40SFC0 and their attributes, see 10GE SFP+ Optical Modules, 10GE-CWDM SFP+ Optical Modules and 10GE-DWDM SFP+ Optical Modules.
Standards compliance
IEEE 802.3ae
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the EH1D2X40SFC0
Item
Description
Physical specifications
Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight: 2.90 kg (6.39 lb)
Maximum power consumption: 183 W
Environment specifications
Operating temperature: 0°C to 45°C (32°F to 113°F)
Operating relative humidity: 5% RH to 95% RH (noncondensing)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Storage relative humidity: 5% RH to 95% RH (noncondensing)
Use Scenarios
Expanding Bandwidth in Enterprise Core Networks In large enterprise core networks, the Huawei EH1D2X40SFC0 Interface Card plays a pivotal role by enabling bandwidth expansion within Huawei S9700 chassis systems. Its forty 10GBASE-X optical ports accommodate the high-density 10 Gigabit Ethernet connections required for intensive data processing and traffic aggregation. The card’s compliance with IEEE standards ensures interoperability with existing fiber optic infrastructure, while distributed forwarding optimizes network responsiveness. Integrated seamlessly into enterprise workflows, it supports scalable bandwidth upgrades without interrupting service continuity, critical for maintaining high network availability and performance.
Data Center Aggregation and Connectivity Enhancement Within medium-sized data centers, this interface card facilitates connectivity aggregation by providing flexible, scalable 10G optical ports capable of supporting diverse transmission distances. Its hot-swappable design is crucial for environments demanding nonstop operation during hardware upgrades or maintenance. The Huawei EH1D2X40SFC0 Interface Card enhances overall network efficiency through efficient forwarding of data packets and broad compatibility with SFP and SFP+ optical modules. Deployed in aggregation switches, it supports optimized traffic flow management and network expansion strategies, ensuring that evolving data center demands are met with minimal operational disruption.
EH1D2X40SFC0 FAQ
Q1: Which switches is this service board compatible with? Does it support hot-swapping?
A1: Dedicated to Huawei S9703/S9706/S9712 series; supports hot-swapping, ensuring uninterrupted service during maintenance.
Q2: What are its core advantages? What scenarios is it suitable for?
A2: Its advantages include 40-port high density, 1G/10G dual-mode, and distributed forwarding; suitable for medium-sized data center access and enterprise core network aggregation.
Q3: Does it require a specific optical module?
A3: Compatible with Huawei standard SFP/SFP+ optical modules, supporting different transmission distance requirements.
