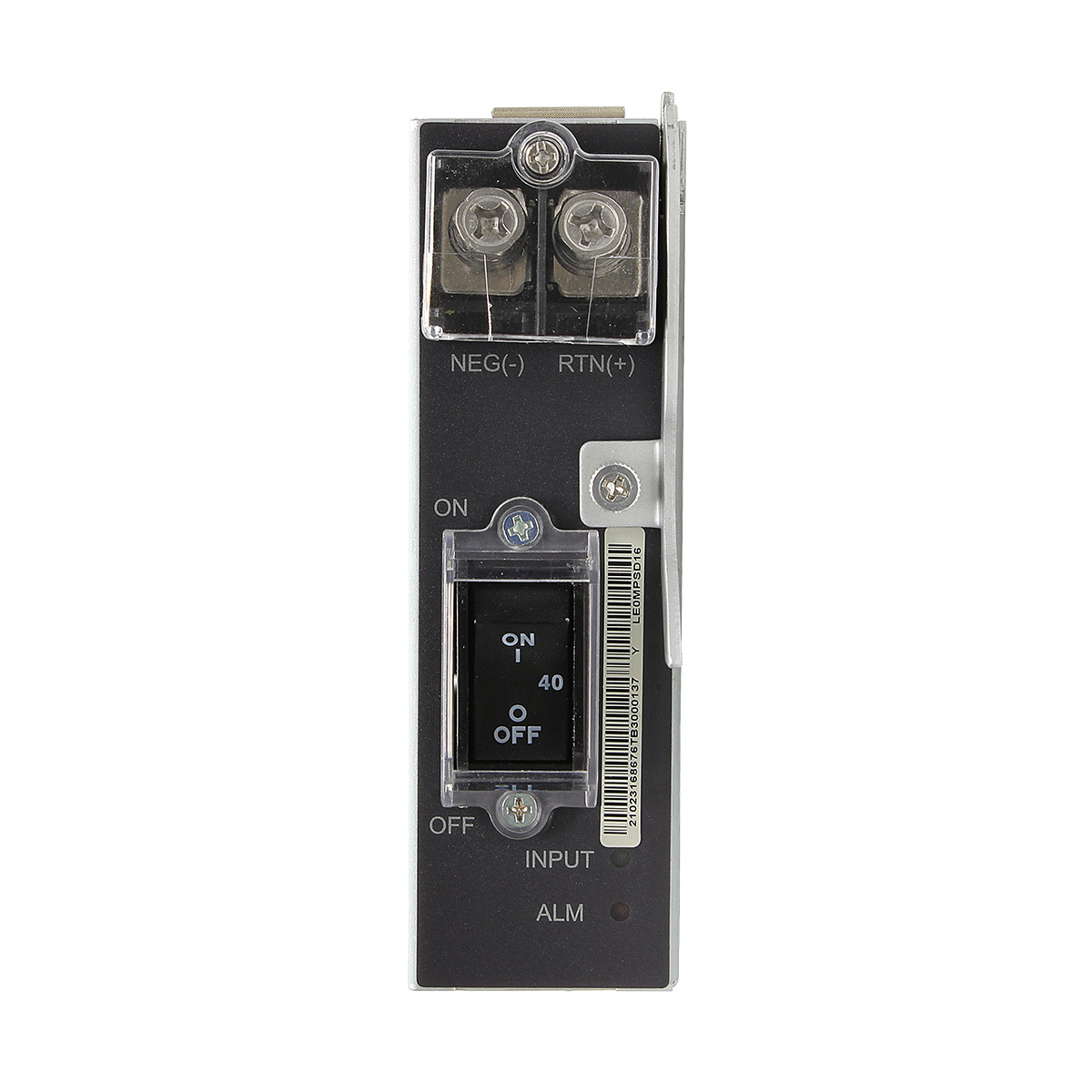

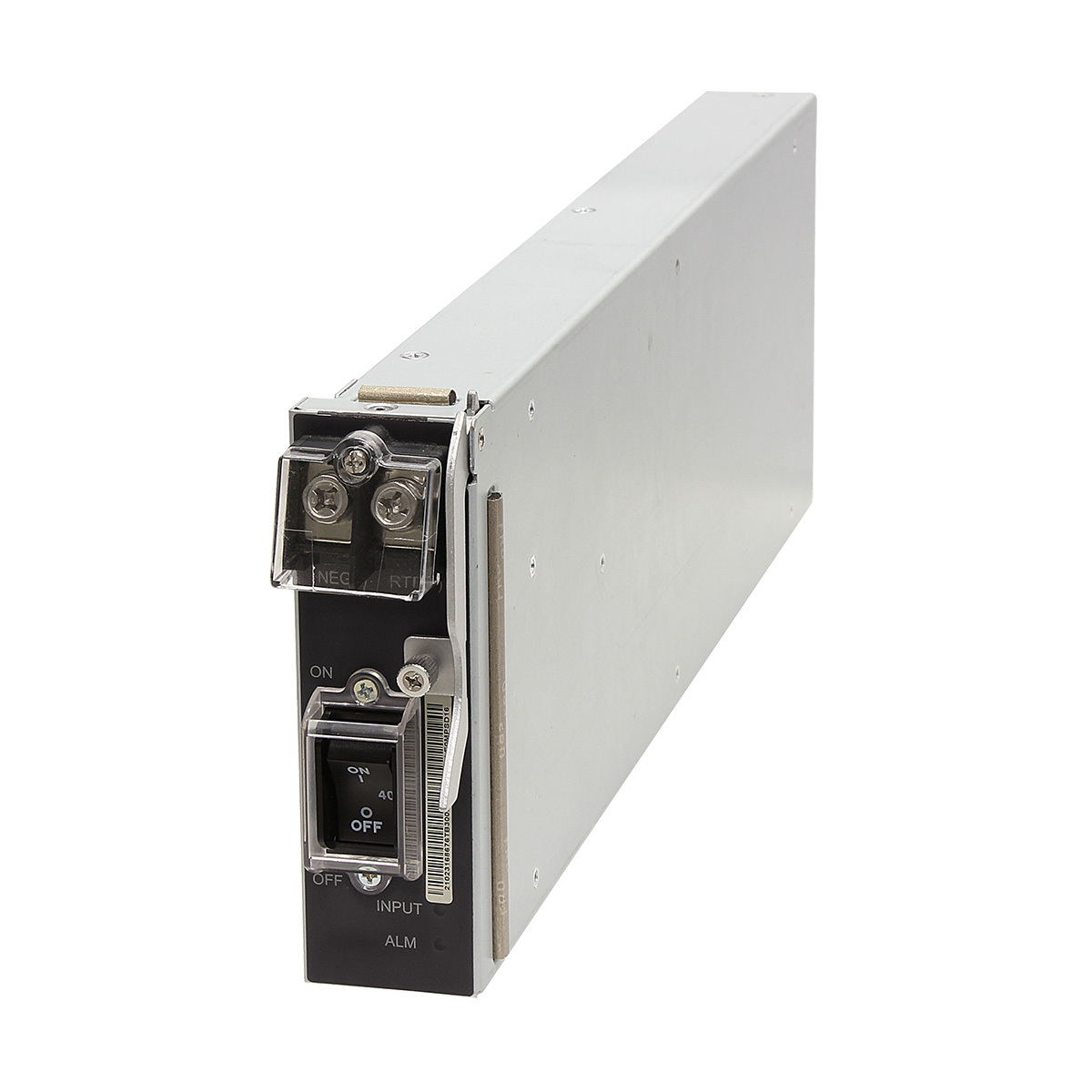

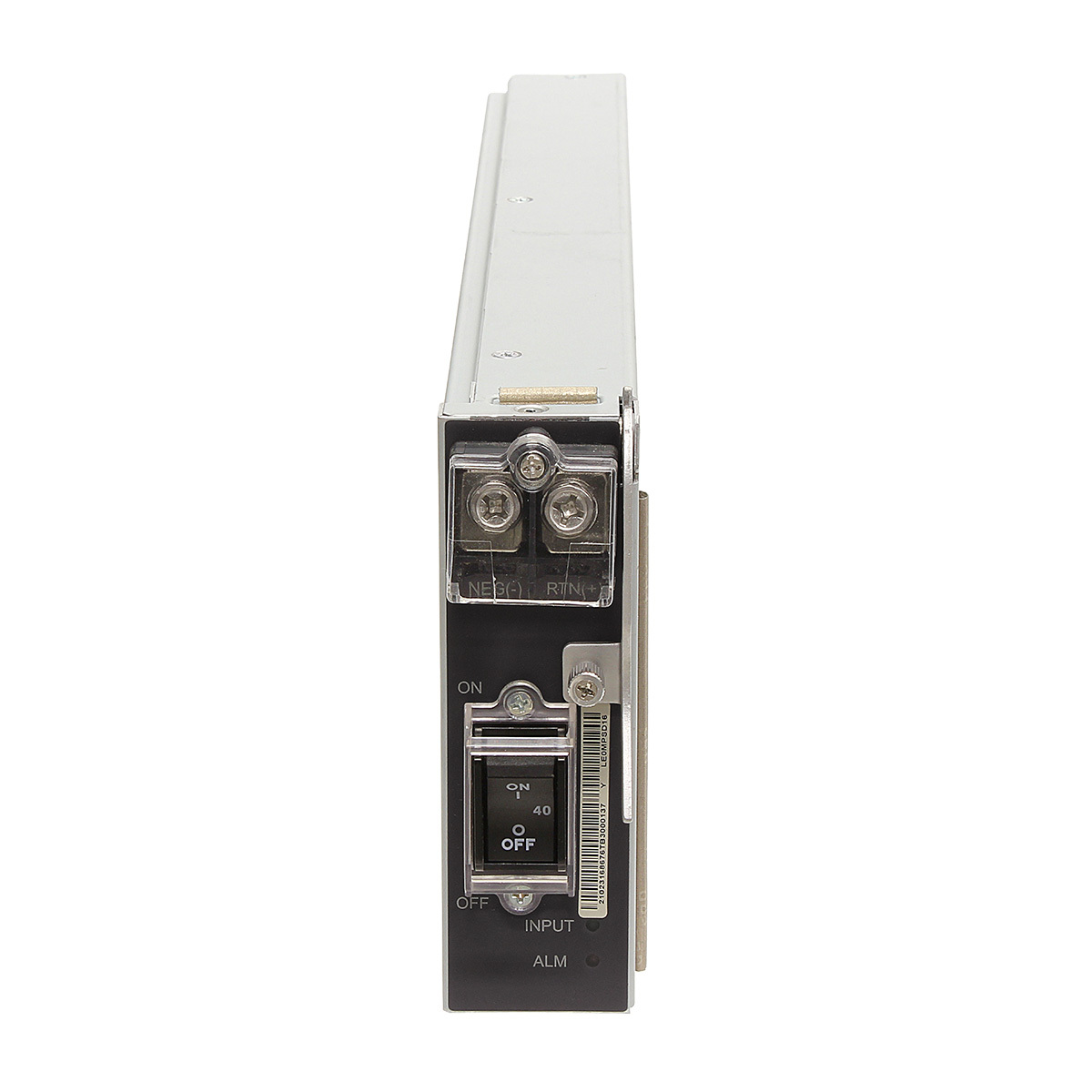

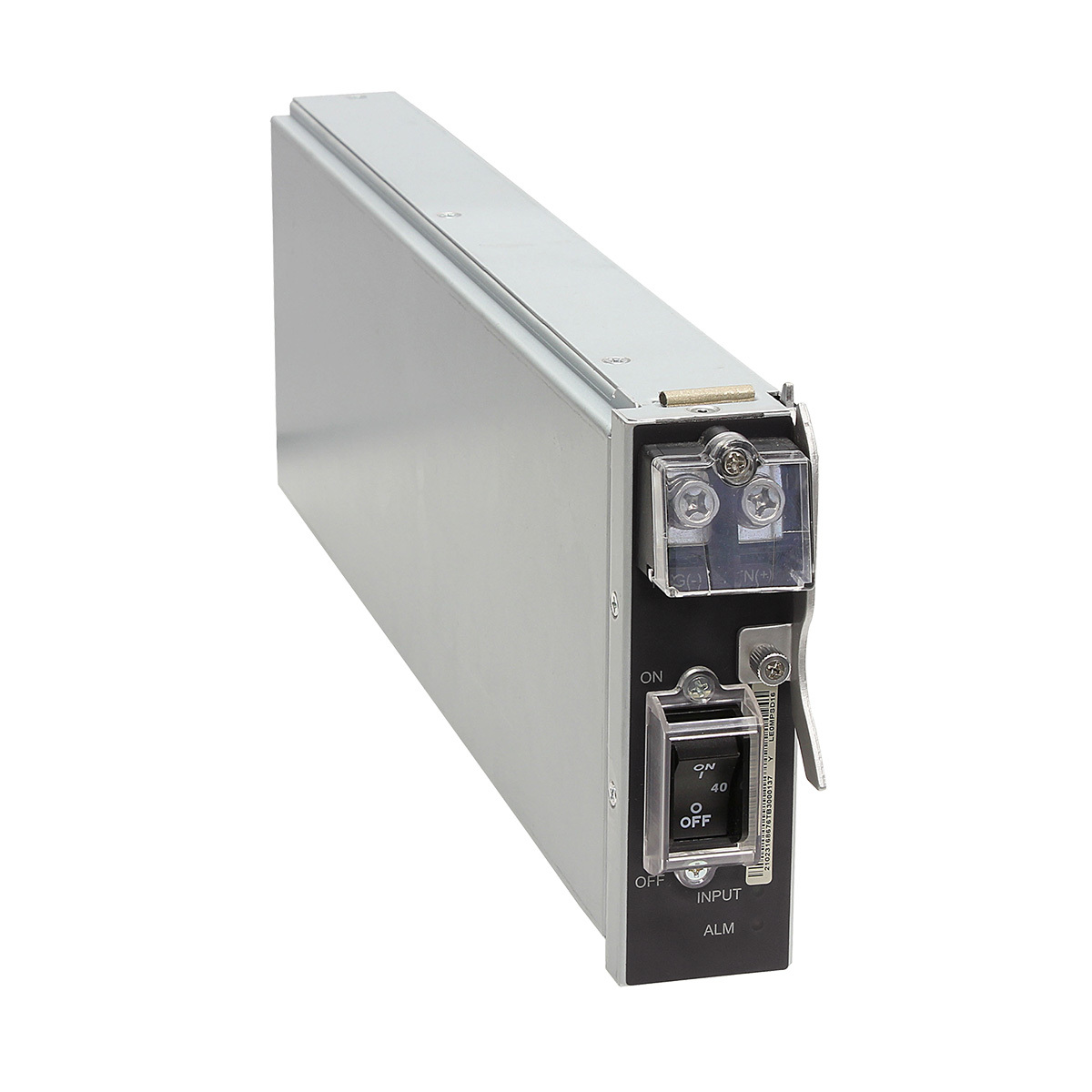

Huawei ES02PSD16 1600 W DC power module, can be installed in card slot on S7703, S7706, S7712 switch.
Functions and Features
A 1600 W DC power module provides a maximum of 1600 W power for the chassis and has the following functions:
Short circuit protection
Alarms about various power supply events, for example, no external power input, input undervoltage, and power switch off.
The power module is hot swappable.
Optimized Power Solution for Huawei Network Infrastructure The Huawei ES02PSD16 Power Module is engineered to meet the specific power requirements of Huawei chassis switches such as the S7703, S7706, and S7712. Designed for network administrators and IT infrastructure managers, this module provides a reliable 1600W DC output to support continuous operation in campus and data center settings. Its compatibility with Huawei’s native power logic allows seamless integration without manual configuration. The module’s hot-swappable capacity enables maintenance and replacement without disrupting network uptime, making it ideal for mission-critical environments where uninterrupted connectivity is essential.
Robust Technical Specifications and Advanced Protection Features This power module supports an input voltage range from -38.4V DC to -72V DC and delivers a rated output of 53.5V DC at 40A, sustaining a continuous output power of 1600W. Its compact dimensions (130mm x 41mm x 393mm) and weight under 2.5 kg facilitate installation in telecom racks with limited space. The unit incorporates built-in protections including short circuit detection, undervoltage alarms, and power off event notifications, ensuring operational safety and fault mitigation. Additionally, its automatic type identification function streamlines plug-and-play deployment, reducing integration complexity while maintaining full compliance with telecom industry power supply standards.
Wide-Ranging Applications in Telecom and Enterprise Networks The Huawei ES02PSD16 Power Module is suited for powering Huawei S7700 series switches across data centers, campus environments, and small to medium enterprise networks. Its design supports redundant configurations such as 1+1 power supply setups to enhance network reliability. This power source meets the demands of hybrid power architectures commonly found in telecom racks and ensures consistent energy delivery for mid-range network loads. By integrating natively with Huawei switch power management, it simplifies system design while maximizing uptime and operational efficiency in sophisticated network infrastructure deployments.
Product Advantages
Integrated Design and Modular System Compatibility The Huawei ES02PSD16 Power Module boasts a modular form factor optimized for chassis-based Huawei switches, facilitating straightforward integration into existing network systems. Its hot-swappable design supports continuous operation by enabling replacement or maintenance without downtime. The power module is manufactured to meet stringent telecom standards, ensuring robust physical durability and electrical stability. Its automatic power supply type recognition reduces configuration errors and streamlines installation workflows. Lightweight and compact, this module suits telecom rack environments where space and system modularity are critical considerations.
High Performance and Operational Reliability for Network Systems This power module offers dependable performance with its stable 1600W DC output tailored to mid-range networking devices. Its built-in safety features mitigate risks associated with electrical faults, ensuring sustained network availability. The plug-and-play capability reduces technician workload and installation time, enhancing overall system usability. The module also supports a broad input voltage range to maintain power stability despite fluctuations in supply. These performance characteristics make the Huawei ES02PSD16 Power Module a cost-effective and efficient solution for network engineers seeking to optimize power delivery and resilience in enterprise and telecom infrastructure.
Technical Specifications
Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
130 mm x 41 mm x 393 mm (5.1 in. x 1.6 in. x 15.5 in.)
Weight without packaging [kg(lb)]
< 2.5 kg
Number of inputs
1
Rated input voltage [V]
-48 V DC to -60 V DC
Input voltage range [V]
-38.4 V DC to -72 V DC
Maximum input current [A]
40 A
Rated output voltage [V]
53.5 V DC
Rated output current [A]
40 A
Rated output power [W]
1600 W
Hot swapping
Supported
Use Scenarios
Powering Huawei S7700 Series Switches in Data Center Networks In data center environments, continuous and stable power delivery to core network switches is paramount. The Huawei ES02PSD16 Power Module serves as a reliable power source for S7700 series switches, providing up to 1600W of DC output capable of handling core switching tasks and managing high data throughput. Its hot-swappable design allows maintenance without interrupting network connectivity, critical for data centers requiring 24/7 uptime. The module’s automatic identification logic ensures compatibility with Huawei native power supply management, facilitating seamless integration with existing network power architectures and minimizing operational complexity.
Enabling Redundant Power Supply Architectures in Campus Environments Campus networks require resilient power configurations to minimize downtime and maintain productivity. The Huawei ES02PSD16 Power Module supports 1+1 redundancy setups, delivering backup power to Huawei switches and reducing risk from single power supply failures. Its wide input voltage tolerance accommodates diverse power grid conditions common in enterprise campuses and telecom installations. The module integrates efficiently within hybrid power supply systems, ensuring stable energy delivery across multiple network devices. Network administrators benefit from its compact footprint and robust safety features, enabling streamlined power system design while enhancing overall network availability and fault tolerance.
