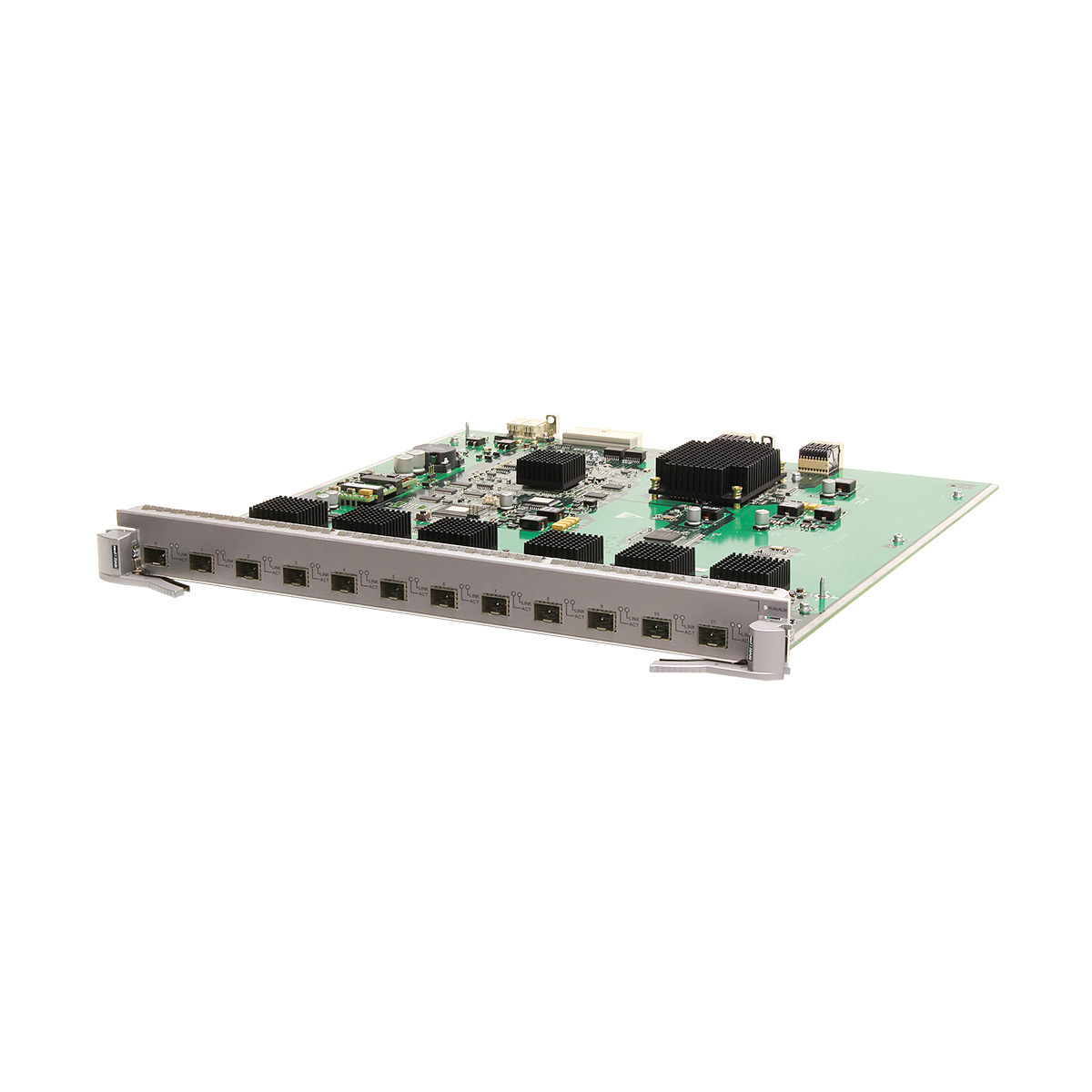

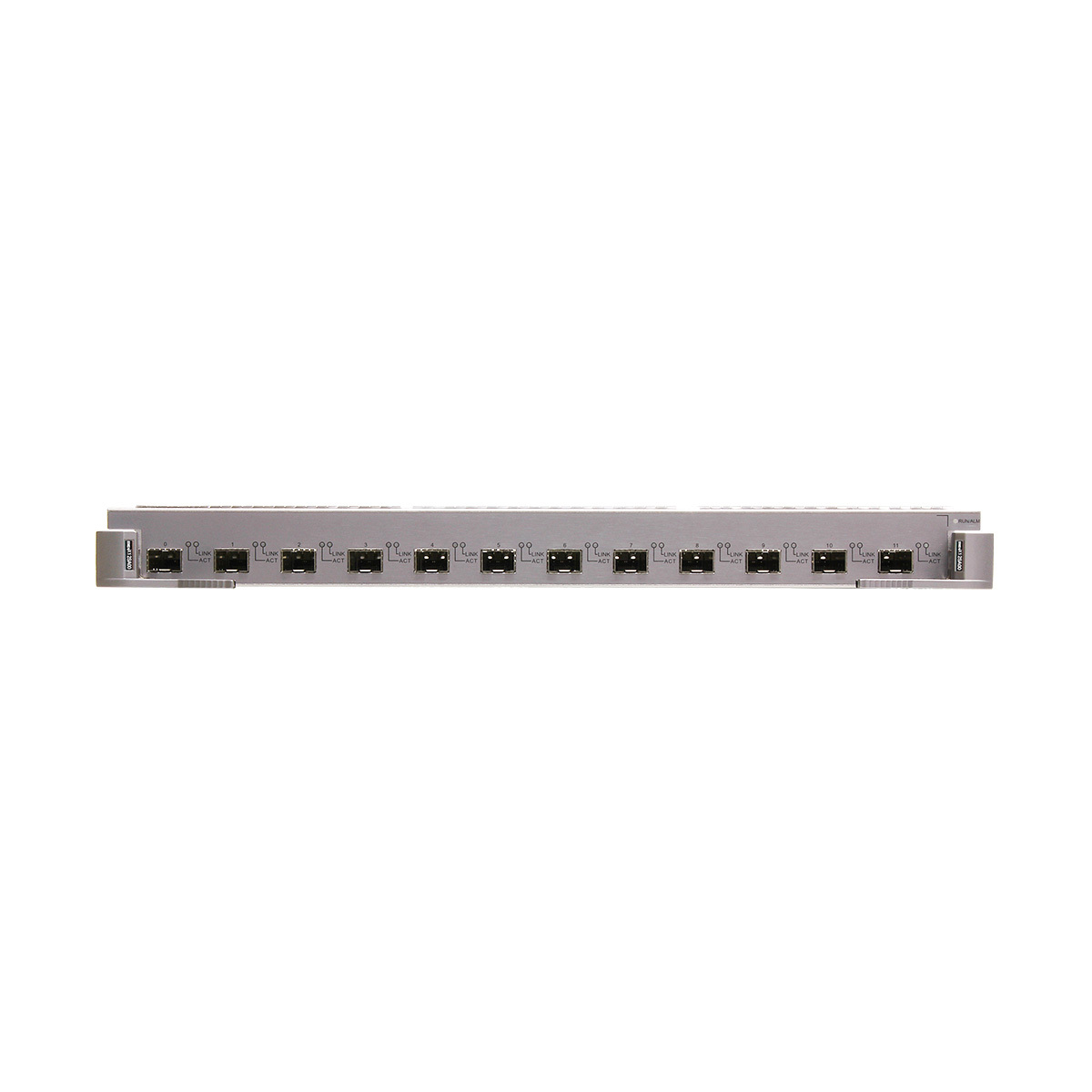

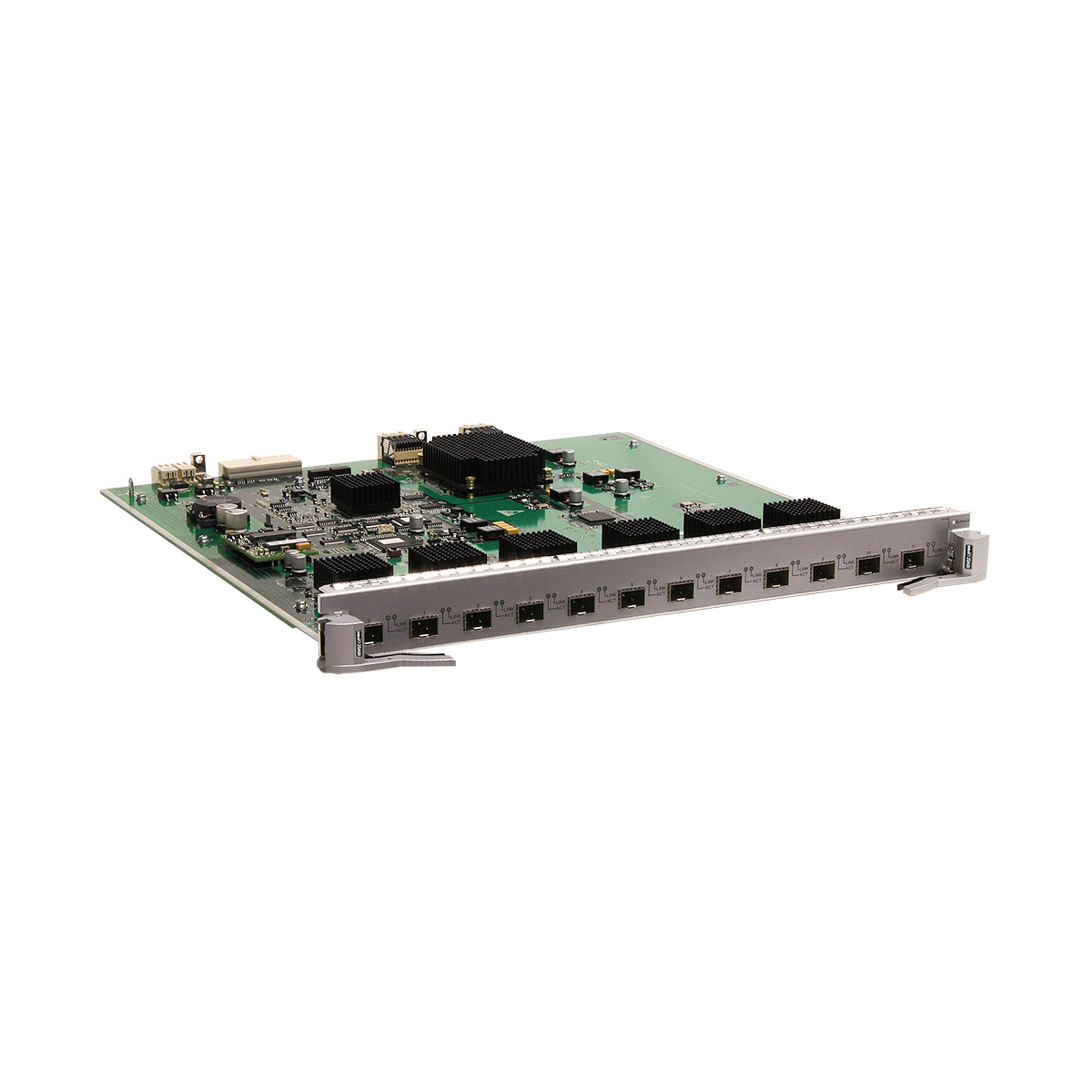

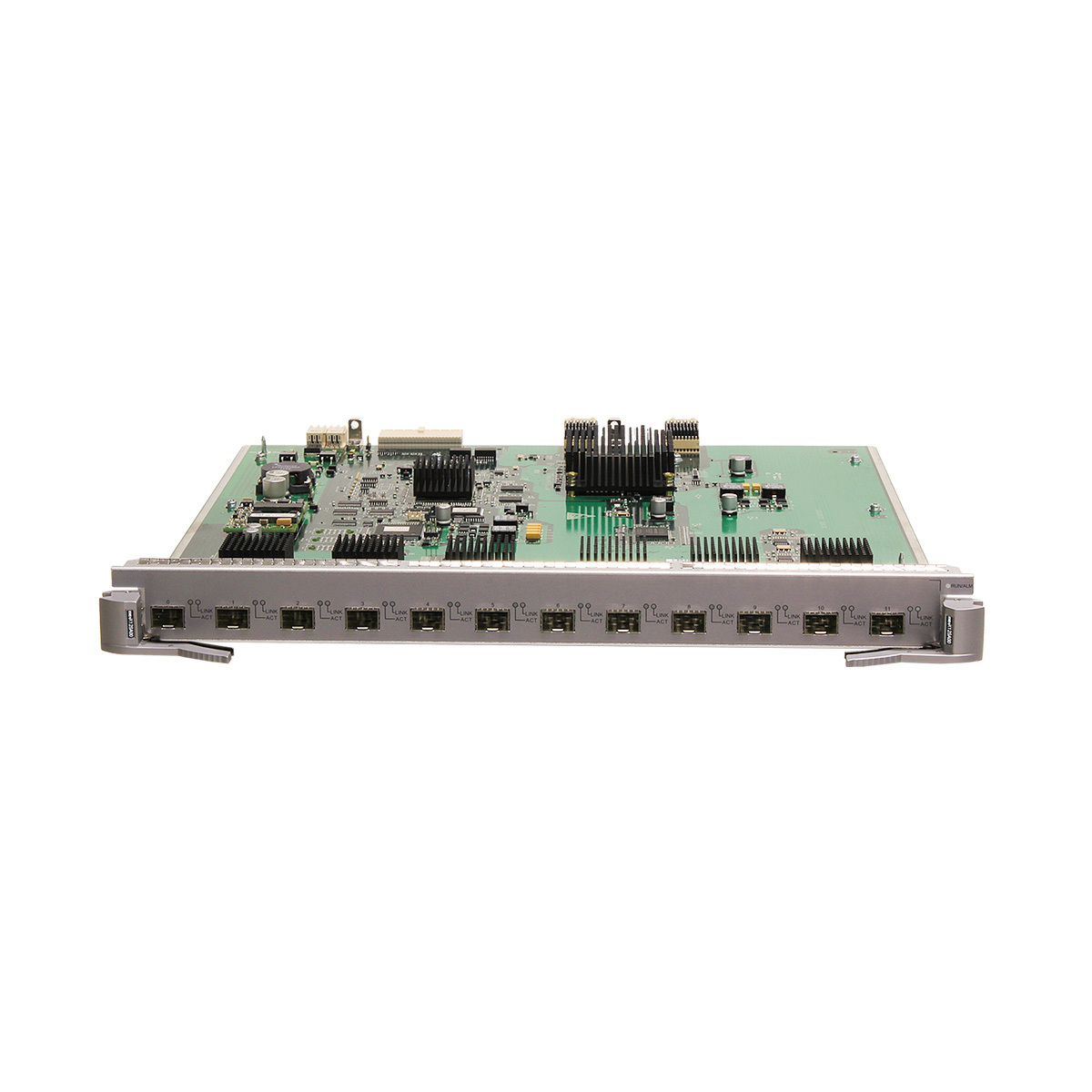

Huawei ES0D0X12SA00 Interface Card

ES0D0X12SA00 Introduction

• Slots 01 to 03 in an S7703 or S7703 PoE chassis.
• Slots 01 to 06 in an S7706 or S7706 PoE chassis.
• Slots 01 to 12 in an S7712 chassis.

S7700-S Series Switches Overview

The S7700 series switches (S7700 for short) are high-end smart routing switches designed for nextgenerationenterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive H-QoS policies, controllable multicast, load balancing, and security, in addition to high-performanceLayer 2 to Layer 4 switching services.

Functional Positioning and Target Deployments
The Huawei ES0D0X12SA00 Interface Card is engineered to expand port capacity and enhance data throughput on Huawei S7700 series switches, targeting medium to large enterprise networks. It serves network architects and system integrators requiring multi-layer switching solutions with reliable high-speed connectivity. Its design supports intelligent service optimization, making it suitable for operators managing complex multi-service environments. By facilitating hot swapping, the interface card ensures minimal operational disruption during maintenance, aligning with enterprise priorities for continuous network availability. This solution integrates smoothly with Huawei’s chassis lineup, supporting flexible deployment strategies for optimized network infrastructure enhancement.

Technical Features and Measurable Specifications
Supporting twelve 10GBASE-X optical ports with SFP+ connectors, the Huawei ES0D0X12SA00 Interface Card complies fully with IEEE 802.3ae standards, guaranteeing interoperability and high signal integrity. It occupies specific chassis slots across the S7703, S7706, and S7712 switch chassis families. The card’s robust design includes hot-swappable capabilities to avoid downtime during installation or replacement. With a maximum power consumption capped at 85 watts and physical dimensions optimized for slot compatibility, it supports distributed forwarding and concurrent traffic processing to maintain throughput efficiency. Compatibility with both Huawei original and third-party IEEE-compliant optical modules adds deployment flexibility without compromising network performance.

Industry Applications and Operational Value
The Huawei ES0D0X12SA00 Interface Card is integral to enterprise data centers, campus networks, and service provider access systems demanding scalable 10G optical expansion. It delivers enhanced Layer 2 through Layer 4 switching capabilities, facilitating advanced Quality of Service (QoS) and traffic analysis necessary for mission-critical applications. Its adaptability to various optical modules supports cost-effective network scaling while maintaining compliance with industry standards. The module’s stable signal transmission and forwarding performance optimize bandwidth usage, contributing to improved network resilience and service continuity. This positions the Huawei ES0D0X12SA00 as a reliable component to support evolving enterprise networking requirements and complex traffic handling.


Product Advantages

Structural and System Design Benefits
The Huawei ES0D0X12SA00 Interface Card features a modular design aligned with Huawei S7700 chassis architectures, accommodating slots 01 to 12 depending on the model. This structural design promotes ease of integration and straightforward scalability within existing infrastructures. Its use of SFP+ connectors ensures versatile optical module compatibility, enhancing deployment adaptability. Hot-swappable capability is engineered for seamless replacement without affecting overall system uptime. This design focus supports operational continuity and reduces network maintenance burdens. Furthermore, the card’s compliance with IEEE standards reinforces interoperability within heterogeneous network environments, enabling flexible combination with third-party optical components.

Performance and Usability Enhancements
Performance-wise, this Huawei interface card supports distributed forwarding at the data plane level, resulting in efficient handling of concurrent traffic flows vital for high-throughput scenarios. The 12-port 10G capacity delivers robust bandwidth for diverse network applications while adhering to stringent power consumption limits, promoting energy efficiency. Usability is enhanced by hot-swappable design, allowing maintenance tasks without service interruption. Integration with Huawei intelligent service optimization functions, including MPLS VPN support and comprehensive traffic analysis, facilitates precise network management. Collectively, these performance features yield increased reliability and reduced operational complexity, offering measurable value to network operators and administrators.


Functions of the ES0D0X12SA00
