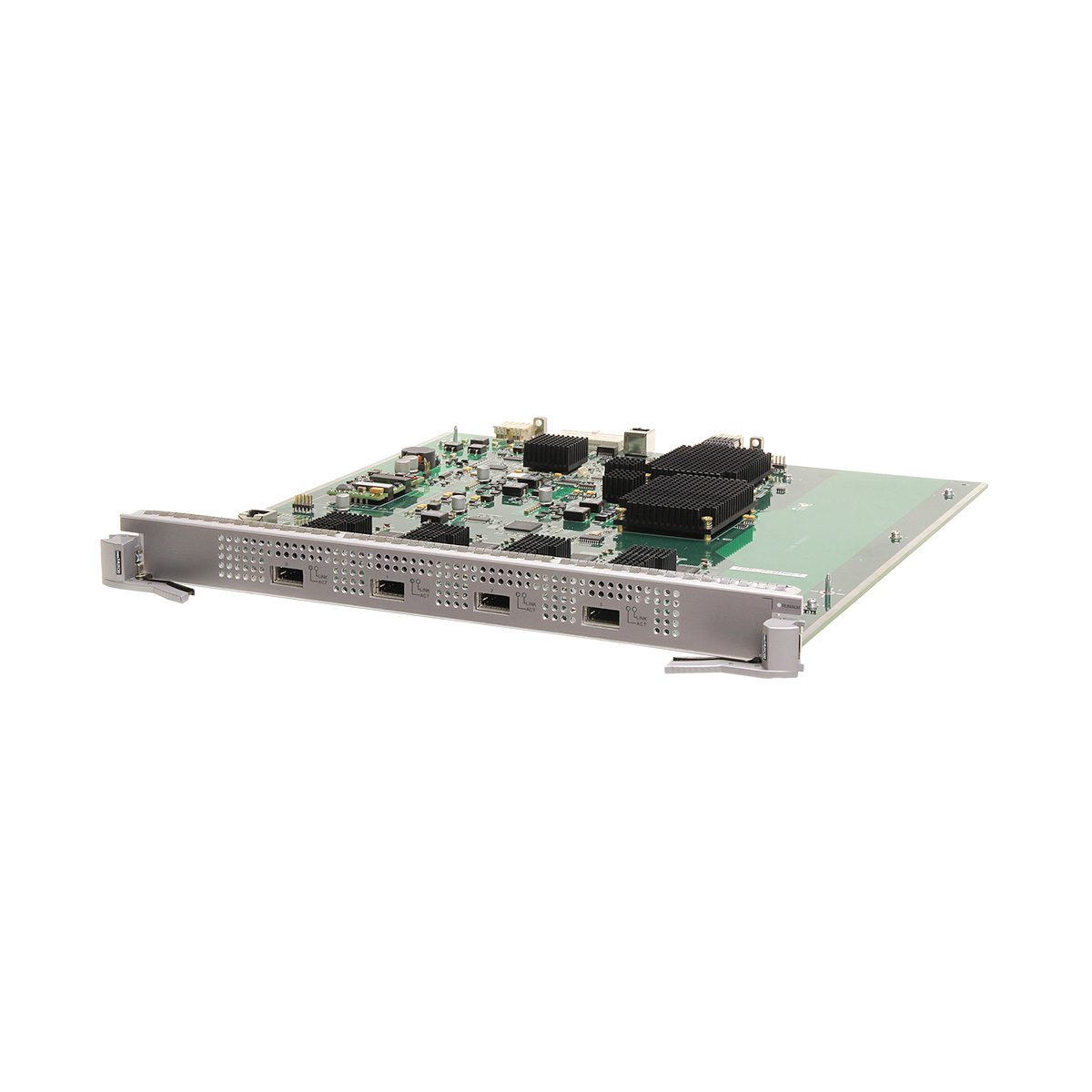

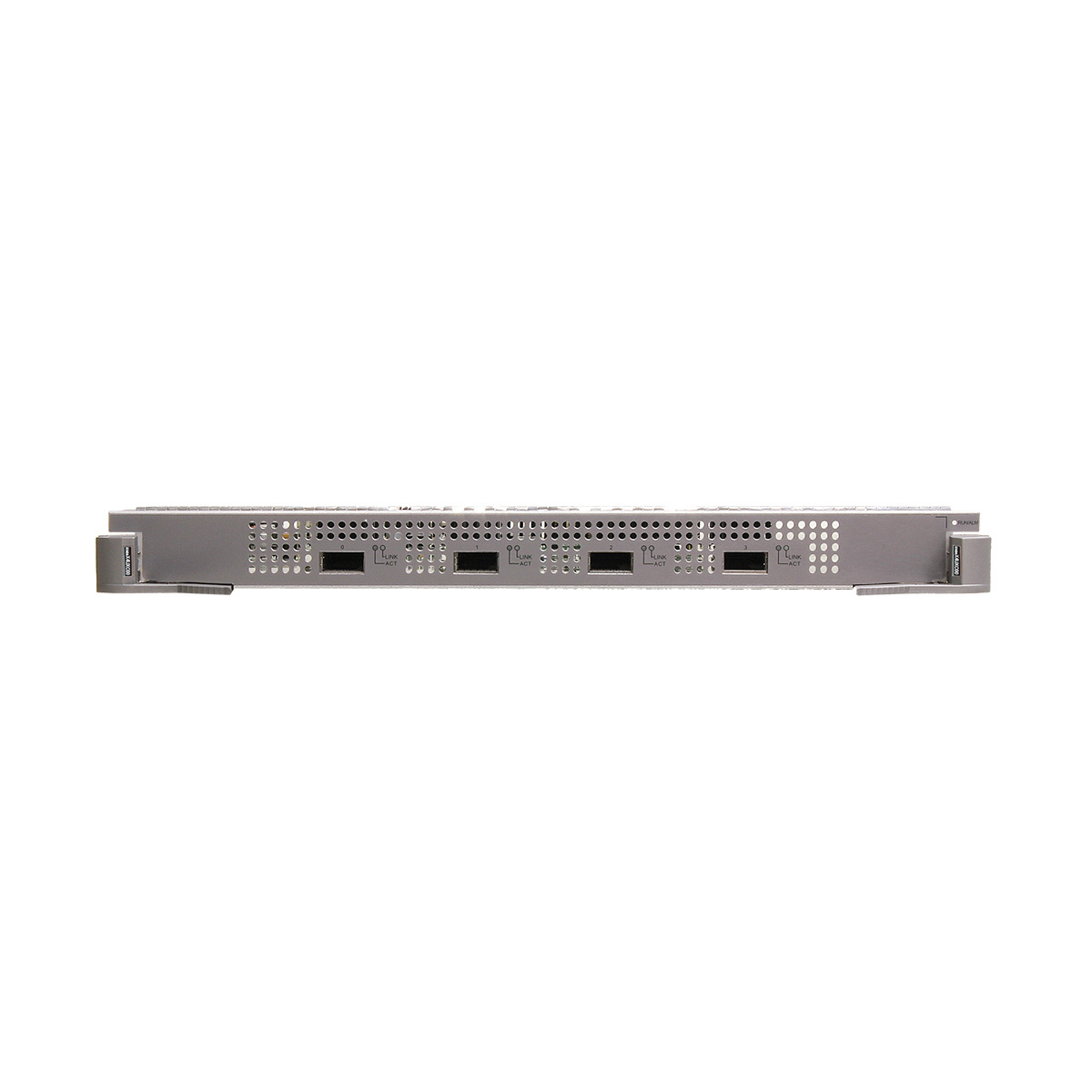

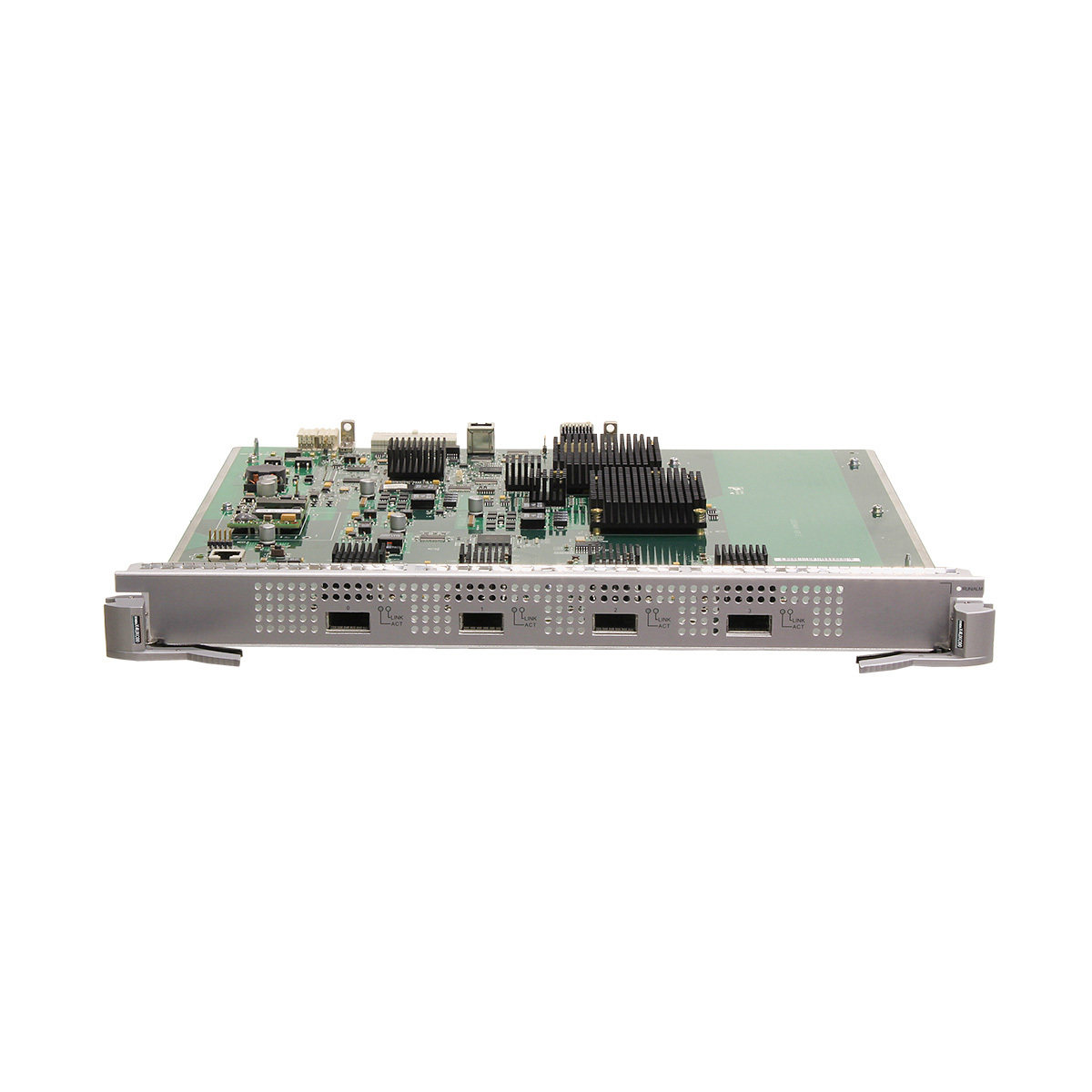

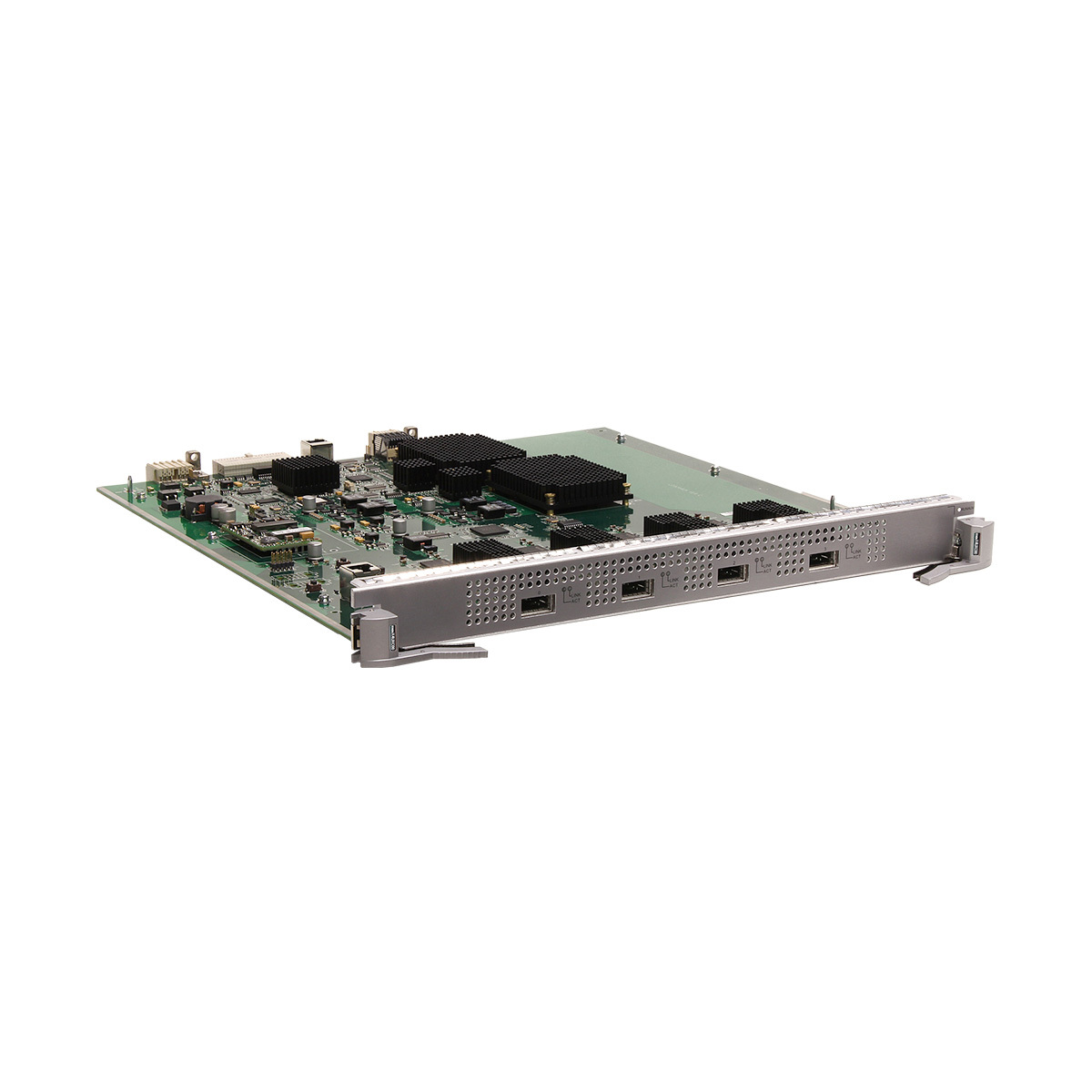

Huawei ES0D0X4UXC00 Interface Card

ES0D0X4UXC00 Introduction

The ES0D0X4UXC00 can be installed in:

• Slots 01 to 03 in an S7703 or S7703 PoE chassis.
• Slots 01 to 06 in an S7706 or S7706 PoE chassis.
• Slots 01 to 12 in an S7712 chassis.

S7700-S Series Switches Overview

The S7700 series switches (S7700 for short) are high-end smart routing switches designed for nextgenerationenterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive H-QoS policies, controllable multicast, load balancing, and security, in addition to high-performanceLayer 2 to Layer 4 switching services.

Functional Role Tailored for Enterprise Network Expansion
The Huawei ES0D0X4UXC00 Interface Card is engineered to augment uplink capabilities on Huawei S7700 Series switches, specifically targeting enterprise and data center environments requiring scalable high-throughput connections. This 4-Port 10GBASE-X solution facilitates seamless integration into existing chassis configurations, supporting slots 01–03 in S7703 models and up to slot 12 in S7712 chassis designs. It is intended for network engineers and system architects demanding flexible, modular upgrades to accommodate increased traffic volume without wholesale hardware replacement. The interface card’s hot-swappable design minimizes service disruption, ensuring continuous network operation during maintenance cycles.

Technical Specifications Ensuring Reliable High-Speed Connectivity
Featuring four 10 Gigabit Ethernet optical ports equipped with XFP connectors, the Huawei ES0D0X4UXC00 Interface Card meets the IEEE 802.3ae standard for 10GBASE-X transmission. With precise physical dimensions of 35.1 mm by 397.2 mm by 430.4 mm and a power consumption profile capped at 75 watts, it integrates efficiently within Huawei S7700 chassis platforms. Hot-swappability combined with compatibility across multiple slot configurations from S7703, S7706 to S7712 chassis ensures operational versatility. The card delivers robust data transmission at 10Gbps per port, supporting enterprise network backbones requiring high throughput, low latency, and scalable port density.

Industry Integration and Operational Efficiency in Data Centers
Within data center and enterprise network deployments, the Huawei ES0D0X4UXC00 Interface Card serves a critical role in establishing high-bandwidth inter-switch links and enhancing backbone uplinks. Its compliance with Huawei’s S7700 family and IEEE 802.3ae standards makes it suitable for replacing legacy 1G or 2.5G links with stable 10GBASE-X connections, providing enhanced bandwidth headroom. The card’s hot-swappable nature facilitates modular upgrades aligned with evolving network demands, aiding efficiency in core and distribution layers. Its suitability for long-distance connections with compatible XFP modules also supports large-scale network topology designs and scalable enterprise deployments.


Product Advantages

Modular Design Meets Network Architecture Flexibility
The Huawei ES0D0X4UXC00 Interface Card is designed with modularity and system adaptability in mind, fitting seamlessly into multiple Huawei S7700 chassis configurations. Its 4-port XFP optical interface structure allows efficient slot allocation from compact S7703 units to high-capacity S7712 systems. The hot-swappable design reduces hardware downtime through easy replacement or expansion without powering down the chassis. Physical dimensions and power consumption are optimized for integration, supporting network engineers aiming for minimal disruption during upgrades. This hardware design supports scalable network growth while maintaining system integrity and operational reliability across enterprise infrastructure environments.

Optimized Performance Enhances Network Throughput and Maintenance Workflow
Performance-wise, the Huawei ES0D0X4UXC00 Interface Card ensures stable 10Gbps throughput per port, supporting IEEE 802.3ae standard operations with a maximum power consumption of only 75 W. The card’s XFP connectors enable compatibility with standard and third-party optical modules, providing flexible deployment options. Its hot-swappable design enhances usability, reducing maintenance windows and allowing quick adaptation to network changes. These performance characteristics improve ROI by facilitating scalable uplink capacity without costly full-system upgrades. Network operators benefit from reduced latency, increased link stability, and streamlined service continuity in enterprise-grade environments.


Functions of the ES0D0X4UXC00
