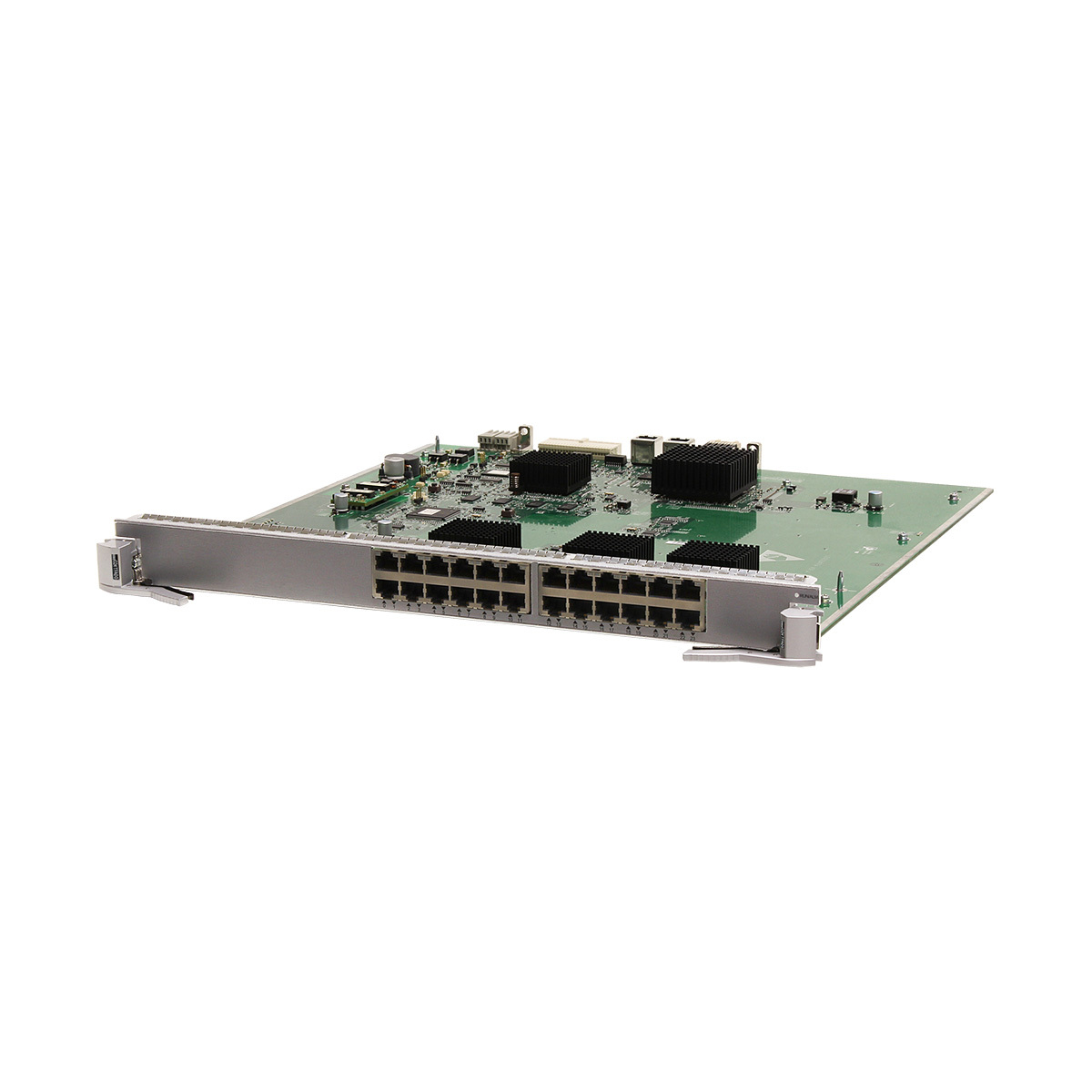

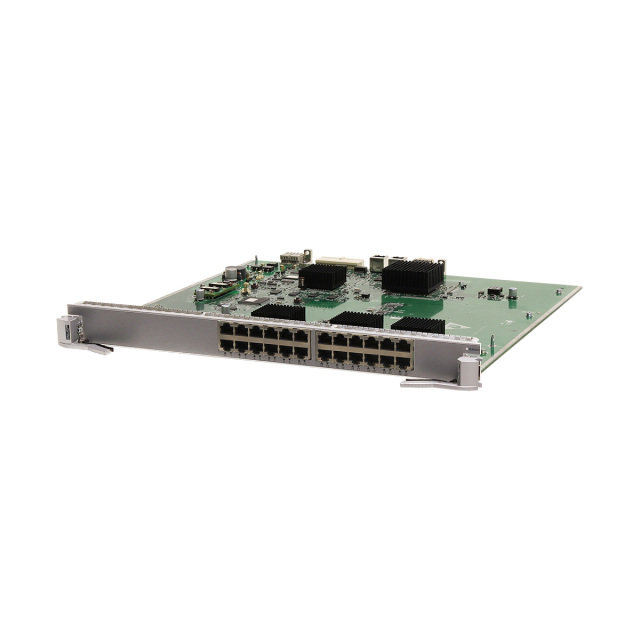

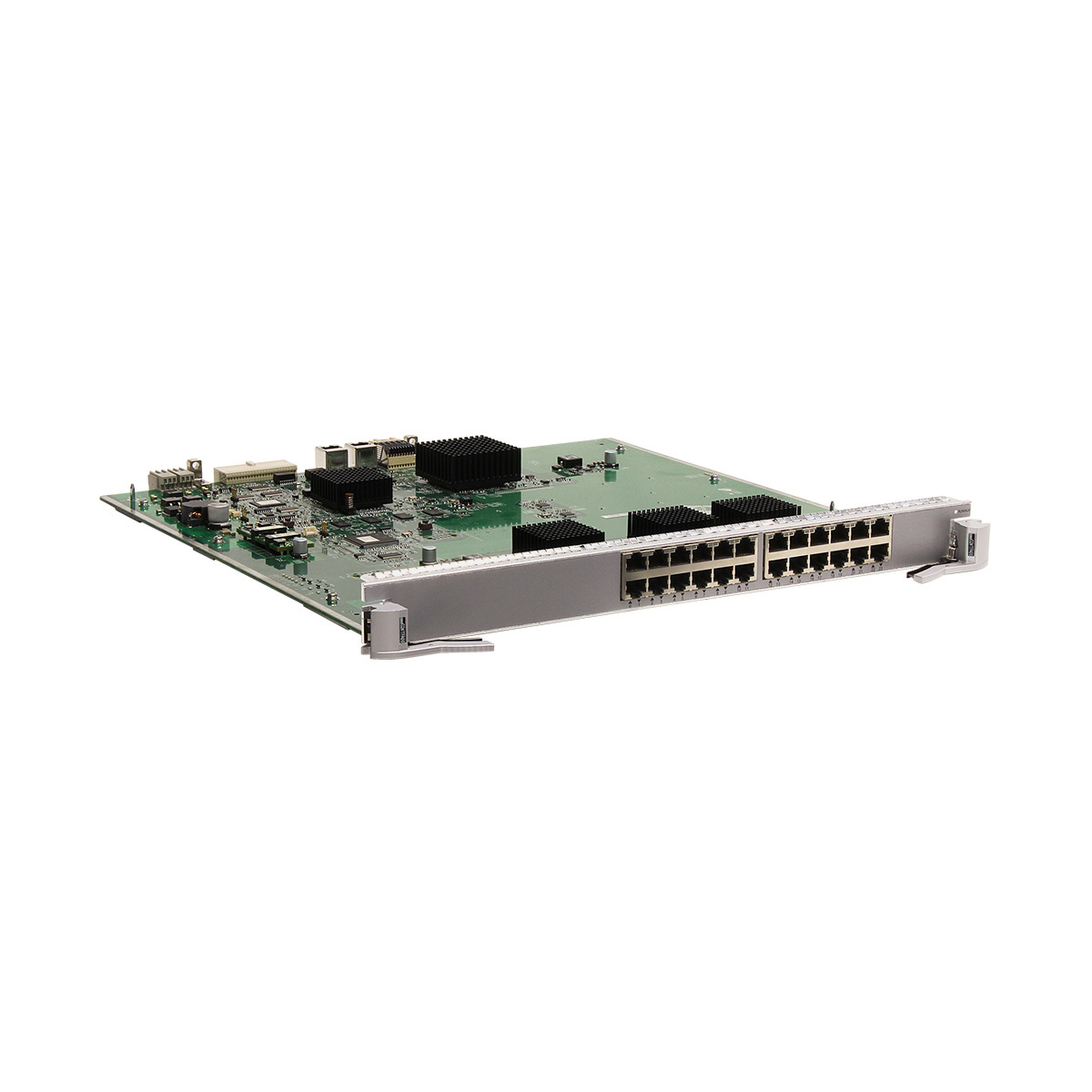

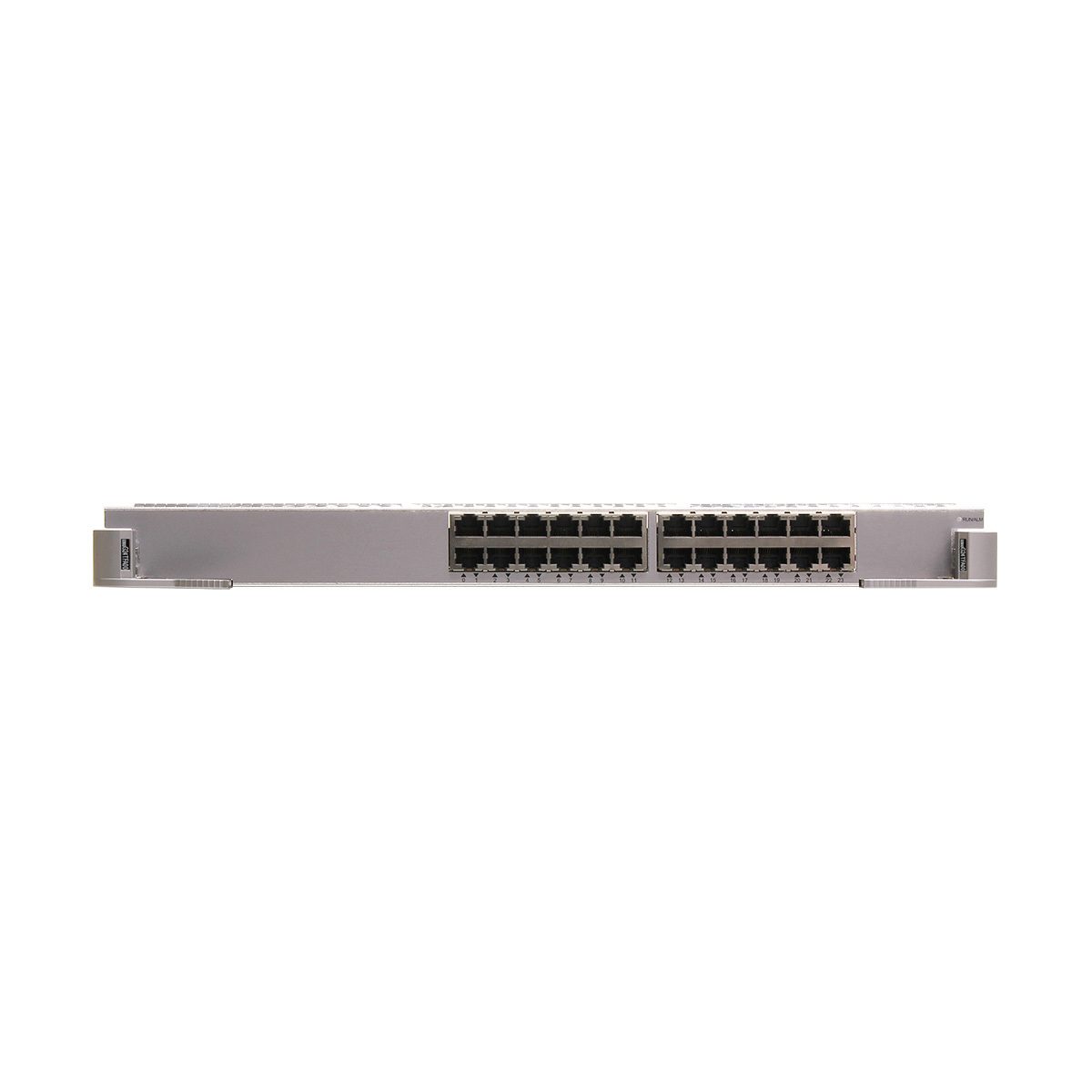

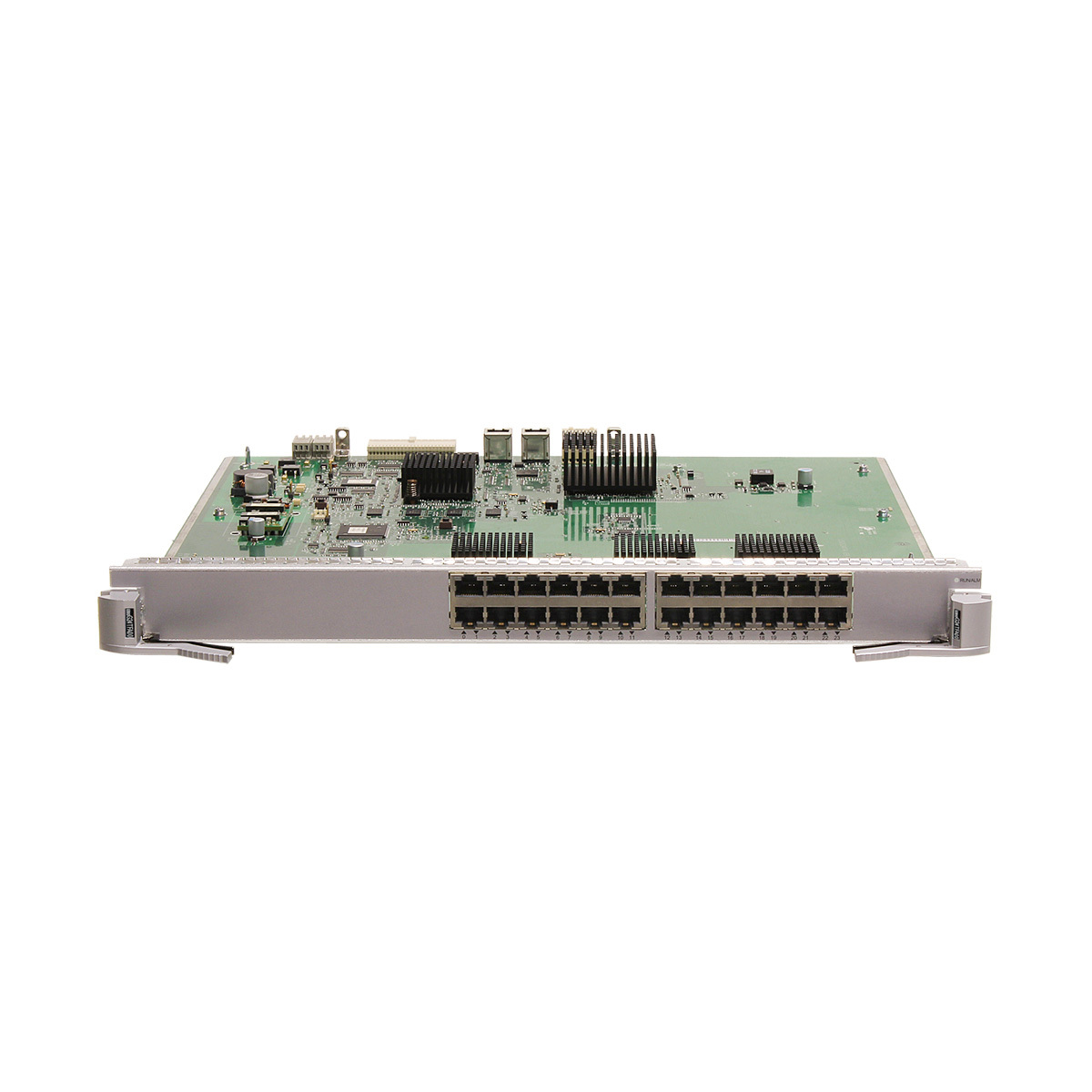

Huawei ES0DG24TFA00 Interface Card

ES0DG24TFA00 Introduction

The ES0DG24TFA00 can be installed in:

• Slots 01 to 03 in an S7703 or S7703 PoE chassis.
• Slots 01 to 06 in an S7706 or S7706 PoE chassis.
• Slots 01 to 12 in an S7712 chassis.

S7700-S Series Switches Overview

The S7700 series switches (S7700 for short) are high-end smart routing switches designed for nextgenerationenterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive H-QoS policies, controllable multicast, load balancing, and security, in addition to high-performanceLayer 2 to Layer 4 switching services.

Targeted High-Density Access Expansion for Enterprise Networks
The Huawei ES0DG24TFA00 Interface Card is engineered to expand port density in Huawei S7700 series switches, meeting the demands of enterprise-level access layer deployments. Designed primarily for network engineers and system integrators managing large-scale infrastructures, this interface card supports installation across multiple chassis types including S7703, S7706, and S7712 models. It addresses the need for compact, scalable, and reliable copper Ethernet connectivity within corporate, campus, and data center environments that require seamless expansion capabilities without compromising existing network performance. As a modular solution, the Huawei ES0DG24TFA00 Interface Card integrates efficiently into evolving network architectures focused on gigabit data transmission and accessibility.

Technical Specifications and Advanced Energy Management
Featuring 24 RJ45 ports that support 10/100/1000BASE-T standards and compliance with IEEE 802.3ab and IEEE 802.3az protocols, the Huawei ES0DG24TFA00 delivers robust Ethernet performance. The interface card occupies a standardized footprint of 394.7 mm by 426.8 mm, with a power consumption capped at 32 W, enabled by Energy Efficient Ethernet (EEE) technology that adjusts power dynamically based on traffic load. Distributed forwarding across a distributed data plane enhances throughput without introducing network latency or bandwidth bottlenecks. The module supports hot-swapping, enabling maintenance or upgrades without service disruption. Its compatibility extends to various slot configurations to maximize infrastructure flexibility and optimize rack space in Huawei S7700 chassis series.

Industry Integration and Operational Value in High-Density Networks
The deployment of the Huawei ES0DG24TFA00 Interface Card significantly enhances network efficiency in sectors requiring dense gigabit Ethernet access, including corporate campuses, service providers, and testing laboratories. Its copper-based 24-port design enables seamless replacement of legacy interface cards, thus supporting network refresh cycles with minimal operational overhead. The module supports rapid scalability, meeting increasing demands for connected devices while maintaining compliance with industry Ethernet standards. Furthermore, the card’s robust performance supports large-scale network topologies with distributed forwarding capabilities, ensuring minimal packet loss and stable network performance critical to enterprise-grade infrastructures.


Product Advantages

Modular Design and System Compatibility Benefits
The Huawei ES0DG24TFA00 Interface Card boasts a modular architecture engineered for seamless integration within Huawei’s S7700 chassis families, including models S7703, S7706, and S7712. Its hot-swappable design facilitates easy installation and maintenance, minimizing downtime during network upgrades. The card’s compact dimensions and compliant form factor ensure efficient chassis slot utilization, making it ideal for scalable network expansion projects. Compatibility with industry-standard RJ45 connectors and IEEE protocols underlines the design’s focus on interoperability. Additionally, distributed forwarding embedded in the card’s architecture provides a scalable, resilient data processing system that meets demanding enterprise network requirements.

Optimized Performance and Operational Efficiency
This interface card delivers high throughput with 24 copper Ethernet ports operating at gigabit speeds, ensuring capable handling of bandwidth-intensive applications. The inclusion of Energy Efficient Ethernet (EEE) technology contributes to reduced power consumption without sacrificing data transmission quality, facilitating cost-effective operational management. Hot-swappable capability supports continuity in production environments, allowing real-time replacements or upgrades without disrupting service. The card's stability under full-load operation and compatibility with sophisticated network protocol stacks boosts overall network reliability and reduces total cost of ownership through enhanced energy efficiency and simplified system maintenance for network operators.


Functions of the ES0DG24TFA00

Ports on the ES0DG24TFA00

Technical specifications

Use Scenarios

Enhancement of Campus Network Infrastructure
In densely populated campus network environments, where extensive device connectivity and high-speed data access are prerequisites, the Huawei ES0DG24TFA00 Interface Card plays a critical role. It enables network administrators to expand edge access by providing 24 additional RJ45 Ethernet ports compliant with gigabit standards. This capability supports network segmentation, reduces congestion, and improves overall throughput by integrating distributed forwarding technology across the network. The card’s hot-swappable design aligns with operational continuity needs, allowing upgrades during business hours without interrupting campus services. Moreover, its energy-efficient operation supports green IT initiatives in public and educational institutions, aligning with regulatory and sustainability goals.

Role in Enterprise Data Center Access Layers
Data center environments require modular, high-density networking components to accommodate rapid service scaling and maintain stringent uptime requirements. The Huawei ES0DG24TFA00 Interface Card’s integration within S7700 chassis platforms allows for flexible port expansions that enhance uplink capacity and edge connectivity. Its compliant RJ45 connectors and support for IEEE 802.3az enable efficient copper-based connectivity while controlling energy consumption across dense switch fabrics. The card’s support for distributed forwarding enhances data flow management, critical in high-demand environments that process large volumes of traffic with low latency requirements. It is compatible with routine network management tools, facilitating streamlined workflows in complex enterprise data centers.


ES0DG24TFA00 FAQ

Q1: Is it compatible with Huawei S5730 switches? Will there be a bandwidth bottleneck when all 24 ports are running at full load simultaneously?

A1: Fully compatible! Supports the entire S5700/S6700 series, backplane bandwidth ≥24Gbps, no bottlenecks under full load transmission, meeting the needs of small gigabit access layers;

Q2: How is the transmission stability at 55m when using Cat.5e copper cable to connect security equipment? What are the specific advantages of low power consumption?

A2: Signal attenuation <0.25dB within 55m, no packet loss; single-board power consumption ≤22W, 30% lower than ordinary mid-range models (approximately 32W), saving approximately 1200 RMB in electricity costs annually for 10 boards;

Q3: How to choose between 16/32-port / high-end low-power / ordinary mid-range circuit boards?

A3: 16 ports are suitable for <15 devices, 32 ports / 48 ports offer functional redundancy. High-end low-power models are over budget, and ordinary mid-range models are not energy-efficient. For 15-30 devices + ≤100m short distance + mid-range energy-saving requirements, this product offers the best cost performance.
