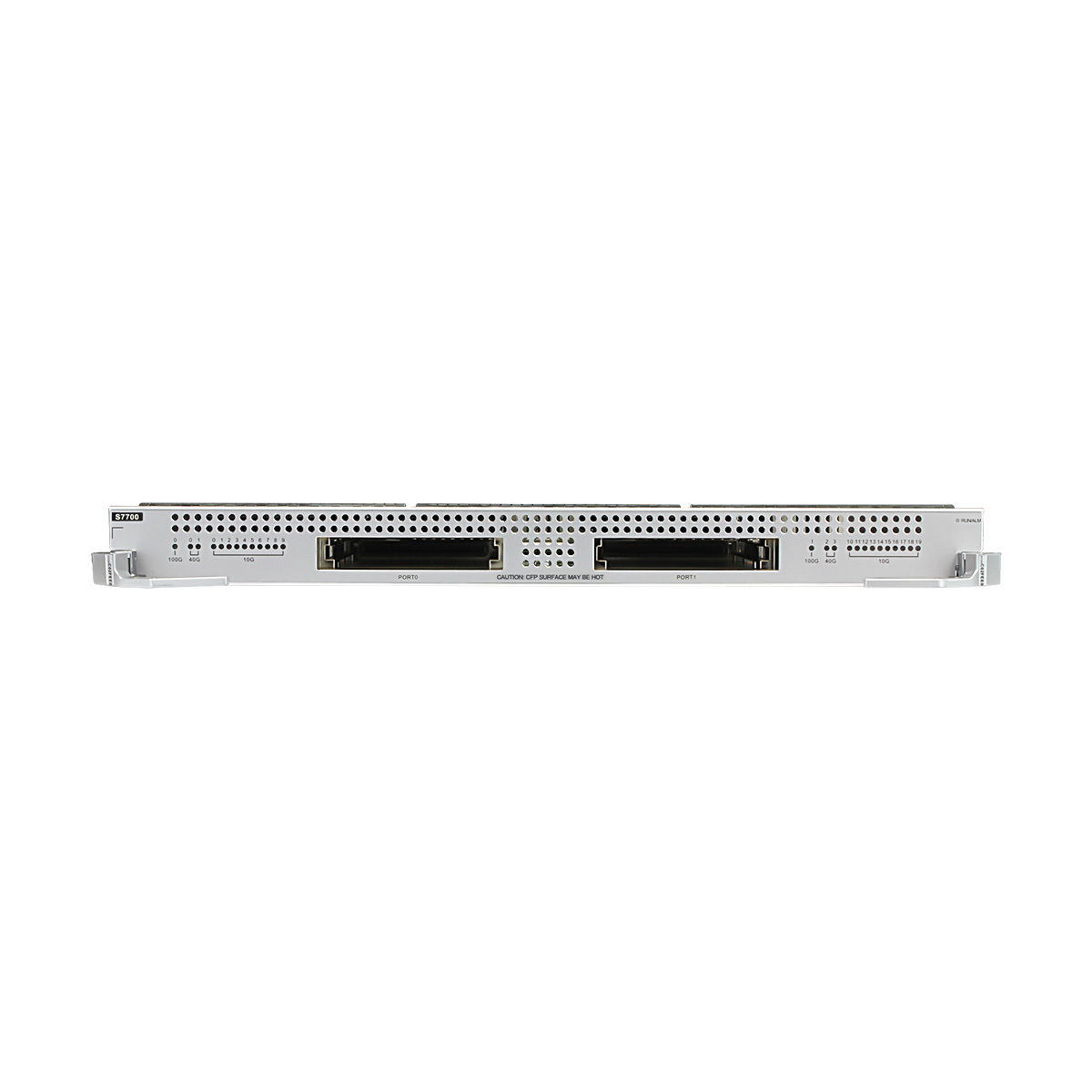

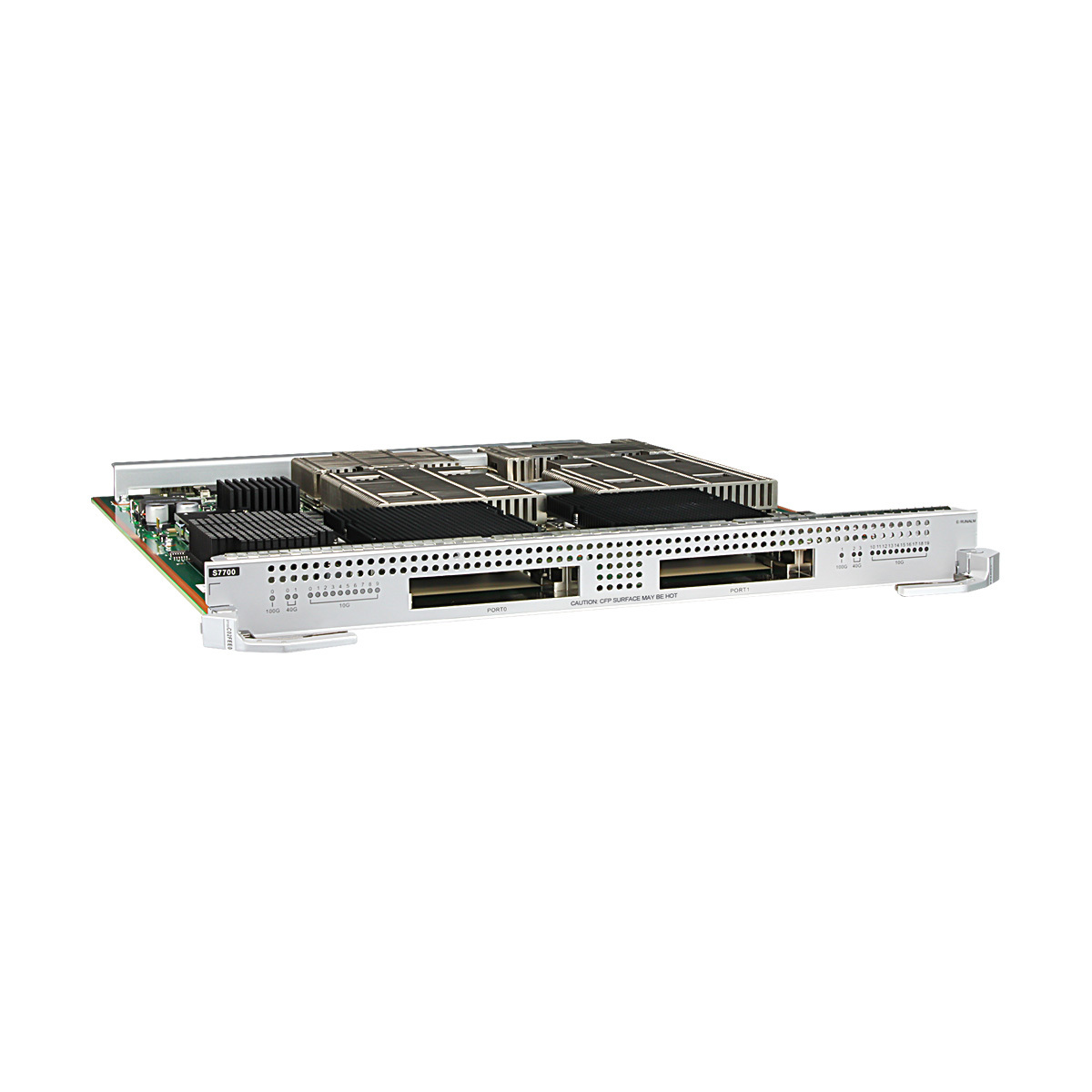

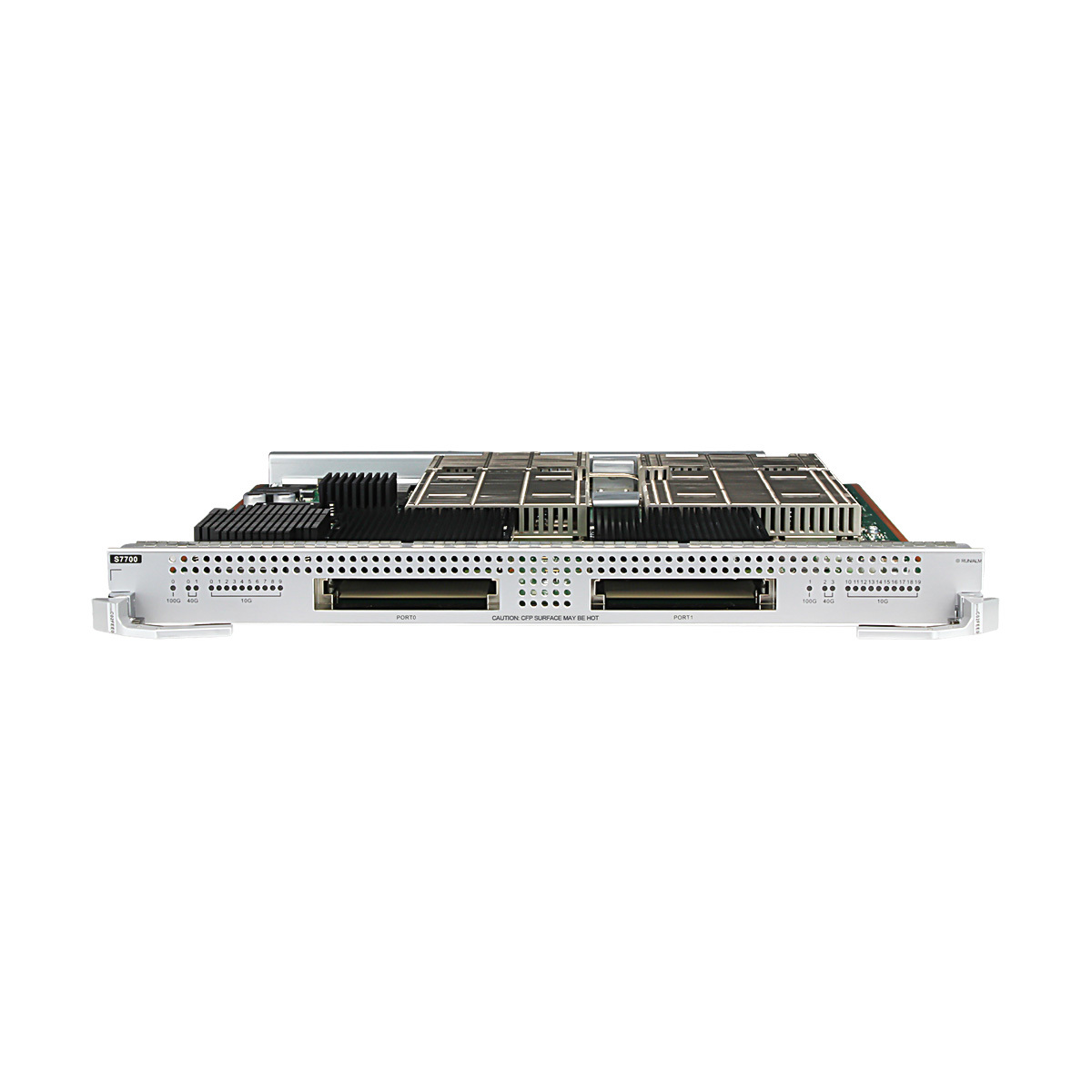

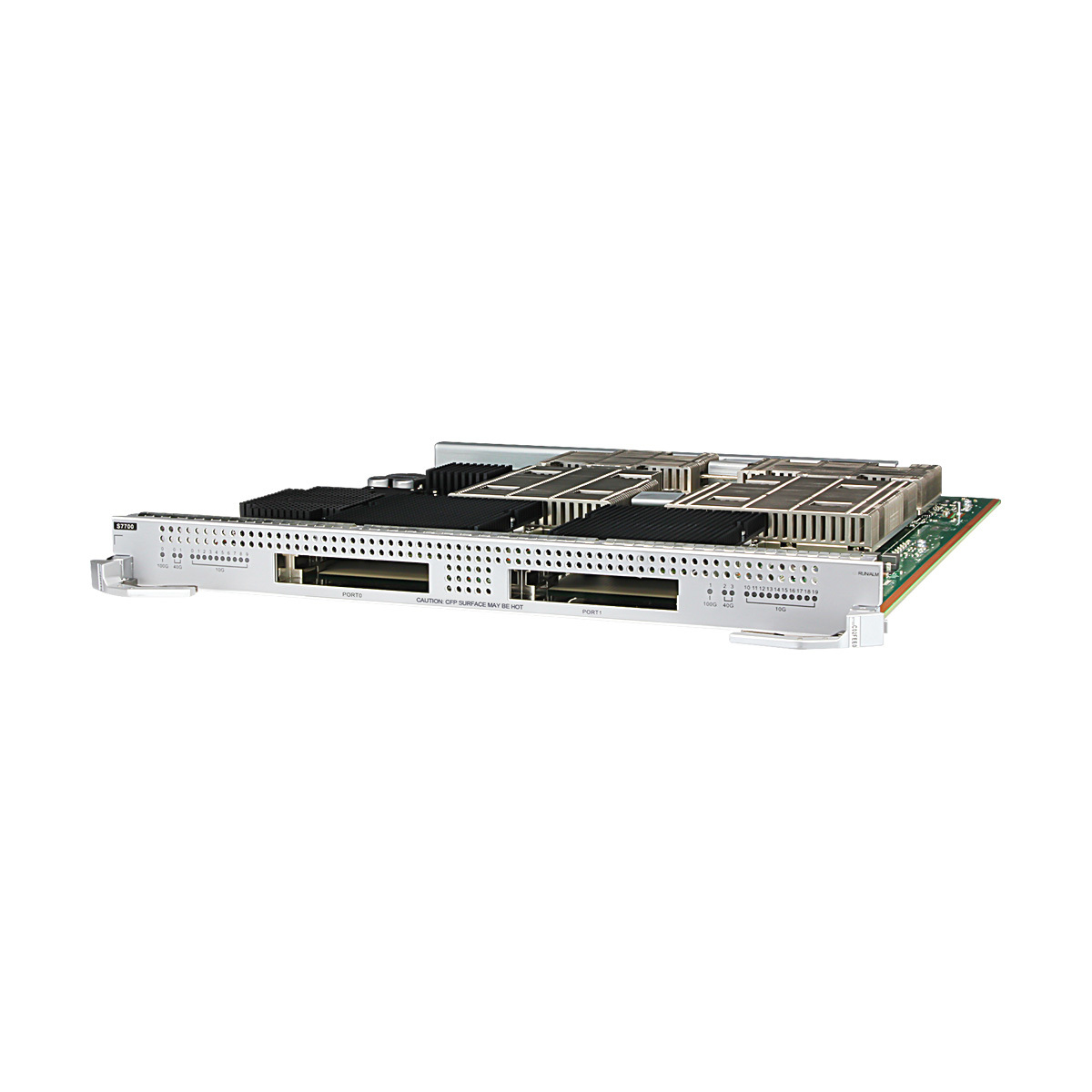

Huawei ES1D2C02FEE0 Interface Card

ES1D2C02FEE0 Introduction

The ES1D2C02FEE0 can be installed in:

• Slots 01 to 03 in an S7703 or S7703 PoE chassis.
• Slots 01 to 06 in an S7706 or S7706 PoE chassis.
• Slots 01 to 12 in an S7712 chassis.

S7700-S Series Switches Overview

The S7700 series switches (S7700 for short) are high-end smart routing switches designed for nextgenerationenterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive H-QoS policies, controllable multicast, load balancing, and security, in addition to high-performanceLayer 2 to Layer 4 switching services.

Targeted High-speed Connectivity for Enterprise Networks
The Huawei ES1D2C02FEE0 Interface Card is engineered for network operators and system integrators aiming to upgrade existing Huawei S7700 series switch chassis with high-capacity uplinks. It supports installation in multiple chassis variants, including the S7703, S7706, and S7712, ensuring flexibility in deployment across diverse enterprise environments. This 2-port 100GBASE-X module addresses the increasing demand for higher bandwidth in core and aggregation layers, especially within data centers and campus networks. Businesses requiring scalable backbone solutions that reduce congestion while maintaining compatibility with Huawei infrastructure will find this interface card suited to their operational requirements.

Advanced Technical Specifications Enabling Efficient Data Transmission
Equipped with two CFP EE interfaces, the Huawei ES1D2C02FEE0 Interface Card delivers reliable 100GBASE-X optical uplinks, providing enhanced bandwidth capacity and low latency. Its compatibility with specific slots in the Huawei S7700 chassis offers modular deployment options catering to network expansion plans. This module supports enterprise-level performance standards, reflected in its enterprise edition designation (EE), which optimizes throughput and stability under demanding workloads. The interface card's dimensions and weight are designed to integrate seamlessly with existing hardware, maintaining system integrity without compromising on airflow or thermal management. Monitoring features and compatibility with MF-Telecom’s support services ensure operational continuity and integration efficiency.

Integration in High-Density Backbone and Service Provider Networks
This Huawei ES1D2C02FEE0 Interface Card is widely applied in constructing 100G backbone networks across data centers, large enterprise campuses, and service provider aggregation points. Its dual 100G port configuration facilitates resilient uplink connectivity with failover capabilities, addressing redundancy requirements in critical infrastructures. The module supports contemporary network architectures by enabling smooth transitions from 10G or 40G configurations to 100G, future-proofing the infrastructure against escalating bandwidth demands. Integration with existing Huawei switch families and coordination with MF-Telecom’s product ecosystem ensures consistent network performance and simplified management within multi-vendor environments.


Product Advantages

Modular Design and Adaptive System Integration
The structural design of the Huawei ES1D2C02FEE0 Interface Card centers on modular compatibility with Huawei S7700-S Series chassis, allowing installation flexibility across multiple slot configurations. This adaptability supports scalable hardware upgrades without requiring comprehensive system overhauls. The interface card's CFP form factor facilitates high-density optical port deployment while maintaining chassis airflow standards and thermal control. Its enterprise edition classification guarantees optimized firmware alignment with Huawei’s switch operating systems, improving hardware-software compatibility. The card’s design permits swift deployment and straightforward replacement, enhancing network uptime and maintenance efficiency.

Enhanced Performance with Enterprise-grade Reliability
Performance-wise, the Huawei ES1D2C02FEE0 Interface Card delivers robust 100Gbps optical throughput per port, minimizing latency and congestion in data-intensive environments. Its enterprise edition ensures stable signal quality and error correction under high network load conditions. The card supports automatic speed negotiation and operates seamlessly within Huawei’s system management frameworks, reducing configuration complexity. By providing dual-port functionality, it supports link aggregation and redundancy strategies, which increase network resilience. Users benefit from MF-Telecom’s comprehensive technical support, ensuring quick troubleshooting and optimized configuration tailored to enterprise network demands.
