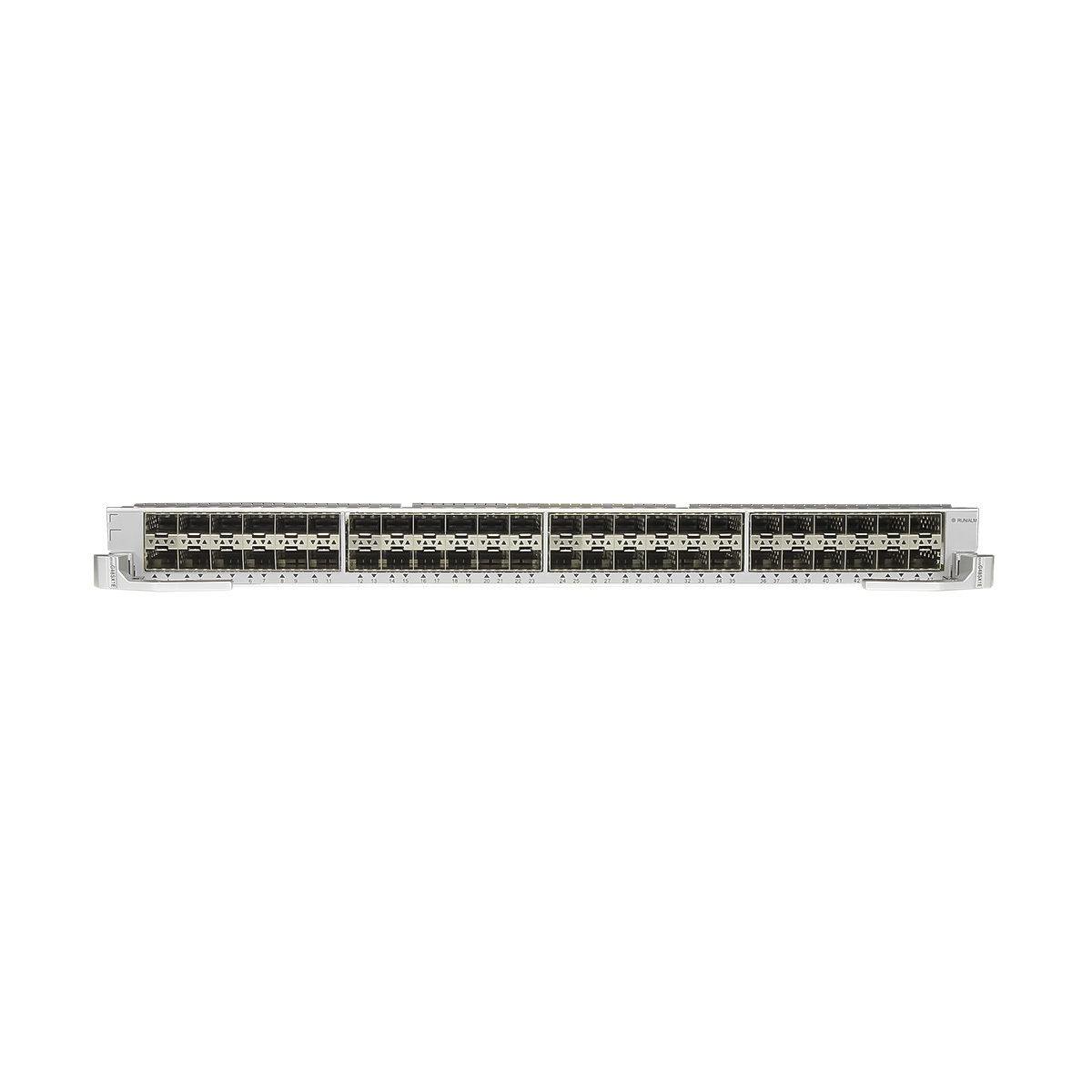

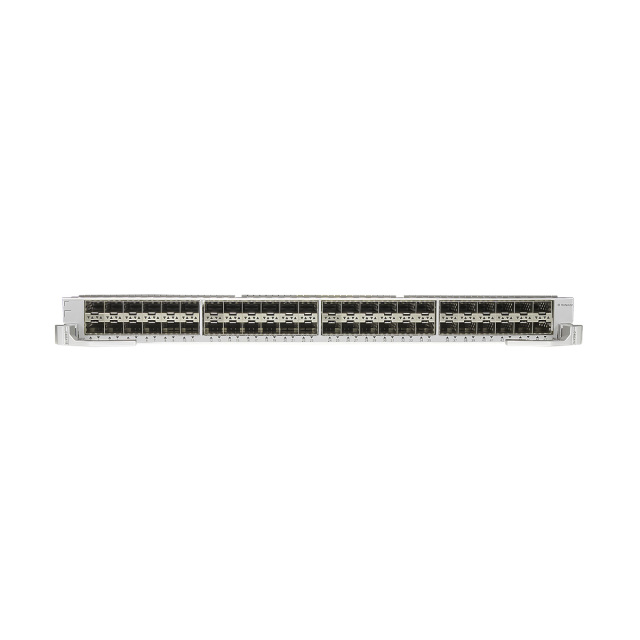

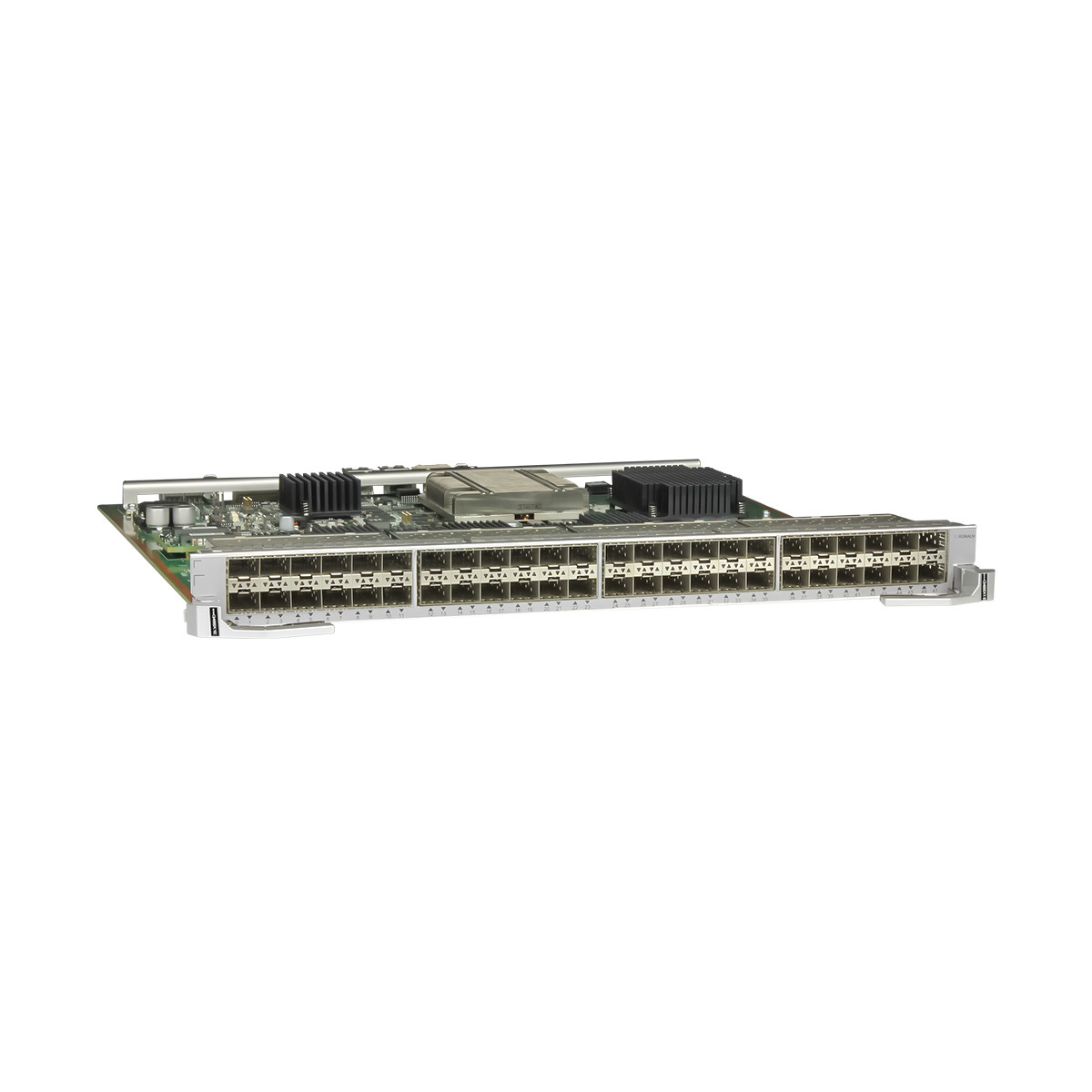

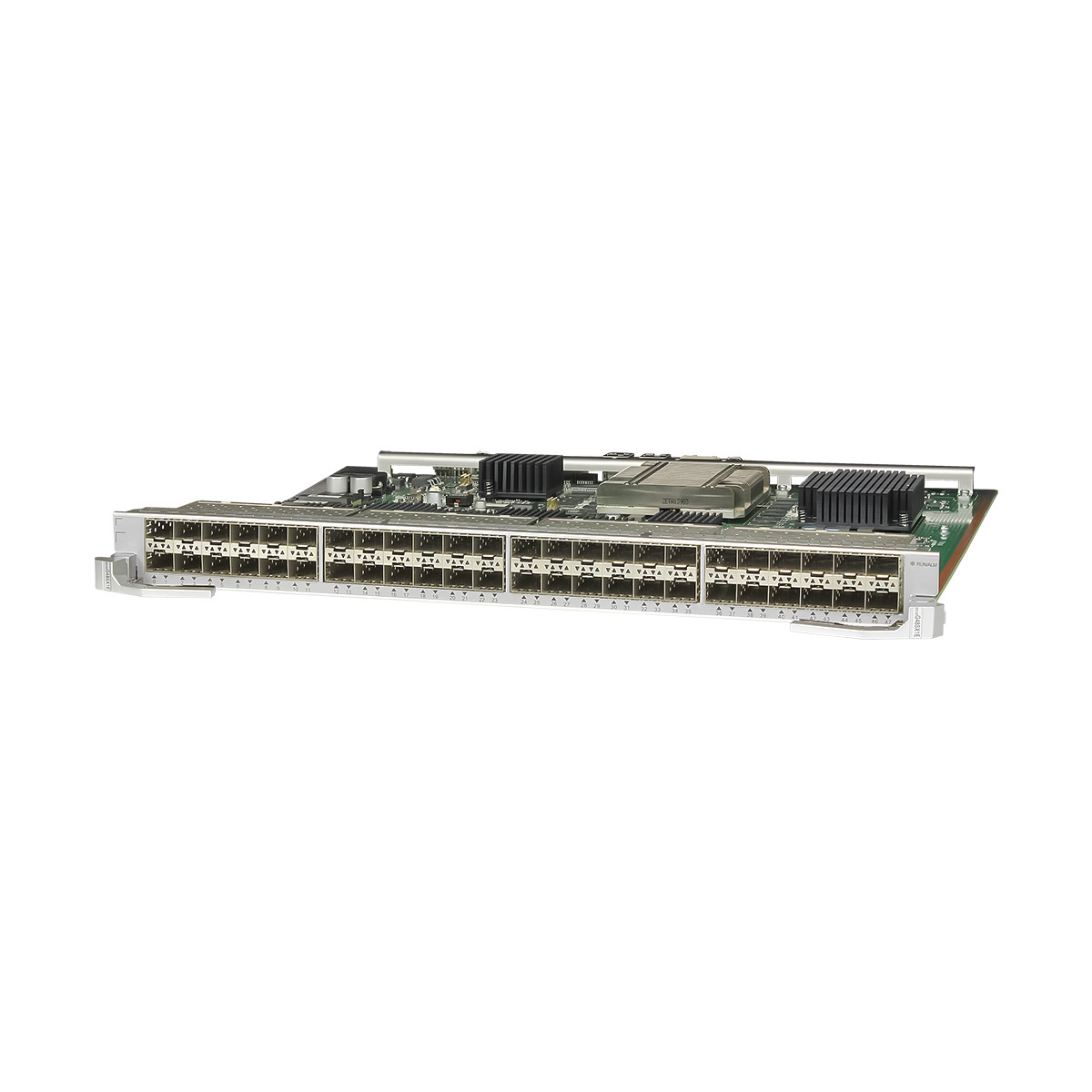

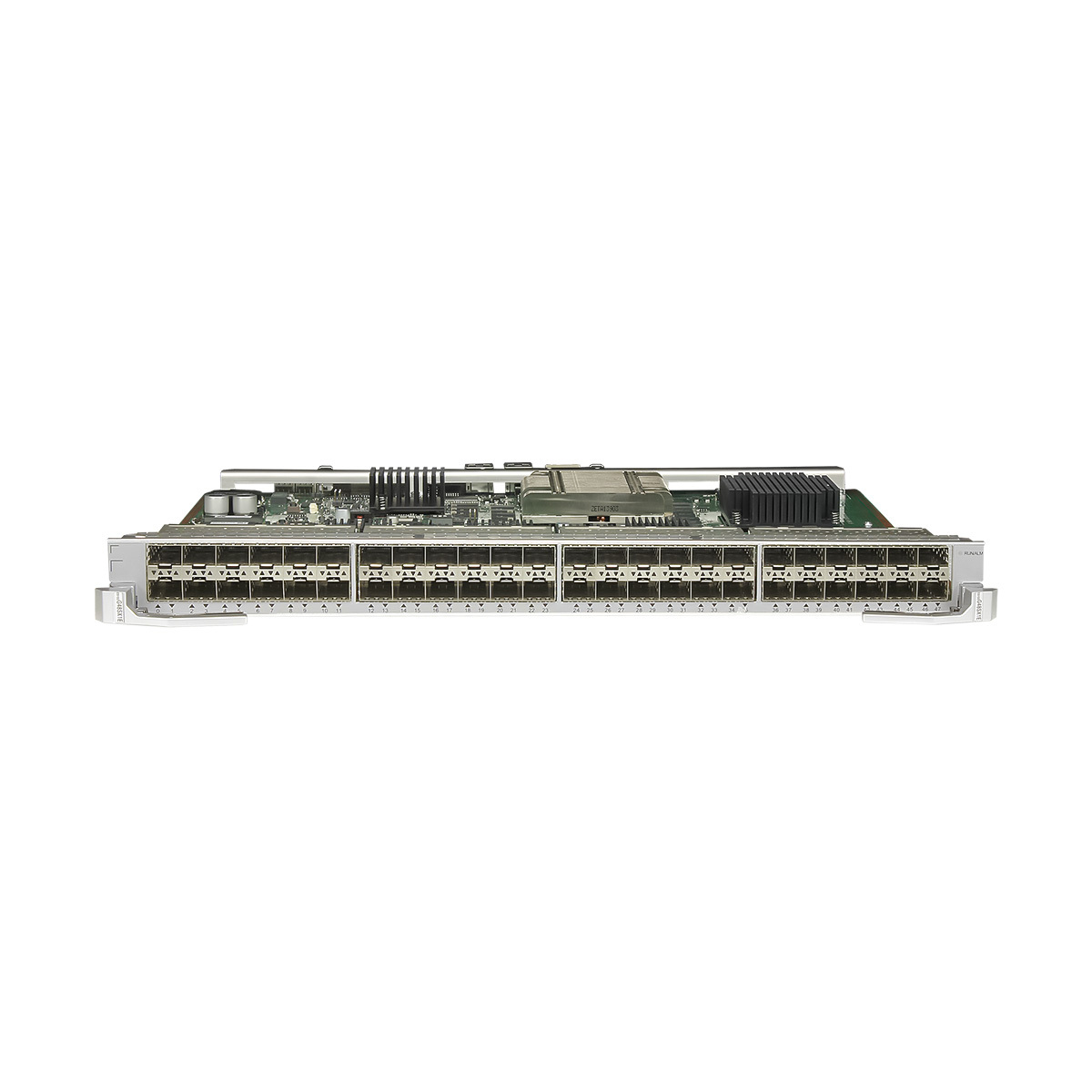

Huawei ES1D2G48SX1E Interface Card

ES1D2G48SX1E Introduction

The ES1D2G48SX1E can be installed in:

• Slots 01 to 03 in an S7703 or S7703 PoE chassis.
• Slots 01 to 06 in an S7706 or S7706 PoE chassis.
• Slots 01 to 12 in an S7712 chassis.

S7700-S Series Switches Overview

The S7700 series switches (S7700 for short) are high-end smart routing switches designed for nextgenerationenterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive H-QoS policies, controllable multicast, load balancing, and security, in addition to high-performanceLayer 2 to Layer 4 switching services.

Technical specifications

Use Scenarios

Data Center Core Upgrading and Traffic Aggregation
In a data center environment, where core switches must support intensive data flows and high port density, the Huawei ES1D2G48SX1E Interface Card plays a vital role in expanding Ethernet interfaces by 48 ports on Huawei S7700 switches. Its compliance with IEEE 802.3ab ensures compatibility with existing fiber infrastructure, enhancing link aggregation capabilities and traffic segmentation. This solution minimizes latency and packet loss, which is critical for virtualization, cloud computing, and storage networks. The hot-swappable design facilitates on-the-fly upgrades and replacements without disrupting critical business operations, enabling seamless integration into automated network management workflows.

Enterprise Campus Network Expansion and Fiber Integration
Within enterprise campus networks, managing diverse access demands and flexible fiber deployment requires reliable interface solutions like the Huawei ES1D2G48SX1E Interface Card. This solution supports mixed media connectivity with SFP-based fiber and copper modules, accommodating various link distances and network segmentation needs. Its compatibility with Huawei’s switch architecture allows network administrators to optimize topology design while ensuring stable data transmission across distribution and access layers. By supporting extensive port density and flexible media types, this interface card enables scalable network evolution aligned with organizational growth and dynamic user traffic patterns, meeting compliance and performance standards essential for enterprise IT infrastructures.


ES1D2G48SX1E FAQ

Q1: Is it compatible with Huawei S9708 switches? Will there be bandwidth bottlenecks with 48 ports operating at full load and long-distance transmission?

A1: Fully compatible! Supports the entire S9300/S9700 series, backplane bandwidth ≥48Gbps, no bottlenecks under full load transmission, low insertion loss design ensures stability within 80km, meeting large-scale access needs;

Q2: How is the signal stability when paired with ZX modules for 80km long-distance transmission? How much of a price advantage does it have compared to the ultra-long-distance version?

A2: Signal attenuation <0.8dB within 80km, no packet loss; price is 25% lower than the 120km ultra-long-distance version, offering the best cost-performance ratio when ultra-long-distance requirements are not needed, compatible with IEEE standard third-party modules;

Q3: How to choose between 24/32-port/ultra-long-distance high-end line boards?

A3: 24 ports are suitable for <30 devices, 32 ports are suitable for 30-40 devices, and the ultra-long-range version is suitable for scenarios >80km; for more than 40 devices + 300m-80km long distance + controllable budget, this product offers the best cost performance.
