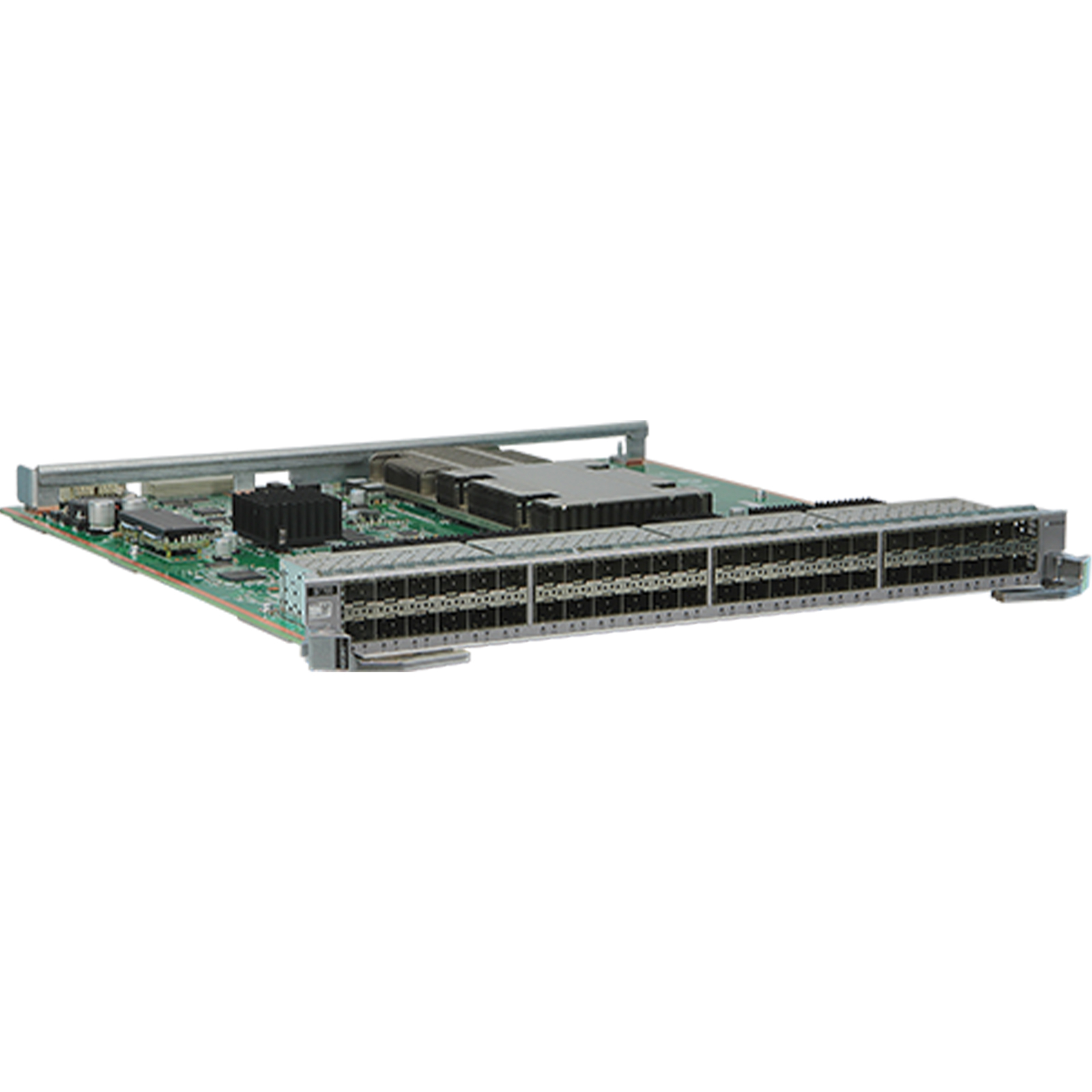

Huawei ES1D2G48SX5H Interface Card

ES1D2G48SX5H Introduction

The ES1D2G48SX5H can be installed in:

• Slots 01 to 03 in an S7703 or S7703 PoE chassis.
• Slots 01 to 06 in an S7706 or S7706 PoE chassis.
• Slots 01 to 12 in an S7712 chassis.

S7700-S Series Switches Overview

The S7700 series switches (S7700 for short) are high-end smart routing switches designed for nextgenerationenterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive H-QoS policies, controllable multicast, load balancing, and security, in addition to high-performanceLayer 2 to Layer 4 switching services.

Technical specifications

Use Scenarios

High-Density Access Expansion in Enterprise Campus Networks
In enterprise campus environments, scaling network access points while maintaining performance is critical. The Huawei ES1D2G48SX5H Interface Card serves as a vital component within S7700-series chassis, enabling the consolidation of up to 48 Gigabit Ethernet ports for user access and distribution. Its hot-swappable design accommodates dynamic operational needs, allowing network teams to perform upgrades or replacements seamlessly. With support for Huawei’s multi-layer switching protocols and flexible SFP modules, the card ensures compliance with organizational security policies and optimized traffic management, facilitating integration into existing network architectures for cohesive system expansion.

Data Center Access Consolidation for Scalable Infrastructure
In data center environments where dense Layer 2 and Layer 3 connectivity is required, the Huawei ES1D2G48SX5H Interface Card plays a critical role by providing high-density optically connected ports within the Huawei S7700 series chassis. The card supports scalable uplinks via SFP interfaces, accommodating diverse fiber distance demands and minimizing latency. Its distributed forwarding architecture balances traffic loads to maximize throughput. This integration improves switch fabric efficiency and simplifies network topology, enabling data centers to respond to increasing bandwidth requirements and evolving service needs while maintaining operational excellence and compliance with industry protocols.


ES1D2G48SX5H FAQ

Q1: Is it compatible with Huawei S9708 switches? Will there be bandwidth bottlenecks with 48 ports operating at full load simultaneously and ultra-long-distance transmission over 120km?

A1: Fully compatible! Supports the entire S9300/S9700 series, with backplane bandwidth ≥48Gbps. Full-load transmission is bottleneck-free, and the low insertion loss design ensures stable ultra-long-distance transmission, meeting cross-city access needs.

Q2: How is the signal stability when using ZE modules for 120km ultra-long-distance transmission? Is it compatible with third-party compliant SFP modules?

A2: Signal attenuation <1dB within 120km, with no packet loss or latency fluctuations. Huawei original modules are preferred, but IEEE standard third-party modules are also compatible, offering flexible adaptation and controllable costs.

Q3: How to choose between 24/32-port / standard long-distance high-end line boards?

A3: 24 ports are suitable for <30 devices, 32 ports are suitable for 30-40 devices, and the standard long-distance model only supports ≤80km; for more than 40 devices and ultra-long-distance requirements of 80km-120km, this product offers the best cost performance.
