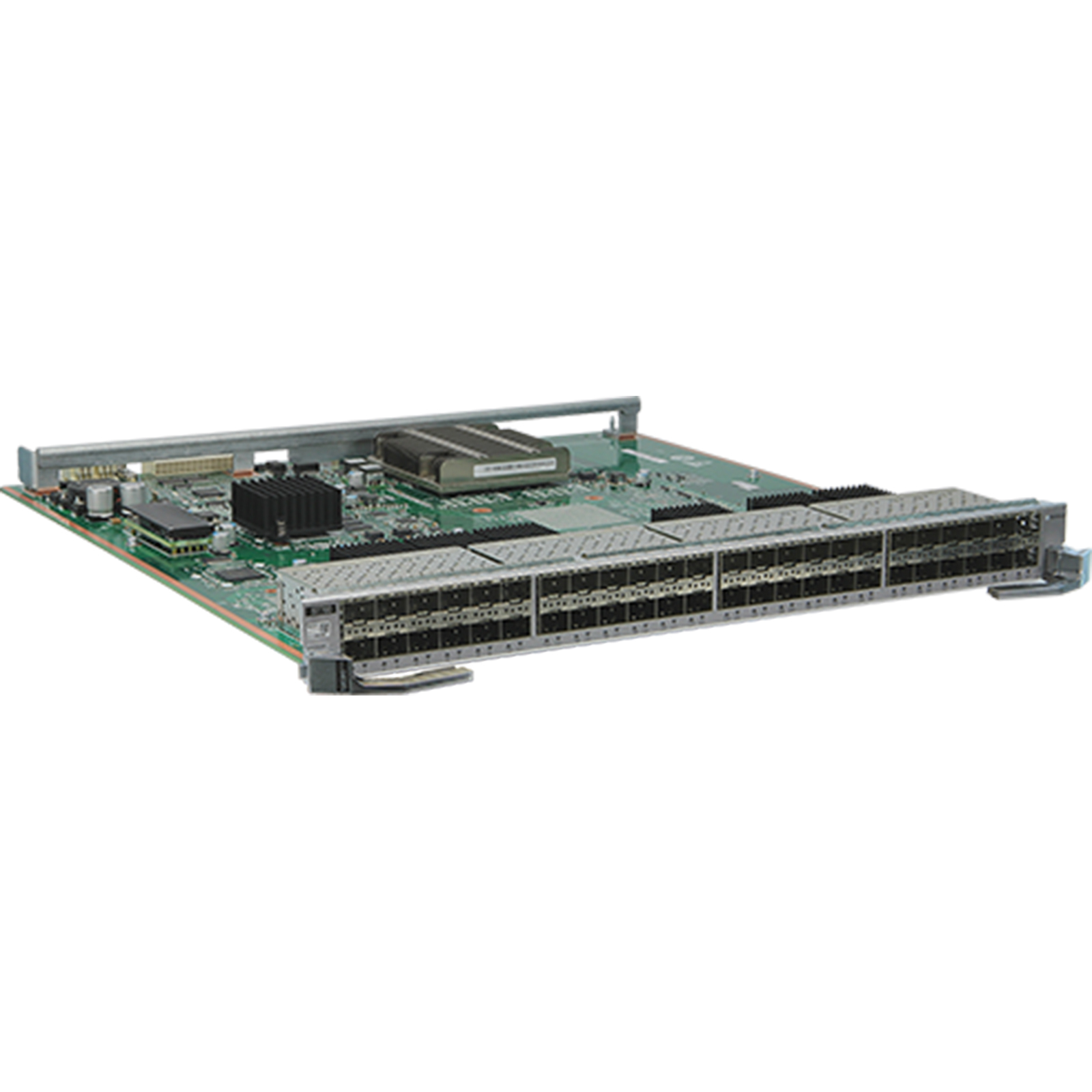

Huawei ES1D2G48SX5L Interface Card

ES1D2G48SX5L Introduction

The ES1D2G48SX5L can be installed in:

• Slots 01 to 03 in an S7703 or S7703 PoE chassis.
• Slots 01 to 06 in an S7706 or S7706 PoE chassis.
• Slots 01 to 12 in an S7712 chassis.

S7700-S Series Switches Overview

The S7700 series switches (S7700 for short) are high-end smart routing switches designed for nextgenerationenterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive H-QoS policies, controllable multicast, load balancing, and security, in addition to high-performanceLayer 2 to Layer 4 switching services.

Ports on the ES1D2G48SX5L

Technical specifications

Use Scenarios

High-Density Data Center Expansion
In data center environments characterized by dense server farms and extensive virtualization, the Huawei ES1D2G48SX5L Interface Card functions as a critical component for port aggregation and optical connectivity. Its 48 GE ports enable the consolidation of numerous server connections into a streamlined switch architecture, reducing cabling complexity and enabling comprehensive traffic management. The hot-swappable nature supports continuous operations during module replacements or expansions, while compliance with IEEE 802.3z ensures compatibility with third-party optical modules, facilitating cost-effective long-distance connections and scalable network growth.

Campus Network Edge Enhancement
Within campus network infrastructures, the Huawei ES1D2G48SX5L Interface Card facilitates the expansion of network access points by providing additional gigabit optical interfaces at the switch edge. This capacity assists in supporting increasing user device density and bandwidth requirements typical in educational or enterprise campuses. Its integration with Huawei S7700 chassis supports advanced QoS and multicast policies, optimizing bandwidth allocation and network responsiveness. The card’s efficient design ensures minimal power consumption and physical space usage, critical factors for campus IT managers aiming to achieve high availability and maintain service quality under evolving network demands.


ES1D2G48SX5L FAQ

Q1: Is it compatible with Huawei S9708 switches? Will there be bandwidth bottlenecks with 48 ports operating at full load and long-distance transmission?

A1: Fully compatible! Supports the entire S9300/S9700 series, backplane bandwidth ≥48Gbps, no bottlenecks under full load transmission, low insertion loss design ensures long-distance stability, meeting large-scale access needs;

Q2: How is the signal stability when paired with ZX modules for 80km long-distance transmission? Is it compatible with third-party compliant optical modules?

A2: Signal attenuation <0.8dB within 80km, no packet loss; Huawei original modules are preferred, but it is also compatible with IEEE standard third-party modules, offering flexible adaptation and controllable costs;

Q3: How to choose between 24/32-port/Gigabit Ethernet high-end circuit boards?

A3: The 24-port version is suitable for less than 30 devices, the 32-port version is suitable for 30-40 devices, and the Ethernet version is suitable for short-distance scenarios; for more than 40 devices and long-distance requirements, this product offers the best cost performance.
