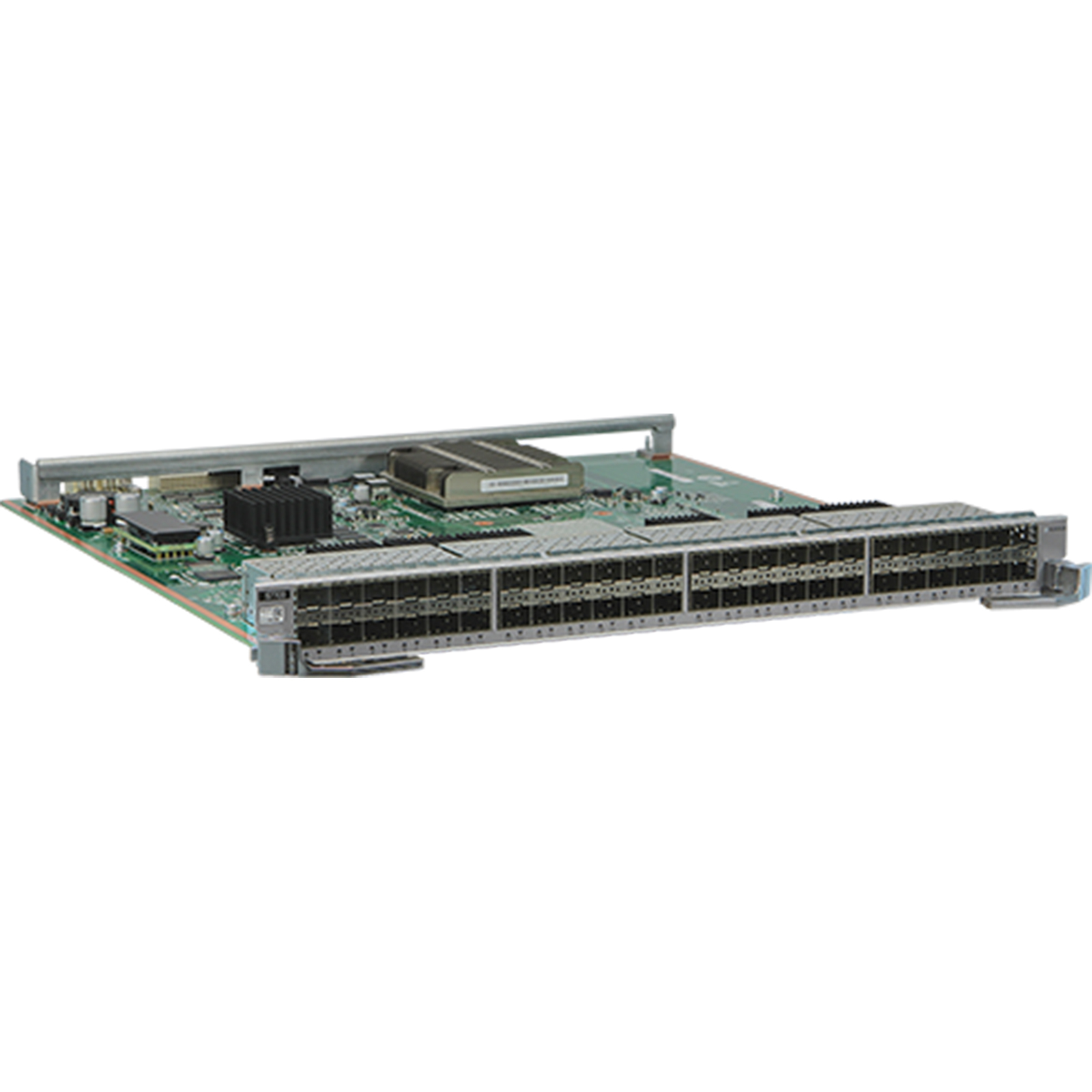

Huawei ES1D2G48SX5S Interface Card

ES1D2G48SX5S Introduction

The ES1D2G48SX5S can be installed in:

• Slots 01 to 03 in an S7703 or S7703 PoE chassis.
• Slots 01 to 06 in an S7706 or S7706 PoE chassis.
• Slots 01 to 12 in an S7712 chassis.

S7700-S Series Switches Overview

The S7700 series switches (S7700 for short) are high-end smart routing switches designed for nextgenerationenterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive H-QoS policies, controllable multicast, load balancing, and security, in addition to high-performanceLayer 2 to Layer 4 switching services.

Ports on the ES1D2G48SX5S

ES1D2G48SX5S Technical specifications

Use Scenarios

Core Network Uplink Expansion in Large Campus Environments
In expansive campus networks, the Huawei ES1D2G48SX5S Interface Card functions as a critical uplink solution, delivering 48 removable GE optical ports that scale switch capacity without extensive hardware replacement. Its support for Huawei S7700 and S7712 chassis slots enables flexible deployment in aggregation and core layers, handling increased data flows from numerous endpoints. The card’s compliance with IEEE optical standards ensures consistent signal integrity across diverse SFP modules, facilitating integration with existing fiber networks. Its hot-swappable design allows network engineers to perform live updates and expansions, ensuring uninterrupted service during peak operational hours and supporting continuous enterprise workflow efficiency.

Application in Telecommunications and Data Center Aggregation Layers
Telecommunications providers and data centers require high-density, resilient interface cards to support core switching layers and aggregation pathways. The Huawei ES1D2G48SX5S Interface Card addresses these demands by providing scalable port density within the robust Huawei S-series switch chassis environment. Its multilayer switching capabilities enable precise traffic management including MPLS VPN and multicast controls, enhancing service quality and network reliability. The card’s hot-swap ability reduces planned downtime, supporting rapid failover and redundancy configurations essential for 24/7 network operations. Seamlessly integrating with Huawei’s intelligent switching technology, it enables service providers to optimize load balancing and packet forwarding across complex network topologies


ES1D2G48SX5S FAQ

Q1: Is it compatible with Huawei S9708 switches? Will there be bandwidth bottlenecks with 48 ports operating at full load and long-distance transmission?

A1: Fully compatible! Supports the entire S9300/S9700 series, backplane bandwidth ≥48Gbps, no bottlenecks under full load transmission, and low insertion loss design ensures stability over long distances.

Q2: How is the signal stability when paired with the ZX module for 100km long-distance transmission? Is it compatible with third-party SFP+ modules?

A2: Signal attenuation <1dB within 100km, no packet loss; Huawei original modules are preferred, but it is also compatible with IEEE standard third-party SFP+ modules, offering flexible adaptation.

Q3: How to choose between 24/32-port/standard SFP high-end line boards?

A3: 24 ports are suitable for less than 30 devices, 32 ports are suitable for 30-40 devices, and the compatibility of the standard SFP model is limited; for more than 40 devices and long-distance requirements, this product offers the best cost performance.
