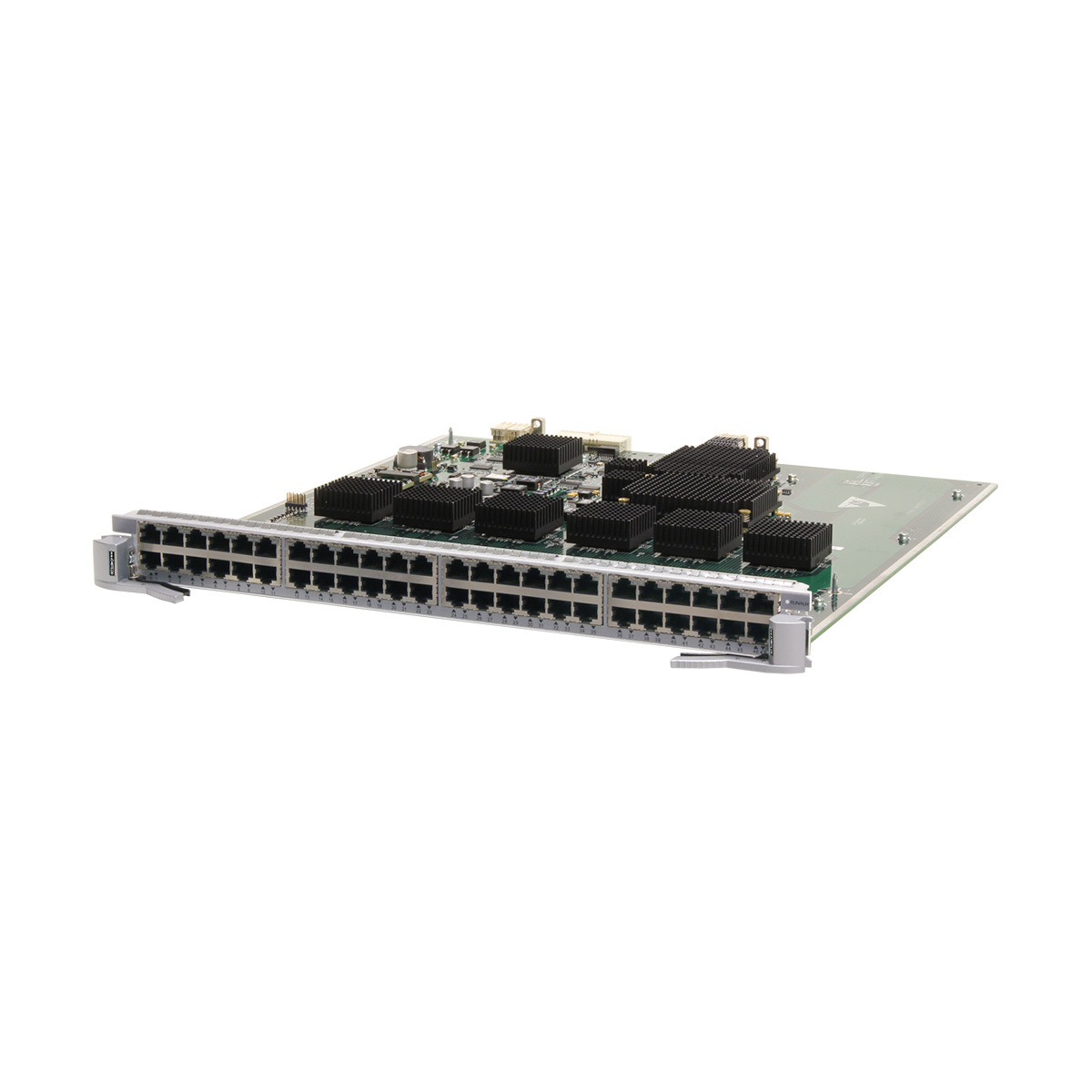

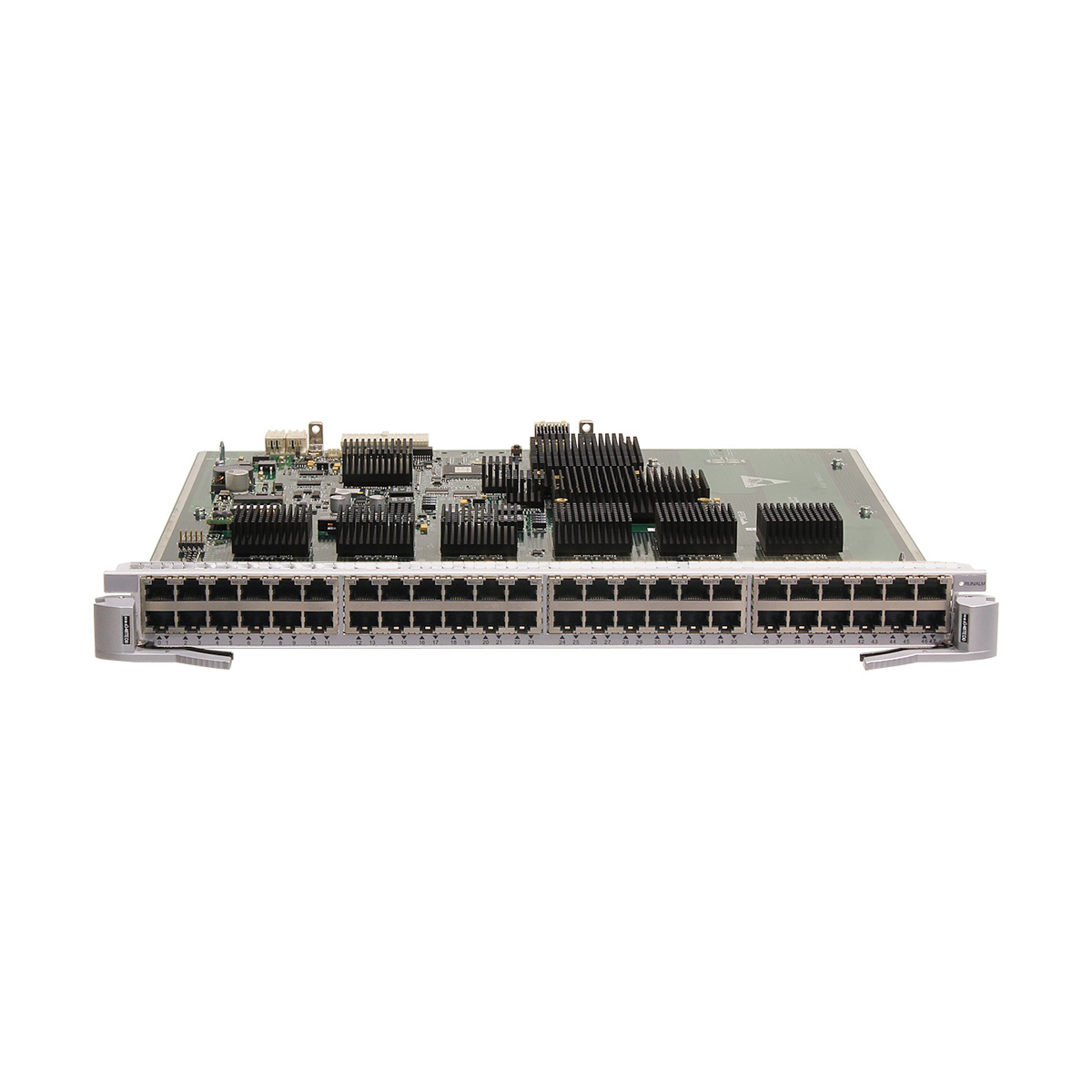

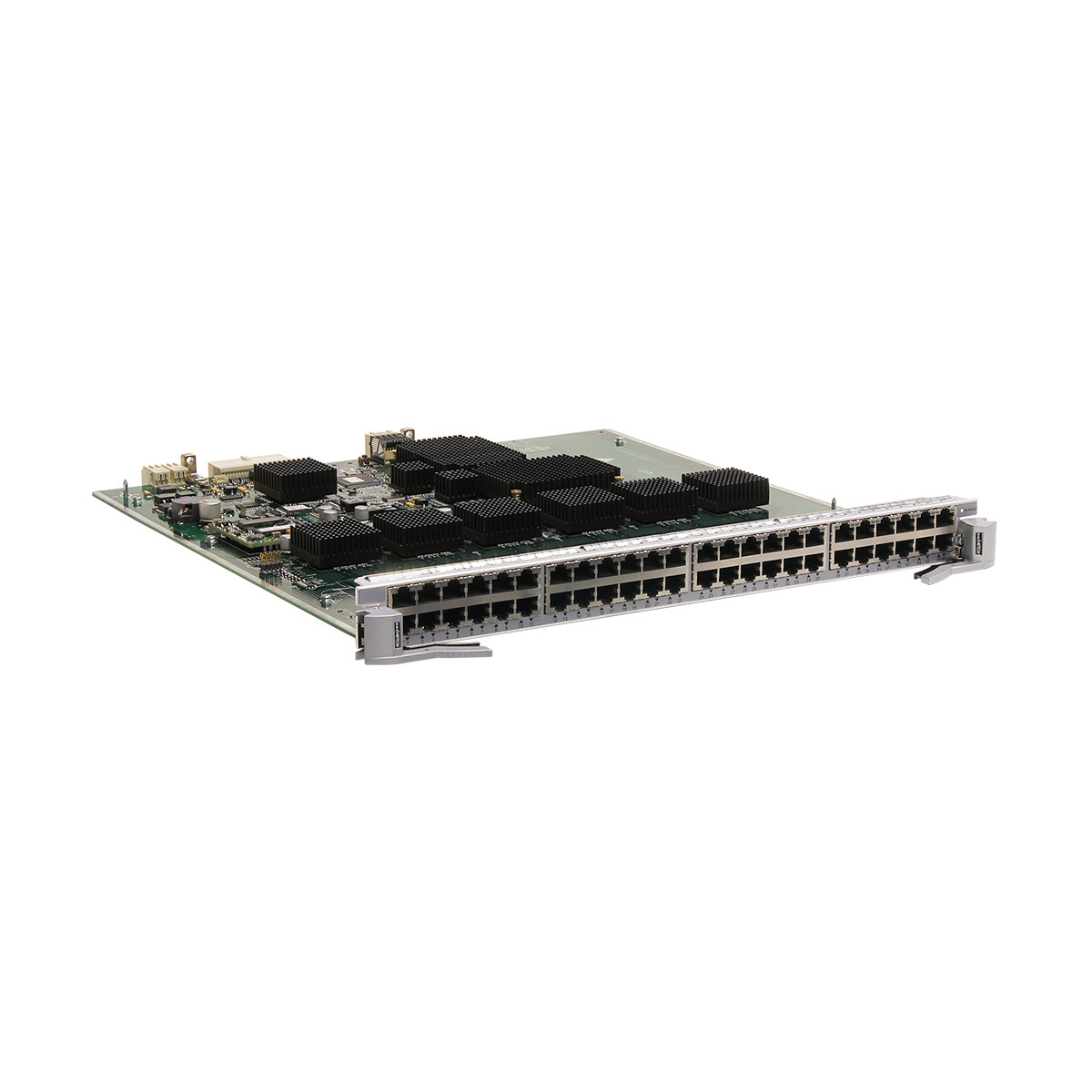

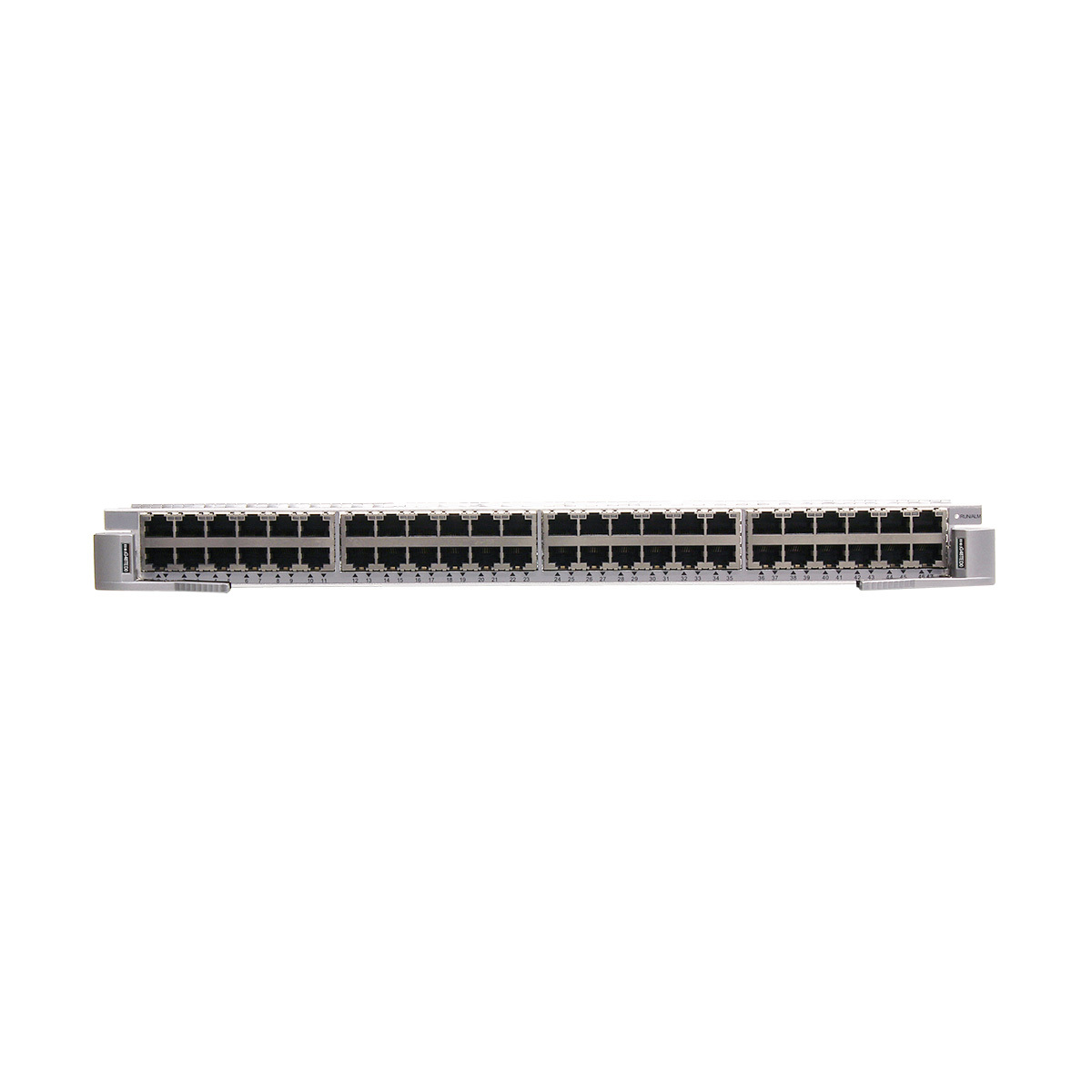

Huawei ES1D2G48TED0 Interface Card

ES1D2G48TED0 Introduction

The ES1D2G48TED0 can be installed in:

• Slots 01 to 03 in an S7703 or S7703 PoE chassis.
• Slots 01 to 06 in an S7706 or S7706 PoE chassis.
• Slots 01 to 12 in an S7712 chassis.

S7700-S Series Switches Overview

The S7700 series switches (S7700 for short) are high-end smart routing switches designed for nextgenerationenterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive H-QoS policies, controllable multicast, load balancing, and security, in addition to high-performanceLayer 2 to Layer 4 switching services.

Targeted Extension for Huawei S7700 Deployments
The Huawei ES1D2G48TED0 Interface Card is engineered to expand the port density of Huawei S7700 Series chassis, including S7703, S7706, and S7712 models, addressing the needs of enterprise network administrators and infrastructure engineers. By providing 48 copper-based GE ports in a compact form factor, this interface card supports the expansion of local access layers in high-performance routing environments. Its hot-swappable nature ensures minimal service disruption during maintenance or upgrades, making it well suited for IT teams managing complex smart routing applications within large-scale campus or data center deployments.

Technical Specifications Highlighting Network Performance
This interface card features 48 10/100/1000BASE-T ports with RJ45 connectors compliant with IEEE 802.3ab standards, supporting Ethernet_II, Ethernet_SAP, and Ethernet_SNAP frame formats. Designed to integrate seamlessly with Huawei S7700-S switches, it supports distributed forwarding and IPv4/IPv6 network protocols. The card operates within a temperature range of 0°C to 45°C and consumes up to 98W, offering reliable performance under standard data center environmental conditions. Physical dimensions and a weight of 2.5 kg facilitate installation while maintaining system airflow and thermal efficiency. Compatibility with S9300/S9700 backplanes ensures high throughput with minimized attenuation for copper runs up to 150 meters.

Industry Application in Enterprise Network Edge Access
In enterprise network infrastructure, the Huawei ES1D2G48TED0 Interface Card enables dense copper connectivity at the access layer, facilitating robust LAN segmentation and edge switching. It supports deployment scenarios that require cost-effective, high-density Ethernet ports without compromising on network performance or reliability. Organizations can leverage this card to upgrade existing S7700 platforms for improved traffic management, QoS enforcement, and security policies, especially in environments where fiber optics are not feasible or cost-effective. The card’s support for MPLS VPN and multicast control integrates well with multi-layer switching architectures prevalent in financial institutions, educational campuses, and large corporate environments.


Product Advantages

Modular Design Ensures Scalability and System Integration
The Huawei ES1D2G48TED0 Interface Card features a modular architecture tailored for seamless insertion into Huawei S7700 chassis, supporting flexible port distribution across multiple slots (01–03 for S7703, 01–06 for S7706, and 01–12 for S7712). Its hot-swappable design eliminates downtime during upgrades or replacement, facilitating continuous network availability. The physical design complies with industry-standard dimensions, ensuring compatibility and easy integration with existing network infrastructure. This structural adaptability allows network engineers to scale copper access layers efficiently while maintaining system integrity and simplifying maintenance procedures.

Optimized Performance and User Efficiency in Network Operations
From a performance perspective, the Huawei ES1D2G48TED0 Interface Card maintains stable, low-latency data transmission over extended copper cable lengths (up to 150 meters with Cat.7). Its compliance with Ethernet frame standards and network protocols assures consistent packet integrity and forwarding accuracy. The card’s energy profile at a maximum of 98W balances performance with power efficiency, a critical factor in enterprise data center environments. Network administrators benefit from straightforward, tool-free installation and diagnostic support, reducing mean time to repair (MTTR) and enhancing overall operational efficiency within demanding network conditions.


Functions of the ES1D2G48TED0

Ports on the ES1D2G48TED0

Use Scenarios

Application in High-Density Enterprise Access Layers
Within enterprise network edge environments, where numerous end devices require reliable Ethernet access, the Huawei ES1D2G48TED0 Interface Card functions as a key expansion module. It enables organizations to deploy a dense 48-port RJ45 copper interface for connecting PCs, IP phones, and IoT devices without the added expense or complication of optical transceivers. This card’s compatibility with Huawei S7700 switches ensures seamless integration into enterprise Layer 2/3 switching fabrics, supporting traffic segmentation and security enforcement while reducing cabling complexity. Its robust compliance with IEEE standards enables stable performance in high-demand access scenarios, aligning with enterprise network architecture best practices.

Role in Campus Network Infrastructure Upgrade Projects
In large campus networks, upgrading existing switch infrastructure to support increased Ethernet port density is critical for scaling digital work environments. The Huawei ES1D2G48TED0 Interface Card offers a cost-effective solution by enabling copper access layer densification within S7700 chassis frameworks. It provides a viable alternative to optical port expansion by maximizing copper cable utilization up to 150 meters with minimal signal attenuation, facilitating cross-building connectivity without fiber installation. Network architects leverage this interface card to extend high-speed connectivity while maintaining compliance with rigorous network performance standards, optimizing both capital expenditure and operational workflows in multi-building campus environments.


ES1D2G48TED0 FAQ

Q1: Is it compatible with Huawei S9708 switches? Will there be bandwidth bottlenecks or signal attenuation when 48 ports are simultaneously under full load and over a 150m long distance?

A1: Fully compatible! Supports the entire S9300/S9700 series, with backplane bandwidth ≥48Gbps. With Cat.7 copper cable, signal attenuation is <0.3dB within 150m, ensuring no bottlenecks under full load and meeting the needs of large-scale long-distance copper cable access.

Q2: How is the transmission stability at 120m when using Cat.6a copper cable for cross-building deployment? What is the cost advantage compared to optical port solutions?

A2: Signal attenuation is <0.28dB within 120m, with no packet loss and no latency fluctuations. Deployment costs are 50% lower than optical port solutions, eliminating the need for additional optical modules, reusing existing copper cable resources, and making maintenance more convenient.

Q3: How to choose between 24/32-port / standard short-distance / optical port high-end circuit boards?

A3: The 24-port version is suitable for <30 devices, and the 32-port version is suitable for 30-40 devices. The standard short-distance version only supports ≤100m, and the optical version is expensive. For more than 40 devices + 100m-150m long-distance + copper cable deployment, this product offers the best compatibility and cost performance.
