The S7700 series switches (S7700 for short) are high-end smart routing switches designed for nextgenerationenterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive H-QoS policies, controllable multicast, load balancing, and security, in addition to high-performanceLayer 2 to Layer 4 switching services.

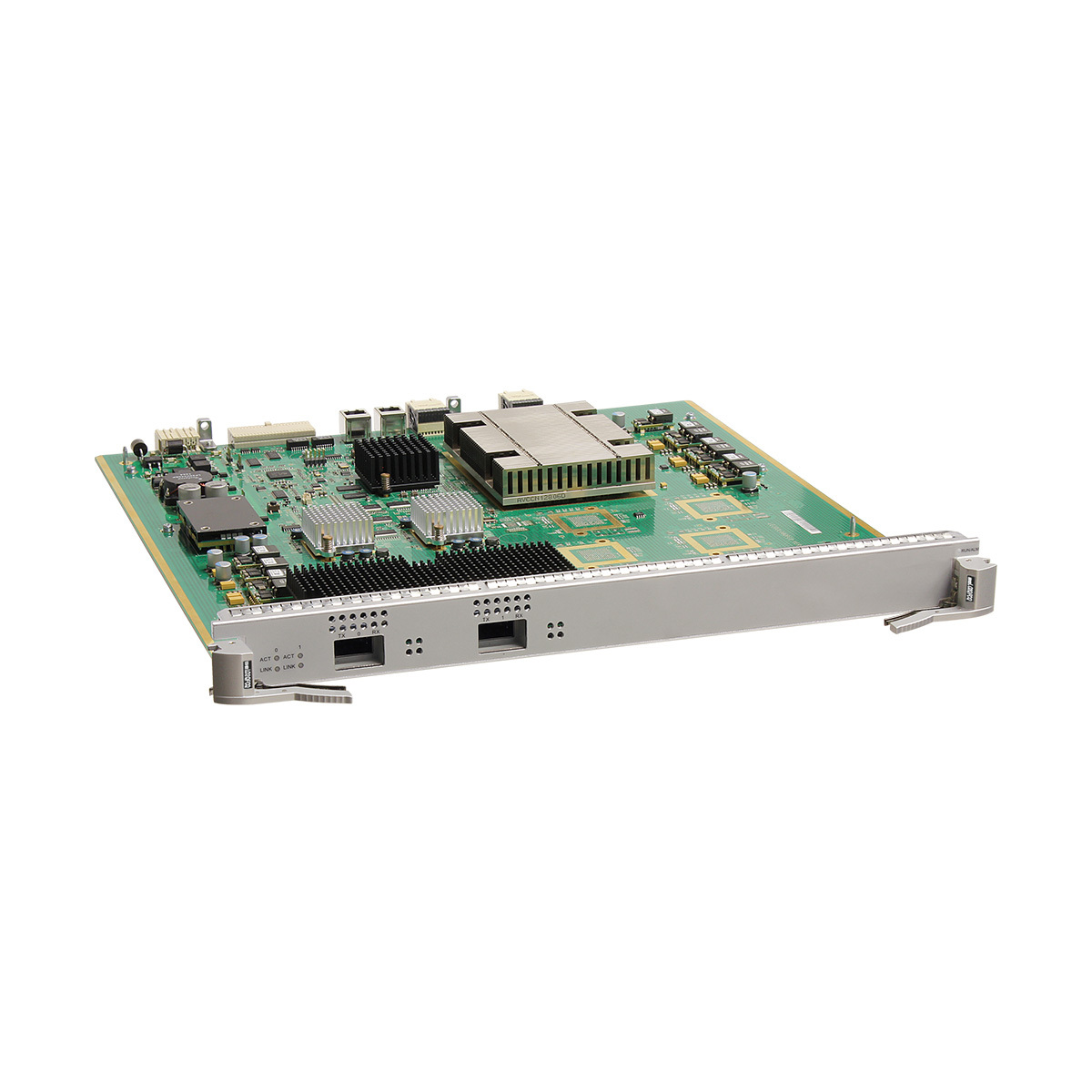

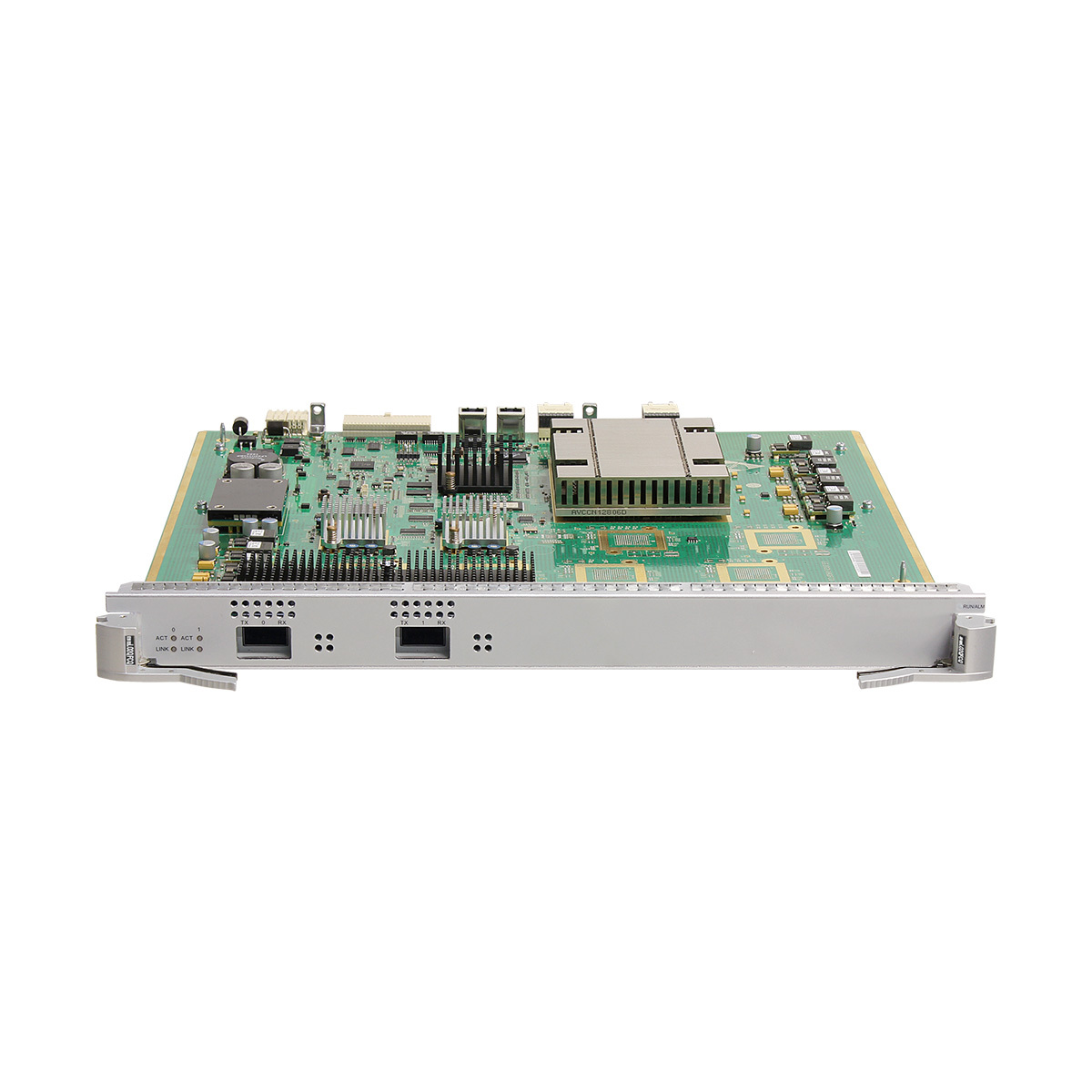

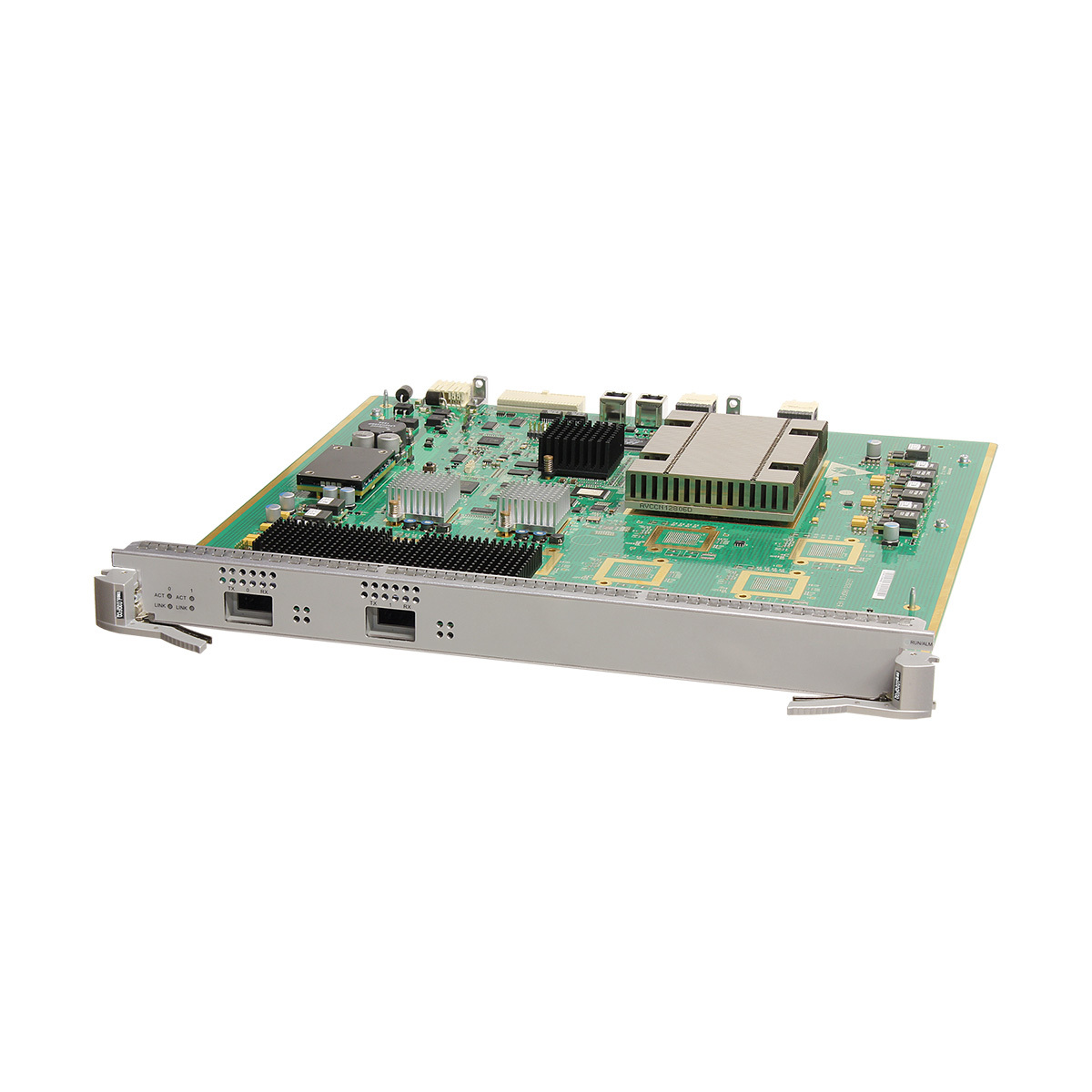

Functions of the ES1D2L02QFC0
Function
Description
Basic function
Provides two 40GE optical ports for data transmission and switching.
Allows a 40GE port to split into four 10GE ports.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
The ES1D2L02QFC0 is hot swappable.

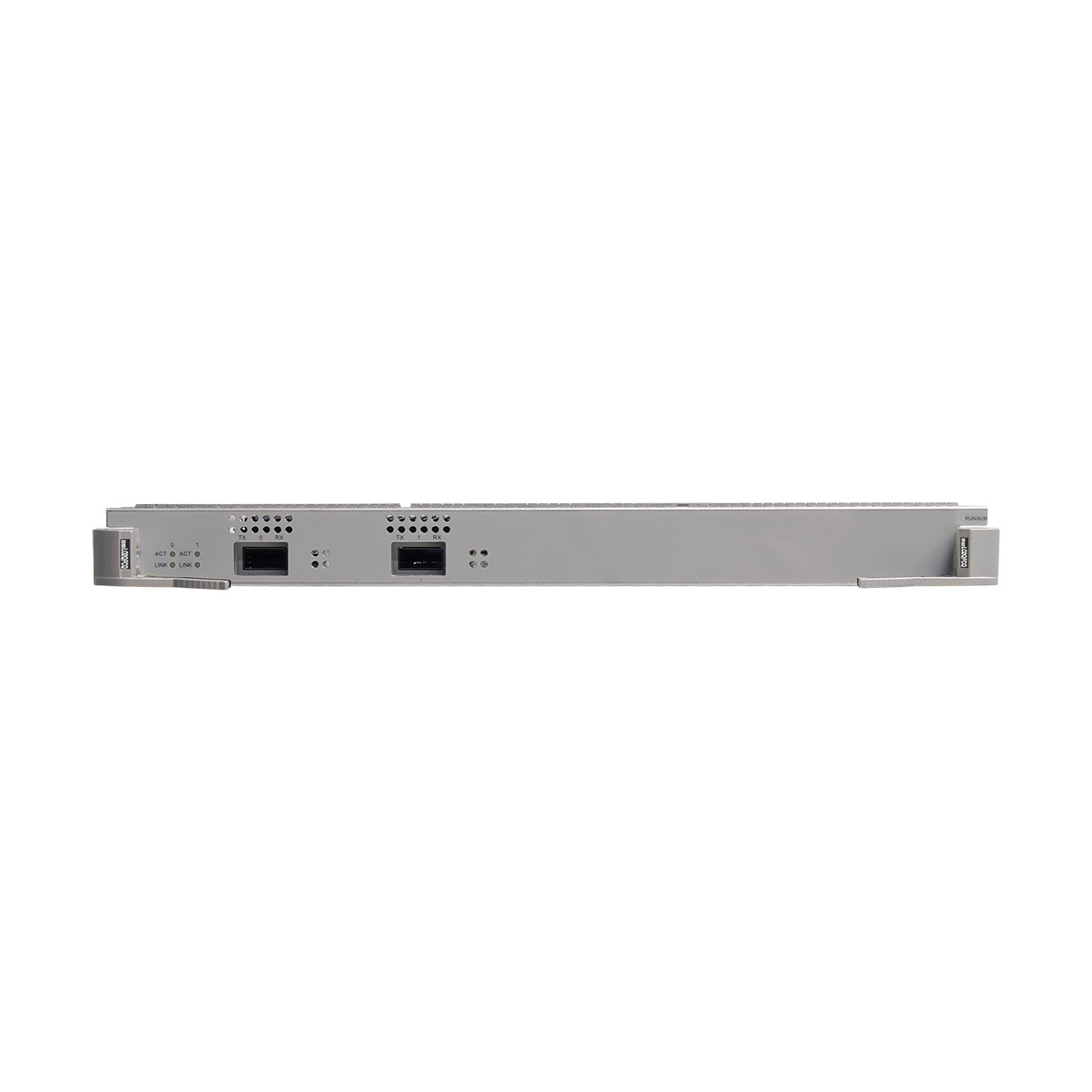

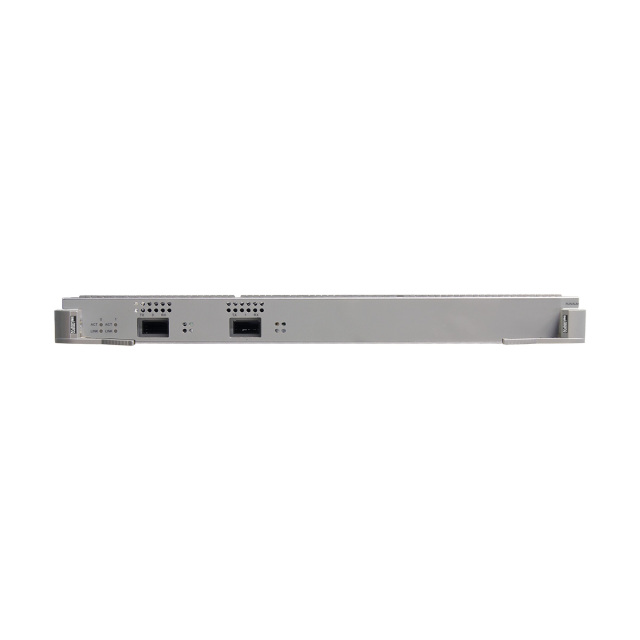

Ports on the ES1D2L02QFC0
40GE BASE-X optical port attributes
Attribute
Description
Connector type
QSFP+
Optical port attributes
Depend on the QSFP+ high-speed cable (1 m, 3 m, 5 m), QSFP+ AOC cable, or 40GE QSFP+ Optical Modules used.
Applicable cable
QSFP+ optical module and LC optical fiber
QSFP+ optical module and MPO optical fiber (MPO-MPO or MPO-4*DLC optical fiber)
QSFP+ high-speed copper cable (QSFP+ to QSFP+ or QSFP+ to 4*SFP+)
QSFP+ AOC cable (QSFP+ to QSFP+ or QSFP+ to 4*SFP+)
Specifications of the ES1D2L02QFC0
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 2.50 kg (5.51 lb)
Maximum power consumption: 88 W
ES1D2L02QFC0 FAQ
Q1: Is this line board compatible with Huawei S9708 switches? Can the transmission distance and speed be guaranteed when paired with a 100GE LR4 module?
A1: Fully compatible! Supports the entire S9700 series of switches. Paired with a 100GE LR4 module, it can stably transmit over 10km, maintaining a single-port rate of 100Gbps. Signal attenuation is minimal, with no packet loss or latency fluctuations, meeting the needs of long-distance interconnection across data centers.
Q2: Will the bandwidth of the mid-range switch's backplane limit when two 100GE optical ports are operating at full load simultaneously?
A2: No limitation! The line board's backplane bandwidth is ≥200Gbps, supporting simultaneous full-load 100GE transmission on two ports, with a total bandwidth of 200Gbps. This fully matches the core performance of mid-range switches, with no bandwidth bottlenecks.
Q3: What are the key differences between this and the Huawei 40GE optical port mid-range line board (ES1D2H02QX2S)? How to choose?
A3: The core differences lie in speed and application scenarios: The ES1D2L02QFC0 (100GE, ultra-high speed) is suitable for mid-range core scenarios requiring ultra-high speed transmission; the 40GE model is suitable for ordinary high-bandwidth scenarios. Choose the 100GE model for core backbone and ultra-high-speed equipment access, and the 40GE model for ordinary high-bandwidth access.
