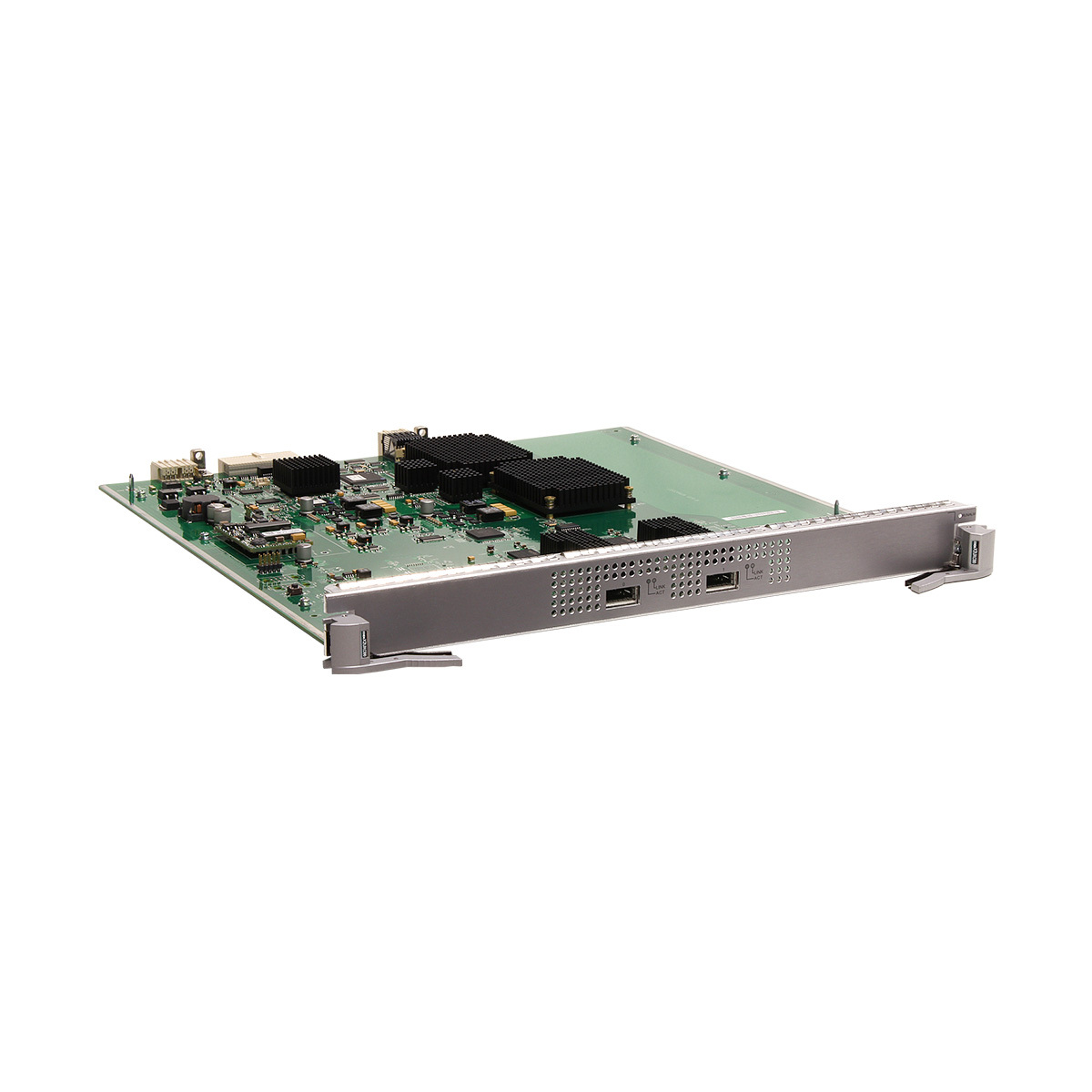

Huawei ES1D2X02XEC1 Interface Card

ES1D2X02XEC1 Introduction

The ES1D2X02XEC1 can be installed in:

• Slots 01 to 03 in an S7703 or S7703 PoE chassis.
• Slots 01 to 06 in an S7706 or S7706 PoE chassis.
• Slots 01 to 12 in an S7712 chassis.

S7700-S Series Switches Overview

The S7700 series switches (S7700 for short) are high-end smart routing switches designed for nextgenerationenterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive H-QoS policies, controllable multicast, load balancing, and security, in addition to high-performanceLayer 2 to Layer 4 switching services.

Functional Positioning for Enterprise Networks
The Huawei ES1D2X02XEC1 Interface Card is engineered for enterprise-level network infrastructure requiring robust and scalable 10 Gigabit Ethernet uplinks. Designed to fit within Huawei S7700, S7706, and S7712 chassis, this interface card targets network engineers and IT professionals seeking to enhance inter-switch connectivity and backbone performance. Its dual 10GE ports facilitate critical data transmission channels, enabling redundancy and bandwidth expansion in core and distribution layers. The hot-swappable nature of the card ensures minimal disruption during upgrades or system maintenance, aligning with enterprise demands for high availability and network resilience.

Technical Specifications and Standards Compliance
This interface card incorporates two 10GBASE-X optical ports, utilizing XFP connectors compatible with a variety of optical modules, including SX, LX, CWDM, and DWDM variants. The Huawei ES1D2X02XEC1 Interface Card conforms to IEEE 802.3ae standards ensuring interoperability and reliable Layer 2 and Layer 3 switching capabilities. Key technical metrics include dimensions of 35.1 by 397.2 by 430.4 mm, 2.26 kg weight, and a maximum power consumption of 61 W. Operating within the Huawei S7700 series ecosystem, this card supports advanced IP protocols, MPLS VPN, and hierarchical QoS, facilitating efficient traffic management and secure data transmission over enterprise networks.

Industry Applications and Network Integration Value
Widely applicable across data centers, campus backbones, and large enterprise networks, the Huawei ES1D2X02XEC1 Interface Card enhances high-speed uplink connectivity essential for expanding bandwidth demands. It enables interconnection within Huawei’s S-series switches, facilitating seamless integration with existing infrastructure. The card supports critical roles such as redundant 10GE path implementation and backbone fabric expansion, ensuring uninterrupted service delivery. Its compliance with industry networking standards and protocol support provides a reliable solution for network architects focusing on scalability, traffic analysis, and security within complex enterprise environments.


Product Advantages

Structural and System Integration Benefits
The Huawei ES1D2X02XEC1 Interface Card features a modular design compatible with multiple Huawei chassis models, including the S7700, S7706, and S7712, granting flexible deployment options for diverse enterprise networks. Its hot-swappable capability supports maintenance and system scaling without requiring downtime, improving operational efficiency. The use of standardized XFP connectors coupled with compatibility for an extensive range of optical modules allows tailored configurations based on network requirements. This flexible modularity and adherence to IEEE 802.3ae standards underpin its seamless integration into Huawei’s network ecosystems, ensuring consistency and reliability in high-performance environments.

Performance and Operational Usability Advantages
Performance-wise, the Huawei ES1D2X02XEC1 Interface Card delivers consistent 10 Gigabit data rates with low latency and high throughput, addressing bandwidth-intensive applications. Its power consumption remains optimized at 61 watts, balancing energy efficiency with processing demands. The interface card's support for advanced network protocols such as MPLS VPN and hierarchical QoS mechanisms enhances traffic prioritization and management. The card’s design facilitates rapid deployment and straightforward maintenance, significantly reducing operational complexities for network administrators. Ultimately, it provides a cost-effective solution with high reliability suitable for mission-critical enterprise infrastructure.


Functions of the ES1D2X02XEC1
