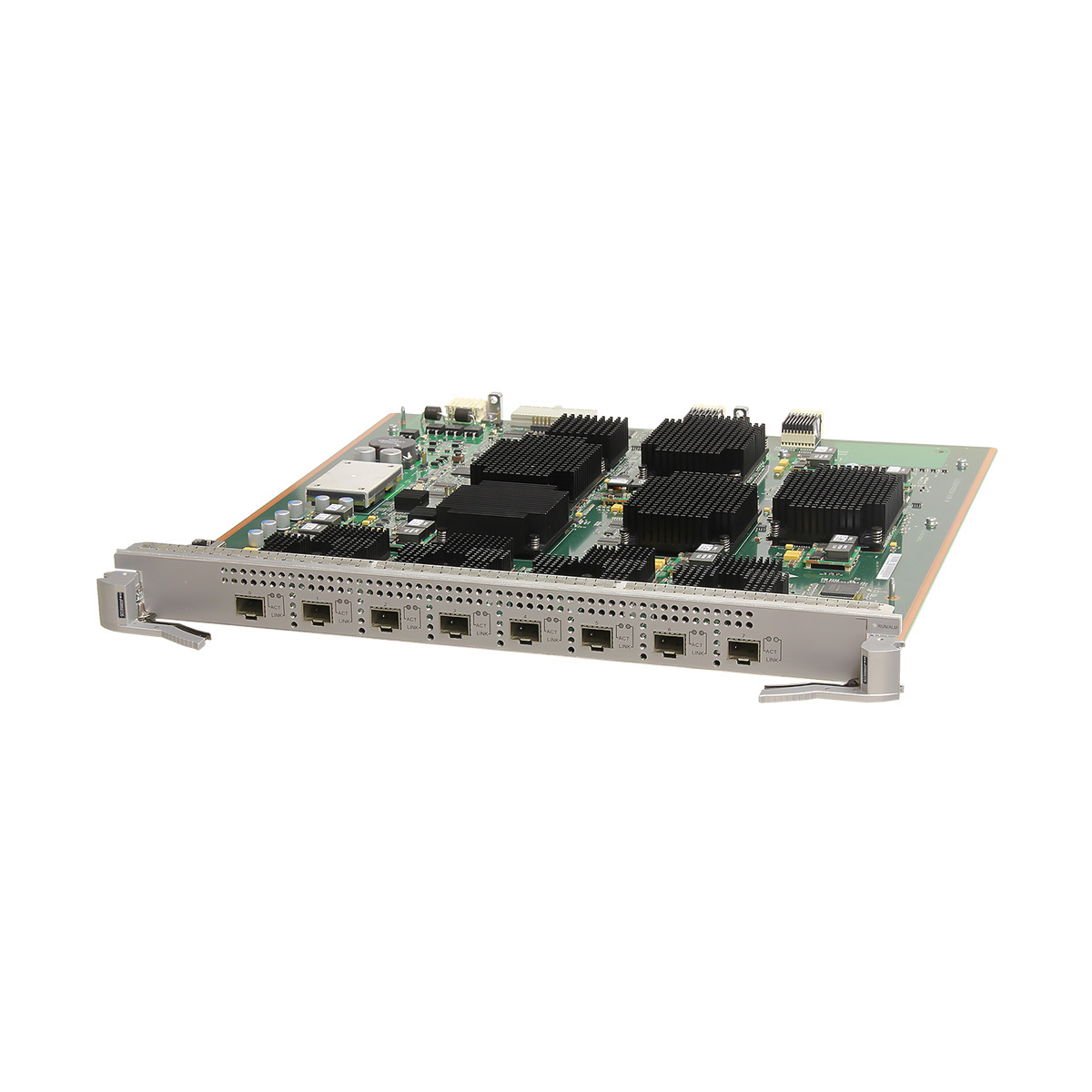

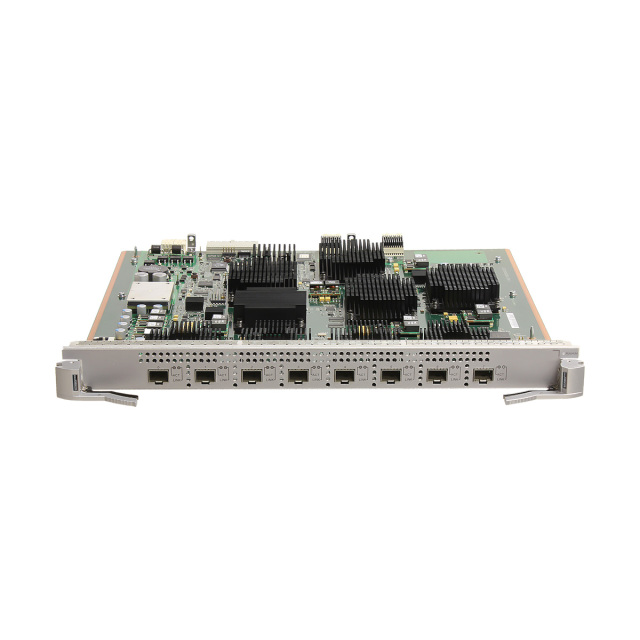

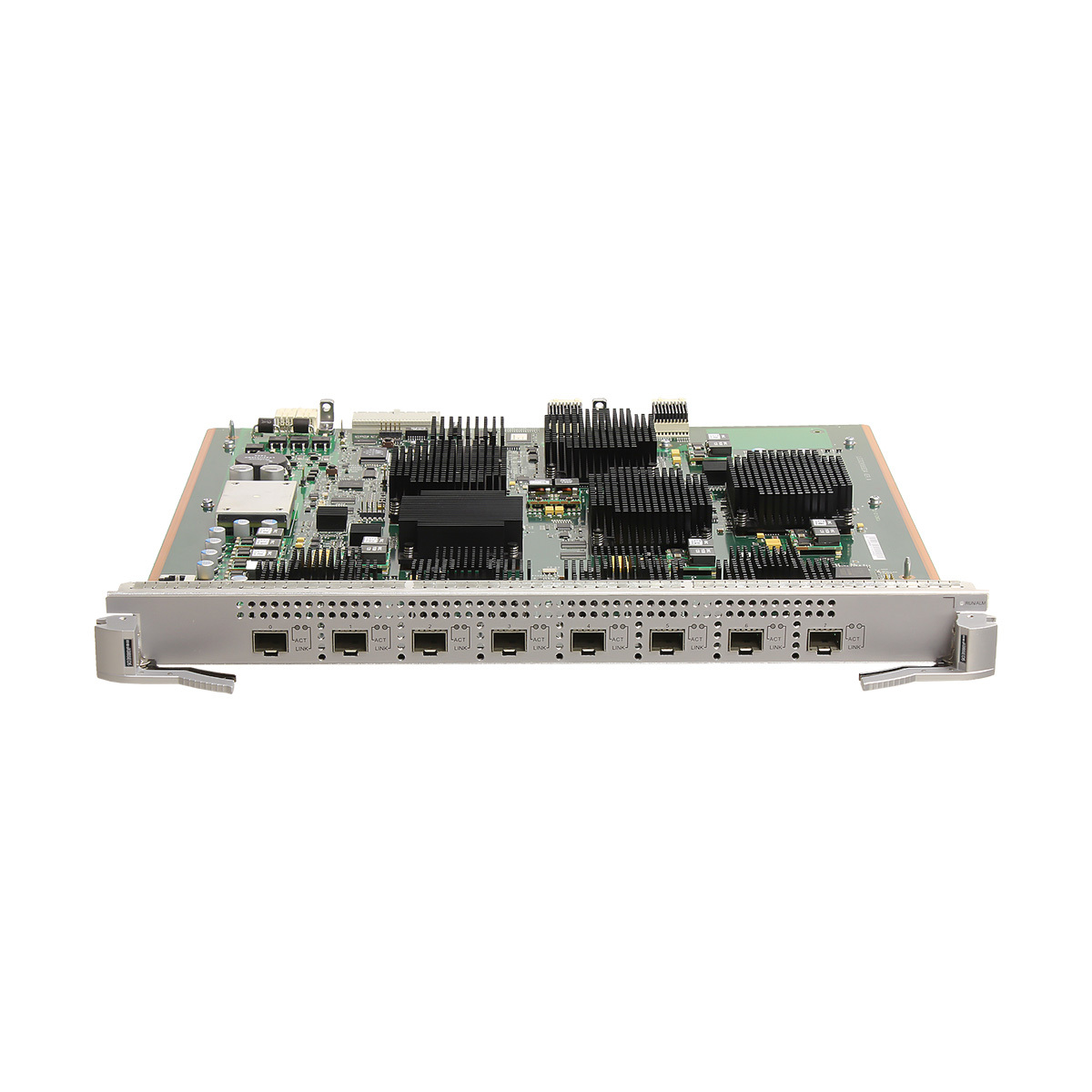

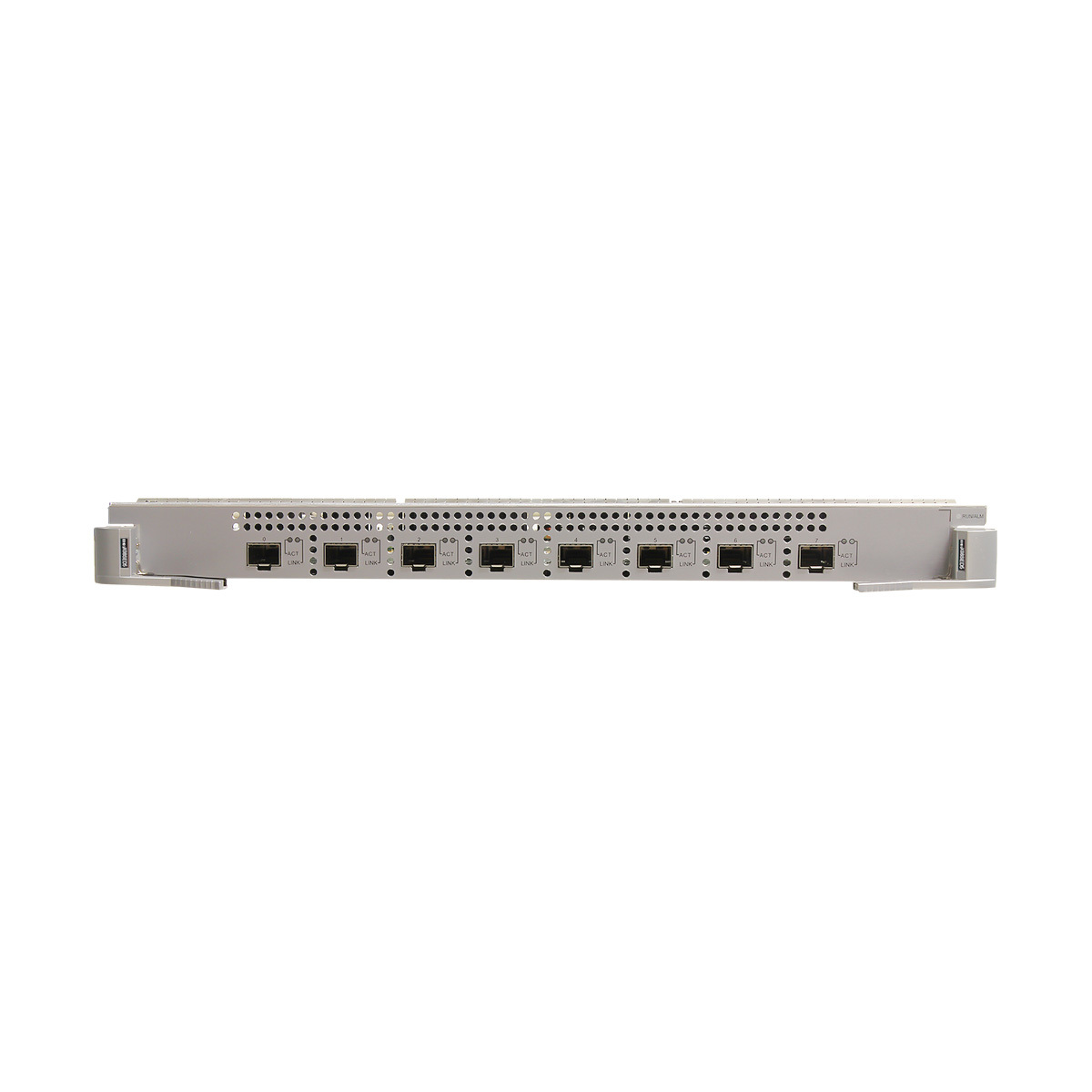

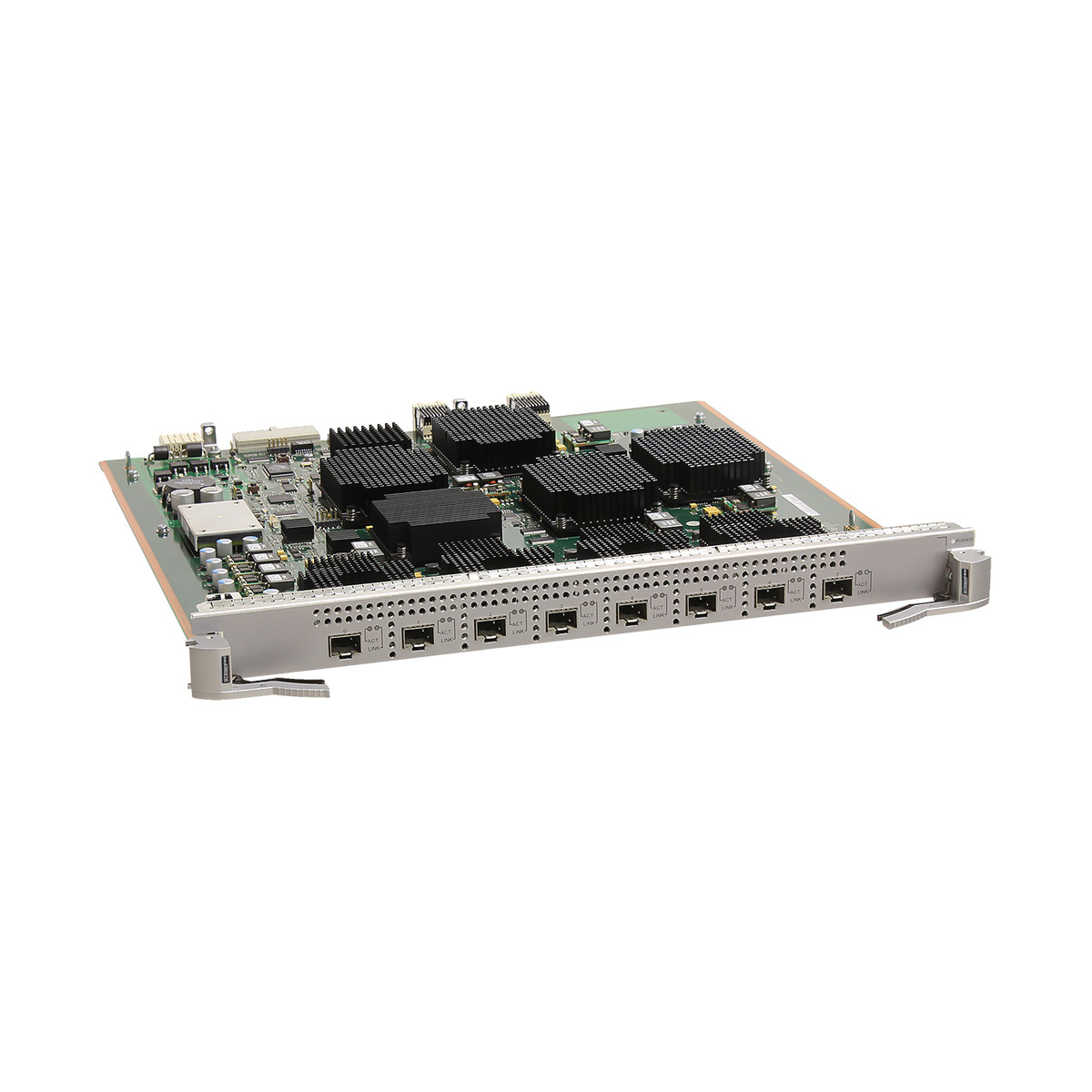

Huawei ES1D2X08SED5 Interface Card

ES1D2X08SED5 Introduction

• Slots 01 to 03 in an S7703 or S7703 PoE chassis.
• Slots 01 to 06 in an S7706 or S7706 PoE chassis.
• Slots 01 to 12 in an S7712 chassis.

S7700-S Series Switches Overview

The S7700 series switches (S7700 for short) are high-end smart routing switches designed for nextgenerationenterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive H-QoS policies, controllable multicast, load balancing, and security, in addition to high-performanceLayer 2 to Layer 4 switching services.

Functional Integration for Enterprise Networks
The Huawei ES1D2X08SED5 Interface Card is engineered to expand the port capacity of Huawei S7700-series switches, targeting enterprise and data center networking environments requiring enhanced 10 Gigabit Ethernet uplink capability. Designed for network engineers and system integrators, this interface card offers eight SFP+ ports for connecting high-speed fiber or copper optics. Its hot-swappable construction enables on-the-fly upgrades and maintenance, minimizing downtime. Compatible with specific slots on S7703, S7706, and S7712 chassis models, it provides deployment flexibility in large-scale, modular switch architectures. This positioning aligns with enterprise infrastructure scaling and network performance optimization demands.

Technical Specification and Standards Compliance
The Huawei ES1D2X08SED5 Interface Card meets IEEE 802.3ae standards, offering eight 10GBASE-X (SFP+) ports with high throughput and low latency suitable for demanding data center applications. It supports standard SFP+ modules allowing versatile media options including fiber and copper connectivity. The card measures 35.1 mm by 397.2 mm by 430.4 mm and consumes a maximum of 198.1 watts, fitting within the power and space envelopes of Huawei’s S7700 switch chassis. Its hot-swappable design facilitates zero-downtime operations during replacements or upgrades. The interface card’s ability to support varied optics enhances interoperability and future-proofs network architecture against evolving technology requirements.

Industry Application and Network Scalability
This Huawei ES1D2X08SED5 Interface Card plays a critical role in expanding uplink bandwidth in enterprise data centers, campus networks, and large telecommunication infrastructures. By enabling eight additional 10G SFP+ ports, it supports scalable traffic aggregation and redundant network topologies essential for high-availability environments. The module’s compliance with 10GBASE-X transmission standards ensures consistent performance in multi-vendor network ecosystems. Its adoption facilitates smooth migrations from legacy 1G to 10G uplinks, improves network resilience through redundant paths, and allows flexible fiber or copper link configurations to adapt to diverse operational requirements. Consequently, it serves as a reliable building block for agile, high-capacity network designs.


Product Advantages

Modular Design Enhances System Integration
The Huawei ES1D2X08SED5 Interface Card features a modular architecture optimized for seamless integration with Huawei S7700-series chassis, supporting slot compatibility across multiple switch models (S7703, S7706, and S7712). This design minimizes complexity in system upgrades and expansions. The hot-swappable form factor further enhances maintainability by enabling onsite replacements without service interruptions. Its adherence to established SFP+ interface standards ensures compatibility with a broad range of optical modules and cables, allowing network designers to tailor connectivity options based on infrastructure needs. Such flexibility reduces total cost of ownership by supporting incremental scalability and minimizing hardware obsolescence.

Optimized Performance and Operational Reliability
In operation, the Huawei ES1D2X08SED5 Interface Card delivers consistent 10G throughput with low latency, which is critical in high-performance computing and data center environments. The card’s hot-swappable capability offers operational value by reducing network downtime during maintenance or hardware changes. It supports the use of multiple optic types to meet varied link budgets and environmental conditions, enhancing deployment versatility. Additionally, its power consumption and size are engineered for efficient chassis resource utilization. The module’s reliability and compliance with IEEE standards underpin dependable network performance, ensuring that enterprise IT managers and engineers achieve targeted service level agreements with minimal operational risk.


Functions of the ES1D2X08SED5

Ports on the ES1D2X08SED5
