The S7700 series switches (S7700 for short) are high-end smart routing switches designed for nextgenerationenterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive H-QoS policies, controllable multicast, load balancing, and security, in addition to high-performanceLayer 2 to Layer 4 switching services.

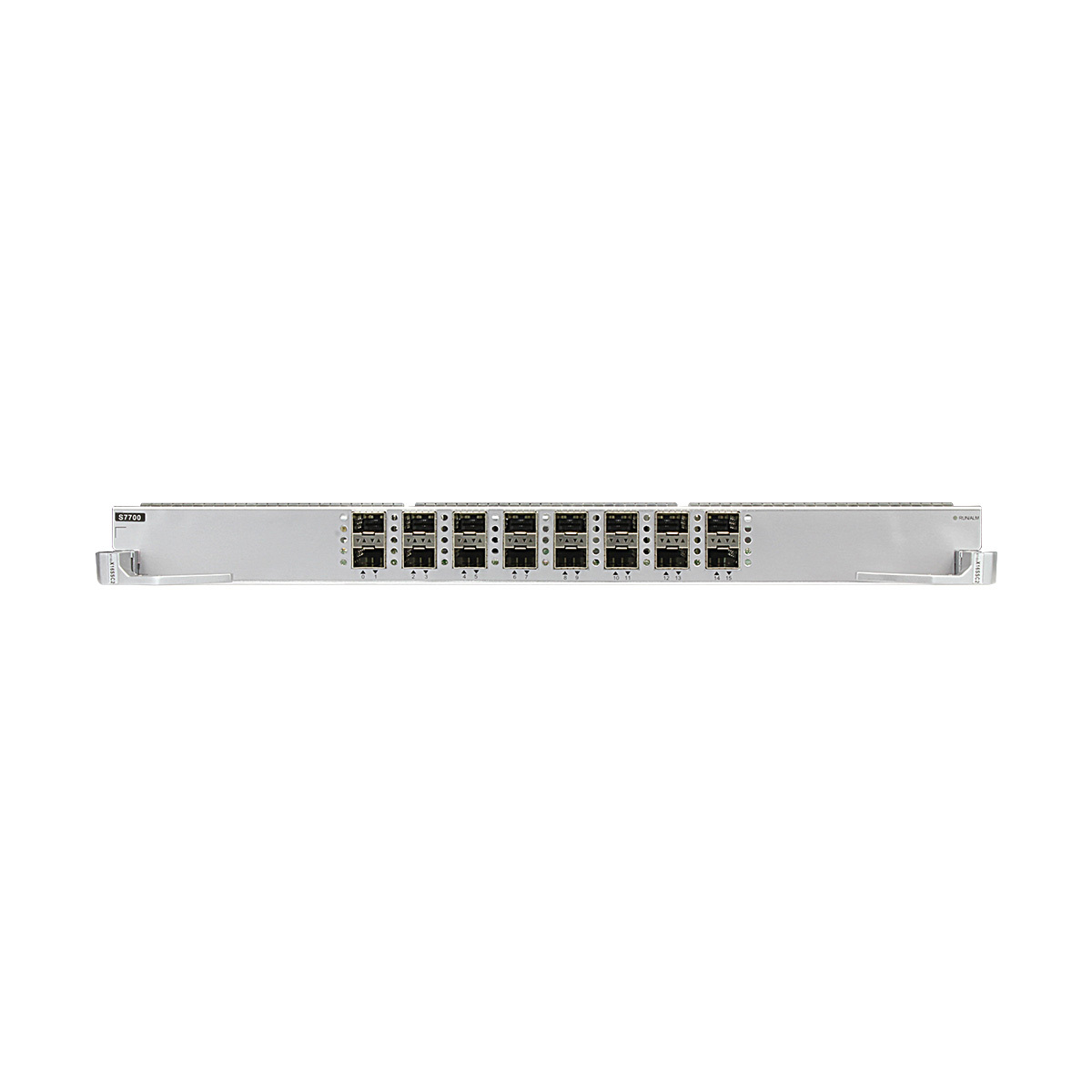

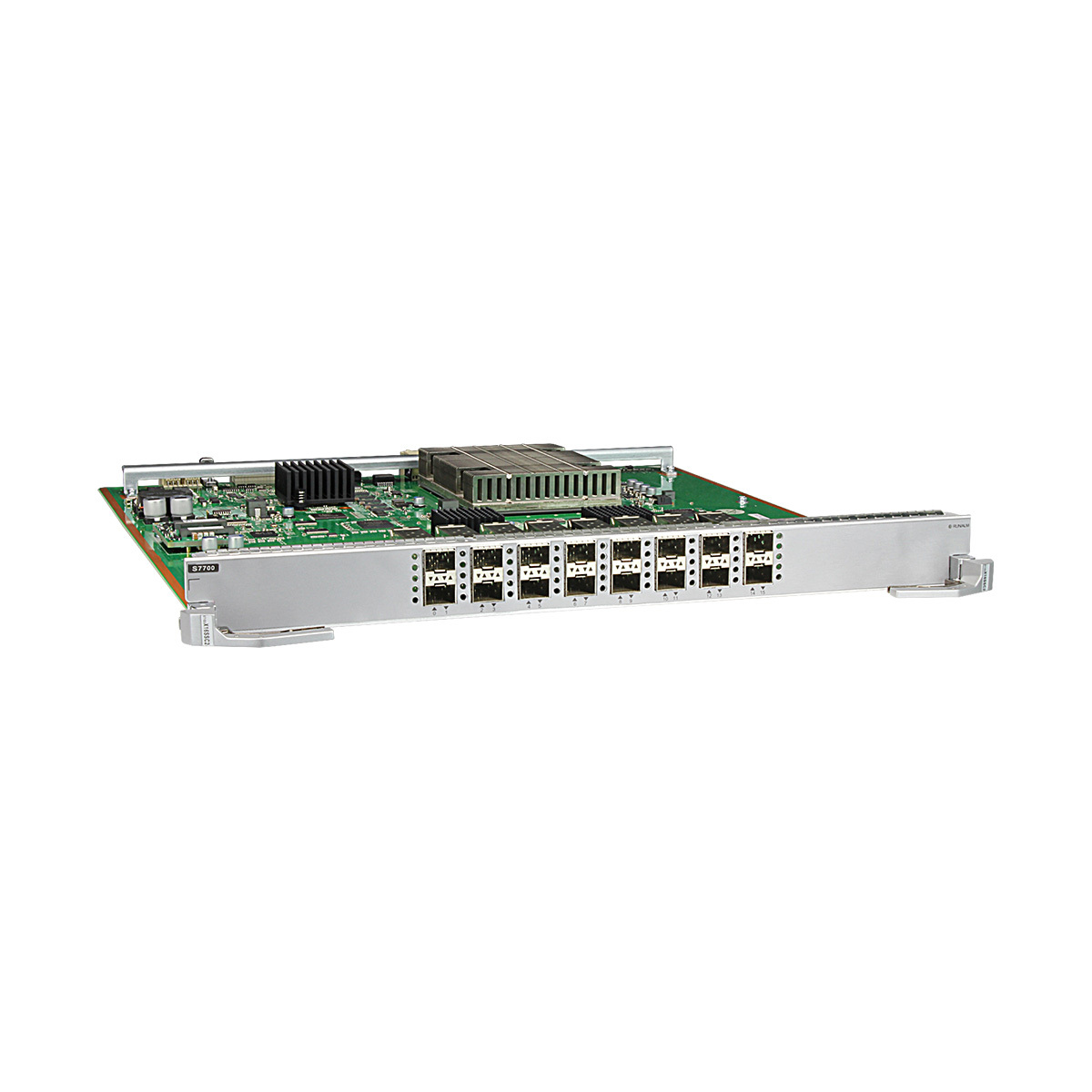

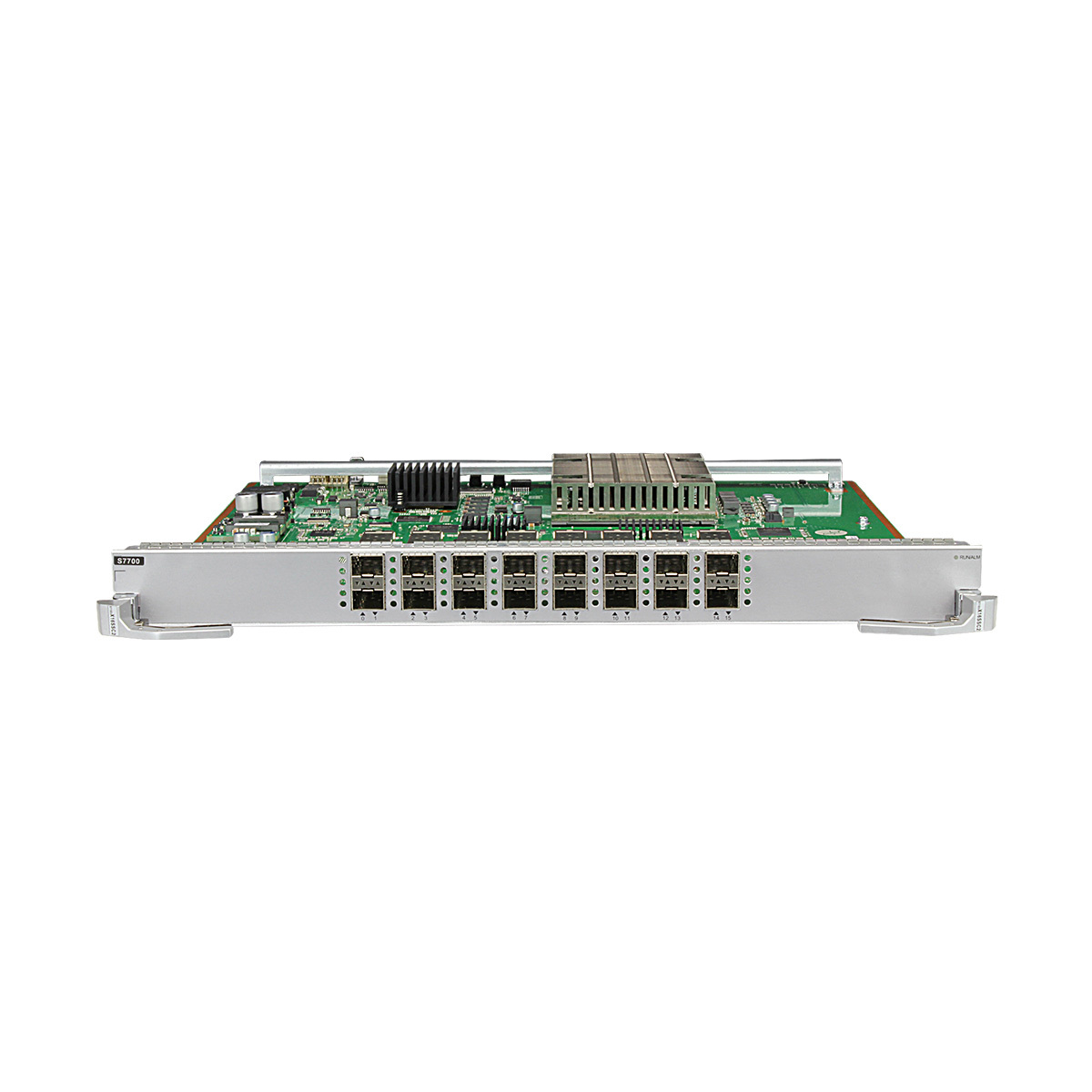

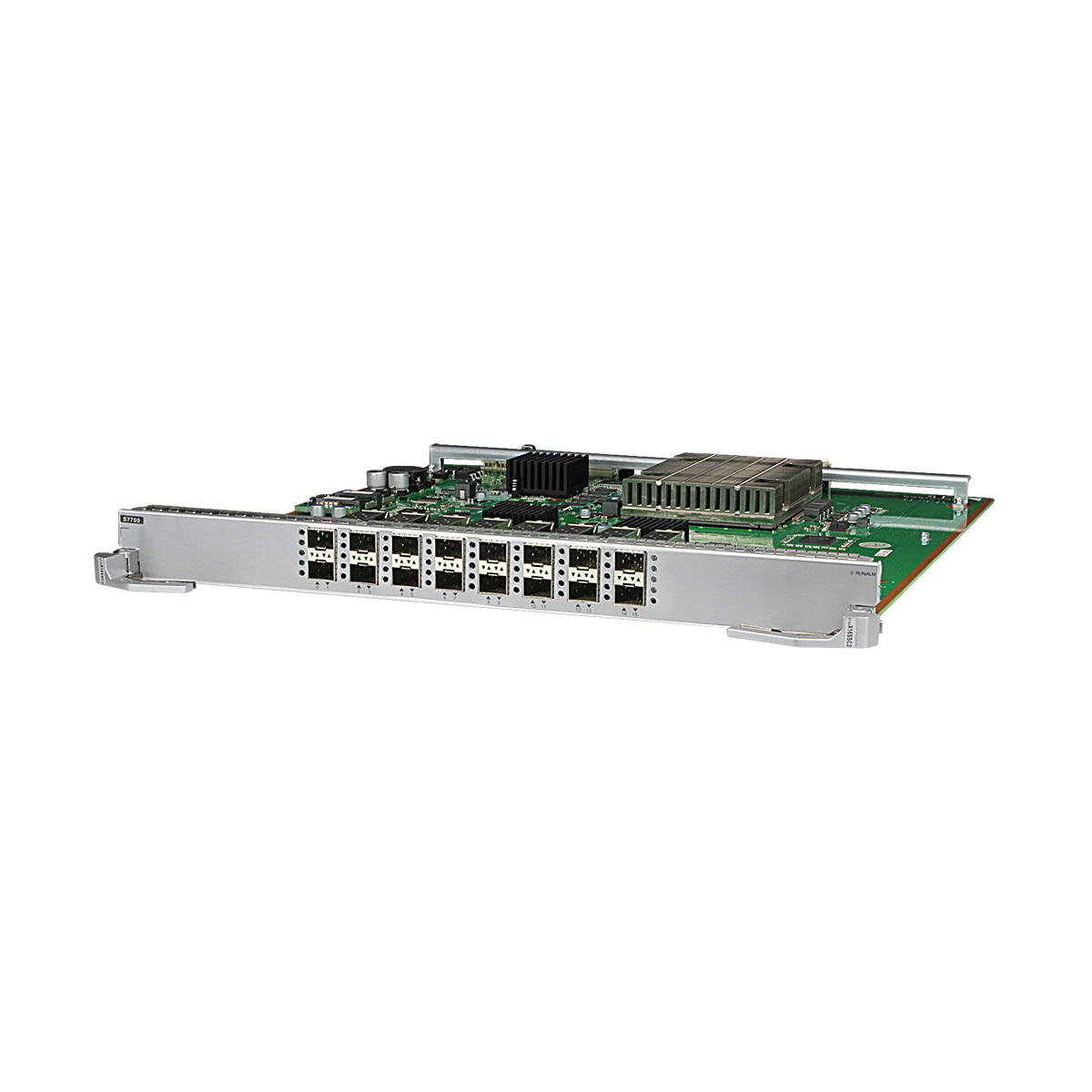

Functions of the ES1D2X16SSC2
Function
Description
Basic function
Provides sixteen 10GE optical ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
The ES1D2X16SSC2 is hot swappable.
Ports on the ES1D2X16SSC2
Optical port attributes (GE optical module)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP optical module used.
For the optical modules supported by the ES1D2X16SSC2 and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Optical port attributes (10GE optical module, high-speed cable or SFP+ optical cable)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP+ to SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ to 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used.
For the optical modules supported by the ES1D2X16SSC2 and their attributes, see 10GE SFP+ Optical Modules, 10GE-CWDM SFP+ Optical Modules and 10GE-DWDM SFP+ Optical Modules.
Standards compliance
IEEE 802.3ae
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Optical port attributes (copper module)
Attribute
Description
Connector type
SFP
Optical port attributes
Depend on the SFP copper module used.
For details on the copper modules supported by the cards and attributes of the copper modules, see GE SFP Copper Modules (1000 Mbit/s rates).
Standards compliance
IEEE 802.3ab
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the ES1D2X16SSC2
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 2.80 kg (6.17 lb)
Maximum power consumption: 131 W
ES1D2X16SSC2 FAQ
Q1: Is this line board compatible with Huawei S9303 switches? Will there be a bandwidth bottleneck when all 16 ports are running at full load simultaneously?
A1: Fully compatible! Supports the entire S9300 series of switches, with a backplane bandwidth ≥16Gbps. There is no bottleneck when all 16 ports are running at full gigabit speeds simultaneously (total bandwidth 16Gbps), fully meeting the needs of small to medium-sized access systems.
Q2: How is the signal stability within a 550m transmission distance when paired with a 1000M SX module? Is it compatible with third-party compliant optical modules?
A2: Extremely stable! Signal attenuation <0.25dB within 550m, with no packet loss or delay. Huawei original optical modules are highly recommended, but it is also compatible with IEEE-compliant third-party optical modules, offering flexible compatibility.
Q3: What are the core differences between this and Huawei's 24/32-port gigabit optical mid-range line board? How to choose?
A3: The core differences lie in port flexibility and cost: The ES1D2X16SSC2 (16 ports) is suitable for small to medium-sized scenarios with 8-20 devices; the 24-port version is suitable for 20-30 devices, and the 32-port version is suitable for more than 30 devices. For devices ≤20, choose the 16-port version for the best cost-performance ratio and no port waste.
