The S7700 series switches (S7700 for short) are high-end smart routing switches designed for nextgenerationenterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive H-QoS policies, controllable multicast, load balancing, and security, in addition to high-performanceLayer 2 to Layer 4 switching services.

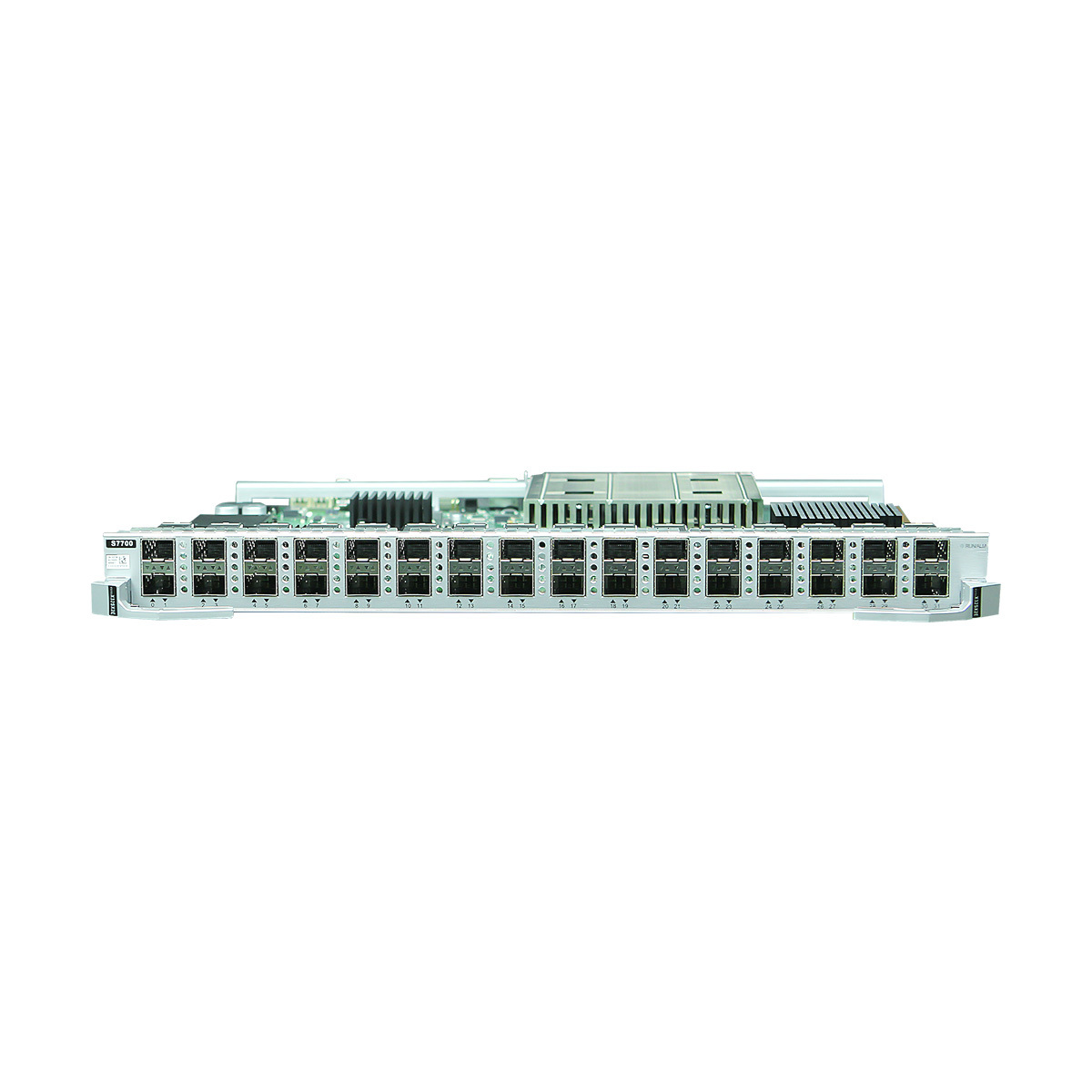

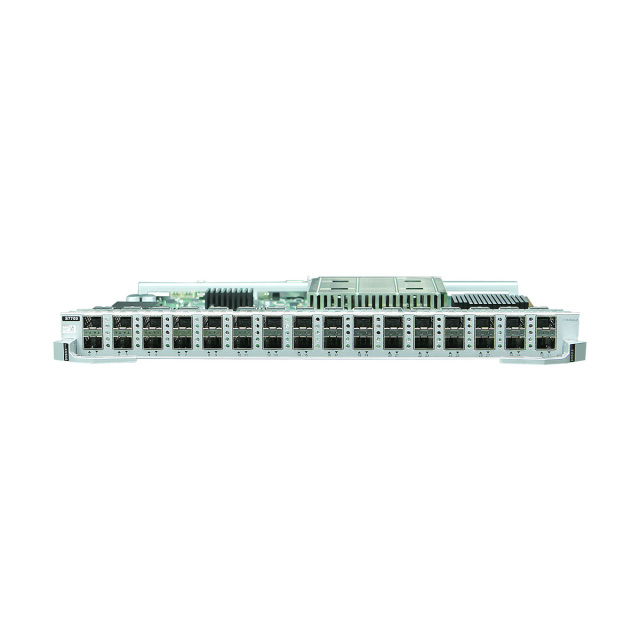

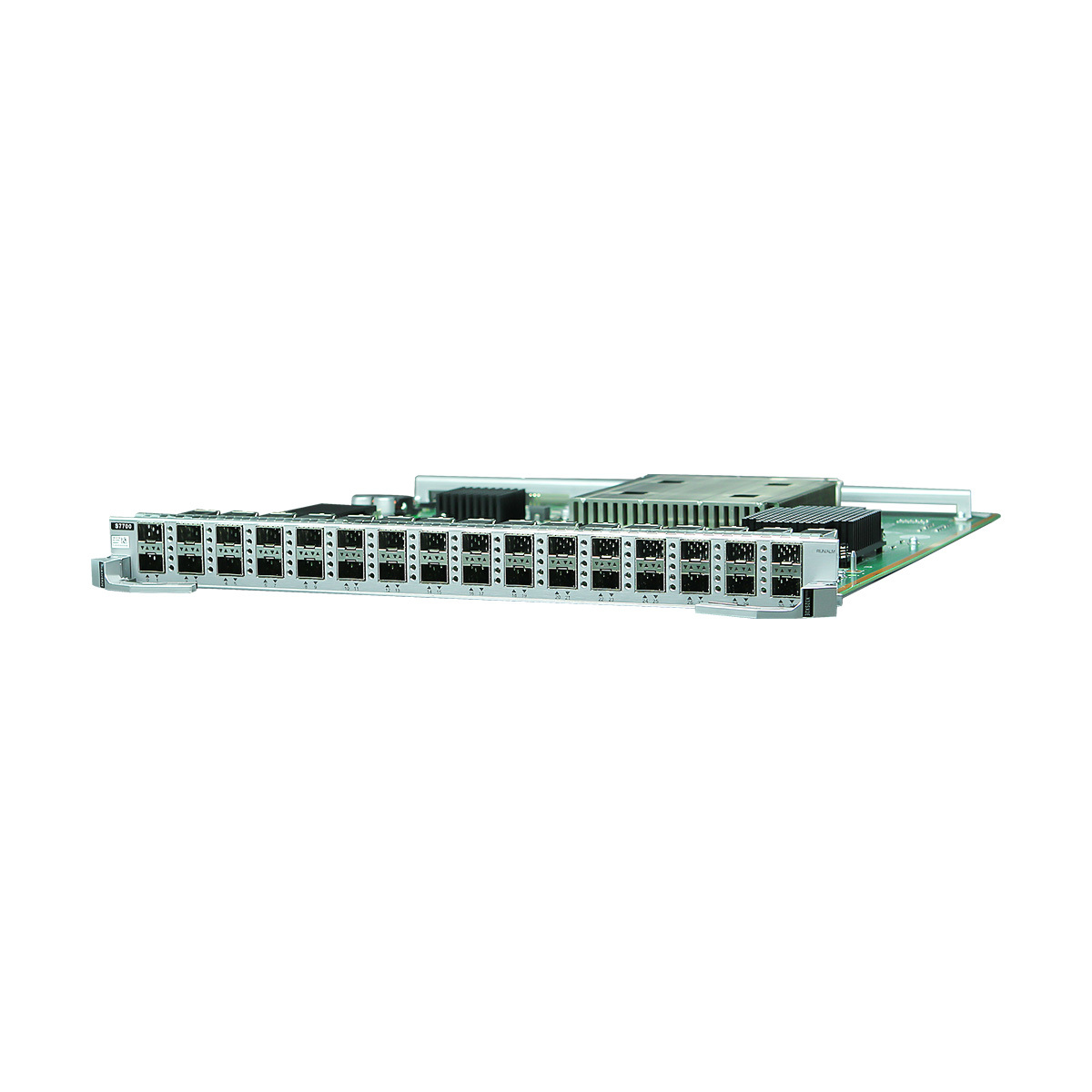

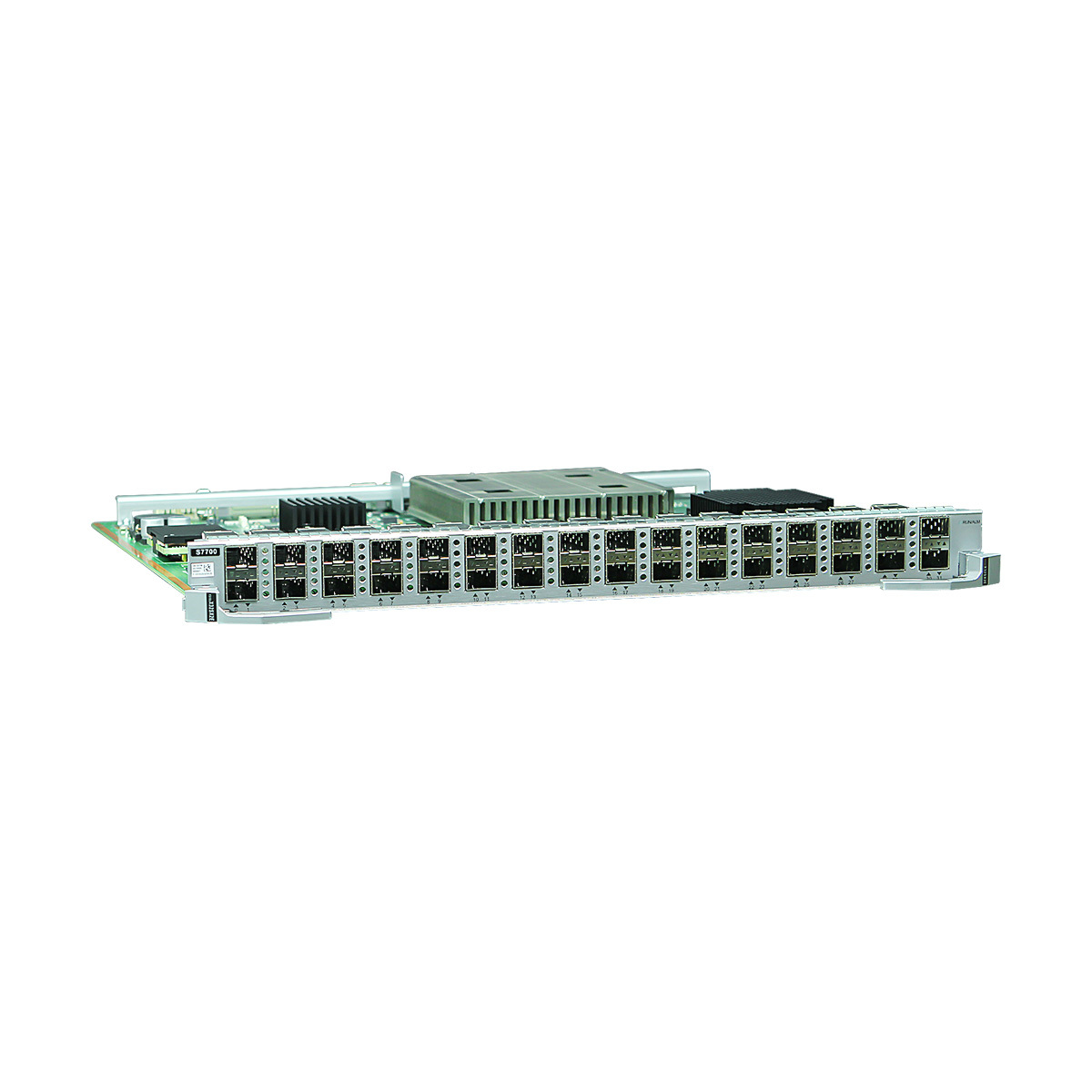

Functions of the ES1D2X32SX2E
Function
Description
Basic functions
Provides thirty-two 10GE optical ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
Supported

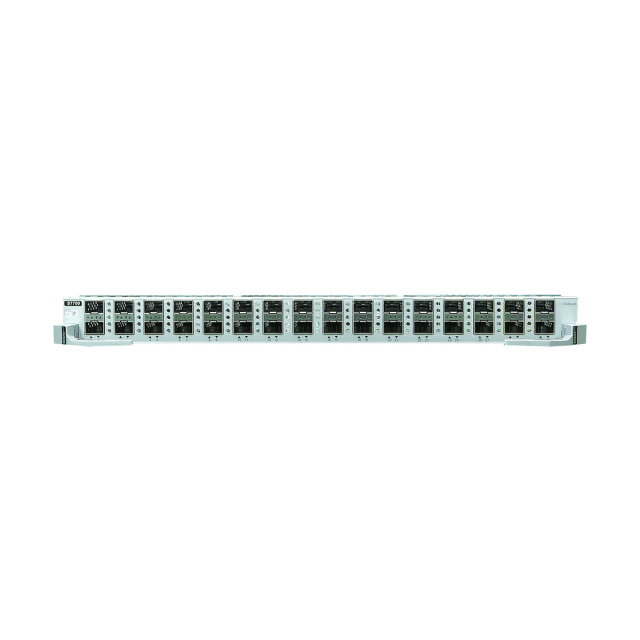

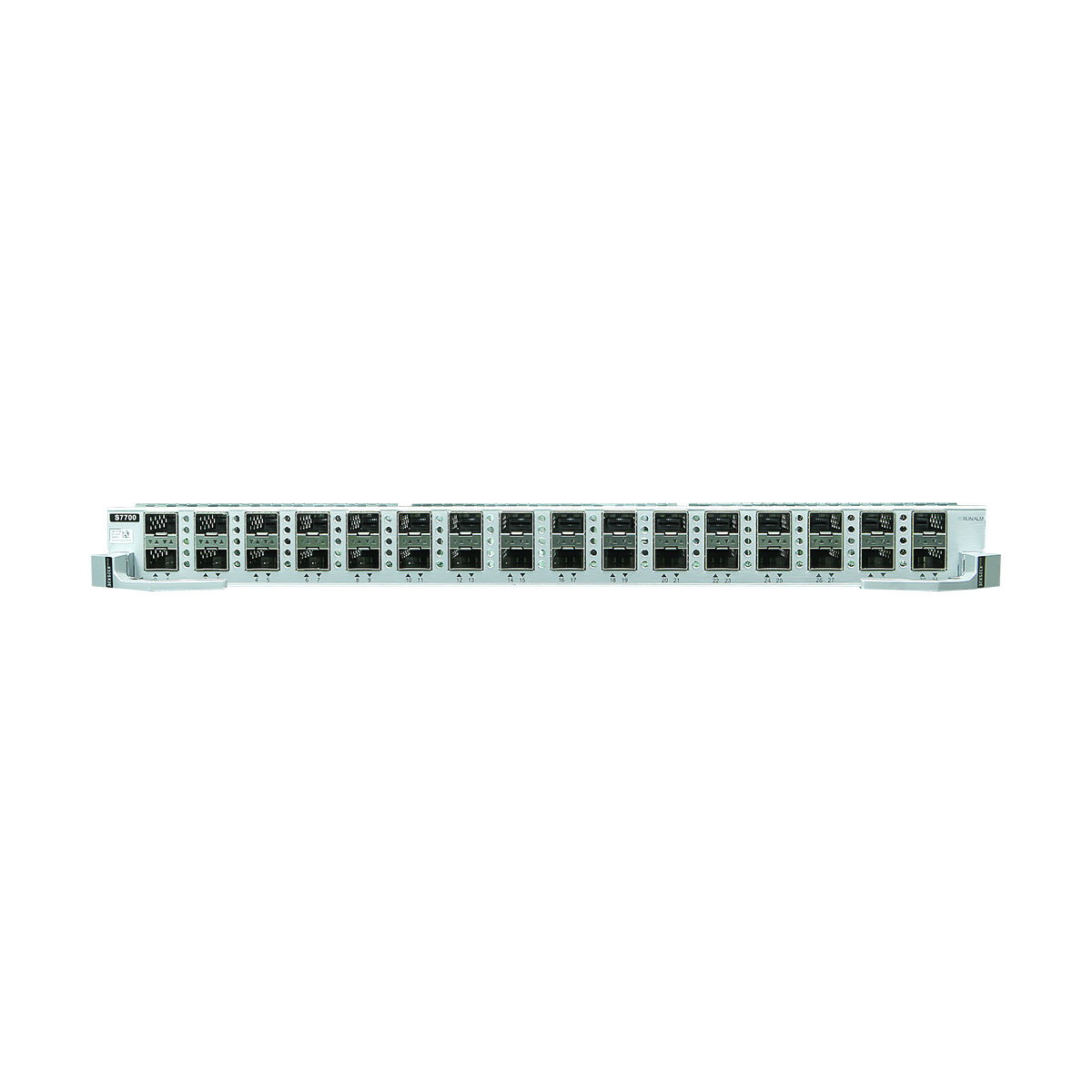

Ports on the ES1D2X32SX2E
Optical port attributes (GE optical module)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP optical module used.
For the optical modules supported by the ES1D2X32SX2E and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Optical port attributes (10GE optical module, high-speed cable or SFP+ optical cable)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP+ to SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ to 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used.
For the optical modules supported by the ES1D2X32SX2E and their attributes, see 10GE SFP+ Optical Modules (OSXD22N00 not supported), 10GE-CWDM SFP+ Optical Modules and 10GE-DWDM SFP+ Optical Modules.
Standards compliance
IEEE 802.3ae
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Optical port attributes (copper module)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP copper module used.
For details on the copper modules supported by the cards and attributes of the copper modules, see GE SFP Copper Modules (100 Mbit/s and 1000 Mbit/s rates).
Applicable cable
SFP copper module and Ethernet cable
Specifications of the ES1D2X32SX2E
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 3.3 kg (7.28 lb)
Maximum power consumption: 213.7 W
ES1D2X32SX2E FAQ
Q1: Is this line board compatible with Huawei S9306 switches? Will there be a bandwidth bottleneck when all 32 ports are running at full load simultaneously?
A1: Fully compatible! Supports the entire S9300 series of switches, with a backplane bandwidth ≥320Gbps. There is no bottleneck when all 32 ports are simultaneously operating at full load (320Gbps total bandwidth), fully meeting the needs of medium-scale high-density access.
Q2: How stable is the transmission over a 55m distance when using Cat.5e copper cable to connect monitoring equipment? Is it interference resistant?
A2: Extremely stable! Cat.5e copper cable can stably transmit at 10GE rates within 55m, with electromagnetic interference resistance meeting EMC Class A standards. There is no packet loss or latency fluctuation, suitable for various devices such as monitoring equipment, servers, and terminals.
Q3: What are the core differences between this and the Huawei 32-port 10 Gigabit optical mid-range line board (ES1D2X32SX2S)? How to choose?
A3: The core difference lies in the transmission medium and scenario: ES1D2X32SX2E (electronic port + copper cable, ≤100m) is suitable for short-distance, medium-scale scenarios within a data center using multiplexed copper cables; the optical port version (fiber optic, 300m-40km) is suitable for long-distance interconnection. Choose the copper cable version for short-distance connections within a data center, and choose the optical port version for cross-data center/long-distance connections.
