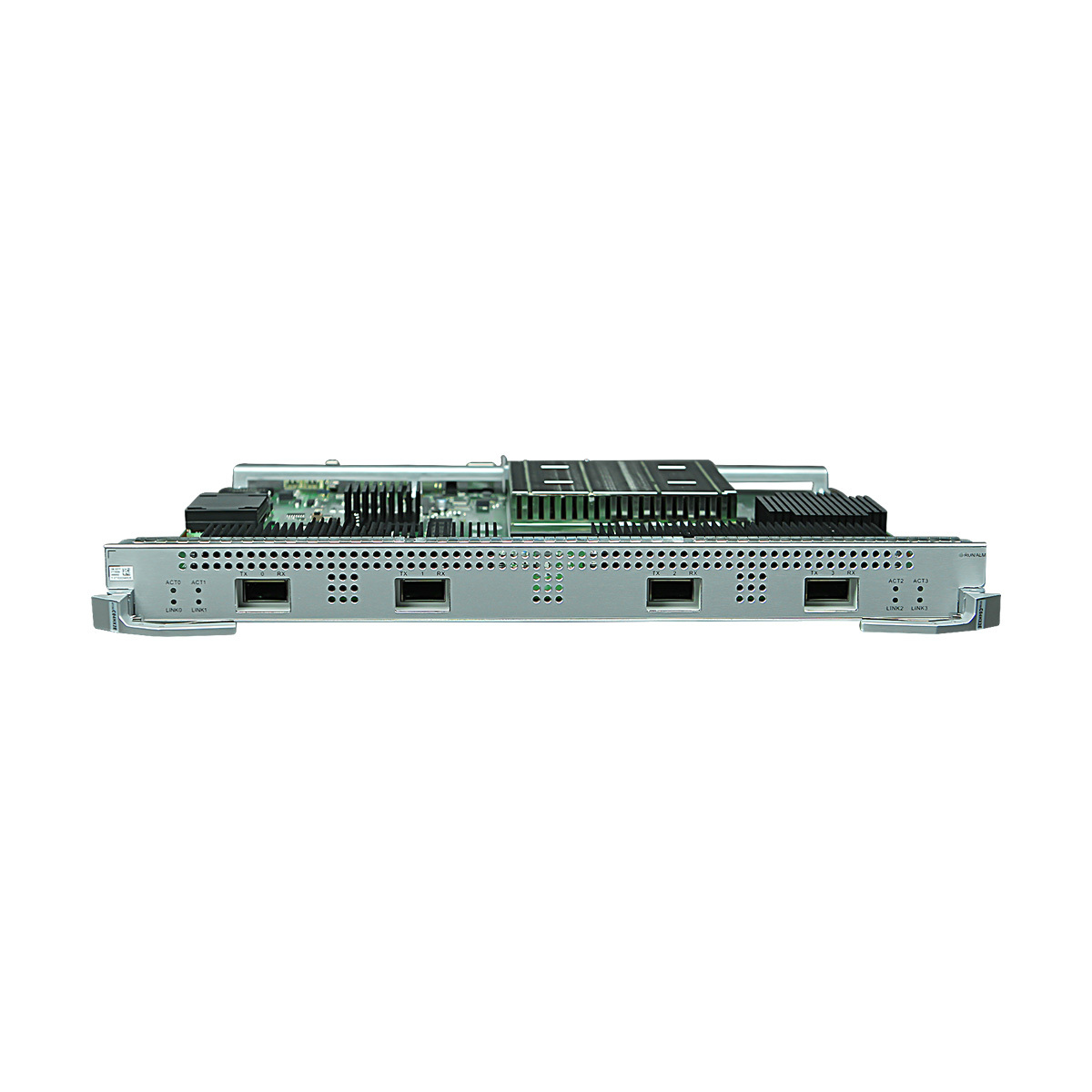

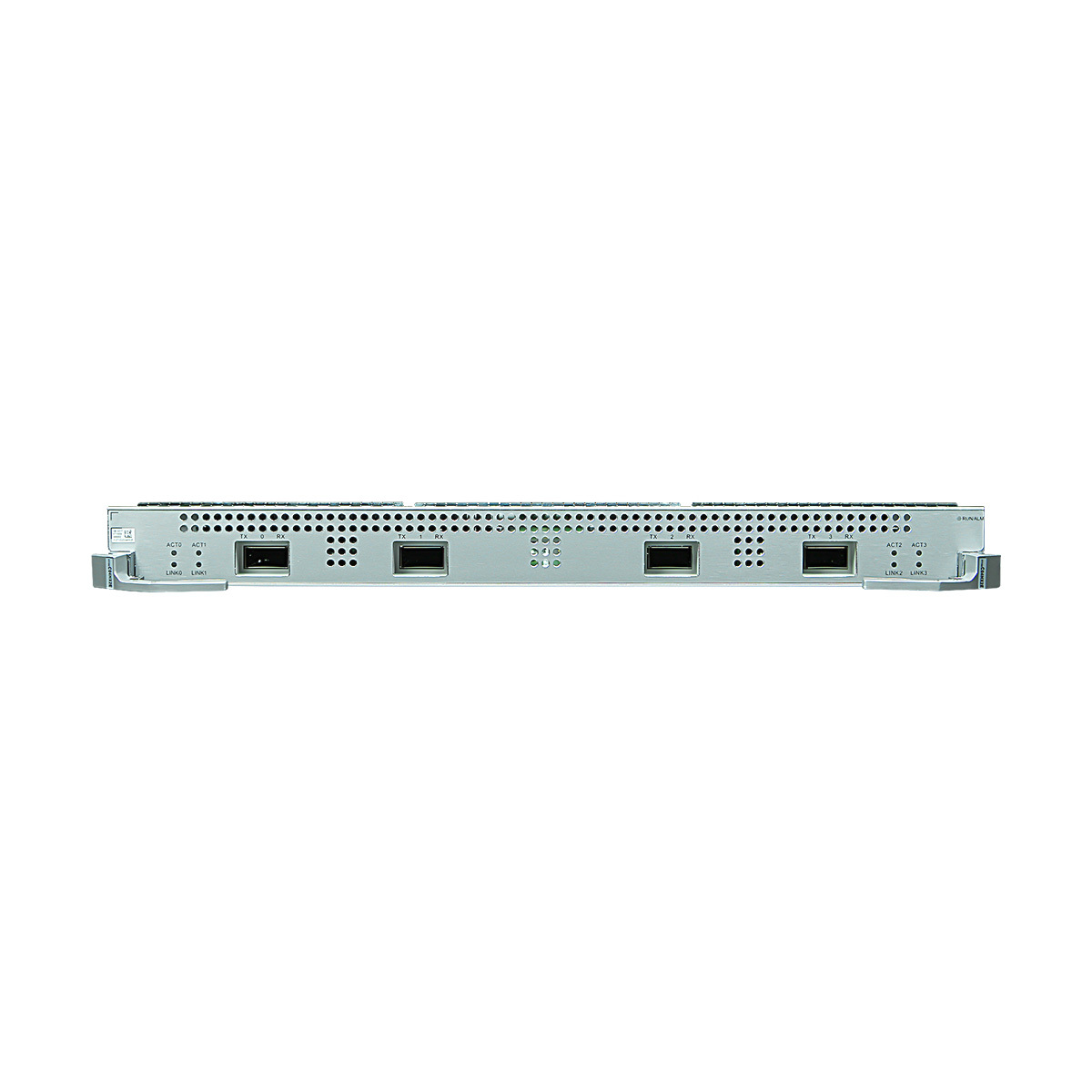

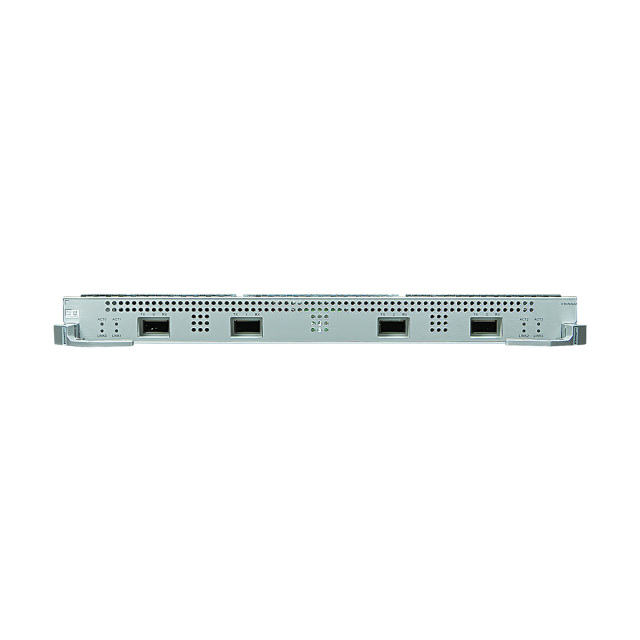

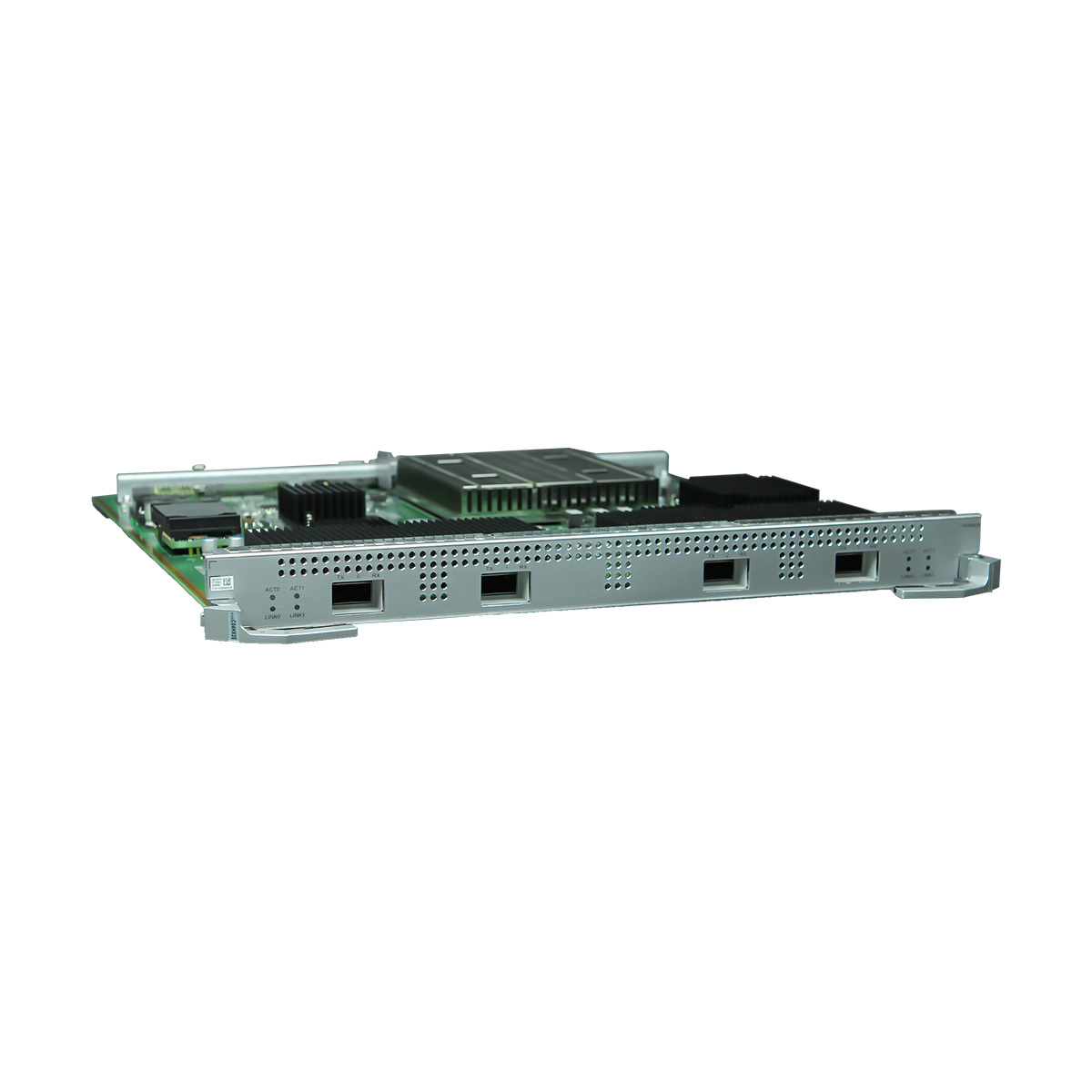

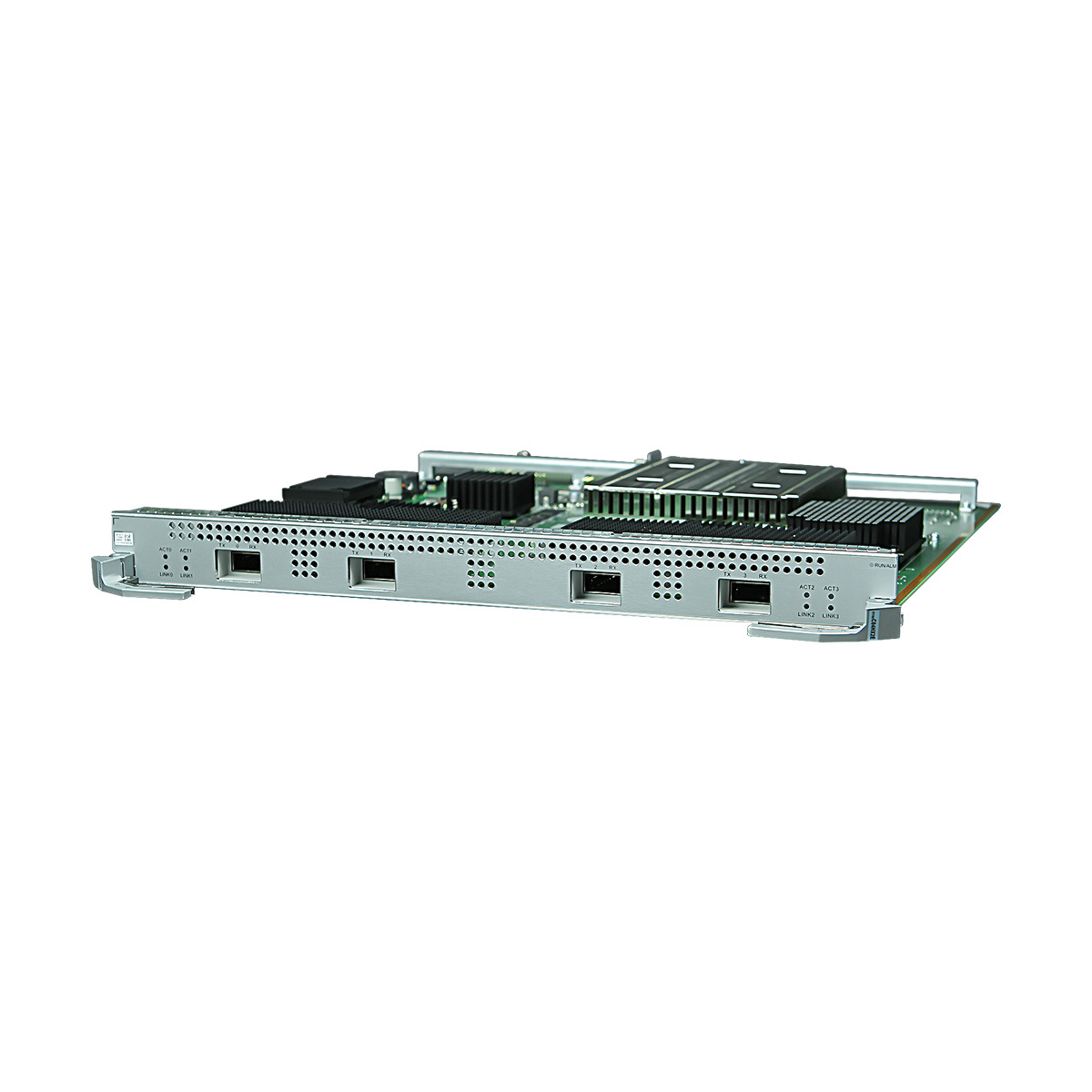

Provides four 100GE optical ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
Supported
Ports on the ET1D2C04HX2E card
Attribute
Description
Connector type
QSFP28
Optical port attributes
Depend on the QSFP28 - QSFP28 high-speed cable (1 m, 3 m, 5 m), QSFP+ - QSFP+ high-speed cable (1 m, 3 m, 5 m), 40GE QSFP+ Optical Modules, 100GE QSFP28 Optical Modules or QSFP+ or QSFP28 AOC cable used.
Applicable cable
QSFP+ optical module and LC optical fiber
QSFP+ optical module and MPO optical fiber (MPO-MPO or MPO-4*DLC optical fiber)
QSFP+ high-speed copper cable
QSFP+ AOC cable
QSFP28 optical module and LC optical fiber
QSFP28 optical module and MPO optical fiber (MPO-MPO)
QSFP28 high-speed copper cable
QSFP28 AOC cable
Specifications of the ET1D2C04HX2E
Item
Description
Physical specifications
Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight: 3.15 kg (6.94 lb)
Maximum power consumption: 164.8 W
Environment specifications
Operating temperature: 0°C to 45°C (32°F to 113°F)
Operating relative humidity: 5% RH to 95% RH (noncondensing)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Storage relative humidity: 5% RH to 95% RH (noncondensing)
ET1D2C04HX2E FAQ
Q1: Which switches is this service board compatible with? Does it support hot-swapping?
A1: Dedicated compatibility with the entire Huawei S9303E/S9306E/S9312E series; supports hot-swapping, allowing online installation/replacement without interrupting switch operation.
Q2: What are its core performance characteristics? What are its advantages compared to ordinary 10 Gigabit switches?
A2: Four 10 Gigabit optical ports (SFP+), 10Gbps speed per port; advantages include dedicated compatibility with S9300E, high-density ports, support for dual-stack and link aggregation, resulting in stronger compatibility.
Q3: Does it require a specific optical module? What core functions does it support?
A3: Compatible with Huawei standard SFP+ 10 Gigabit optical modules, selectable based on transmission distance; supports IPv4/IPv6 dual-stack, link aggregation, QoS, flow control, and other core functions.
Q4: How do I determine if this service board needs to be deployed? Is installation complex?
A4: It is recommended to deploy this when the S9300E requires 10 Gigabit access, core network speed-up, or branch uplink capacity expansion; installation does not require professional tools, it is automatically recognized when inserted into the corresponding slot, and it is plug and play.
