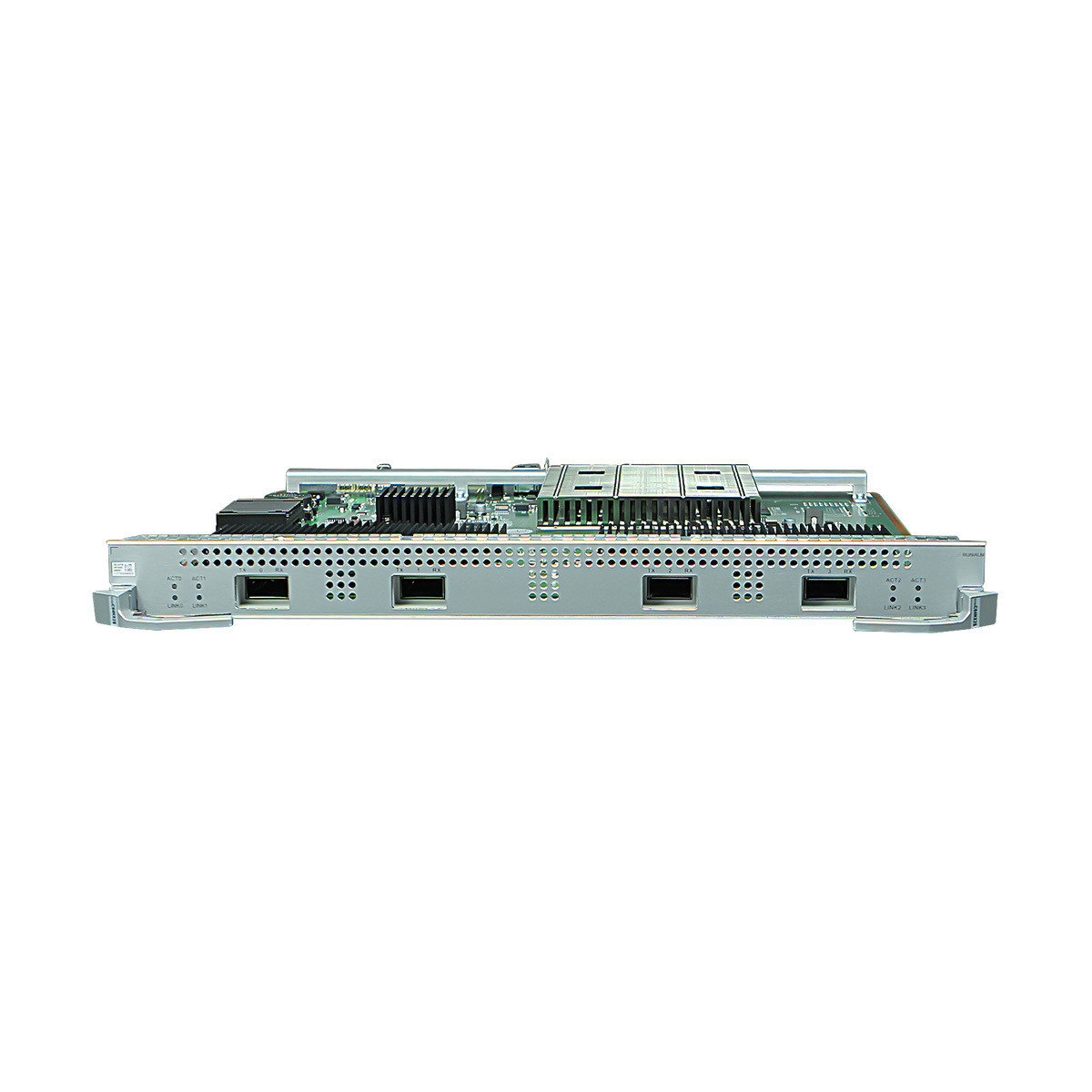

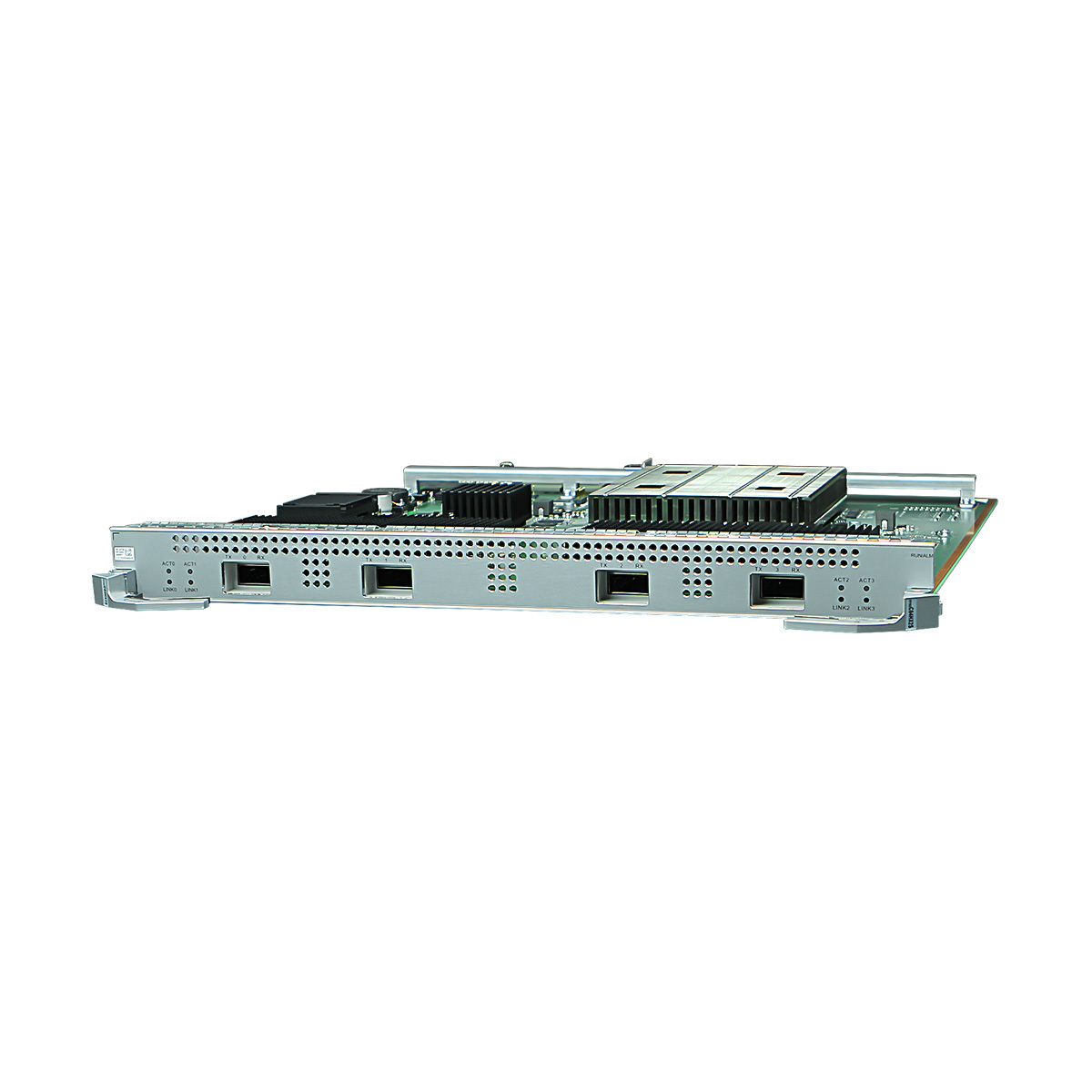

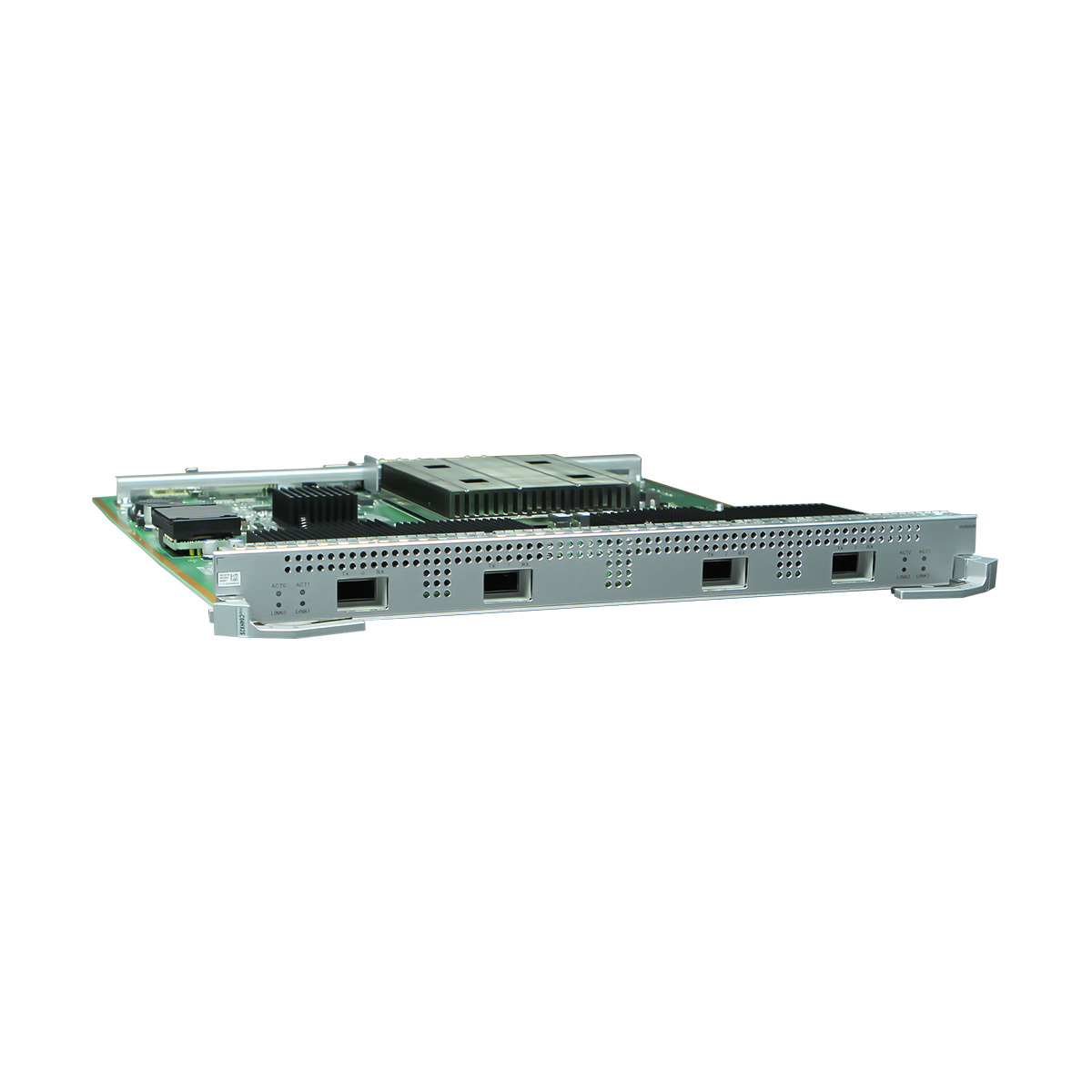

Provides four 100GE optical ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
Supported

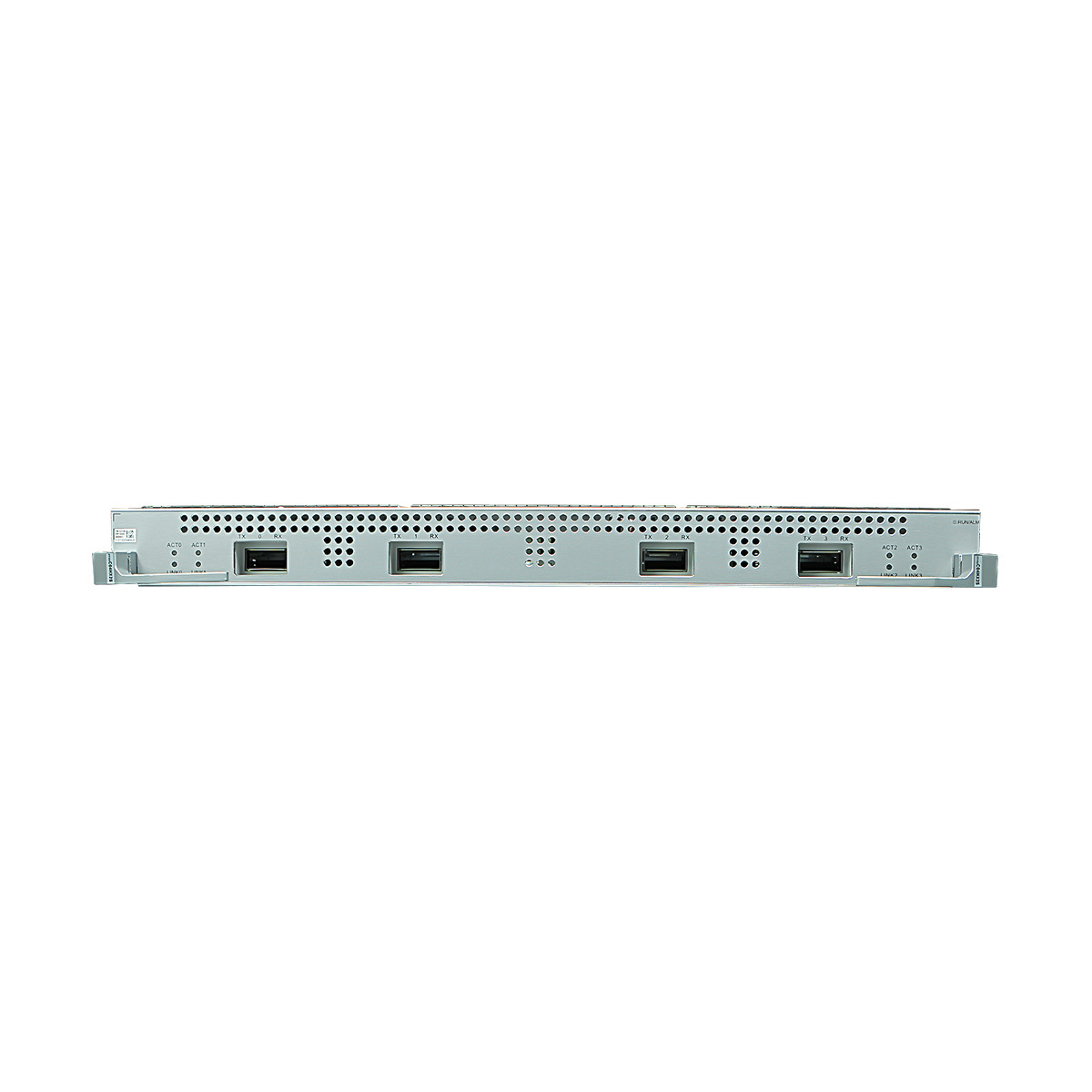

Ports on th ET1D2C04HX2S
Attribute
Description
Connector type
QSFP28
Optical port attributes
Depend on the QSFP28 - QSFP28 high-speed cable (1 m, 3 m, 5 m), QSFP+ - QSFP+ high-speed cable (1 m, 3 m, 5 m), 40GE QSFP+ Optical Modules, 100GE QSFP28 Optical Modules or QSFP+ or QSFP28 AOC cable used.
Applicable cable
QSFP+ optical module and LC optical fiber
QSFP+ optical module and MPO optical fiber (MPO-MPO or MPO-4*DLC optical fiber)
QSFP+ high-speed copper cable
QSFP+ AOC cable
QSFP28 optical module and LC optical fiber
QSFP28 optical module and MPO optical fiber (MPO-MPO)
QSFP28 high-speed copper cable
QSFP28 AOC cable
Specifications of the ET1D2C04HX2S
Item
Description
Physical specifications
Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight: 3.05 kg (6.72 lb)
Maximum power consumption: 154.7 W
Environment specifications
Operating temperature: 0°C to 45°C (32°F to 113°F)
Operating relative humidity: 5% RH to 95% RH (noncondensing)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Storage relative humidity: 5% RH to 95% RH (noncondensing)
ET1D2C04HX2S FAQ
Q1: Which switches is this service board compatible with? Does it support hot-swapping?
A1: Dedicated compatibility with the entire Huawei S9300 series (S9303/S9306/S9310/S9312 and E series); supports hot-swapping, allowing online installation/replacement without interrupting device operation.
Q2: What are the core performance parameters? What are its advantages compared to the Gigabit service board?
A2: Four 10 Gigabit optical ports (SFP+), single-port speed 10Gbps; advantages include a 10x speed increase, high-density ports, support for dual-stack and link aggregation, suitable for high-bandwidth scenarios.
Q3: What functions does it support? Does it require a specific optical module?
A3: Supports IPv4/IPv6 dual-stack, link aggregation (LACP), and QoS; compatible with Huawei standard SFP+ 10 Gigabit optical modules, with the appropriate module selected based on transmission distance.
Q4: How do I determine if this 10 Gigabit service board needs to be deployed? Is installation complex?
A4: This deployment is recommended when enterprises need 10 Gigabit server access, core network speed-up, and branch uplink capacity expansion. No professional tools are required for installation; simply insert the S9300 into the corresponding slot for automatic recognition and plug-and-play functionality.
