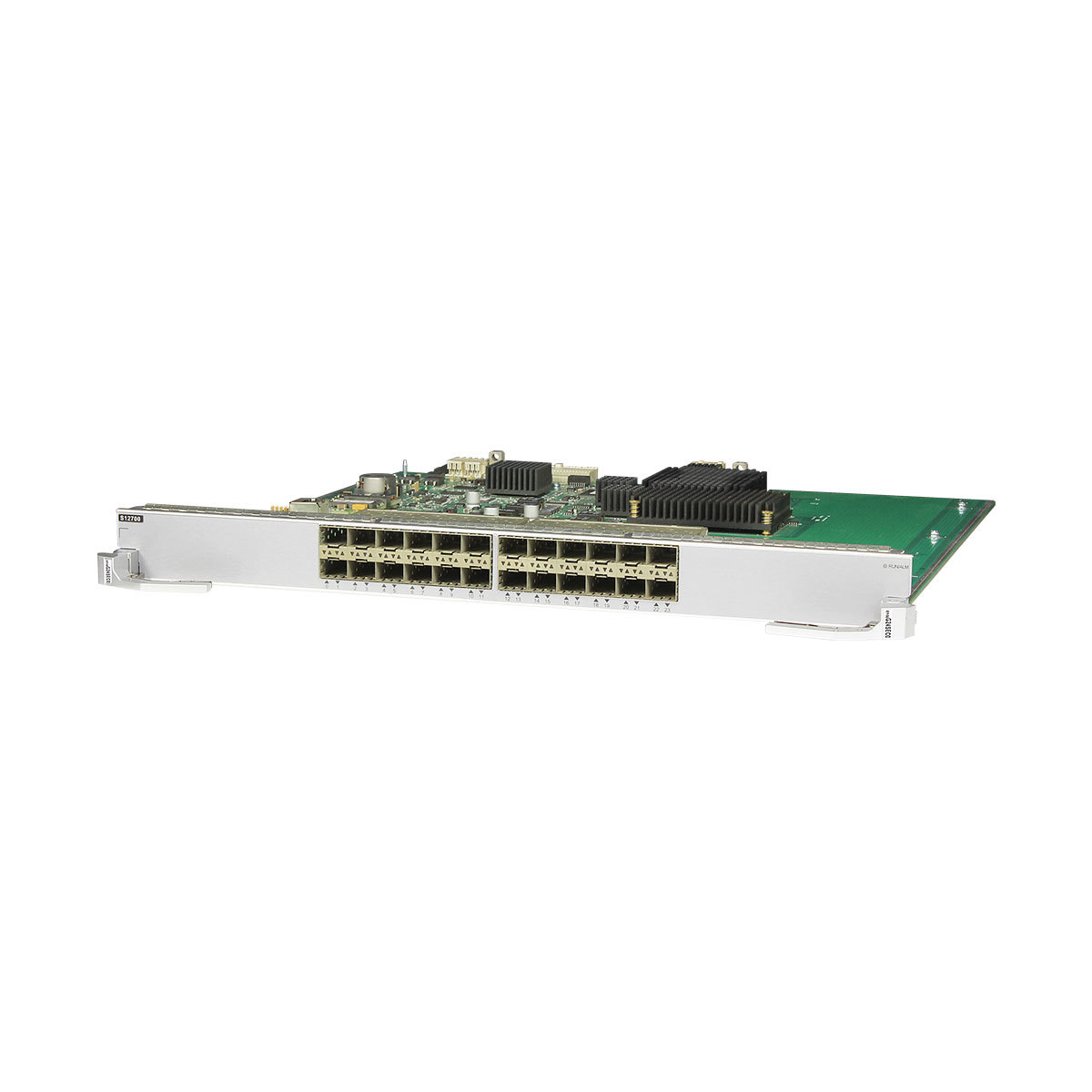

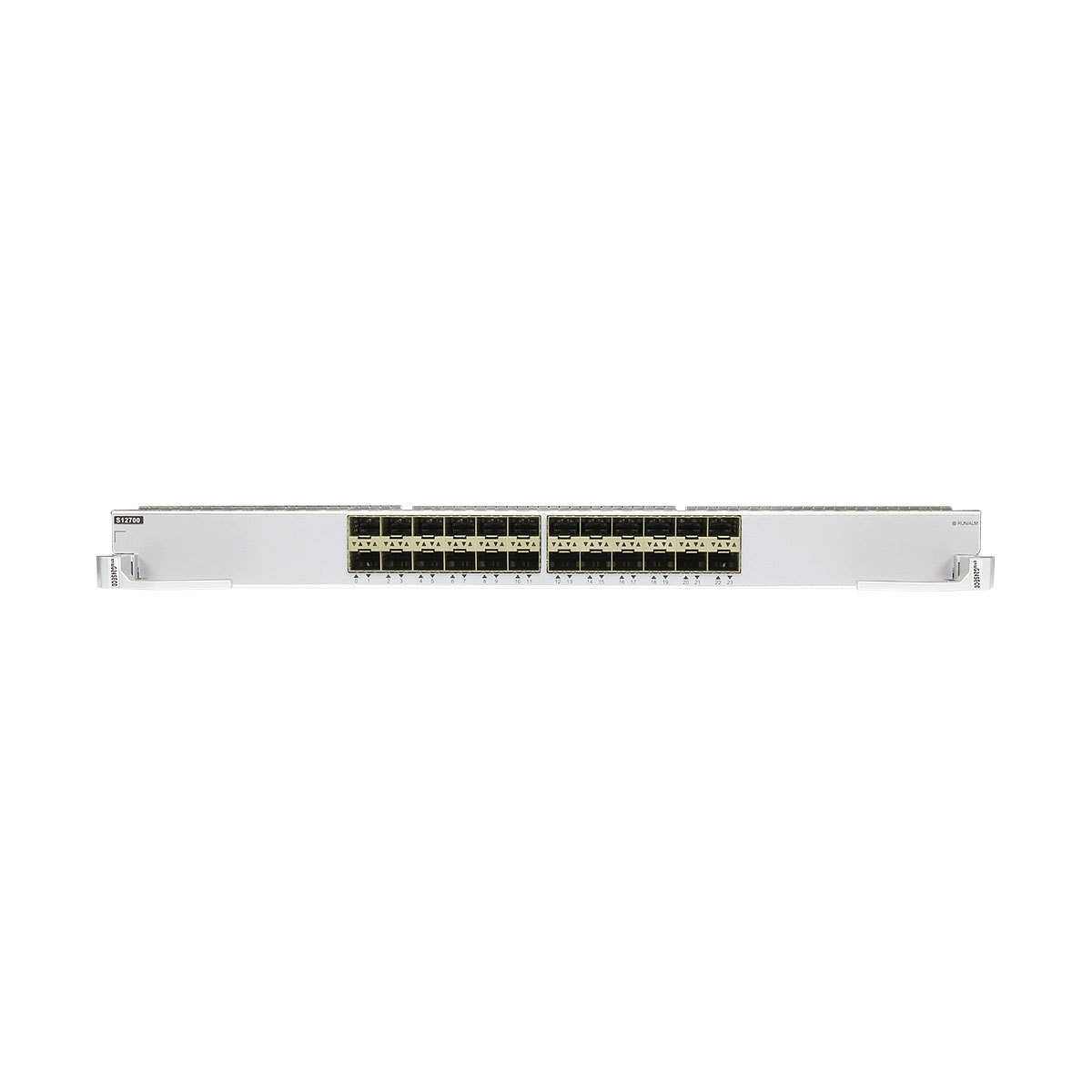

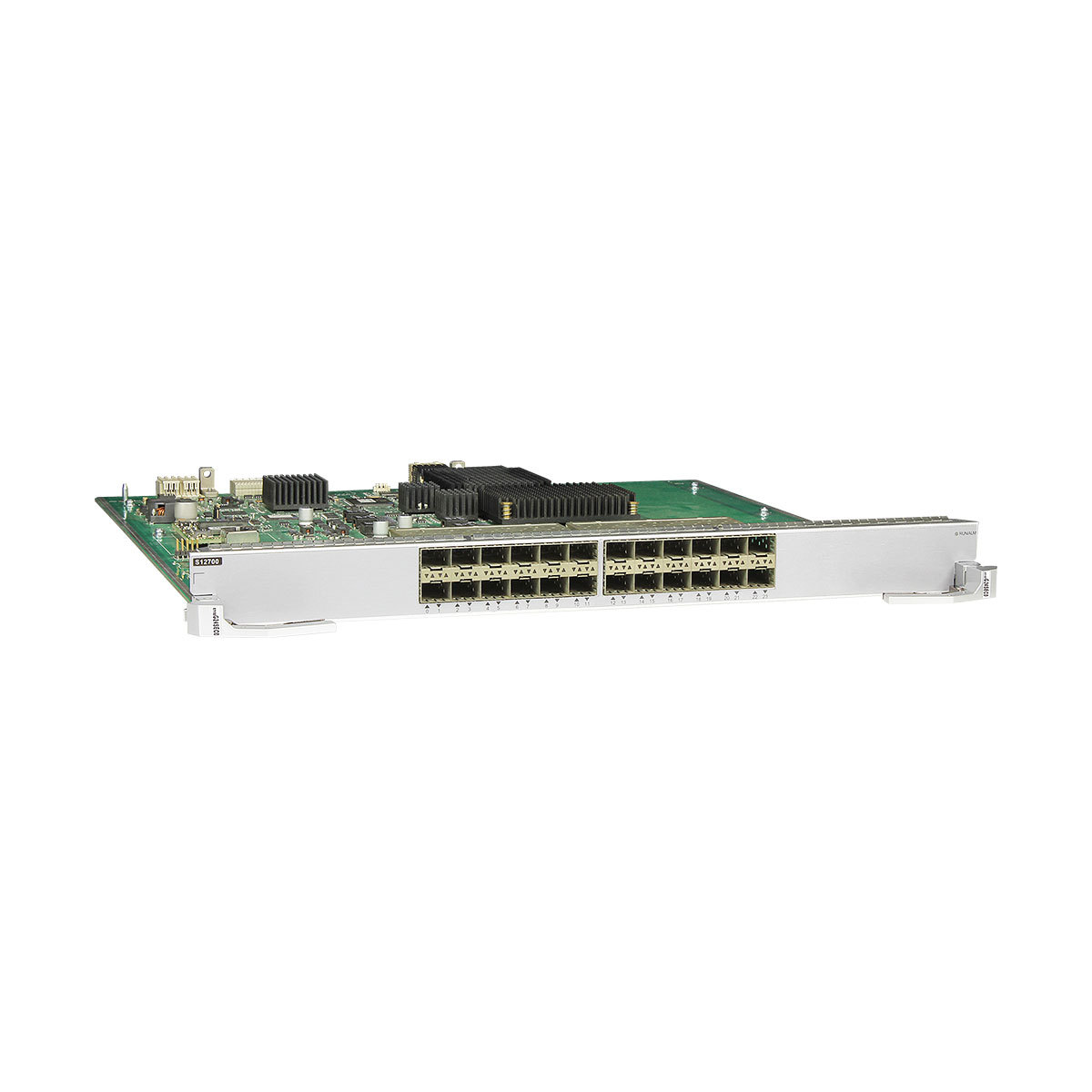

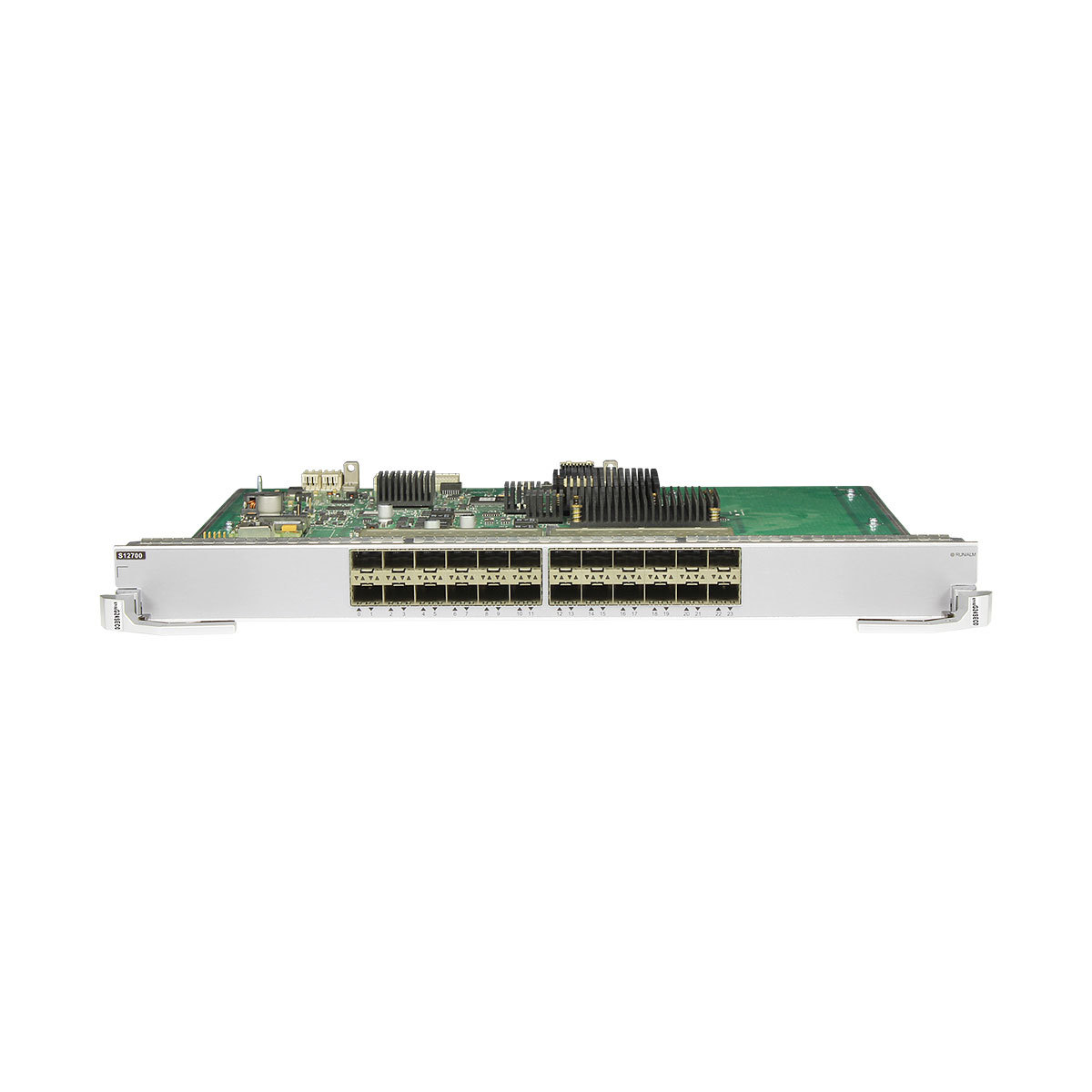

Provides twenty-four GE optical ports for data transmission and line-rate switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
The ET1D2G24SEC0 is hot swappable.
Ports on the ET1D2G24SEC0
100/1000BASE-X optical port attributes (GE optical module)
Attribute
Description
Connector type
SFP
Optical port attributes
Depend on the SFP optical module used.
For details about optical modules supported by the ET1D2G24SEC0 and their attributes, see FE SFP/eSFP Optical Modules, GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE 802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Optical port attributes (copper module)
Attribute
Description
Connector type
SFP
Optical port attributes
Depend on the SFP copper module used.
For details on the copper modules supported by the cards and attributes of the copper modules, see GE SFP Copper Modules (10 Mbit/s, 100 Mbit/s and 1000 Mbit/s rates).
Standards compliance
IEEE 802.3ab
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Technical specifications of the ET1D2G24SEC0
Item
Description
Physical specifications
Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 i. x 1.4 in.)
Weight: 2.66 kg (5.86 lb)
Maximum power consumption: 63 W
Environment specifications
Operating temperature: 0°C to 45°C (32°F to 113°F)
Operating relative humidity: 5% RH to 95% RH (noncondensing)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Storage relative humidity: 5% RH to 95% RH (noncondensing)
ET1D2G24SEC0 FAQ
Q1: What are the core functions of this service board? How does it balance optoelectronic hybrid and enhanced high concurrency?
A1: It includes 24 10GE optoelectronic hybrid ports (SFP+/RJ45), supporting 10G/1G dual-rate, enhanced high-concurrency forwarding (≥8500PPS); adaptable to mixed terminals, with low latency ≤0.6ms and low power consumption ≤112W, suitable for small to medium-sized high-load scenarios.
Q2: What are the core advantages compared to a regular 24-port optoelectronic hybrid board?
A2: The advantages are enhanced high concurrency (no peak bottleneck), intelligent resource scheduling, and green low power consumption, simultaneously addressing the three major pain points of insufficient concurrency, rate imbalance, and excessive power consumption in mixed scenarios.
Q3: Does it require specific optical modules/network cables? Which core protocols does it support?
A3: Compatible with Huawei standard SFP+ optical modules and Cat6a/Cat7 network cables; supports IPv4/IPv6 dual-stack, LACP, and VRRP, meeting the high reliability requirements of the access layer.
Q4: How to determine if this service board needs to be deployed? Is the installation complex?
A4: Deployment is recommended for small to medium-sized networks requiring 15-24 mixed-interface terminals and high-load scenarios; supports hot-swapping, installation requires no professional tools, ports automatically identify optical/electrical modes and speeds, plug and play.
